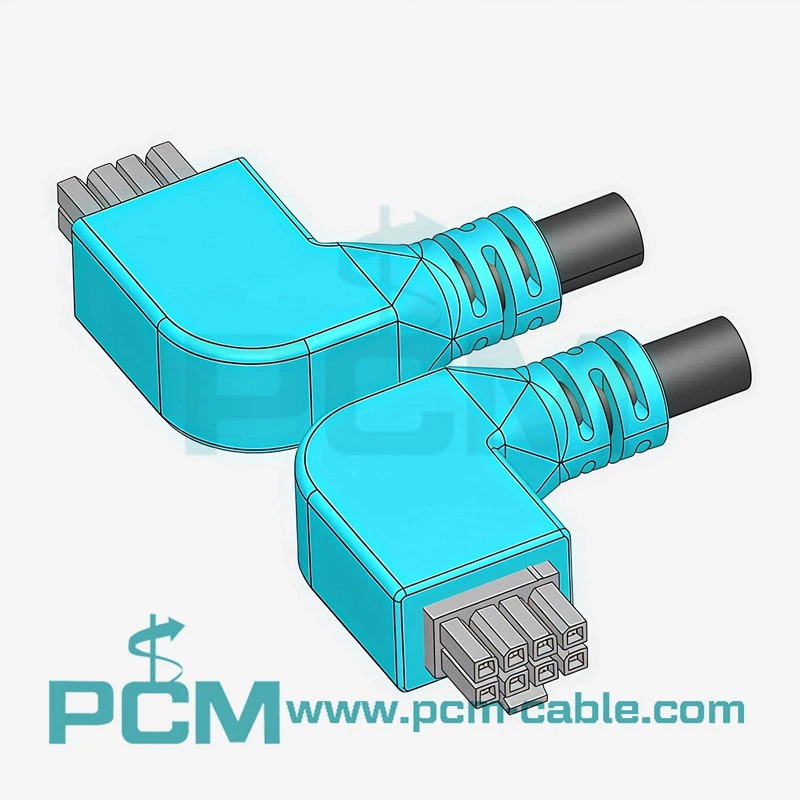

8-pin high current Mega-Fit 90 degree cable assembly

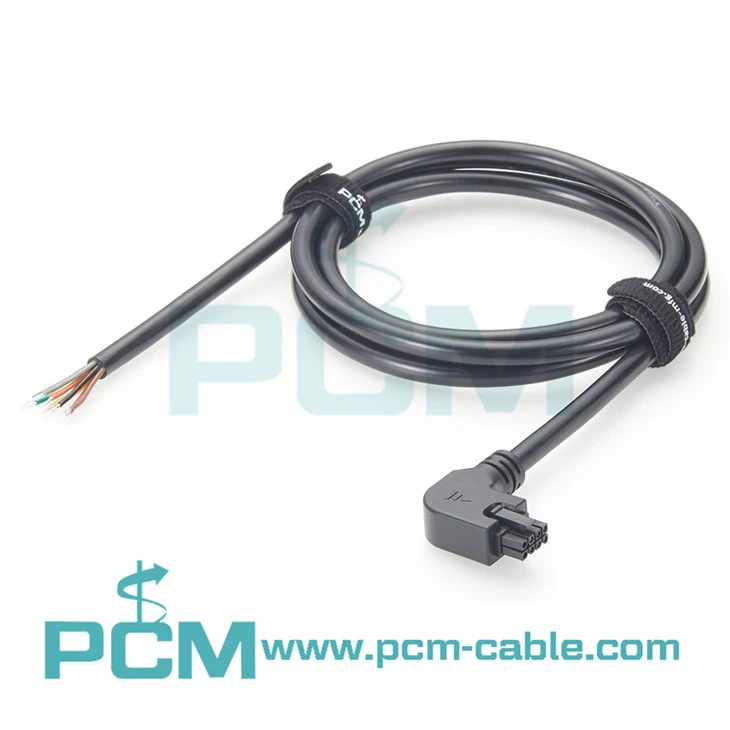

Left Angle 8 Pin Micro-Fit Molex Cable Harness OTS Power Cable Assembly
90° Right Left Angle 8-Pin Micro-Fit, Mini-Fit, & Mega-Fit Cable Assemblies
PCM Cable Co., Ltd. is one of the leading 90° right left angle 8-pin micro-fit, mini-fit, & mega-fit cable assemblies manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Our 90° Right Angle and Left Angle 8-Pin Cable Assemblies are engineered for advanced cable routing in compact and direction-sensitive installations. These assemblies are compatible with Mini-Fit, Micro-Fit, and Mega-Fit connector systems, providing a versatile interconnect solution across signal, control, and power transmission applications.
With robust overmolded strain relief, a wide 18–30 AWG wire gauge range, and full OEM customization, these 8-pin right-angle and left-angle molded cable assemblies are built for long-term mechanical reliability and electrical performance.
Specifications
| Product Name | Right Left Angle Mini-Fit, Micro-Fit and Mega-Fit 8-pin Cable Assemblies |
| DWG No. | Right angle (PCM-HD-0216); Left angle (PCM-HD-0217) |
| Pin Count | 8 Pins / 8 Circuits |
| Angle Types | 90° Right Angle / 90° Left Angle |
| Wire Gauge | 18–30 AWG |
| Cable Type | Overmolded multi-core assembly |
| Jacket Material | PVC / TPE / UL-certified cable |
| Operating Temperature | −20°C to +85°C |
| Connector Orientation | Horizontal cable exit |
| Compliance | RoHS / REACH |
Core Advantages of the 90° Right & Left Angle Design
- True 90-degree exit for directional cable routing
- Right-angle and left-angle orientation for mirrored layouts
- Reduces rear clearance requirements behind the connector
- Prevents excessive cable bending and mechanical stress
- Ideal for tight enclosures, stacked PCBs, and low-profile housings
These design benefits significantly improve assembly efficiency and long-term cable durability.
Multi-Series Connector Compatibility
Our 8-pin angled cable assemblies support multiple Fit-series connector platforms:
- Micro-Fit (3.00mm pitch) – compact power and signal transmission
- Mini-Fit / Mini-Fit Jr. (4.20mm pitch) – medium power applications
- Mega-Fit (5.70mm pitch) – high-current power delivery systems
This cross-series capability allows a unified sourcing solution for engineering teams managing mixed connector architectures.
Factory Manufacturing Strength
As a professional custom cable assembly manufacturer, we control the entire production process in-house:
- Independent overmolding and tooling workshop
- Automated cutting, stripping and crimping lines
- 100% finished-product continuity testing
- Pull-force and insulation resistance inspection
- Prototype development and rapid sampling
- Stable mass production with export packaging support
This ensures consistent performance, controlled lead time, and scalable production for your 8-pin angled Micro-Fit, Mini-Fit & Mega-Fit cable assemblies.
