HSAutoLink II 12 Pin USB 3.0 Cable
PCM Cable Co., Ltd. is one of the leading hsautolink ii 12 pin usb 3.0 cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable PCM-ZC-0156 is an HSAutoLink II USB 3.0 Cable Assembly developed for modern vehicle electronics. Its 12-circuit architecture, Polarization A and 1.0m length combine USB high-speed connectivity with a compact automotive interconnect platform.
It is intended for infotainment head units, USB hubs, cockpit controllers, data-interface modules and automotive development equipment where conventional consumer USB connectivity may not provide the desired automotive integration.
Core Advantages & Stable Connection
PCM-ZC-0156 is a USB 3.0 to HSAutoLink II automotive cable designed for reliable high-speed data and signal connectivity. Its controlled differential structure supports stable USB 3.0 transmission while shielding helps reduce EMI/RFI interference from surrounding vehicle electronics. The 12-circuit HSAutoLink II connector features Polarization A keying and mechanical retention, helping prevent incorrect mating and accidental disconnection. This combination makes the cable suitable for infotainment systems, gateways, TCUs, HIL benches, and other automotive applications requiring consistent data transfer under vibration.
Manufacturing Workmanship & Installation Requirements
PCM-ZC-0156 is manufactured with controlled wire termination, differential-pair routing, shielding continuity, and precision connector assembly to maintain consistent electrical performance. The 1.0m OTS configuration reduces additional cable preparation during prototyping and system integration. During installation, technicians should verify the 12-circuit interface, Polarization A keying, and USB 3.0 pin assignment before mating. Proper bend clearance and cable retention are recommended to prevent excessive stress at the connector, making the assembly suitable for compact cockpit modules, test benches, and tightly arranged automotive electronics.
Extended Lifespan & Protective System
Designed for long-term automotive and industrial use, PCM-ZC-0156 combines a durable cable jacket with a mechanically retained HSAutoLink II interface to protect the connection during repeated operation. Proper strain relief helps reduce stress caused by vibration, cable movement, and installation loads, while the shielded construction supports stable signal performance in electrically noisy environments. When correctly routed and secured, the cable is suitable for repeated firmware flashing, vehicle diagnostics, HIL validation, data acquisition, and infotainment testing, providing a dependable USB 3.0 connection throughout extended development and service cycles.
Products Specification
| Product Type | USB 3.0 to Molex 12-Pin Cable |
| Drawing Number | PCM-ZC-0156-X |
| P1 Connector | USB 3.0 Type-A Male |
| P2 Connector | Molex 12-Pin Straight Male, A-Type |
| Molex Part Number | 111146-3080 |
| Cable Length | 1000 + 20 mm |
| P2 Connector Length | 39.6 + 0.2 mm |
| Cable Outer Diameter | 5.5 mm |
| Material of the outer surface | PVC |
| Outer Sheath Color | Black |

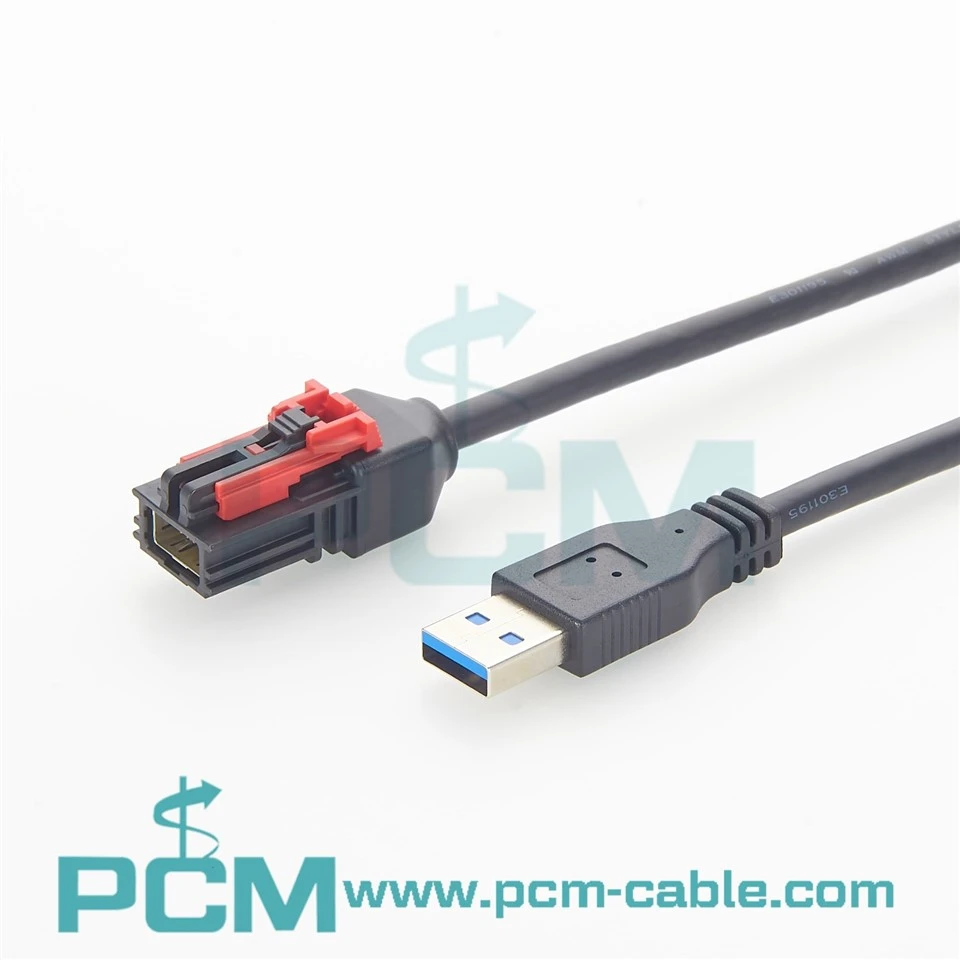

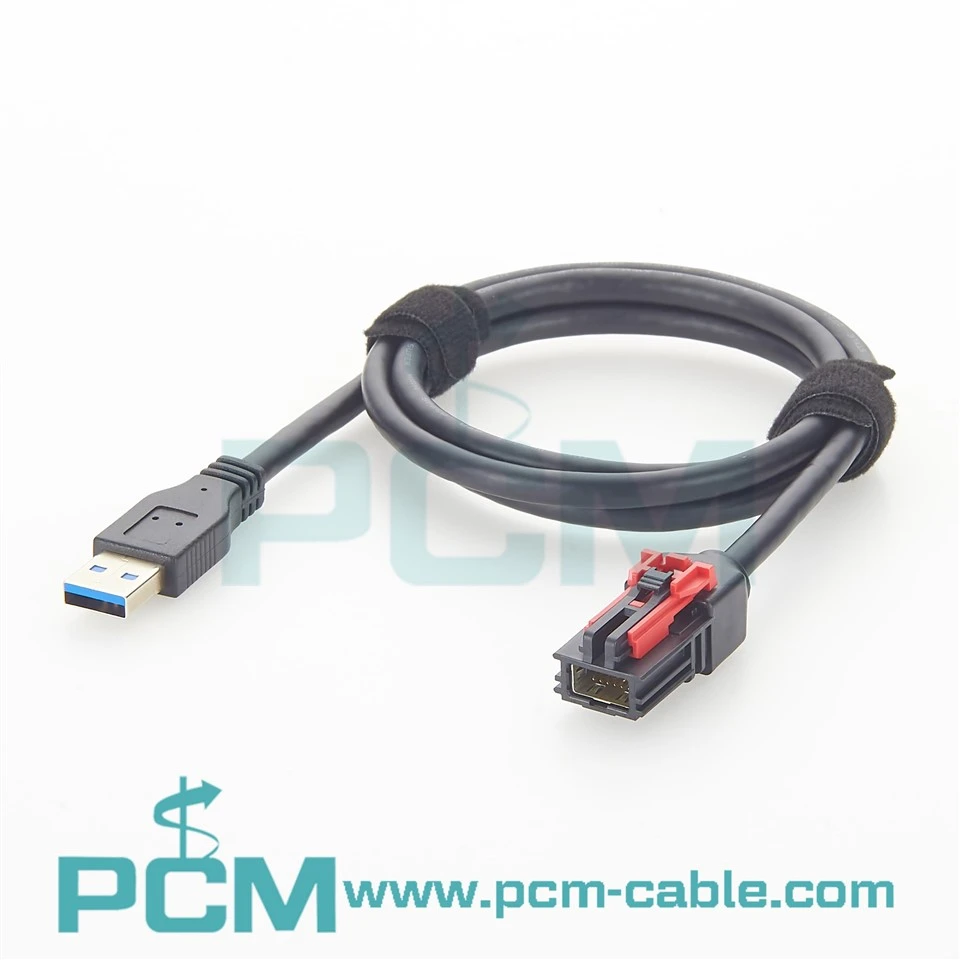

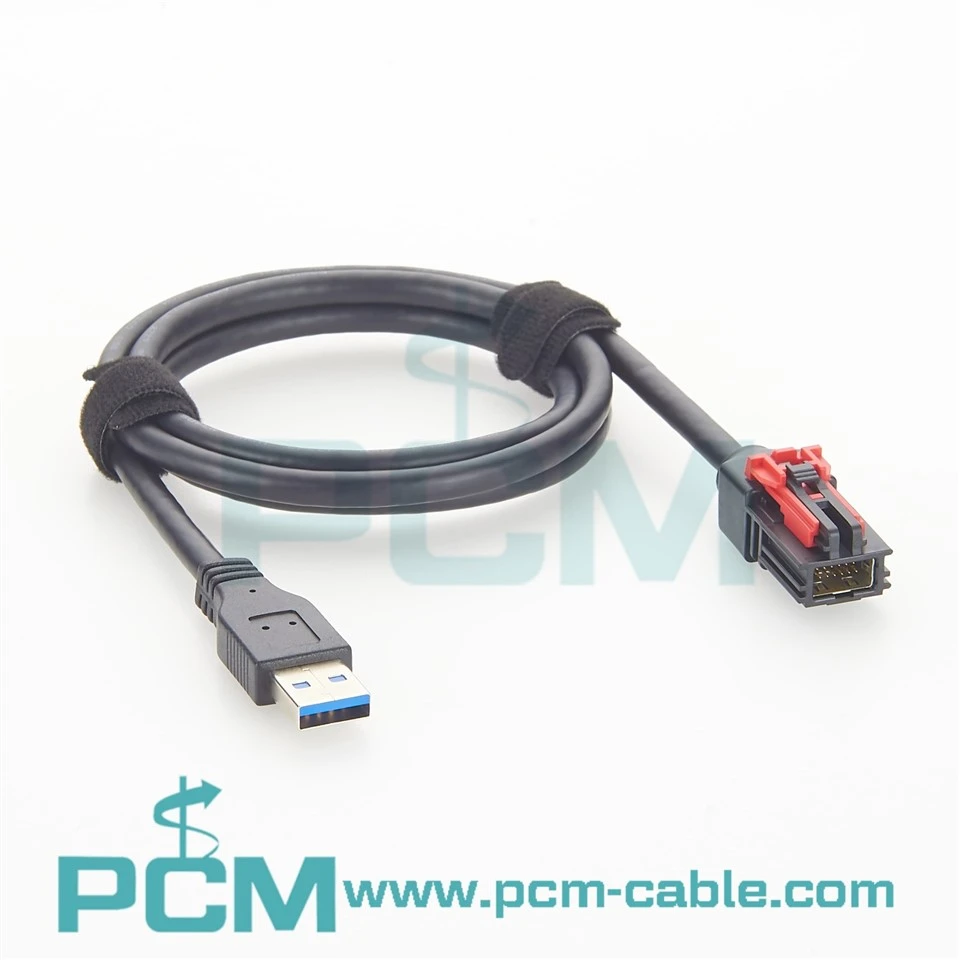

Products Display
Product Features
Cross-Bus Hybrid Architecture:
Configured with a standardized universal USB 3.0 Type-A male heading into a 12-circuit vehicular HSAutoLink plug.
12-Circuit High-Density Array:
Embeds a compact 12-pin terminal array within the automotive shroud, optimizing multi-stream concurrent routing.
Polarization A Keyed Enclosure:
The automotive housing deploys a standard Polarization A alignment tab, physically barring orientation mismatching.
1.0m Off-the-Shelf Footprint:
Built to a standardized 1.0-meter OTS specification, fully certified for rapid drop-in integration without lead times.
Core Application Scenarios
Infotainment R&D & HIL Testing
Designed for R&D validation of Head Units, smart gateways, TCUs, and cockpit domain controllers. It establishes a USB 3.0 high-speed link between HIL test benches and devices under test, supporting software debugging, data logging, interface validation, and extended automated test cycles.
Factory Firmware Flashing & Vehicle Diagnostics
Suitable for vehicle assembly lines, EOL stations, R&D centers, and service diagnostic platforms. The USB 3.0 link enables high-speed transfer of ECU firmware, infotainment software, navigation maps, and test data, while the locking HSAutoLink interface supports reliable repeated flashing and diagnostic operations.
Core Performance Advantages
5Gbps Cross-Protocol SuperSpeed:
Drives an advanced 5Gbps pipeline via USB 3.0 topology, pumping heavy telemetry files and diagnostic streams without lag.
High-Coverage Anti-Noise Mesh:
Wraps the core matrix behind a dense braid and aluminum foil, neutralizing stray EMI from IPCs and inverters.
Universal-to-Vehicular Bridging Synergy:
Dissolves the interface barrier between standard consumer hardware and car-grid controllers, streamlining laboratory validation.
Resonance-Proof Joint Retention:
The robust latching clip shrugs off low-frequency vehicle shaking and cabin vibration, preventing data packet corruption.
Frequently Asked Questions
Q1: How does this PCM-ZC-0156 cable internally map the USB 3.0 plug to the HSAutoLink 12-pin configuration? Is it passive or chip-powered?
A1: This cable assembly functions as a purely passive high-speed physical layer transition harness and does not contain an active protocol-conversion chipset. Following specialized automotive multimedia and R&D verification pinout maps, it routes the USB 3.0 SuperSpeed differential pairs (TX+/TX-, RX+/RX-), the USB 2.0 fallback lines (D+/D-), and the power/ground wires directly into the specified pin channels of the 12-circuit HSAutoLink plug, enabling lossless data transfer on target modules pre-wired for this exact hybrid pin profile.
Q2: Is the 1.0m configuration Ready to Ship? Do you support low-volume sample purchasing for our HIL test bench prototyping?
A2: Absolutely. As a staple entry in our newly engineered Off-the-Shelf (OTS) standard catalog, the 1.0-meter length is stocked at our factory floor and is marked fully as Ready to Ship. We highly encourage automotive Tier-1 engineering teams and smart cockpit R&D labs to procure low-volume sample runs to validate their HIL test benches and functional fixtures. Bulk wholesale orders will seamlessly unlock scaled source-factory volume discounts.
Products Drawing
