Up-Angle Down-Angle 8-Pin Micro-Fit Mini-Fit Mega-Fit Molded Cable Assemblies

PCM Cable Co., Ltd. is one of the leading up-angle down-angle 8-pin micro-fit mini-fit mega-fit molded cable assemblies manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.



Our 8-Pin Up-Angle and Down-Angle Molded Cable Assemblies are custom overmolded cable solutions compatible with Micro-Fit 3.0, Mini-Fit, and Mega-Fit series connector systems. Designed for reliable cable routing in tight vertical or depth-restricted installations, these 8-pin angled assemblies offer robust strain relief, repeatable termination quality, and flexible customization across wire gauges 18–30 AWG.





Product Name	Mini-Fit, Micro-Fit and Mega-Fit 8-pin UP/Down Side Power Harnesses for Tight-space Routing, High-current Delivery

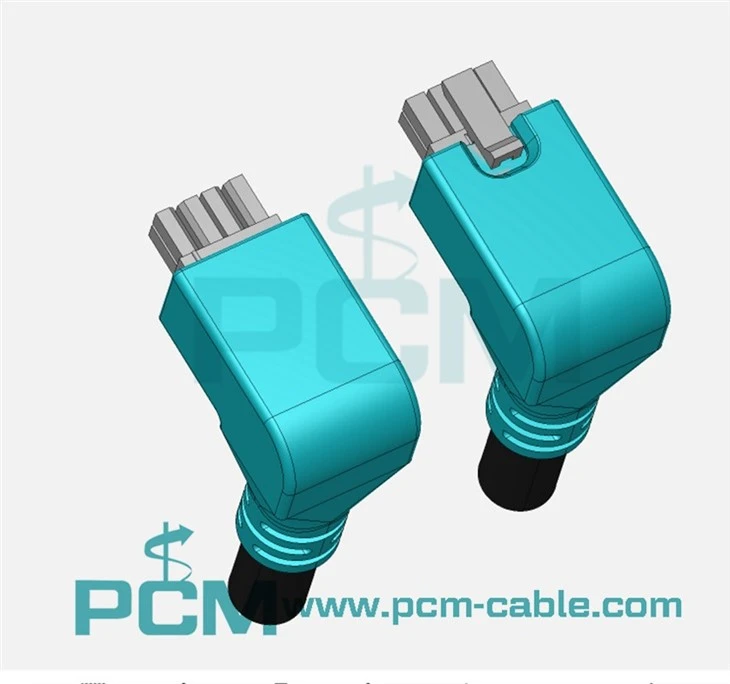

DWG No.	Up angle (PCM-HD-0218); Down angle (PCM-HD-0219)
Standard Configuration	8-Pin (8 circuits) - other pin counts available (2–24)
Connector Series	Micro-Fit / Mini-Fit / Mega-Fit (Molex-compatible)
Angle Options	Up-Angle (upward exit) / Down-Angle (downward exit)
Wire Gauge	18–30 AWG (select per assembly)
Cable Types	PVC / TPE / UL-rated multi-core options
Overmold	Injection molded strain relief
Operating Temp.	−20 °C to +85 °C (depends on cable material)
Compliance	RoHS / REACH (per request)



1. Up-Angle / Down-Angle Connector Options



• Available with upward or downward cable exits for simplified routing.
• Ideal for equipment with limited depth or vertical clearance.
• Supports multiple connector systems: Micro-Fit, Mini-Fit, Mega-Fit.



2. Precision Overmolding for Durability



• Injection-molded strain relief for superior mechanical stability.
• Withstands bending, vibration, and cable pull forces.
• Clean, integrated appearance suitable for industrial-grade applications.



3. Fully Customizable Cable Assemblies



We provide complete customization, including:



• Connector type (Micro-Fit / Mini-Fit / Mega-Fit)
• Pin count (4-8 circuits)
• Up-angle or down-angle direction
• Cable length (from 100 mm to several meters)
• Wire gauge (18–30AWG)
• Overmold color (black / gray / custom)
• Pin assignment & wiring layout
• Labeling, marking, and OEM branding



4. Compatibility With Multiple Fit-Series Connectors



Our angled molded solutions are compatible with:



• Micro-Fit 3.0 (3.00mm pitch) - compact power/signal
• Mini-Fit / Mini-Fit Jr. (4.20mm pitch) - higher current applications
• Mega-Fit (5.70mm pitch) - high-power connection systems



This provides a unified solution for projects requiring different connector families.







• Compact embedded systems and control panels
• Industrial automation & robotics
• Power distribution and battery management modules
• Medical devices and instrumentation
• Automotive electronics and charging systems
• Consumer electronics and handheld devices





• Engineered for space-constrained designs: 8-pin angled exits reduce required clearance behind connectors.
• One supplier for multiple fit families: streamline BOMs by sourcing Micro-Fit, Mini-Fit, and Mega-Fit angled assemblies from a single factory.
• High consistency from factory production: in-house overmolding and automated crimp/assembly lines reduce variation and shorten lead times.
• Design support: engineering assistance for pin-out design, mechanical clearance, and prototype iterations.





• In-house overmolding and tooling - rapid sample tooling and consistent production quality.
• Automated and manual crimp lines - supports precision crimping across 18–30 AWG.
• Comprehensive testing - 100% continuity, insulation resistance, and pull tests.
• Low to high volume production - flexible for prototypes, NPI runs, and mass production.
• Export packaging & logistics - experienced with international shipments and customer labeling.
