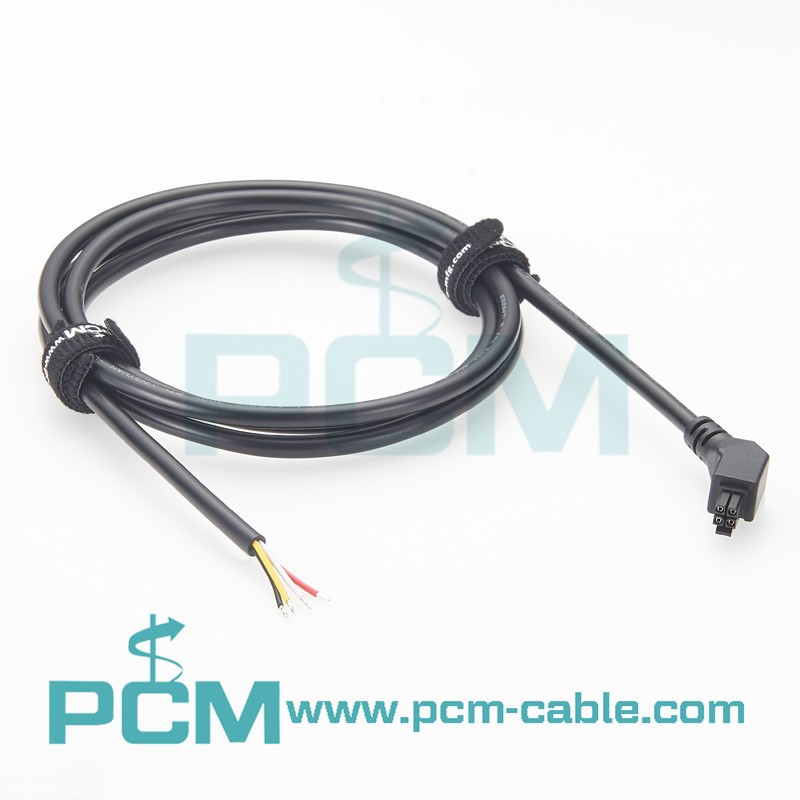

Molex Micro-Fit 3.0 4-Pin 45° Right Exit Power Signal Cable Assembly

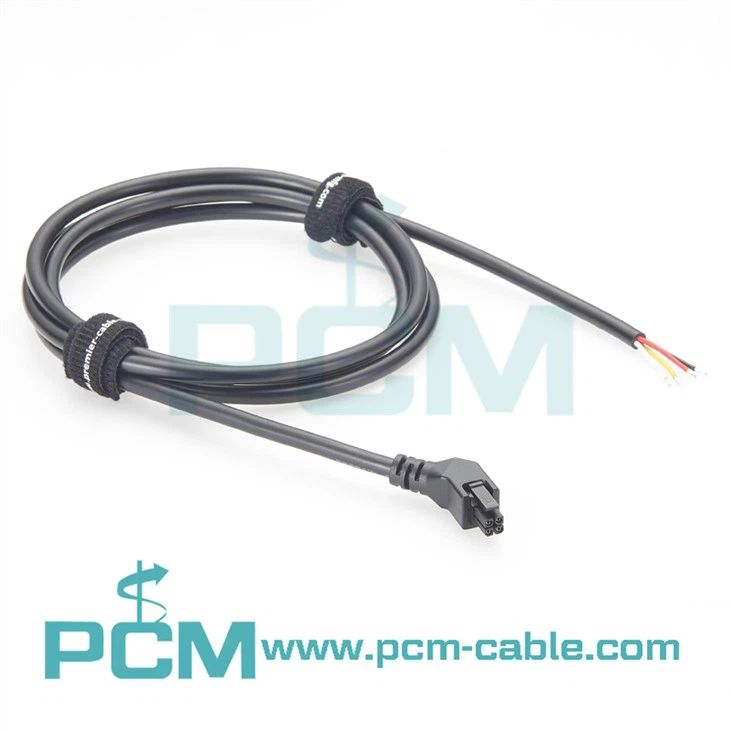

Molex Micro-Fit 3.0 dual-row, 4 circuits, cable assembly
4-Pin 45 Degree Molex Off-the-Shelf OTS Power And Signal Cable Assemblies Micro-Fit, Mini-Fit, And Mega-Fit
PCM Cable Co., Ltd. is one of the leading 4-pin 45 degree molex off-the-shelf ots power and signal cable assemblies micro-fit, mini-fit, and mega-fit manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

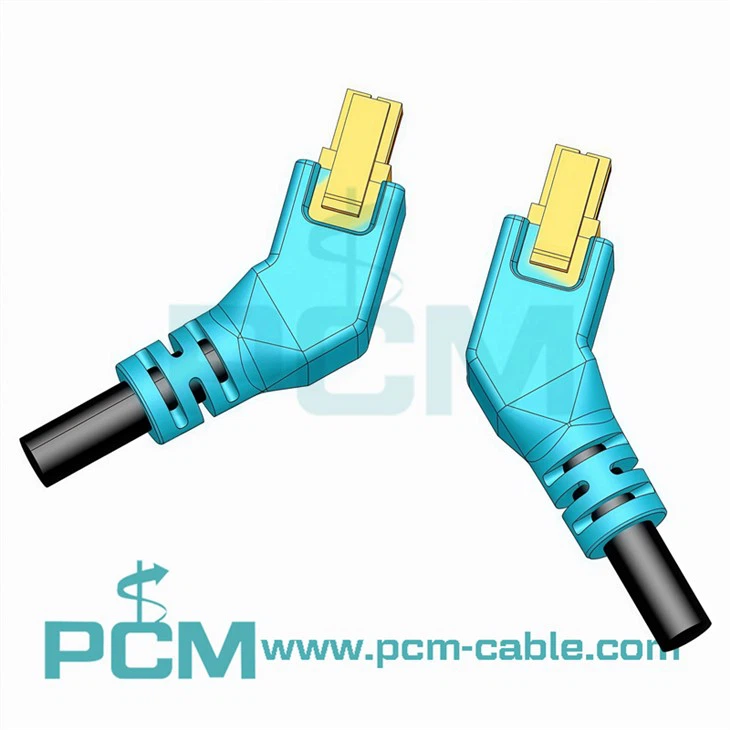

Our 4-pin 45-degree cable assemblies are designed for applications requiring compact routing and directional cable exit. Available in Micro-Fit, Mini-Fit, and Mega-Fit interfaces, these harnesses support 45°, up, down, left, or right orientations-ideal for equipment where standard straight connectors cannot meet clearance requirements.
Engineered for both power and signal transmission, the assemblies offer stable mating, strong retention force, and reliable electrical performance for industrial, automotive, telecom, gaming, and embedded systems.
Specifications
| Product Name | Custom 45° 4-Pin Cable Assemblies for Micro-Fit, Mini-Fit & Mega-Fit Systems |
| DWG No. | 45° Right Exit (PCM-HD-0220); 45° Left Exit (PCM-HD-0221) |
| Pin Count | 4 Pins |
| Angle Types | 45° Angle |
| Wire Gauge | 18–30 AWG |
| Cable Type | Overmolded multi-core assembly |
| Jacket Material | PVC / TPE / UL-certified cable |
| Operating Temperature | −20°C to +85°C |
| Connector Orientation | Vertical cable exit |
| Compliance | RoHS / REACH |
Benefits / Why Choose This Product
- Reduces cable bending and stress concentration
- Optimized routing for tight-space installations
- Reliable power and signal transmission under vibration and thermal cycling
- Flexible integration across multiple connector series
Installation Tips
- Ensure proper mating according to connector series
- Avoid excessive force on angled exit to maintain strain relief
- Verify wire gauge and length match system requirements
