M23 Servo Motor Encoder Cables
M23 connection systems
Reliable Connectivity: Your Trusted Partner for M23 Cable Solutions
why choose us
We are a leading M23 cable manufacturer with a 20-year history of excellence in cable production. Located in Dongguan, China, our 9,000-square-meter facility is equipped with advanced manufacturing capabilities and staffed by a dedicated team of 350 workers. We specialize in M23 cable assemblies ranging from 6 to 19 pins, offering customizable lengths and robust durability capable of withstanding temperatures from -20°C to +80°C, ideal for diverse environments and applications. Our M23 connector with cables are IP67 rated and can be tailored with PVC or TPE jackets to meet specific requirements.
What are M23 servo motor encoder cables?
M23 servo motor encoder cables refer to cables used to connect servo motors, encoders, and decoders. They are commonly used in servo systems and motion control applications in industrial automation. The M23 connector is a circular connector with multiple pins and sockets that can be used to transmit power, control signals, and data signals.
Types of M23 servo motor encoder cables
According to the number of pins of the M23 connector
M23 servo motro encoder cables include 2 pin, 4 pin, 6 pin, 8 pin, 12 pin, 17 pin, 19 pin, etc. Each type of M23 connector has different uses in industrial applications, usually used to transmit power, control signals, data signals, etc. Choosing the right type of M23 connector depends on the specific application requirements.
M23 Receptacles & Panel Mount Connectors
M23 Receptacles & Panel Mount Connectors are usually installed on the housing or panel of the equipment as the electrical interface of the equipment, used to connect various sensors, servo motors, encoders, decoders and other devices. M23 Receptacles can be with or without leads, the cable length can be customized, and the termination is welded or crimped.

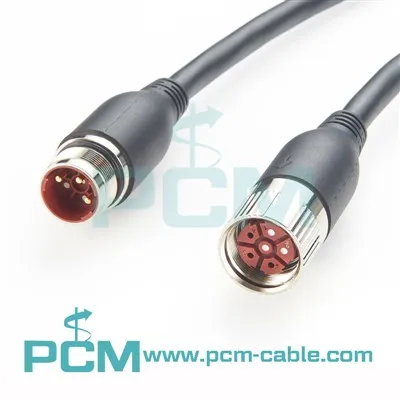

M23 Right Angle Cable & Straight Cable
Providing a rugged plug-and-play solution for demanding industrial applications, Premier Cable offers a 90-degree elbow design or a 180-degree straight design, which optimizes space utilization and ensures long-term stable operation in demanding environments.
M23 T-connectors
The design of M23 T-connectors allows one M23 connector to be divided into two branches so that multiple devices or sensors can be connected at the same time. This M23 splitter connector optimizes the wiring structure of the equipment, improves the maintainability and overall efficiency of the system, and is suitable for industrial automation and mechanical equipment environments that require high reliability and durability.

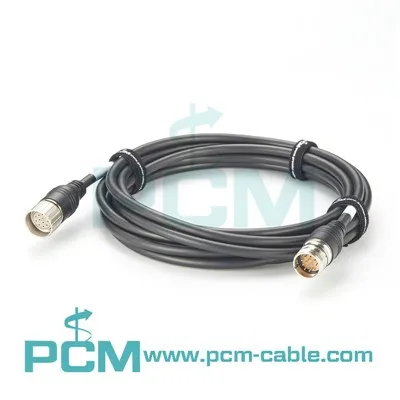

M23 Extension Cable
M23 Extension Cable is used to extend the distance of M23 connectors between devices. These extension cables are usually made of high-quality materials, can operate stably in harsh environments, provide reliable electrical connections, help optimize wiring and simplify equipment installation and maintenance processes.
M23 External Thread & Internal Thread
M23 connectors can provide internal or external thread options according to customer needs. Internal threads are suitable for installation on equipment housings or panels, while external threads are suitable for connecting external accessories or extension cables. This flexibility enables M23 cables to meet the wiring and connection requirements of different industrial applications.
Advantages of M23 cable
Rugged, shock and vibration resistant
M23 sensor cables are designed to withstand physical pressure and vibration in industrial environments, ensuring long-term stable operation.
Signal/power hybrid
M23 cable supports the transmission of signals and power in the same connector, simplifying wiring and saving space.
Rugged overmolding with anti-tampering function
Ensures safe and reliable connection, preventing accidental movement or damage.
Excellent EMC characteristics
The M23 signal cable can effectively suppress electromagnetic interference and ensure stable signal transmission.
Standard IP67 protection level
M23 actuator cables are suitable for industrial environments, with excellent dust and water resistance.
Compatible with traditional mating surfaces
Compatible with existing equipment and accessories, easy on-site installation and replacement, reducing downtime.
Application of m23 cable
M23 cables are widely used in many fields such as industrial automation, mechanical equipment, robotics, process control, and sensor and actuator connections. In industrial automation, it is used to connect various sensors and actuators to achieve data acquisition and control; in mechanical equipment, it is used for signal and power transmission of motors and drives; in robotics, it is used to connect key control and feedback signals; in process control, it is used to monitor and adjust process parameters; in sensor and actuator connections, it provides stable electrical connections and signal transmission to ensure efficient operation of equipment and reliability of the system. Through its durability, flexibility and diverse customization options, M23 cables meet the diverse requirements of different industries and application fields for complex electrical connection needs.
Application of M23 cable in Fieldbus Interbus I/O Module
M23 6 pin 7 pin connector is used in the Interbus I/O module to provide power from the Interbus I/O module to downstream devices while ensuring stable data communication. This design simplifies the wiring structure, improves the reliability and efficiency of the system, and is particularly suitable for industrial environments with strict requirements on power supply and data transmission.
Application of M23 cable in DeviceNet
M23 cable plays a key role in the DeviceNet communication protocol and is used to connect various devices and sensors to the DeviceNet network. DeviceNet is an industrial communication protocol based on the CAN bus and is widely used in industrial automation. These M23 cables support stable data transmission and efficient control of equipment through their reliable electrical connections and durability. In the face of challenges in industrial environments such as high vibration, high temperature, and humidity, M23 cables ensure reliable operation of the system under complex conditions through their design adaptability and wiring optimization, thereby improving the efficiency and safety of the production line.
