HSD 4+2 Extension Cable 6 Pin Automotive Wire

PCM Cable Co., Ltd. is one of the leading hsd 4+2 extension cable 6 pin automotive wire manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

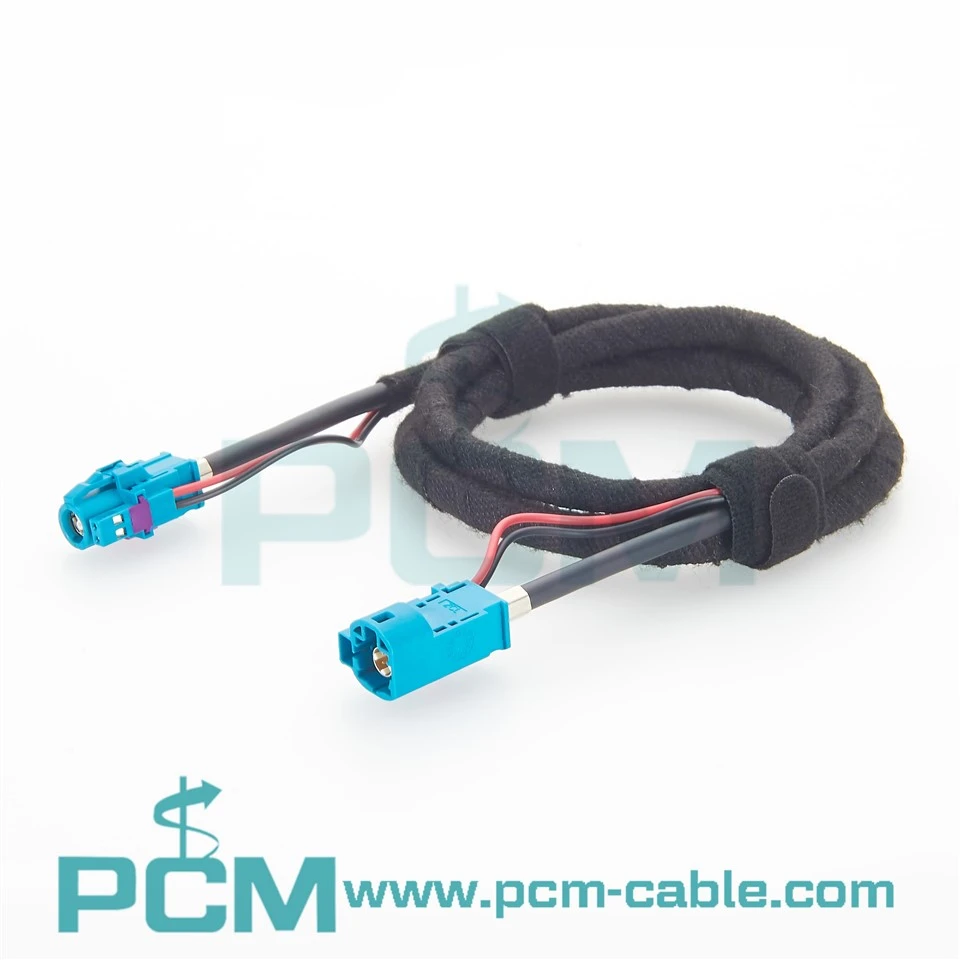

Premier Cable PCM-ZC-0159 is an HSD 4+2 Extension Cable developed for automotive electronics retrofits, module relocation and system expansion.

It extends the existing HSD connection path between vehicle modules and harnesses, allowing cameras, displays, infotainment head units, navigation devices and controllers to be repositioned without completely redesigning the original cable routing.



HSD 4+2 is more than a conventional six-conductor automotive connector. The architecture combines an HSD high-speed data interface with two additional contacts. Amphenol identifies its HSD 4+2 implementation as 4 Pin + 2 MQS Pin.



This configuration allows the existing 4+2 connection architecture to be extended through one integrated cable assembly.

As a highly trustworthy HSD 4+2 automotive high-speed connection line tuned to zero-compromise signal integrity, the core technological advantage of the PCM-ZC-0159 centers on locking an unyielding digital pipeline inside long-distance high-noise networks. With advanced driver-assistance systems (ADAS) extending to the outer edges of heavy rigs, high-definition laser sensor and camera lines often require lengthy extension runs. This cable utilizes a matrix-balanced wire structure where the differential pairs are fine-tuned via computerized dielectric balancing, forcing 5Gbps maximum bandwidth and automotive Ethernet packets to stream with low clock jitter. Facing dense intra-cabin electrical noise from power electronic switching, it deploys a dual-layer aluminum foil overlay coupled with a dense tinned copper mesh shield to form a sealed Faraday envelope. Secured via its secondary mechanical spring latching clip, the terminal interface remains perfectly flush to defeat aggressive chassis vibrations and maintain a stable connection that freezes screen flickering.

01.

ADAS & Megapixel Exterior Camera Runs

Designed for ADAS and autonomous sensing systems, this HSD 4+2 extension cable extends the connection between megapixel cameras mounted around the front bumper, tailgate, side mirrors, or vehicle body and remotely located ADAS domain controllers, vision ECUs, or central computing platforms. It extends high-speed differential data and auxiliary circuits through one harness, making it suitable for 360° surround view, automated parking, blind-spot monitoring, lane recognition, and multi-camera fusion systems while reducing the need to redesign the complete vehicle harness.

02.

Commercial Bus & Fleet Multi-Display Routing

Suitable for extending compatible high-speed display and multimedia links inside buses, coaches, logistics trucks, RVs, and rail vehicles. The HSD 4+2 extension cable can bridge digital clusters, infotainment head units, navigation controllers, and remotely mounted passenger displays across larger vehicle interiors. It addresses insufficient factory harness length or relocated display installations without requiring complete backbone rewiring, making it practical for multi-screen information systems, rear-seat entertainment, digital dashboards, vehicle-status displays, and distributed multimedia architectures.

Q1: As an extension cable, will daisy-chaining it into my native HSD link cause secondary 5Gbps attenuation or impedance spikes?

A1: Conventional unshielded lines trigger impedance reflections due to termination discontinuities. Premier Cable's PCM-ZC-0159 eliminates this vulnerability by implementing micron-level terminal friction matching at the straight male-to-female boundaries. Concurrently, the line delivers a continuous 100-ohm (±5Ω) differential pair layout. Across standard lengths or custom runs, insertion loss and clock jitter are safely held within Tier-1 automotive codes, ensuring smooth telemetry mid-pointing with zero data drops.

Q2: The core layout includes these "+2 pins". How long an extension run can this wire sustain for Power over Coax (PoC) or remote radar feeding?

A2: Our +2 power pins are custom-wired with low-DCR, high-cross-section automotive power copper cores. It fully supports standard Power over Coax (PoC) frameworks. Within universal vehicle extension lengths (e.g., 1.0m up to 5.0m runs), it safely sustains continuous load currents from 2A to 3A with minimal line voltage drop, specifically engineered to deliver ultra-stable power feeding to distant LiDAR grids and megapixel camera nodes.

Q3: Under heavy chassis shaking on commercial trucks or dynamic automated drag-chains, will the straight male-to-female joint slip apart?

A3: No, absolutely not. The automotive-grade HSD 4+2 male-to-female shells integrate a rigid secondary mechanical spring latching clip system. When the male and female terminals are fully pushed home, the structural shell wedges lock down into place with an audible snap. Without manually depressing the primary release tab, it withstands tens of Newtons (N) of direct axial pulling force, entirely absorbing mechanical stress from low-frequency vibrations to freeze accidental disconnects.
