8-Circuit Mini-Fit Jr. Overmolded Harness Bare Wire End
PCM Cable Co., Ltd. is one of the leading 8-circuit mini-fit jr. overmolded harness bare wire end manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

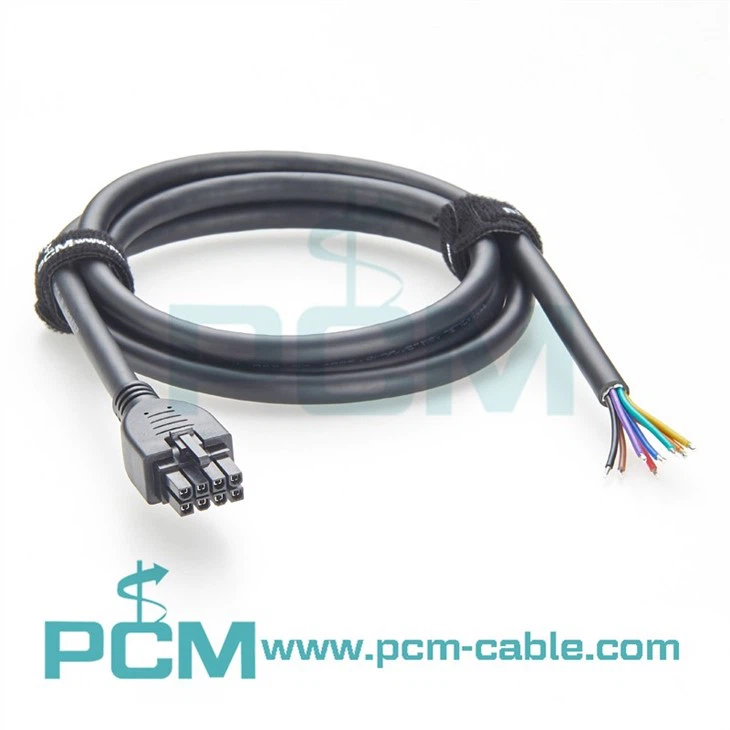

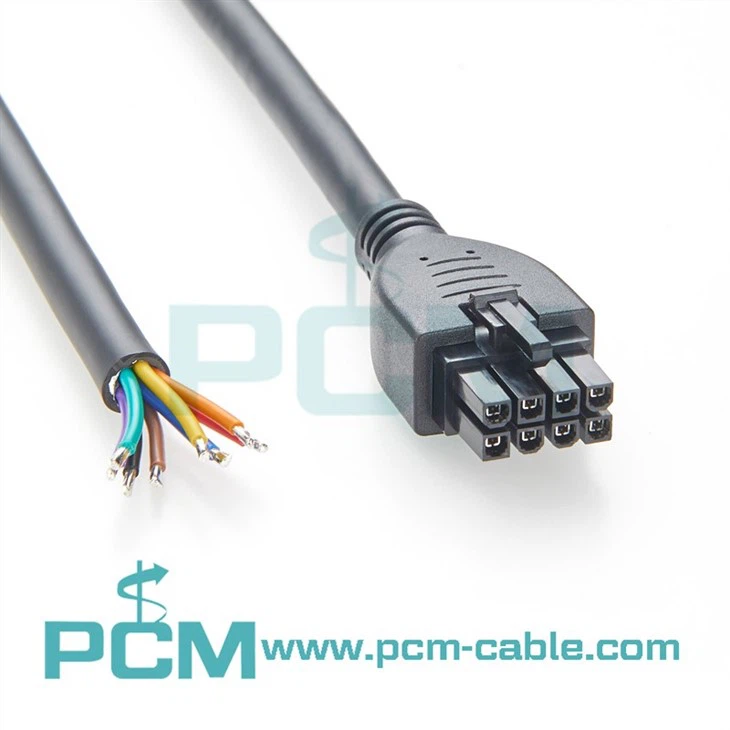

This Mini-Fit Jr. Overmolded Cable Assembly features a Molex 39-01-2080 dual-row, 8-circuit connector on one end and open-end bare wire on the other, providing maximum flexibility for DIY soldering, field termination, and OEM wiring integration. Designed with a 4.20mm pitch and UL 2464 18AWG wire, the assembly supports up to 6A per circuit and is rated for 300V AC. The overmolded strain-relief structure enhances durability, vibration resistance, and long-term reliability, making it ideal for power distribution, industrial automation, embedded equipment, and customized cable harness applications.
Specifications
| Product Name | Mini-Fit Jr. 8-Circuit Overmolded Cable Assembly | 39-01-2080 to Bare Wire |
| DWG No. | PCM-0882 |
| Equivalent to Molex Series | 245135 |
| Electrical Performance |
|
| Connector & Mechanical |
|
| Cable Construction |
|
| Application |
Power, Wire-to-Board, Wire-to-Wire
|
| Package | PE bags |
| Sample | Allowed |
| OEM | Support |
Why Choose This Assembly?
- Open-end bare wire gives maximum installation flexibility
- Overmolded Mini-Fit Jr. connector ensures long-term durability
- Reduces wiring errors with factory-terminated consistency
- Suitable for both power and signal delivery
- Compatible with standard Mini-Fit Jr. PC headers and housings
