Quad HFM Mini FAKRA Male Cable 150mm

PCM Cable Co., Ltd. is one of the leading quad hfm mini fakra male cable 150mm manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

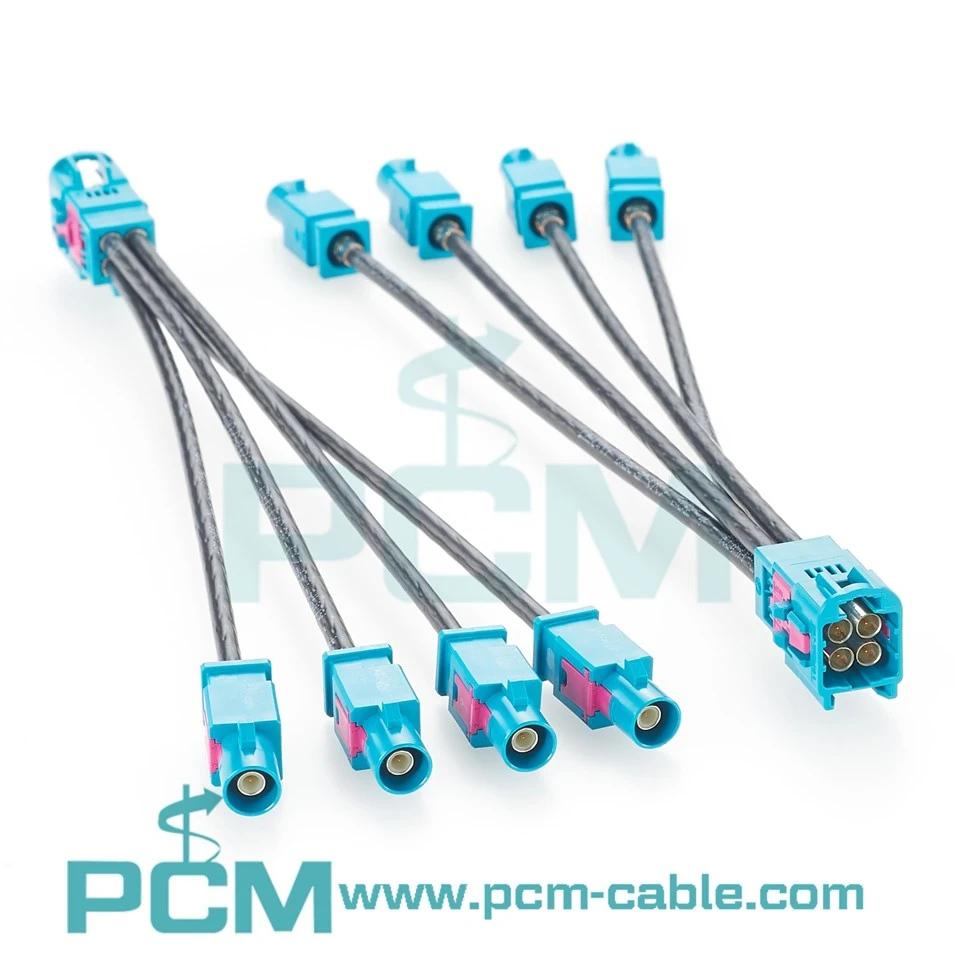

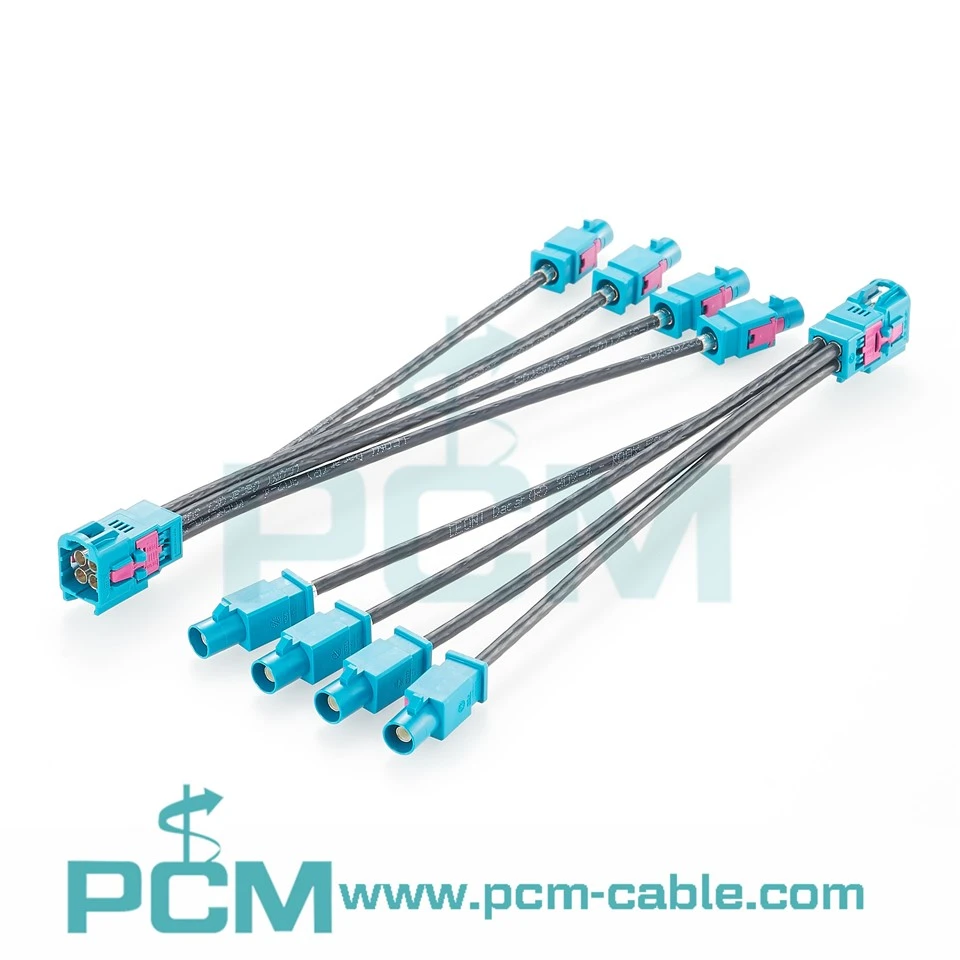

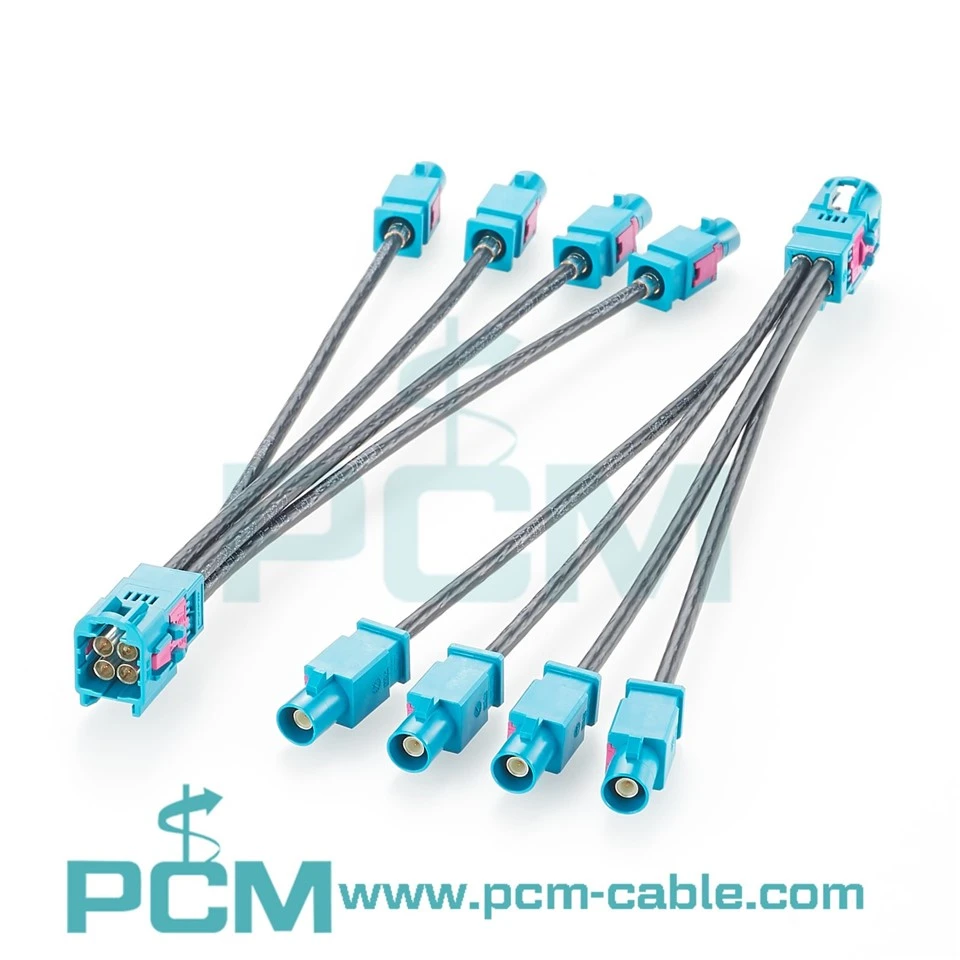

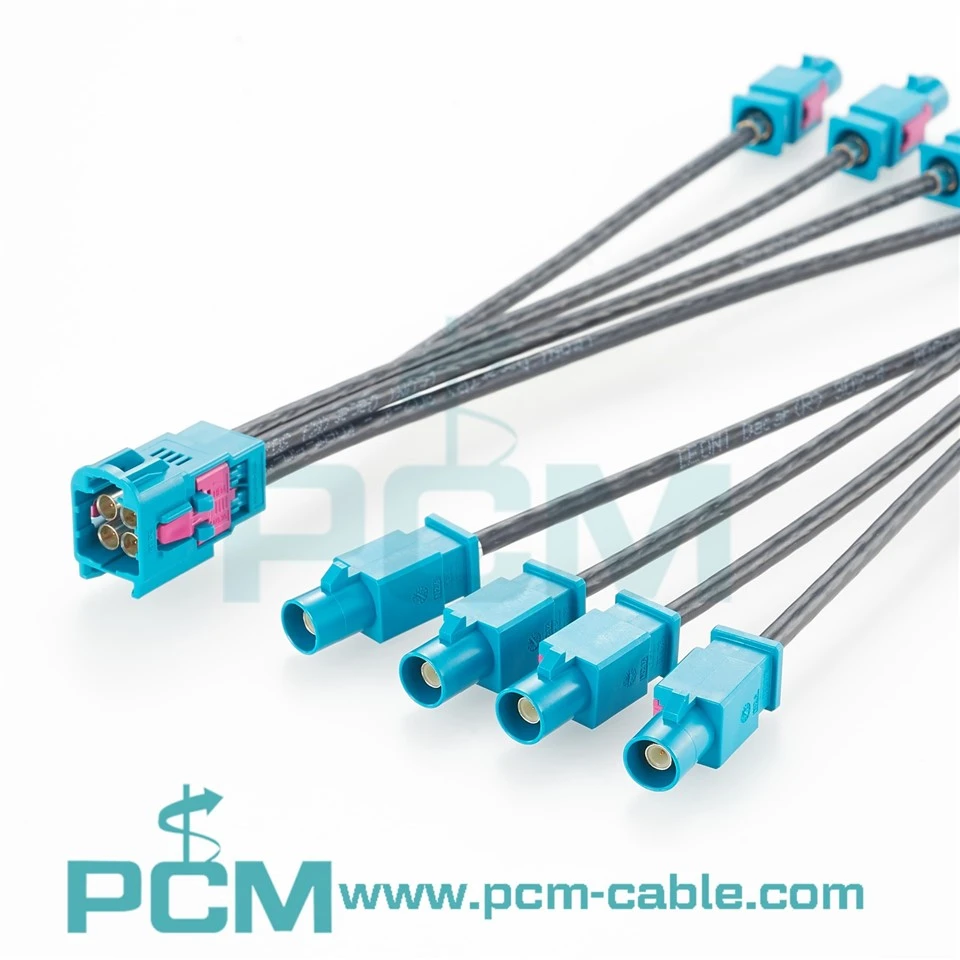

Premier Cable PCM-ZC-0176 uses a Rosenberger AMS11D-1M4Z5-Z four-port HFM plug as the consolidated main interface and routes four independent coaxial branches to four 59Z114-000-Z FAKRA plugs. Unlike the jack-to-jack PCM-ZC-0175, PCM-ZC-0176 is intended for systems requiring plug-style interfaces and can mate directly with corresponding female/jack device ports. The quad HFM interface increases controller-side connection density while maintaining established FAKRA connectivity on the device side.



PCM-ZC-0176 does not divide one camera or RF signal into four outputs. Instead, it maintains four independent 50Ω coaxial transmission paths, with each HFM cavity mapped to a dedicated FAKRA plug. The assembly uses LEONI DACAR 302-4 automotive coaxial cable and is specified for 50Ω nominal impedance, DC–3GHz operation and VSWR ≤1.80. Independent center conductors and shielding provide clearly separated physical channels for automotive camera, RF and high-speed coaxial applications.



Quad HFM Male Interface

A Rosenberger AMS11D-1M4Z5-Z quad HFM plug consolidates four independent 50Ω coaxial channels into one compact interface, reducing controller-side connector footprint.



Four FAKRA Male Branches

Four Rosenberger 59Z114-000-Z FAKRA plugs provide individually shielded branches for direct connection to compatible FAKRA female device interfaces.

DACAR 302-4 50Ω Coaxial Design

LEONI DACAR 302-4 automotive coaxial cable provides 50Ω nominal impedance, DC–3GHz operation and VSWR ≤1.80 for the current finished assembly.



Compact 150mm Interconnect

The 150±5mm short harness is optimized for nearby HPC, ECU, camera-controller and test-module connections while minimizing excess cable routing.

ADAS & Surround-View Camera Systems



Suitable for four-channel coaxial links between ADAS vision controllers, camera ECUs and front, side, rear or surround-view camera modules. The quad HFM plug consolidates camera channels at the controller side, while four independent FAKRA male interfaces maintain compatibility with established camera modules. HFM is designed for high-speed automotive applications including cameras and ADAS.

HPC & Vision Processor Interconnects



Designed for short-range connections among high-performance computing platforms, central computers, ADAS vision processors and camera control modules. The 150mm length minimizes excess cable between adjacent electronics, while the quad HFM interface consolidates four coaxial channels in high-density controller areas.

Q1: This cable has Mini FAKRA male terminals on both ends; how is it physically mated within automotive layouts?

A1: In legacy RF builds, chassis jacks are male, dictating female leads. However, to optimize motherboard space inside next-gen dense domain controllers or streaming processor hubs, board-mount sockets are increasingly crafted as female interfaces. This PCM-ZC-0176 utilizes a male-to-male topography, serving perfectly as an "ultra-short hyper-frequency RF patching bridge between two board-mount female sockets." Its tight 0.15m span is ideal for smooth side-by-side module interconnection, entirely wiping out tangled wire mess.

Q2: The length of 0.15m is extremely short; will frequent bending or radical twists ruin internal impedance and cause video stuttering?

A2: Bending generic stiff coax lines across such short distances directly deforms internal dielectric layers, spiking impedance jumps and collapsing data frames. This Premier Cable product overcomes this by integrating heavy-duty, integrated secondary overmolded strain relief boots on both connector tails over an inner resin encapsulation matrix. This scatters bending and twisting forces evenly, keeping the Voltage Standing Wave Ratio (VSWR) curves exceptionally flat to secure uncompromised video streams even during radical routing twists.

Q3: Will the internal male pins experience wearing, bending, or fatigue snaps under long-term harsh vehicle vibrations?

A3: Rest assured, generic budget crimp pins are entirely eliminated. The male pins are machined from high-elasticity, wear-resistant automotive-grade copper alloys electroplated with thick gold coats. The housing integrates an auto-grade mechanical latching system; once mated, the outer shell absorbs over 95% of mechanical impacts, leaving the pins inside a perfect mechanical "zero-load" protected zone. The locking snap survives punishing multi-axis swept-frequency vibration tests to keep connections dead-locked for multi-year vehicle deployments.
