Rosenberger 4 In 1 Mini Fakra Female to Female Cable

PCM Cable Co., Ltd. is one of the leading Rosenberger 4 In 1 Mini Fakra Female to Female Cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

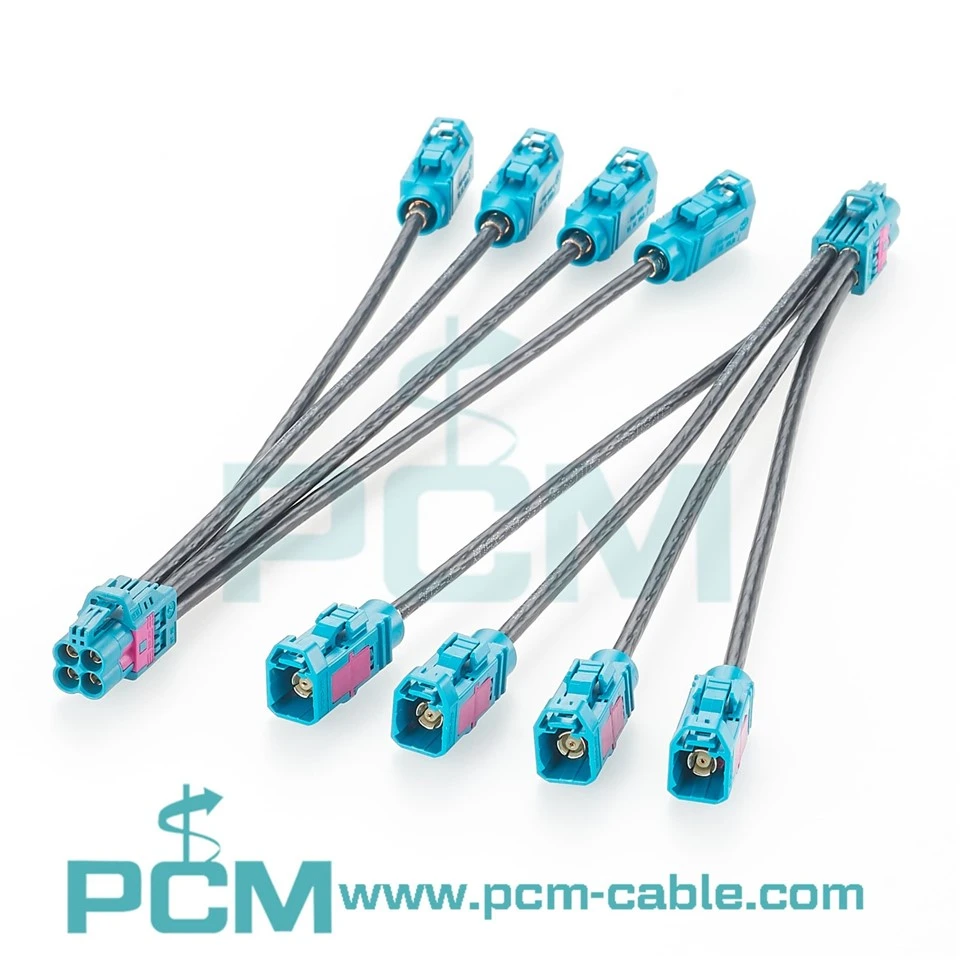

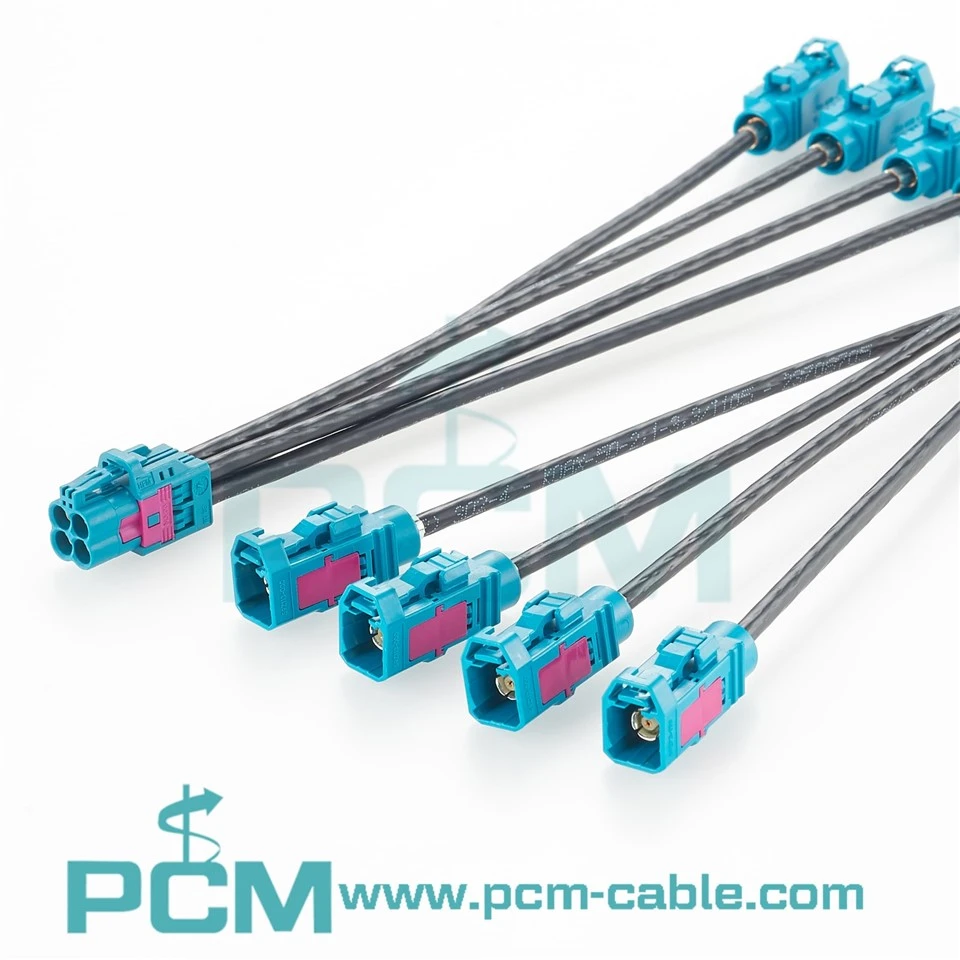

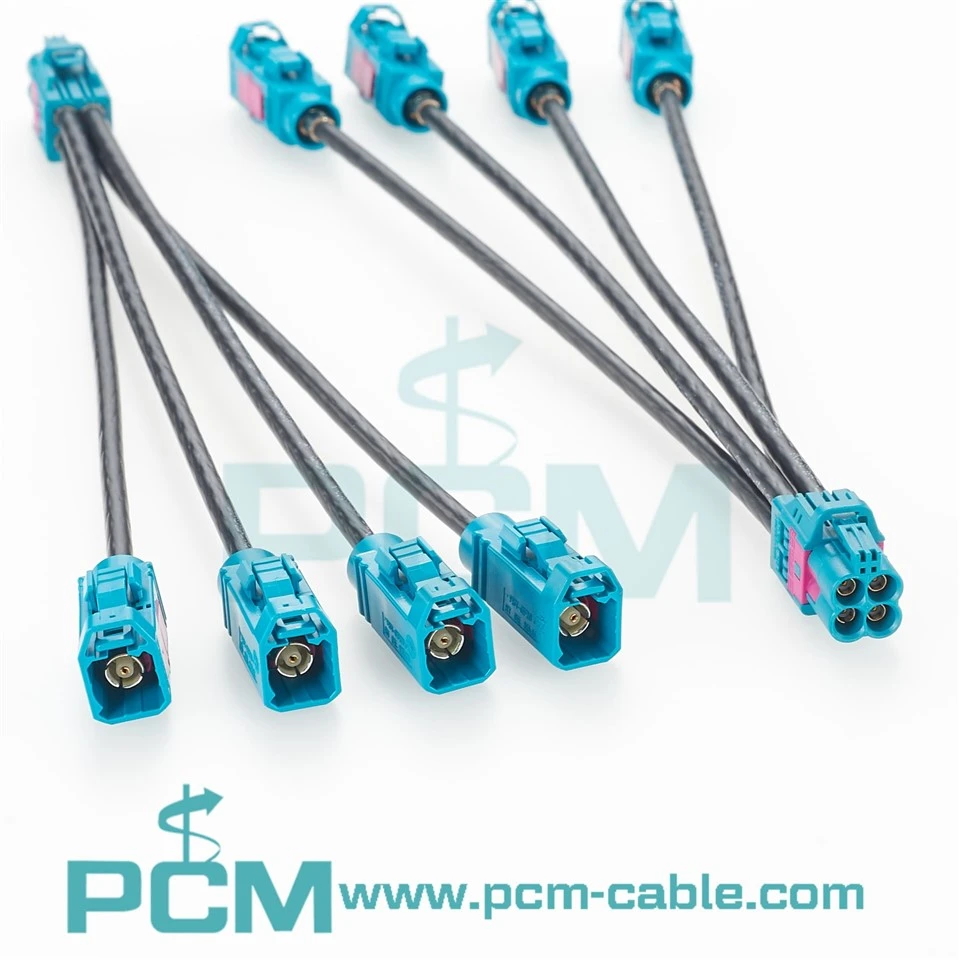

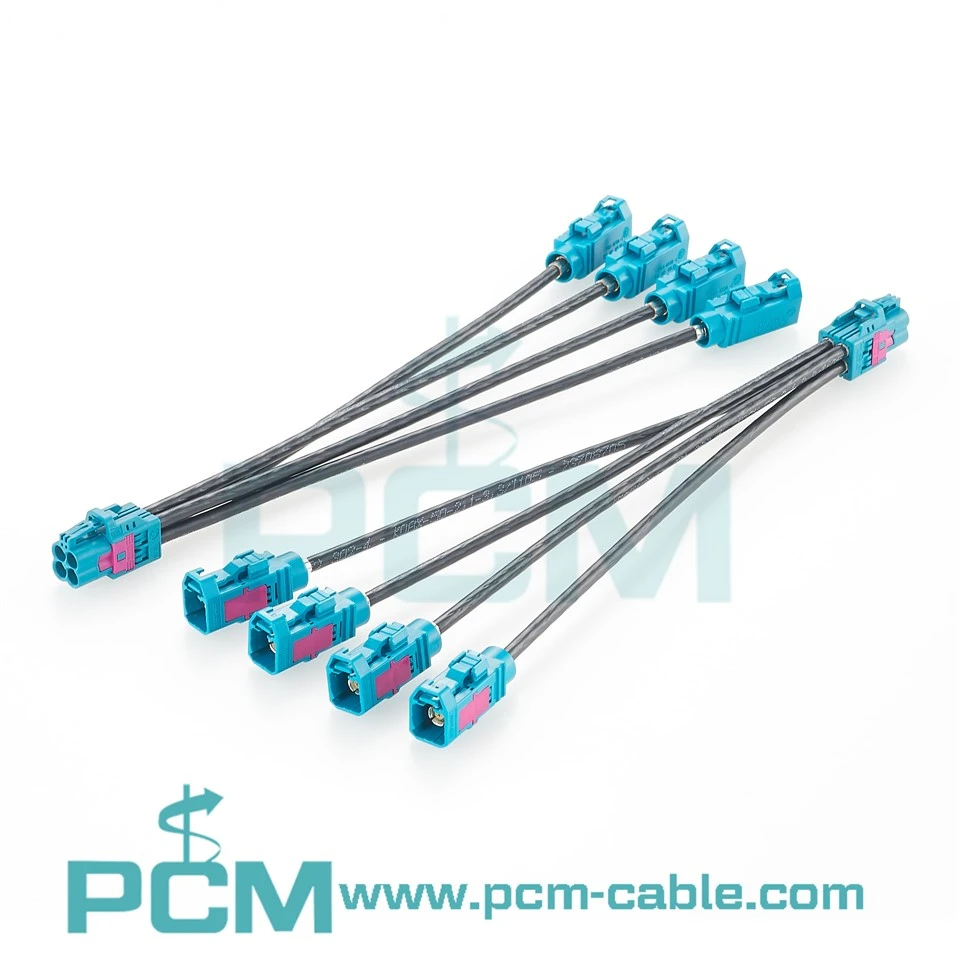

Premier Cable PCM-ZC-0175 combines one Rosenberger AMK12D-1M4Z5-Z four-port HFM/Mini FAKRA jack with four 59Z113-000-Z FAKRA jack interfaces. The architecture consolidates four independent coaxial channels into a compact HFM connection while retaining established FAKRA interfaces on the device side, providing an efficient bridge between newer high-density controllers and conventional automotive coaxial modules.



PCM-ZC-0175 does not passively split one RF or video signal into four outputs. Instead, four independent 50Ω coaxial paths map individual HFM cavities to dedicated FAKRA interfaces. LEONI DACAR 302-4 automotive coaxial cable is used, with the current assembly specified for 50Ω impedance, DC–3GHz operation and 1.80 maximum VSWR.

◆    4-Port HFM Mini FAKRA Interface

The Rosenberger AMK12D-1M4Z5-Z consolidates four independent coaxial channels into one HFM/Mini FAKRA Z-Code interface, supporting compact high-density controller layouts.

◆    4 Independent FAKRA Female Branches

Four Rosenberger 59Z113-000-Z FAKRA jack interfaces provide individually mapped connections for separate cameras, sensors or automotive RF modules.

◆    DACAR 302-4 50Ω Coaxial Cable

LEONI DACAR 302-4 automotive coaxial cable provides a 50Ω nominal impedance, DC–3GHz specified frequency range and ≤1.80 VSWR for the current assembly.

◆    150mm Short Interconnect

The 150±5mm short harness minimizes excess cable around compact electronics and supports close-range connections between HPCs, ECUs, camera controllers and test modules.

01.

HPC & Camera Controller Interconnects

Designed for short-range coaxial interconnection between high-performance computing platforms, central computers, ADAS vision processors and camera control ECUs. The compact 150 mm harness minimizes excess cable routing between adjacent modules. A four-port HFM interface consolidates multiple camera or RF channels at the controller side, while four FAKRA female branches maintain compatibility with existing cameras, video modules and RF devices, supporting practical migration between newer high-density and conventional automotive coaxial architectures.

02.

Automotive R&D & Camera Testing

Ideal for ADAS laboratories, camera validation benches, HIL systems, prototype vehicles and automotive R&D platforms. It provides four clearly separated coaxial channels between a four-port HFM test interface and multiple FAKRA-equipped DUTs. Engineers can independently access each 50Ω path for camera switching, channel-mapping verification, interface compatibility checks, RF/video link testing and fault isolation. Compared with using separate adapters for every channel, the centralized HFM interface and four FAKRA branches simplify bench wiring and speed up DUT replacement.

Q1: This cable has Mini Fakra female terminals on both ends; how is it physically mated within automotive layouts?

A1: Native connectors molded onto vehicle hardware hulls (like ECUs, electronic gateways, and ADAS modules) are almost exclusively male pin headers. This PCM-ZC-0175 features a female-to-female symmetrical architecture, acting perfectly as a "board-to-board or module-to-module ultra-short hyper-frequency RF jumper line." Technicians simply clip its terminations directly into the modules' male hulls; its tight 0.15m span prevents redundant wire loops inside small cabinet bays.

Q2: The length of 0.15m is extremely short; will frequent bending or radical twists ruin internal impedance and cause screen flicker?

A2: Generic hand-made thin coax lines suffer from cold fatigue and spike impedance jumps under tight flex strain, collapsing data frames. This Premier Cable product integrates heavy-duty, integrated secondary overmolded strain relief boots on both connector tails over an inner resin encapsulation matrix. This scatters bending and twisting forces evenly, keeping the Voltage Standing Wave Ratio (VSWR) curves exceptionally flat to secure uncompromised video streams even during radical routing twists.

Q3: When plugging this RF jumper, if I blind-mate it accidentally inside a dark dashboard slot, is there a risk of reversing polarity and shorting?

A3: Completely impossible. Both the Mini Fakra female and male connector bodies strictly incorporate asymmetric, auto-grade keyed mechanical profiles conforming to vehicular specifications. Smooth engagement occurs solely under correct orientations, and plugs feature a rigid retaining latch that delivers a loud, crisp acoustic "click" upon full locking. This setup enables assembly technicians to verify a secure seating via touch and hearing alone during complete blind mating, permanently sealing out reverse polarity blunders.
