M16 12 Pin Sensor Actuator Cable
PCM Cable Co., Ltd. is one of the leading M16 12 Pin Sensor Actuator Cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable PCM-1015 is a newly developed M16 12 Pin High Flex Sensor Actuator Cable engineered for industrial applications where conventional cables may experience conductor fatigue, jacket stress or signal instability under repetitive motion.
The assembly uses M16 12 pin male connectors on both ends, providing twelve contacts within a compact circular interface for multi channel sensor, control and equipment interconnections. Its 24AWG high flex cable incorporates shielding and braided construction, combining dynamic flexibility with improved signal protection in electrically noisy industrial environments.
Stable Connection
The M16 circular interface provides defined mating for multicore industrial connections. For PCM-1015, connection stability depends not only on the connector but also on pin assignment, locking condition, termination quality, strain relief and shielding continuity. OEM validation should therefore include both mechanical mating and electrical continuity.
Installation Requirements
Continuous-motion installations should define the minimum dynamic bend radius, direction of movement, travel distance, speed, acceleration, drag chain space and fixation points. Sharp bending immediately behind the connector and excessive clamping of the moving cable section should be avoided.
For drag chain applications, routing should also prevent excessive tension, compression, torsion and continuous abrasion against adjacent cables.

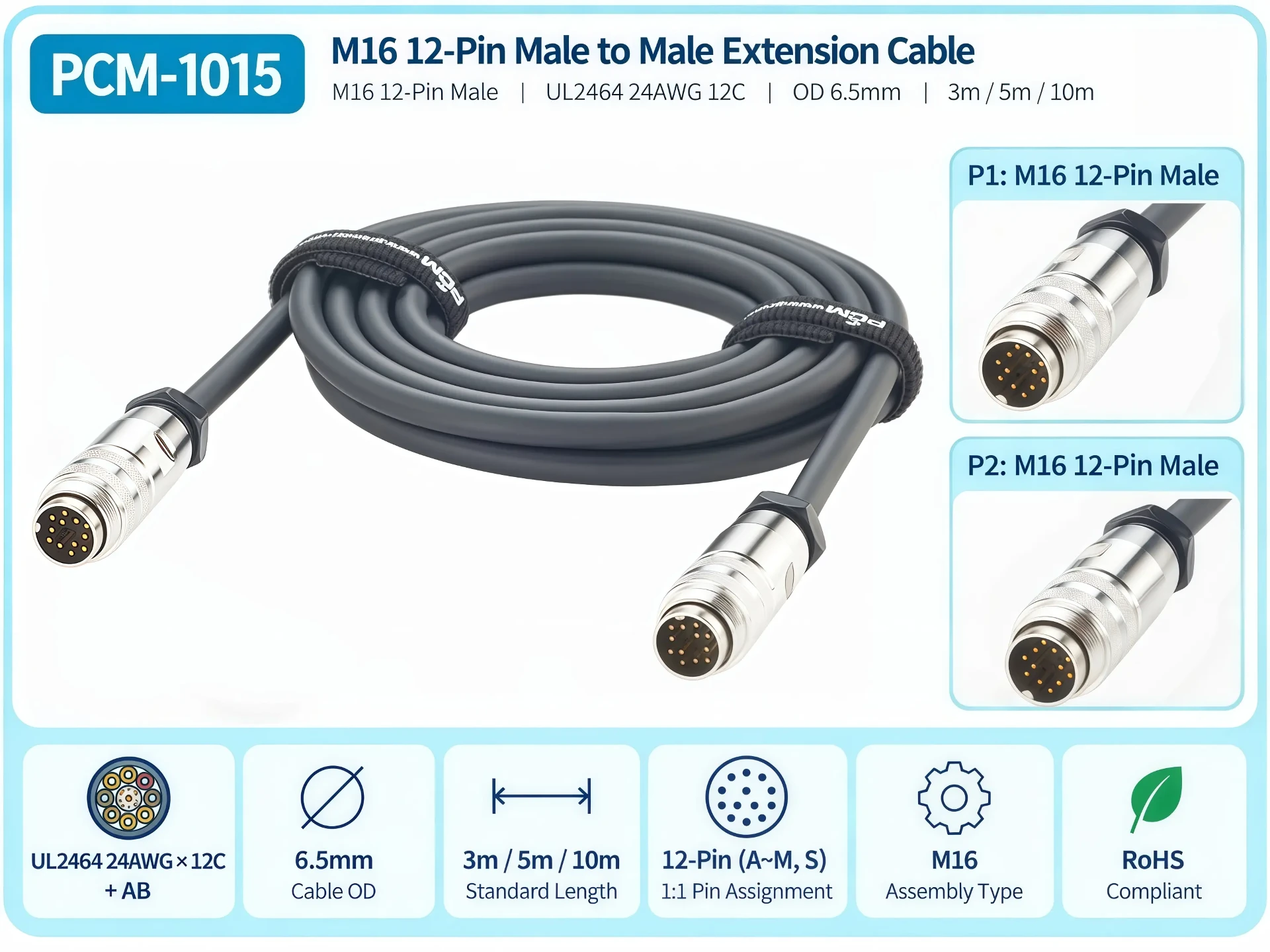

Products Specification
| Product Name | M16 12 Pin Male to Male Extension Cable |
| Premier Cable P/N: | PCM-1015 |
| P1 Interface | M16 12 Pin Connector |
| P2 Interface | M16 12 Pin Connector |
| Connector Structure | Dual M16 12 Pin Connectors |
| Wire rod | UL2464 24AWG x 12C +AB |
| Wire Outer Diameter | OD 6.5mm |
| Wire Color | Black |
| Standard Length | 3m;5m;10m |

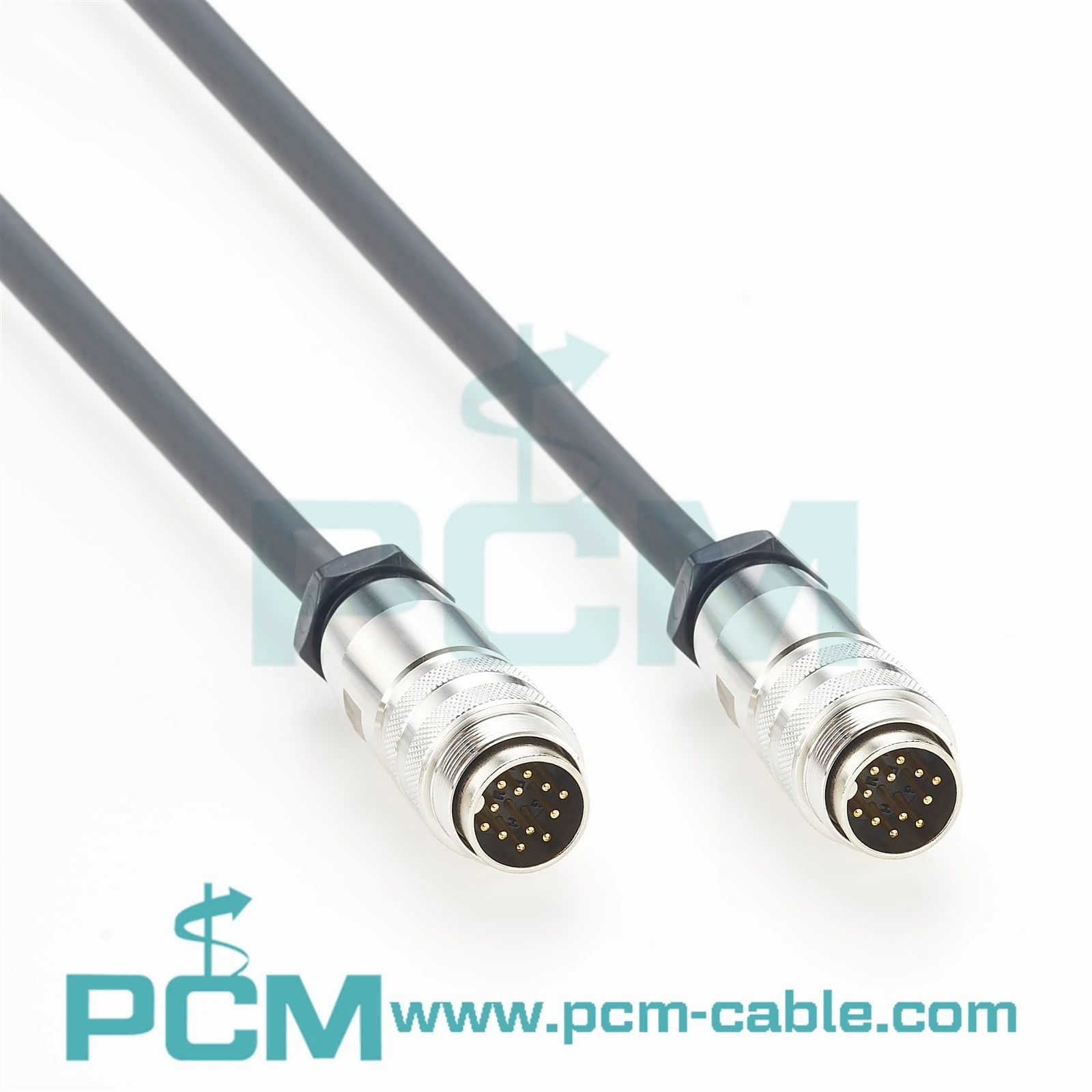

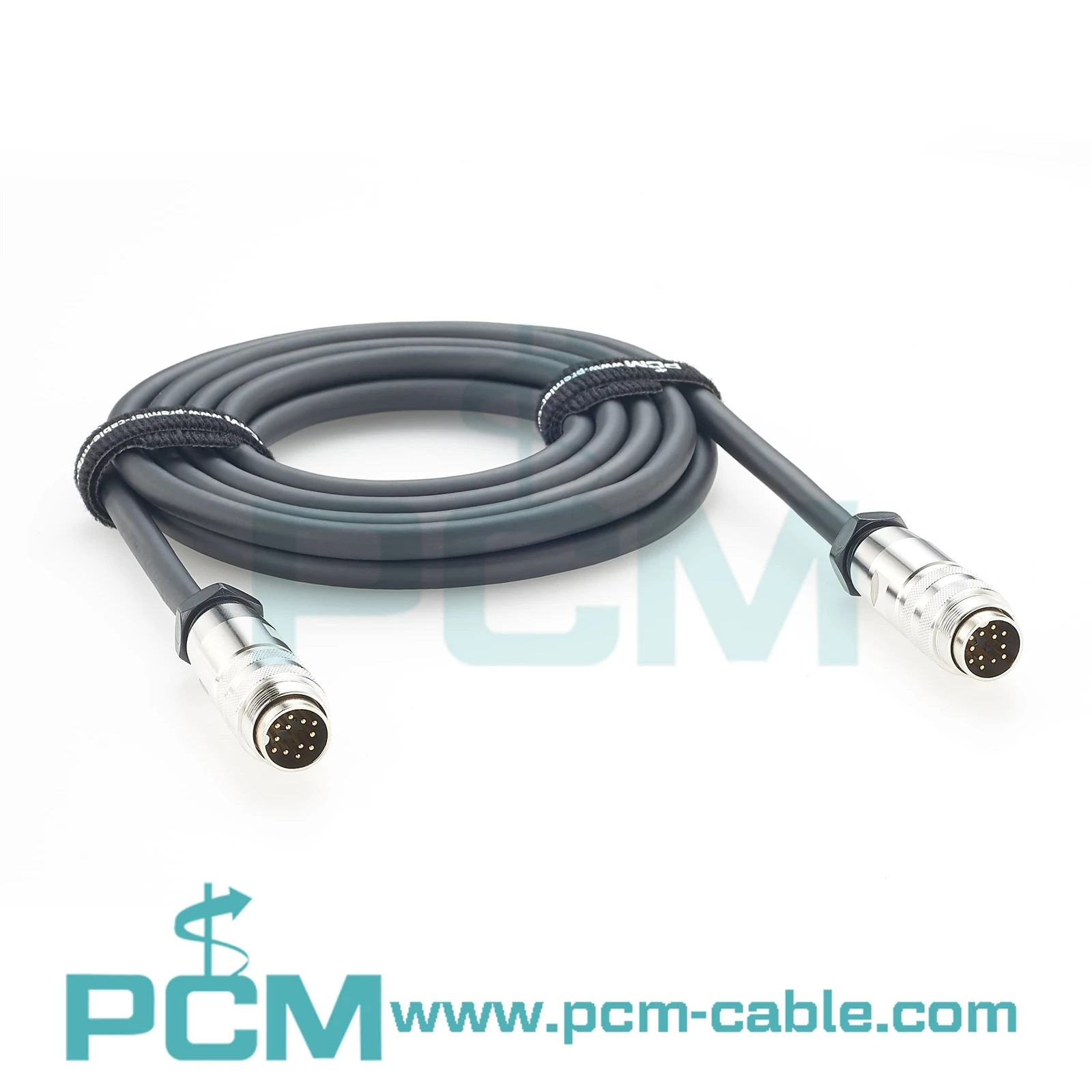

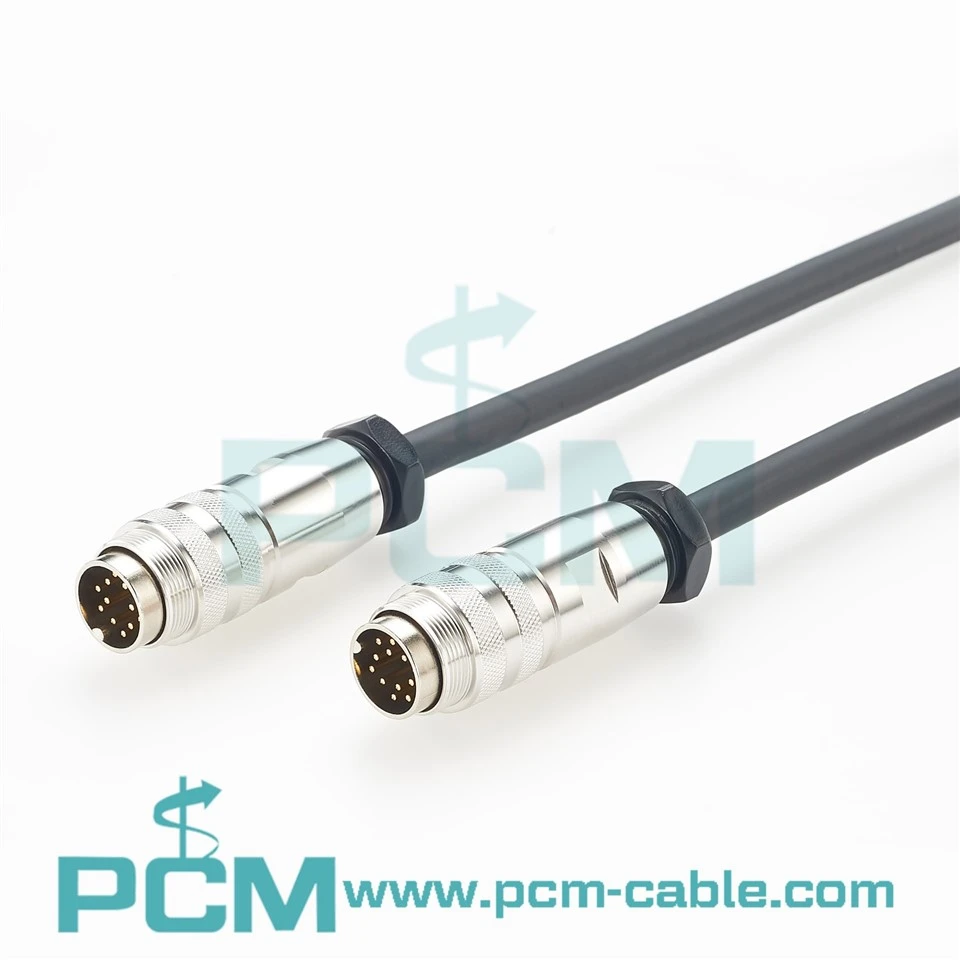

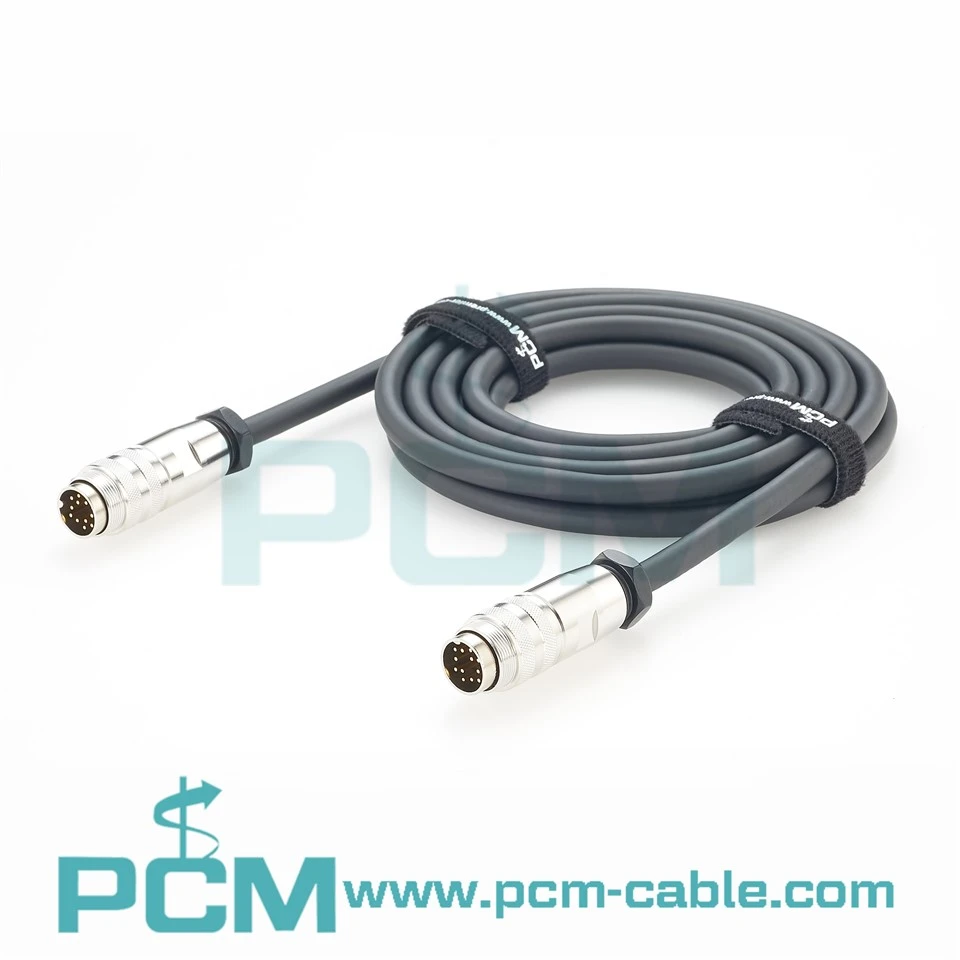

Products Display
Product Features
M16 12-Pin High-Density Interface
Dual M16 12-pin male connectors provide twelve connection positions within a compact circular interface, making them suitable for industrial systems requiring multi-channel sensing, control or equipment interconnection in limited installation space.
24AWG Multi-Core Cable
The 24AWG multi-core conductor configuration balances conductor density, cable diameter, flexibility and internal routing requirements, making it suitable for industrial control and multi-channel low-power signal connections.
Shielded + Braided Composite Shielding
The shielded and braided composite construction is designed for industrial environments containing motors, VFDs, servo drives and other electrical noise sources, helping reduce the impact of external electromagnetic interference on internal signal circuits when properly terminated.
Up to 8 Million Flex Cycles
The High-Flex cable construction is engineered for continuous repetitive motion and supports up to 8 million flex cycles under specified test conditions, distinguishing it from conventional industrial multi-core cables designed primarily for static installation.
Core Application Scenarios
Industrial Sensors & Encoders
Suitable for multi-circuit connections between industrial sensors, position-detection devices, monitoring modules, encoders and control equipment.
Robotics & Motion Control
Designed for robotic arms, motion axes, end effectors and automated moving assemblies where the cable is repeatedly flexed during operation.
CNC Machine Tools
Suitable for moving CNC assemblies, sensor feedback systems, position detection and auxiliary control circuits requiring multi-contact connectivity during machine motion.
Core Performance Advantages
Reduced Dynamic Fatigue & Maintenance Risk
The High-Flex construction is engineered for repetitive bending, helping reduce conductor and jacket fatigue while minimizing downtime and cable replacement in continuous-motion equipment.
12 Pin Integration for Compact Systems
A single M16 interface integrates 12 contacts for multiple sensing, control and auxiliary circuits, reducing separate connector requirements and saving equipment installation space.
Composite Shielding for Signal Stability
The shielded and braided construction, combined with proper grounding, helps reduce EMI coupling from motors and servo drives, improving control and feedback signal stability.
Frequently Asked Questions
Q1：What Type of Cable Is PCM-1015 ?
A1：PCM-1015 is an M16 12-pin male-to-male high-flex sensor/actuator cable using 24AWG shielded and braided cable, designed primarily for robotics, CNC and continuous-motion automation equipment.
Q2：Does 8 Million Cycles Refer to Connector Mating Life ?
A2：No. The 8-million-cycle rating refers to cable flex performance under specified dynamic test conditions, not eight million mating cycles of the M16 connectors.
Q3：Why Use a Shielded + Braided Construction ?
A3：The shielded and braided construction helps improve EMI protection around industrial motors, servo drives, VFDs and other electrically noisy equipment. Actual shielding performance also depends on shield termination and overall system grounding.
Q4：Can M16 12-Pin Connect Directly to Any 12 Pin Device ?
A4：No. Connector geometry, keying, pinout, equipment-side gender and electrical definitions must be verified. The same pin count does not guarantee mechanical or electrical compatibility.
Q5：Can Cable Length and Pinout Be Customized ?
A5：Yes. Premier Cable can customize cable length, 12-pin pinout, wire gauge, shielding structure, jacket material, connector configuration and labeling according to OEM project requirements.
Products Drawing
