MATE AX Jack To 4 SMA Plug RF Cable Assembly With DACAR 462
PCM Cable Co., Ltd. is one of the leading mate ax jack to 4 sma plug rf cable assembly with dacar 462 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

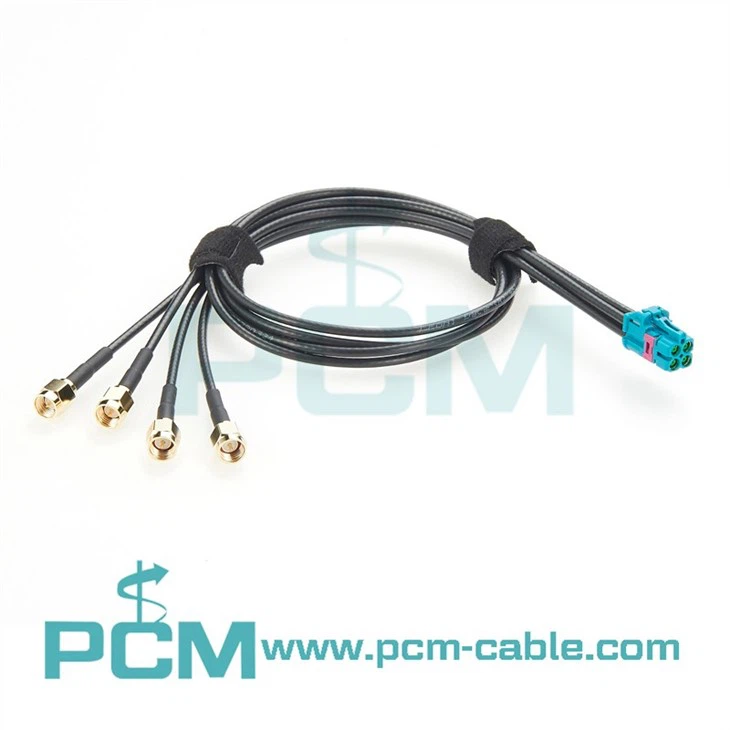

This MATE AX Jack to 4 SMA Plug RF Cable Assembly uses TE's original MATE AX connector (part number: 2298721-9) connected to four SMA male connectors and uses high-performance LEONI DACAR 462 RF coaxial cable. It is designed for multi-channel RF signal transmission and is widely used in vehicle antenna systems, high-speed data communication modules, Internet of Vehicles, radar systems and other fields. The product supports high-speed, high-frequency, low-loss transmission and has excellent anti-interference ability and durability.
Specifications
| Product name | Customized TE MATE AX jack to quad SMA plug coaxial cable – direct from manufacturer |
| DWG No. | PCM-ZC-0055 |
| Connector 1 | MATE-AX, TE Tyco original connector, 2298721-9, female |
| Connector 2 | 4 x SMA connector, male, gold plated |
| Cable | LEONI COAX CABLE DACAR 462 |
| Length | 50cm or customized |
| Impedance | 50Ω |
| Frequency range | DC-6GHz |
| Application areas | Automotive radar, camera module, infotainment system, RF antenna connection |
Factory Manufacturing and Customization Service
Premier Cable has its own factory, specializing in the production of automotive RF and high-speed data cable harnesses. It can customize various interface combinations, lengths, cable types and sheath colors according to customer drawings or samples. Our cable harness products support small batch trial orders and large batch supply, with fast delivery and controlled quality.
Customization options (customizable according to project)
- Connector type: MATE AX, FAKRA, mini Fakra, HSD, HSC, HSL, H-MTD, MATEnet, NETBridge, etc.
- Cable specifications: DACAR 462, RG174, 1.13mm, RG316, RTK031, etc.
- Number of connector ports: single port, dual port, quad port, multi port
- Waterproof and dustproof level: IP67 / IP68 (depending on structural support)
- OEM/ODM welcome to consult
If you need samples or technical drawings, please contact sales engineers to obtain them. We will provide the most suitable cable harness solution for your project.
