XT60 4 Port Distribution Box Power Strip
PCM Cable Co., Ltd. is one of the leading xt60 4 port distribution box power strip manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable PCM-0981 is an XT60 Distribution Box Power Strip 4 Port designed for high-power DC applications. Its compact modular structure expands one XT60 power connection into four XT60 ports, creating an organized centralized power distribution solution.
Compared with traditional XT60 splitter wiring, this XT60 Power Distribution Box keeps multiple connection points fixed in one housing, reducing cable clutter and connector movement while improving system organization.
It is suitable for applications requiring multiple power connections or frequent plug-in operations, including battery expansion systems, robotic platforms, power test fixtures, and mobile energy equipment.
simulator
请替换当前内容 Lorem ipsum dolor sit amet consectetur, adipisicing elit. Recusandae quaerat modi iusto rem esse obcaecati quidem voluptatum maxime veniam maiores asperiores fugit reiciendis, quasi labore nobis quam eligendi ducimus excepturi?
simulator
Lorem ipsum dolor sit amet consectetur, adipisicing elit. Recusandae quaerat modi iusto rem esse obcaecati quidem voluptatum maxime veniam maiores asperiores fugit reiciendis, quasi labore nobis quam eligendi ducimus excepturi?
simulator
Lorem ipsum dolor sit amet consectetur, adipisicing elit. Recusandae quaerat modi iusto rem esse obcaecati quidem voluptatum maxime veniam maiores asperiores fugit reiciendis, quasi labore nobis quam eligendi ducimus excepturi
Products Specification
| Product Name | XT60 Male to 4-Port XT60 Male Power Distributor |
| Drawing No. | PCM-0981 |
| P1 Connector | XT60 male plug |
| P2-P5 Connectors | Four XT60 male plugs |
| Configuration | One XT60 male port to four XT60 male ports |
| P1 Connector Width | 16 mm |
| Mounting Counterbore Diameter | 08.00 mm |
| Mounting Through-Hole Diameter | 04.50 mm |
| Internal Wire | UL1569/UL1007, 14 AWG jumper wire |

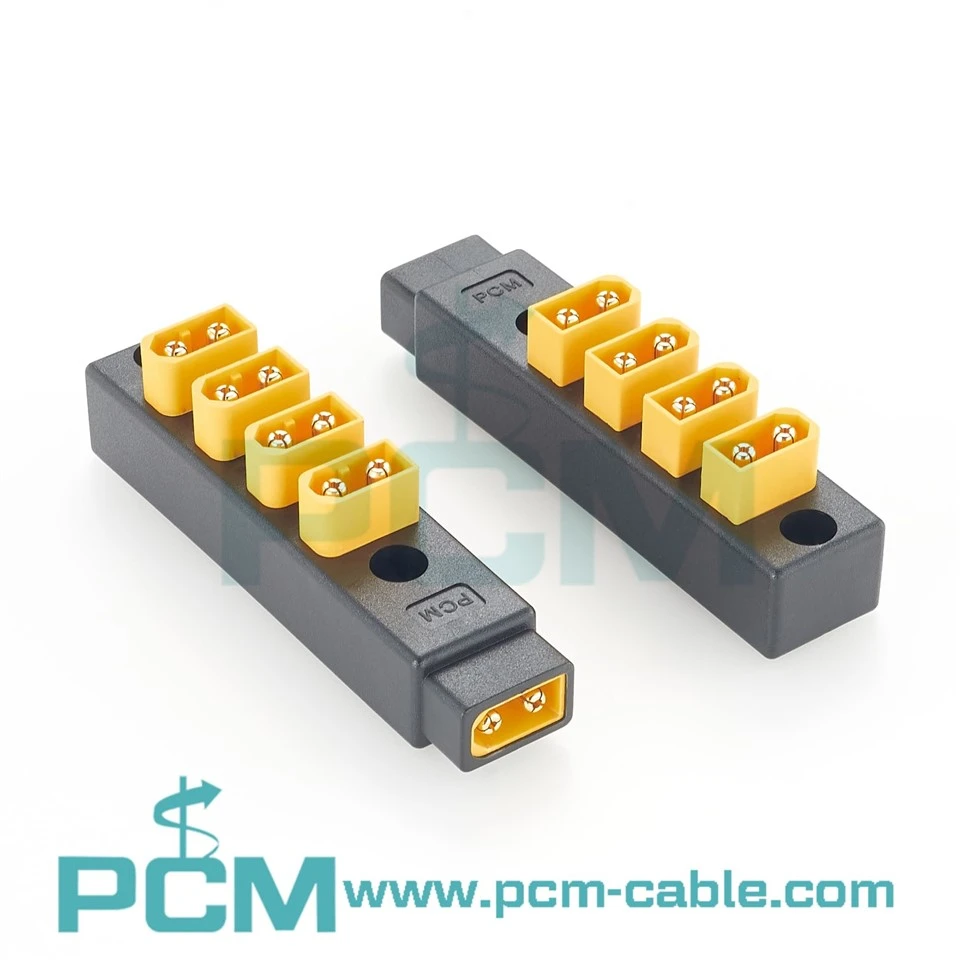

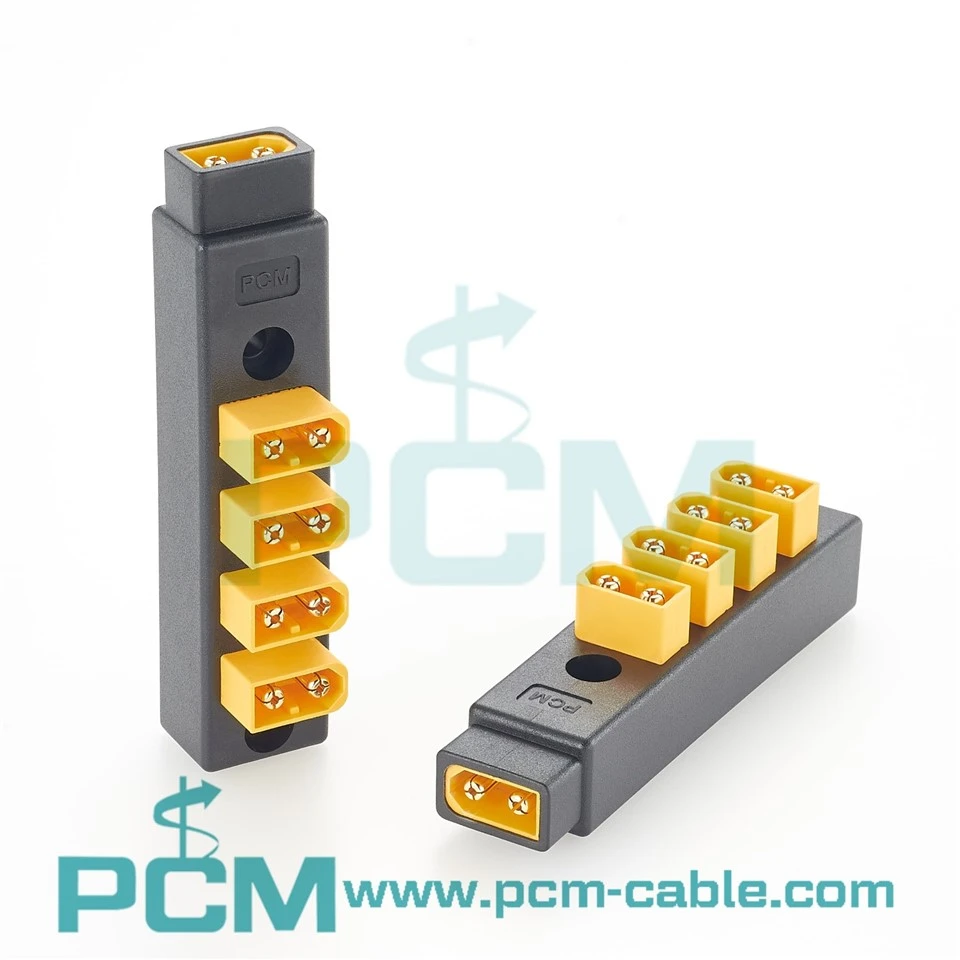

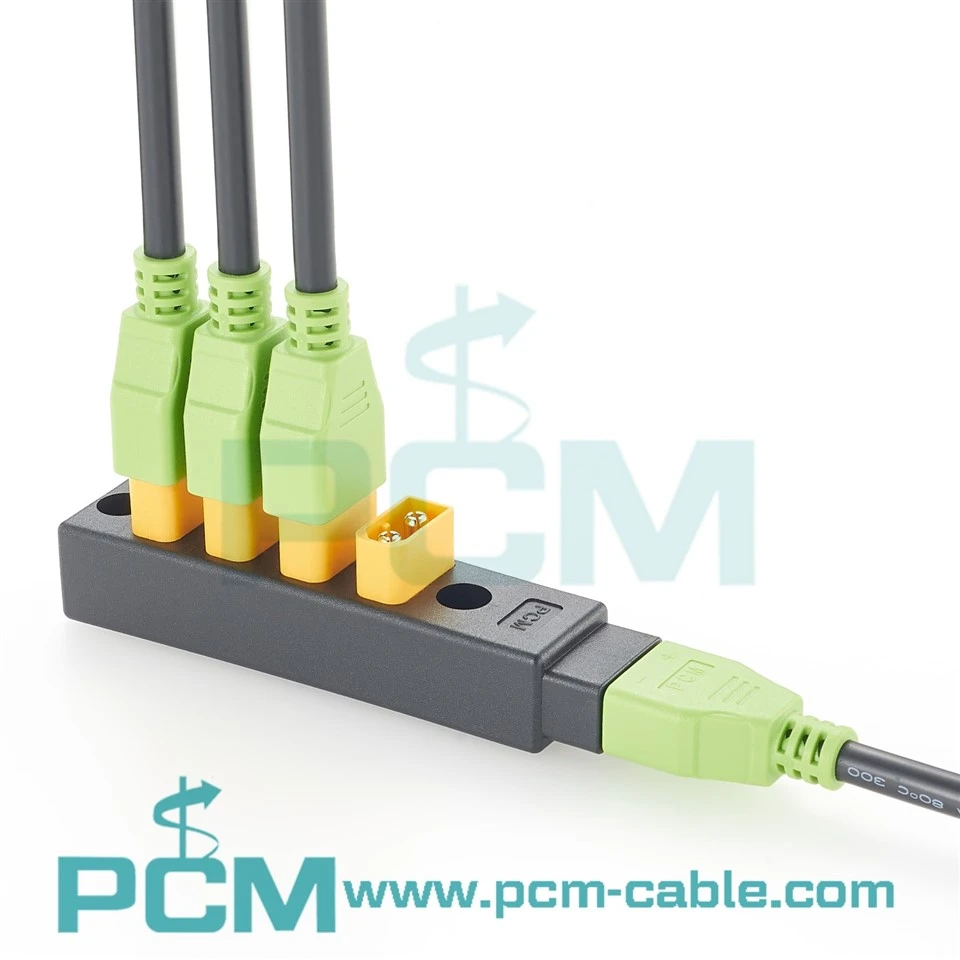

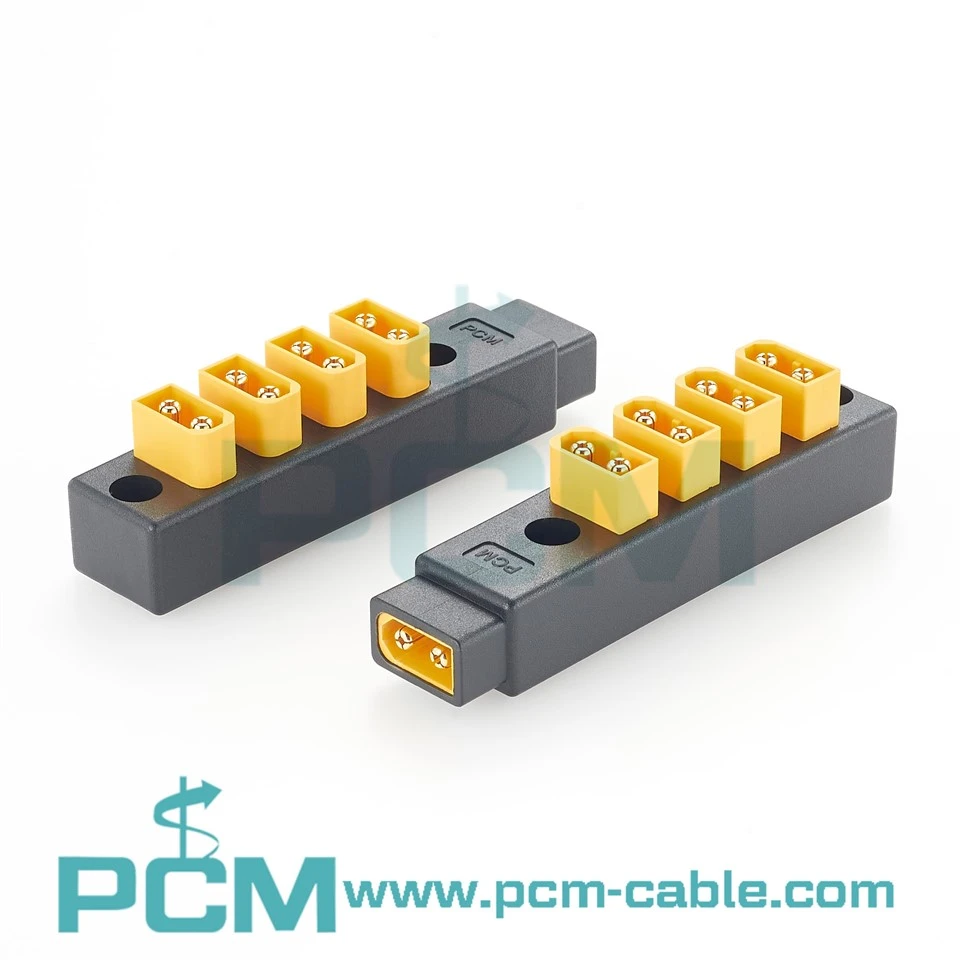

Products Display
Product Features
Linear 4-Port Inline Trunk Layout
Utilizing a classic long-form strip geometry, the 4 XT60 outlets are aligned in a straight line. This design is engineered to sit neatly along elongated wire channels, rack shelves, or tight travel cases for clean running.
Thickened Aluminum Alloy Armor
The box chassis is forged with rigid aluminum alloy metal sheets. This structural metallic shield provides elite resistance against vehicular crush, drops, and impacts while acting as a natural shield to suppress trace radiation.
Extended Flange Mount Flaps with Screw Insets
The profile is finished with integrated mounting flanges at both ends featuring clean screw holes. Technicians can fix the strip onto vehicle interiors, panel backboards, or field field rigs to resist shaking.
Color-Coded Mistake-Proof Receptor Rims
Each output slot is framed with high-visibility color indicators to yield quick visual anti-reverse pairing guidance. The socket edges feature a recessed lip array to establish basic barrier defiance against sand and sprays.
Core Application Scenarios
Multi-Axis Robotics Control Cabinets
Serving as a Heavy-Duty Multi-Outlet DC Block, it distributes primary power inside robotic cabinets and automated warehouses to multiple servo drives and control modules for reliable multi-axis operation.
Industrial Multichannel Battery Charge Arrays
Used as a 4-port high-current battery splitter trunk, it connects high-power DC sources with multiple LiPo battery packs, enabling parallel charging management for UAVs, electric equipment, and energy systems.
Frequently Asked Questions
Q1: What is the maximum current capacity for the main input and separate ports, and can it run under a 48V battery pack?
A1: The main busway layout is fully rated to handle a collective continuous input current of 60A to 80A (with a transient spike threshold of 100A). Each localized XT60 sub-port accommodates up to 30A continuous current under normal ambient airflow. It operates reliably under DC power lines up to 60V, making it fully compatible with 12V, 24V, 36V, and high-voltage 48V primary battery tracks.
Q2: Does the full metallic aluminum enclosure present a short-circuit risk? Is an external chassis ground wire required?
A2: There is absolutely no risk of leakage. All internal high-amp lines and solder joints are insulated via high-dielectric composite barriers and fully sealed via anti-vibration silicone encapsulation, establishing absolute electrical isolation from the aluminum exterior. If you are grouping the unit inside heavy industrial cabinets rich in static build-up or interference, we advise linking its mounting ears to the cabinet ground grid for safe electrostatic discharge.
Products Drawing
