XT30 6 Port Power Distribution Board Hub
PCM Cable Co., Ltd. is one of the leading xt30 6 port power distribution board hub manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

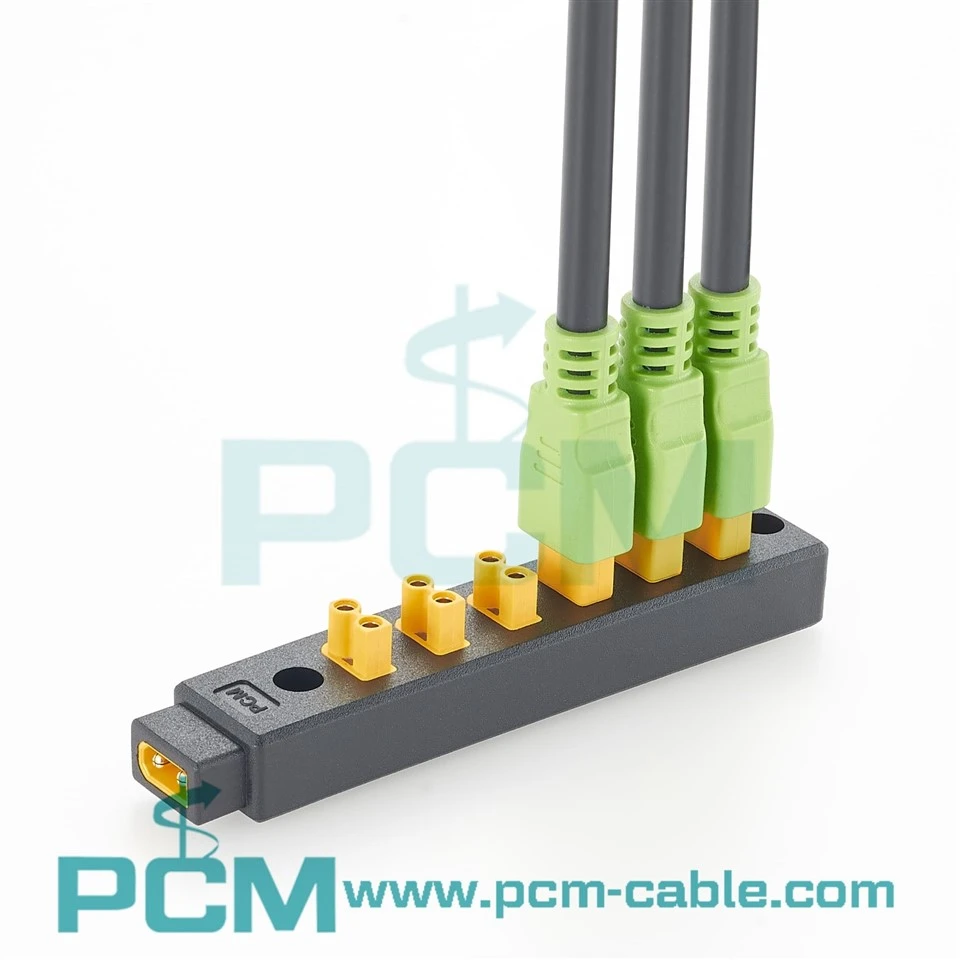

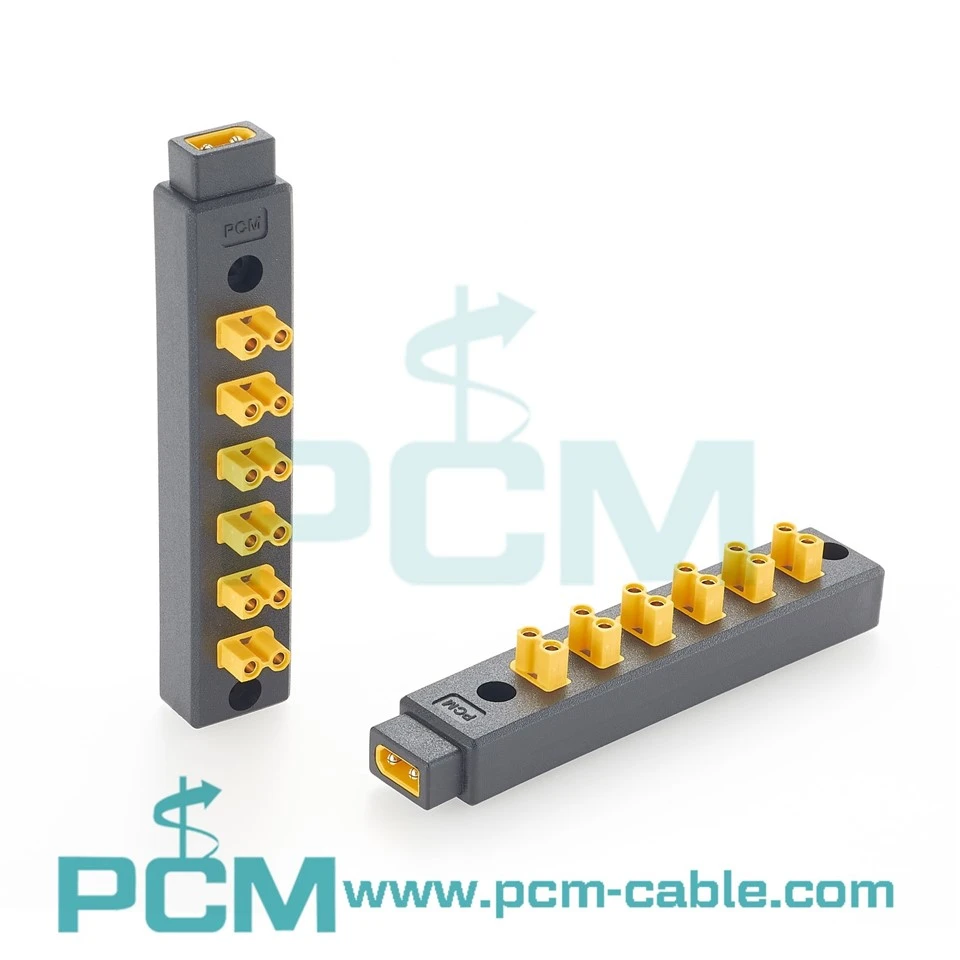

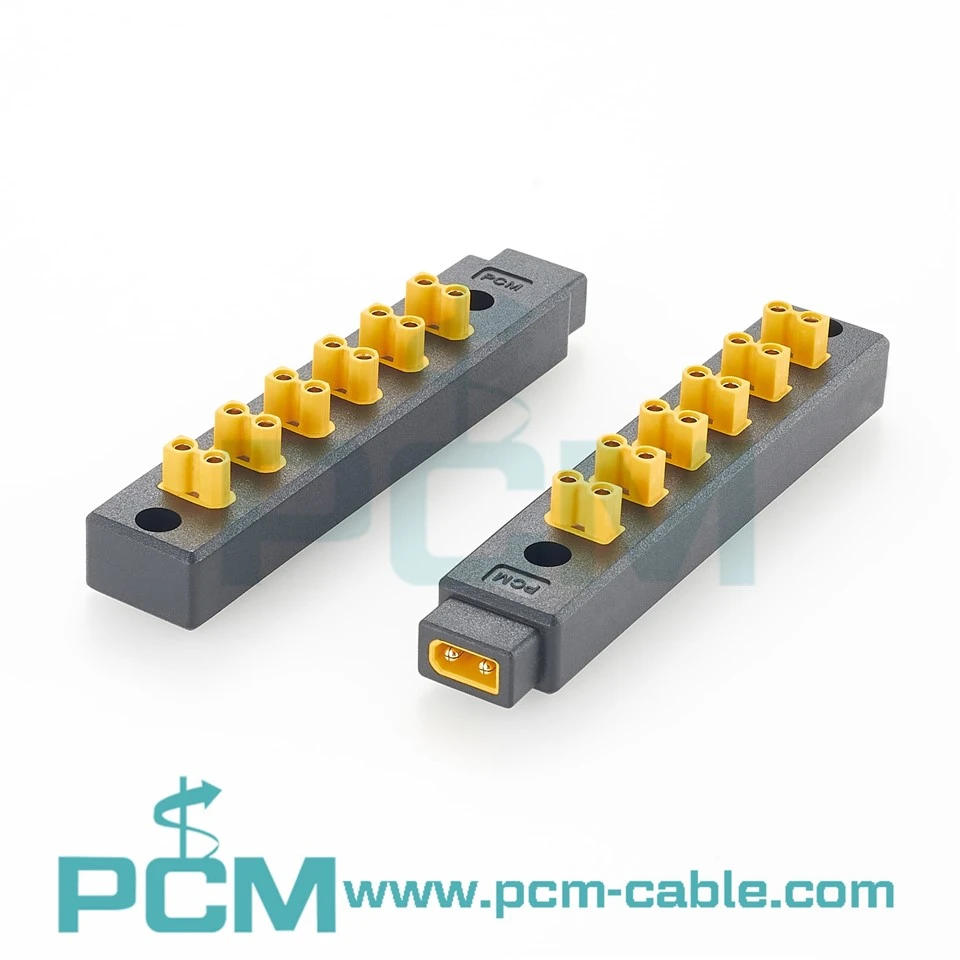

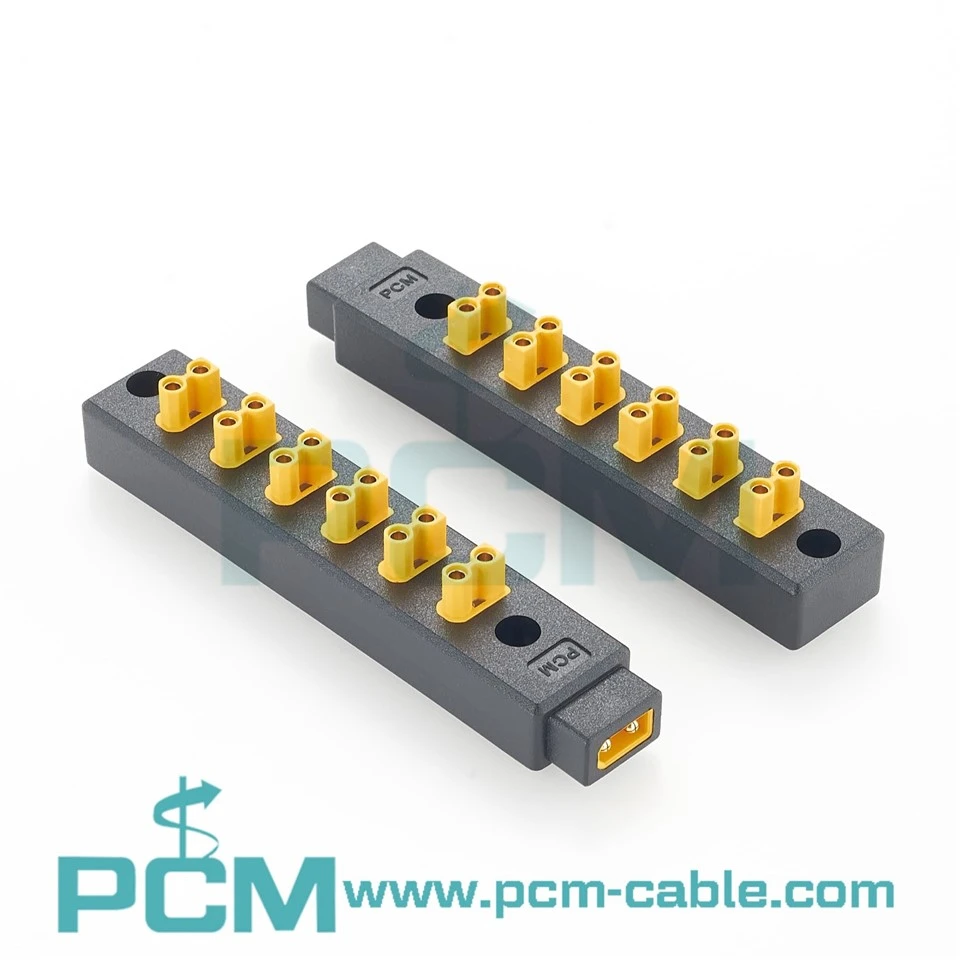

Premier Cable PCM-0983 is an XT30 Power Distribution Block 6 Channel designed for compact DC power distribution systems. Featuring one XT30 input and six XT30 output ports, it expands a single battery or power connection into multiple XT30 power access points.
Compared with traditional Y-splitter cables, this XT30 Power Distribution Block uses an integrated structure to organize multiple XT30 connections in one compact assembly, reducing cable clutter and improving installation efficiency. It is especially suitable for FPV drones, miniature robots, RC models, and space-limited electronic systems.
PCM-0983 distributes power through a parallel connection architecture, providing reliable power access for controllers, motors, sensors, and auxiliary electronic modules.
Stable Connection
The PCM-0983 Symmetrical 6-Way Micro Splitter features reliable XT30 connectors with elastic contact structures for strong retention. It withstands vibration, sharp turns, and high-speed FPV flight conditions, maintaining stable low-resistance power transmission while reducing accidental disconnections and power interruptions.
Installation Requirements
The Ultra-light Mini Quadcopter PDB features a low-profile compact design, making it suitable for mini drone frames, flight controller stacks, and limited installation spaces. Optimized XT30 port placement and mounting holes simplify installation, wiring, and maintenance while improving internal space utilization.
Manufacturing Process
Premier Cable applies precision electronic manufacturing processes to PCM-0983, including automated assembly, accurate soldering, and electrical testing. The XT30 connection areas are reinforced to ensure reliable joints, stable circuits, and consistent performance in demanding environments.
Products Specification
| Product Name | XT30 1-to-6 Power Distribution Hub |
| Drawing No. | PCM-0983 |
| Configuration | 1 × XT30 Male Input to 6 × XT30 Female Outputs |
| P1 Side | XT30 Male Plug |
| P2–P7 Side | XT30 Female Socket |
| Main Body Length | 96 mm |
| Main Body Height | 18 mm |
Products Display
Product Features
◆ Symmetrical Honeycomb 6-Way Power Distribution
PCM-0983 adopts a symmetrical honeycomb six-way XT30 distribution topology, arranging multiple output ports around the main input with balanced trace paths. This design minimizes current differences between channels while reducing PCB footprint. The compact structure optimizes internal wiring for drones and miniature robots, delivering efficient and stable multi-device power management.
◆ Ultra-Light High-Thermal Structural Design
The XT30 Power Distribution Block features an ultra-thin high-Tg thermal substrate and lightweight construction, reducing overall weight while maintaining mechanical strength and thermal stability. Compared with traditional bulky power modules, it lowers aircraft payload, improves flight efficiency, and supports reliable power delivery during extended high-frequency operation.
◆ Protective Sealing & Vibration-Resistant Connection
PCM-0983 integrates a high-dielectric protective coating and reinforced XT30 mounting structure to protect circuits from moisture, dust, and environmental contamination. The low-profile through-hole terminal design improves mechanical strength, reducing solder stress caused by vibration, high-speed movement, and cable pulling for enhanced reliability.
◆ Low-Impedance Clean Power Delivery
This 6 Channel XT30 Power Distribution Block uses an optimized copper bus structure to reduce overall circuit resistance, minimizing voltage loss and heat buildup under high-current operation. The stable parallel power architecture helps suppress high-frequency motor interference, providing cleaner and more continuous power for flight controllers, video transmitters, and control modules.
Core Application Scenarios
Portable Multichannel Low-Voltage Test Fixtures
Serving as a low-resistance power and testing distribution module, this XT30 Power Distribution Block is ideal for RC battery packs, miniature electronics development, and laboratory test fixtures. It expands a single low-voltage DC analyzer output into six parallel power channels, enabling simultaneous testing, balancing, and aging evaluation of multiple LiPo cells or compact battery modules. Its compact design reduces wiring complexity, improves test bench organization, and provides engineers with a reliable multi-channel power management solution.
Mini FPV Quadcopters & Racing Drones
As a mission-critical Ultra-light mini quadcopter PDB, this module is designed for 3-inch and smaller FPV racing drones. It integrates into compact frame stacks and efficiently distributes battery power to multiple micro ESCs, flight controllers, and onboard electronics. The lightweight structure and optimized XT30 port arrangement reduce unnecessary payload while improving internal wiring efficiency, ensuring stable power delivery during high-speed flight, aggressive maneuvers, and competitive FPV racing conditions.
Frequently Asked Questions
Q2: What is the maximum current rating, and can it operate reliably under 4S or 6S LiPo battery packs?
A1: The interior high-conductivity copper traces are fully optimized to handle transient current spikes up to 30A per single outlet (15A continuous). The collective total input ceiling for the Symmetrical 6-Way Micro Splitter layout is rated at 40A to 50A. For operational input voltage, it accommodates low-voltage DC lines up to 30V, making it fully compatible with 2S, 3S, 4S, 5S, and high-discharge 6S (approx. 25.2V) LiPo flight packs.
Q2: Does this 6-channel board support linking multiple batteries together, and what happens if some ports are left vacant?
A2: This module is an un-fused, purely passive equipotential parallel network where all sub-paths handle bidirectional flow. While its baseline design serves to split 1 primary source out to 6 sub-ESCs, it can technically run in reverse to aggregate multiple low-power sources (ensure combined battery packs possess identical voltages to avert destructive inter-battery short circuits). Leaving certain XT30 channels vacant introduces zero electrical interference or dropouts to other connected lines, making it completely safe to operate under partial loads.
