XT60 4 Channel Power Distribution Hub Block

PCM Cable Co., Ltd. is one of the leading xt60 4 channel power distribution hub block manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

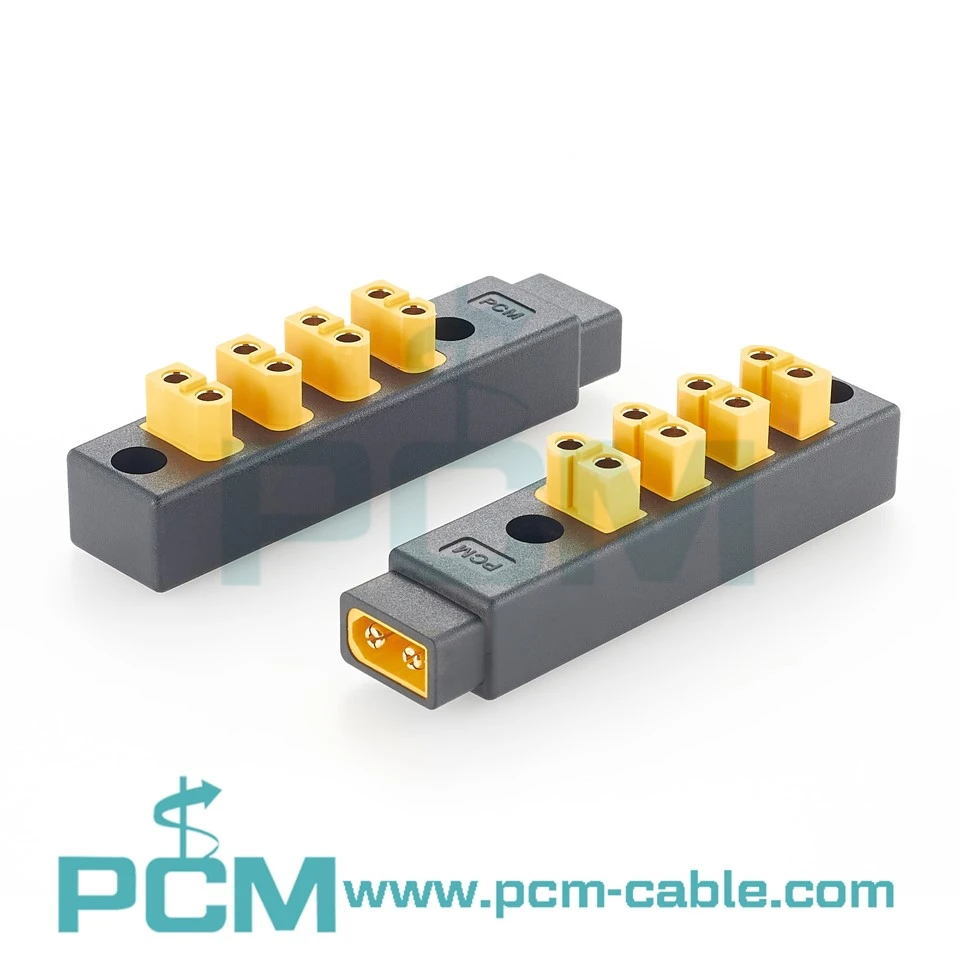

Premier Cable PCM-0980 is an XT60 Power Distribution Hub 4 Channel designed for high-power electronic applications. Through its centralized power distribution structure, it expands a single battery or power input into four XT60 outputs, providing a unified and reliable power supply solution for multiple connected loads.



Compared with traditional multi-wire parallel power connections, this XT60 Power Distribution Hub effectively reduces wiring complexity, improves system space utilization, and minimizes cable management issues caused by multiple connection points. It features standard XT60 connectors with high-conductivity metal contacts, reducing contact resistance and improving current transmission stability.



The XT60 interface adopts a polarized anti-reverse connection design to prevent incorrect polarity wiring while providing strong mechanical retention, reducing the risk of accidental power interruption caused by vibration or movement.



This XT60 Power Splitter is ideal for high-dynamic operating environments, ensuring stable power connections between batteries, motor controllers, and electronic modules.



01.

Quadcopter Unmanned Aircraft & Robotic Rovers

As a Compact quad XT60 power strip, this product is designed for custom quadcopters, unmanned inspection platforms, and robotic rovers. It distributes power from a centralized battery source to four independent ESCs and propulsion units through an optimized power routing structure. The symmetrical power distribution layout reduces wiring complexity and helps maintain balanced energy delivery across multiple channels. Its compact design makes it ideal for space-limited unmanned platforms, providing reliable power connections for high-current motors, flight controllers, and onboard electronics.

02.

AGV Smart Logistics Carts Power Rails

Serving as an Industrial 4-channel power junction block, this XT60 power distribution module is suitable for smart warehouse AGVs, mobile robotic platforms, and automated transport systems. Installed near the battery compartment, it distributes lithium battery power to drive motors, lifting mechanisms, control units, and auxiliary modules for centralized energy management. Compared with traditional distributed wiring solutions, this design improves internal space utilization, simplifies maintenance, and ensures stable power delivery during continuous operation, frequent acceleration cycles, and changing dynamic loads.



01



Passive Zero-EMI Electrical Purity

Operating as a passive physical layer Symmetrical 4-Way Splymmetrical Blocks layout, the module produces zero switching waveforms, preserving an ultra-clean electromagnetic environment for nearby sensor cards.



02



Micro-Ohm Arc-Resistant Plating Stability

The sleeve springs utilize premium beryllium-copper matrices enriched with heavy gold hardening, locking in micro-ohm impedance. It defies moisture-driven oxidation to eliminate micro-arcing power stutters.



03



Low-Thermal Convective Heat Dissipation

The internal geometry is structurally optimized for thermal dissipation. During prolonged concurrent multi-amp flows, localized trace heat vents cleanly out through built-in case gaps, holding nominal component bands.

Q1: What is the maximum continuous current rating, and what is the maximum input DC voltage threshold?

A1: The heavy thick-copper busbar network is fully rated to handle a collective continuous current of 60A to 80A, depending on localized airflow cooling variables. For operational input voltage, it accommodates low-voltage DC lines up to 60V (with an absolute transient surge threshold of 80V), making it optimal for 12V, 24V, 36V, and 48V switching power networks.

Q2: Will leaving certain XT60 channels vacant affect the electrical output of other connected lines? Are covers needed?

A2: Not at all. This hub utilizes an equipotential parallel layout where every single port runs independently. It coordinates perfectly whether you draw load from 1 path or populate all 4 lines. To shield the vacant sockets from blowing metallic flakes or conductive grinding dust common on factory floors, we recommend snapping on our included rubber sealing caps during ongoing runs.

Q3: Does this distribution module embed short-circuit or fuse protection inside? What happens if a sub-line shorts out?

A3: This brick is an un-fused, purely passive high-conductivity distribution hub built to deliver max mechanical uptime. It contains no sacrificial fuses or micro-breakers that could falsely trip under high ambient heat or demand deep teardowns to swap out. We advise installing an appropriately rated master breaker on your primary input feed wire to safeguard the collective network if a terminal short occurs.
