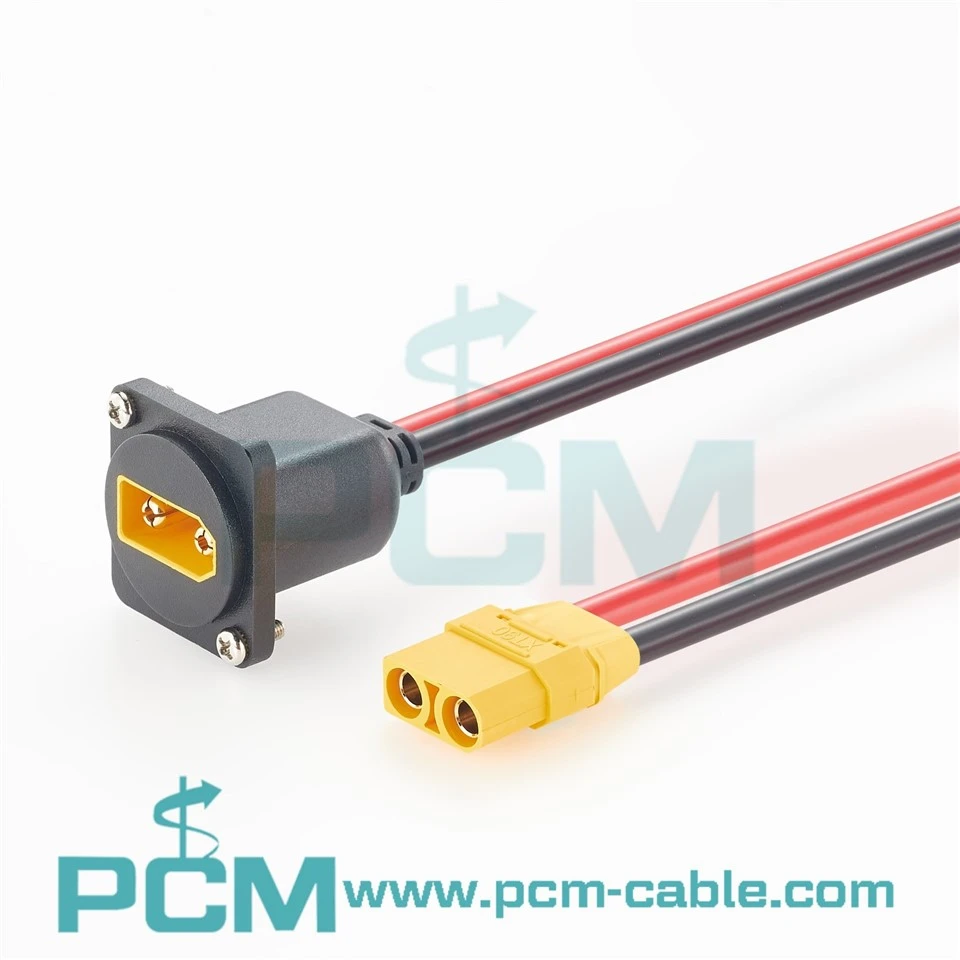

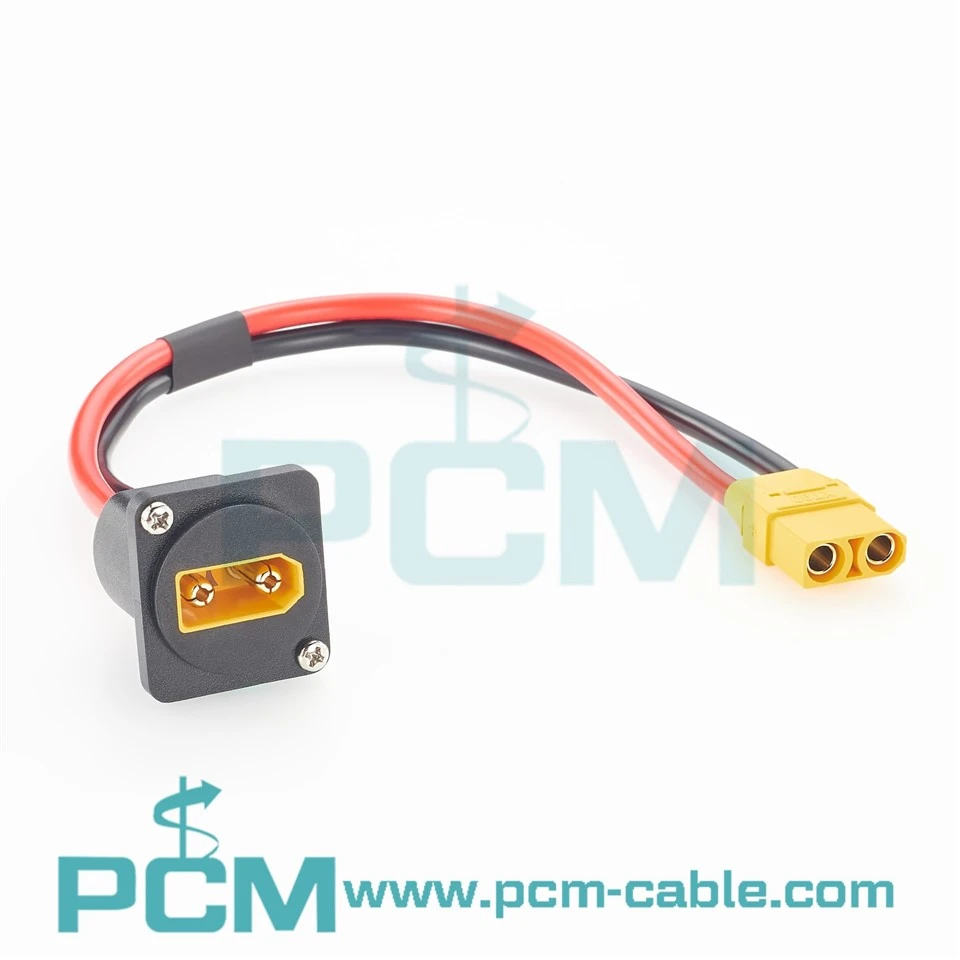

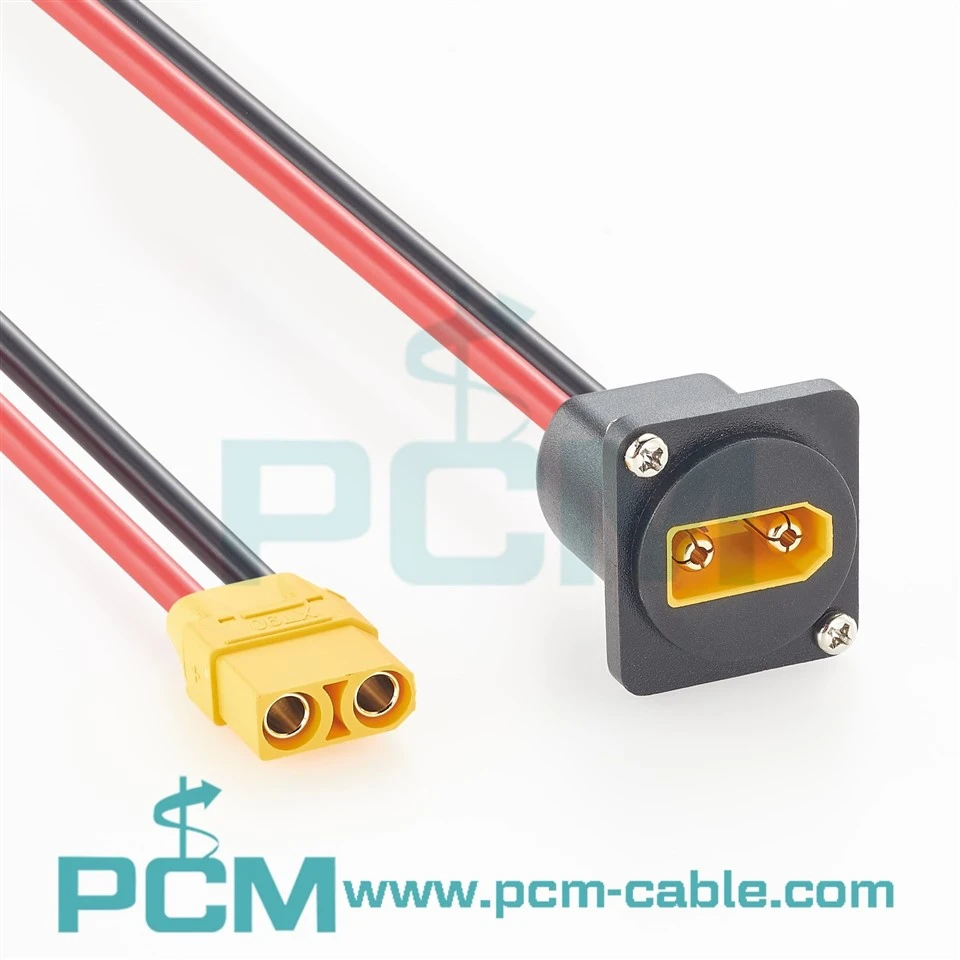

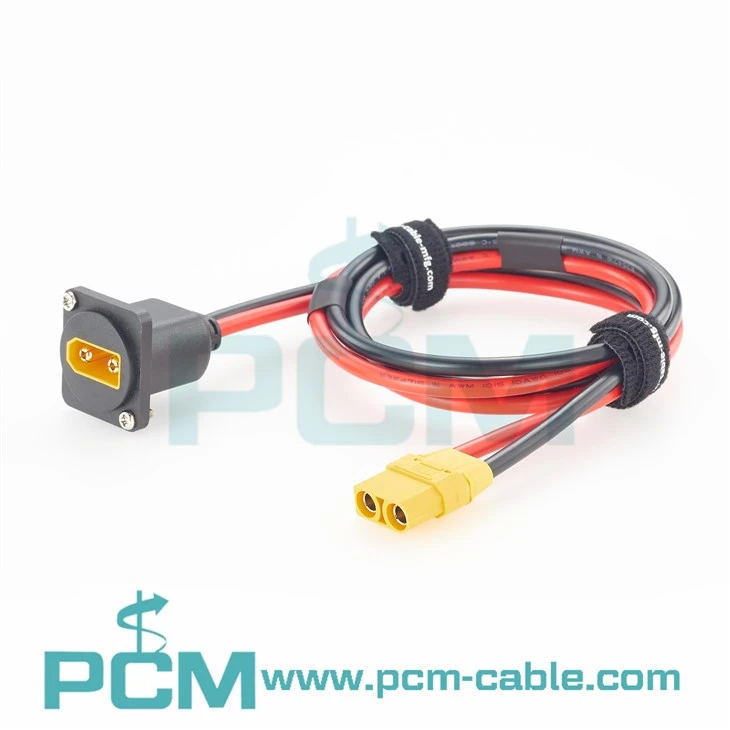

The PCM-0975 Panel Mount XT90 Extension Cable is a panel-mounted XT90 extension cable specifically designed for high-current DC power connection systems. It features an XT90 connector, a panel-mounting structure, and a highly flexible power cable, enabling safe and extended connections between batteries, power modules, and internal power systems within devices.

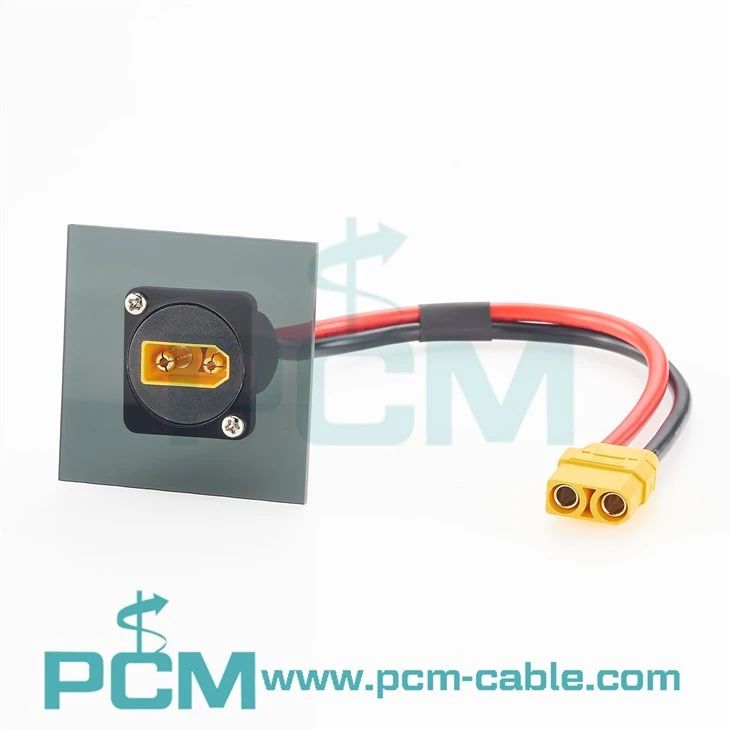

The XT90 Panel Mount Cable employs a panel-mounting method to secure the XT90 power connector to the device casing, control box, battery compartment, or cabinet panel, enabling quick plug-and-play capabilities and modular power management. Compared to traditional suspended power connection methods, the PCM-0975 offers more stable mechanical fixation, cleaner cabling, and higher reliability in current transmission performance. Made with high-quality conductors and wear-resistant insulating sleeves, it can significantly reduce resistance losses, enhance continuous operational stability, and meet the demands of long-term, high-load, and high-frequency plug-and-play applications.
This product is suitable for high-power battery systems, drones, electric devices, robots, motor control systems, portable energy storage devices, industrial automation equipment, and DIY high-current electronic projects.
★ Core Advantages
As an industrial-grade heavy-duty connector assembly, this product perfectly addresses the pain points of sealing and stability for chassis-wall power routing. Backed by deep manufacturing expertise, we have optimized the internal conductive structure to offer unparalleled electrical stability under continuous high charge and discharge currents, making it the premier choice for demanding industrial-grade connectivity.
★ Reliable & Secure Connection
The cable-to-connector joint is integrated using a heavy-duty overmolding process. Combined with a robust panel-lock mechanism, it guarantees uninterrupted power and signal transmission, eliminating risks of momentary power loss even under extreme mechanical stresses like high-frequency drone vibrations or rugged EV jolts.
★ Installation & Mounting Requirements
The product layout balances standardization with user-friendliness. Users only need a standard cutout on the equipment enclosure and the included retaining screws to achieve a fast, airtight panel installation. Its flexible bend radius allows effortless routing inside compact, embedded chassis enclosures.
Products Specification
| Product Name | Panel Mount XT90 Male Plug to XT90 Female Socket Extension Cable |
| Part No. | PCM-0975 |
| Product Type | XT90 Power Connector Cable |
| Length | 305±15mm;610±20mm;915±25mm; |
| Connector P1 | XT90 Male Plug + Panel Mount Housing |
| Connector P2 | XT90 Female Socket |
| Wire gauge | 10AWG |
| OD | 5.1mm |
Products Display
Product Features
-
High-Gauge Flame-Retardant Materials:
Utilizing premium thick-gauge copper wires and eco-friendly flame-retardant housing to ensure safe high-current power transmission under extreme conditions.
-
Precision Panel Lock Structure:
Designed with dual screw-hole ears for a flush chassis mount, effectively preventing connector loosening caused by severe vibrations.
-
Excellent Low Contact Resistance:
Heavy gold-plated connectors minimize contact resistance while significantly boosting oxidation and corrosion resistance.
-
Extended Service Life:
Engineered with premium wear-resistant specialized jacketing and extra-thick solid copper pins, this XT90 bulkhead extension cable boasts a rated mating life of thousands of cycles.
Core Application Scenarios
Key Benefits Across Applications：
1.Efficient Power Transmission with Reduced Loss
The low-resistance connection design enables stable high-current transmission, minimizing voltage drop and heat generation to ensure reliable power delivery under high-load conditions.
2.Easy Installation and Flexible Integration
The panel-mount design allows quick installation and modular integration into enclosures, battery packs, and control panels, reducing assembly complexity and saving installation space.
3.Secure and Reliable Connection for Harsh Environments
The robust connector structure provides vibration resistance, impact protection, and long-term durability for demanding outdoor, automotive, and industrial applications.
4.Versatile Solution for High-Power Applications
Designed for energy storage, electric vehicles, drones, and robotics, it provides a universal and reliable power interface solution for various DC power systems.
Core Performance Advantages
Superior High-Efficiency Low Loss
Minimizes heat generation during high-current periods, reducing power conversion loss to significantly optimize overall power system efficiency.
Plug-and-Play Streamlined Wiring
Eliminates complex internal chassis soldering, enabling quick external mating via bulkhead extension to drastically optimize maintenance and assembly efficiency.
All-Weather Wide-Temperature Adaptation
Features outstanding temperature and weather resistance, ensuring stable output during high-power charge/discharge cycles in extreme cold or heat.
Frequently Asked Questions
Q1: What is the maximum continuous current and voltage this extension cable can support?
A1: This panel mount XT90 cable is rated for a continuous current of 45A with a peak current up to 90A, and a maximum rated voltage of 500V DC, perfectly meeting the power needs of most heavy-duty equipment.
Q2: Can this XT90 extension cable be installed on an equipment panel?
A2:Yes. The panel mount design allows the XT90 connector to be securely fixed on equipment housings, battery boxes, and control panels.
Q3: Is this cable suitable for high current applications?
A3:Yes. XT90 connectors are designed for high current DC power transmission with low contact resistance and reliable performance.
