XT60 Female to DC 5.5x2.1mm Power Cable 18AWG
video

XT60 Female to DC 5.5x2.1mm Power Cable 18AWG

Premier Cable PCM-HD-0281 XT60 female to DC 5.5×2.1mm male power cable features durable 18AWG wire for stable power conversion between XT60 battery systems and DC-powered devices. Ideal for robotics, embedded systems, portable energy storage, industrial electronics, and DIY battery projects.
Send Inquiry
Product Introduction

PCM Cable Co., Ltd. is one of the leading XT60 Female to DC 5.5x2.1mm Power Cable 18AWG manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.







PCM-HD-0281 Amass XT60 female to DC 5.5×2.1mm male power cable is designed for reliable power conversion between XT60 battery systems and standard DC-powered devices.



Featuring an Amass XT60 female connector on one end and a universal DC 5.5×2.1mm male plug on the other end, this cable provides a convenient connection solution for robotics, embedded electronics, development boards, industrial devices, and portable power applications.



Built with high-quality 18AWG copper wire, the cable delivers stable current transmission with reduced voltage drop and improved electrical performance. The durable XT60 connector ensures secure mating and long service life under demanding operating conditions.

DSC0090 1







Products Specification





Product Name

XT60 Female to DC 5.5×2.1mm Male Power Cable

Part No.

PCM-HD-0281

Connector P1 DC 5.5×2.1mm male plug
Connector P2

XT60-F female connector

Wire Gauge 18AWG × 2C
Cable Outer Diameter

5.0 ± 0.2mm

Cable Type

UL2464

Cable Length

1000 ± 20mm

Application Low-voltage DC power systems

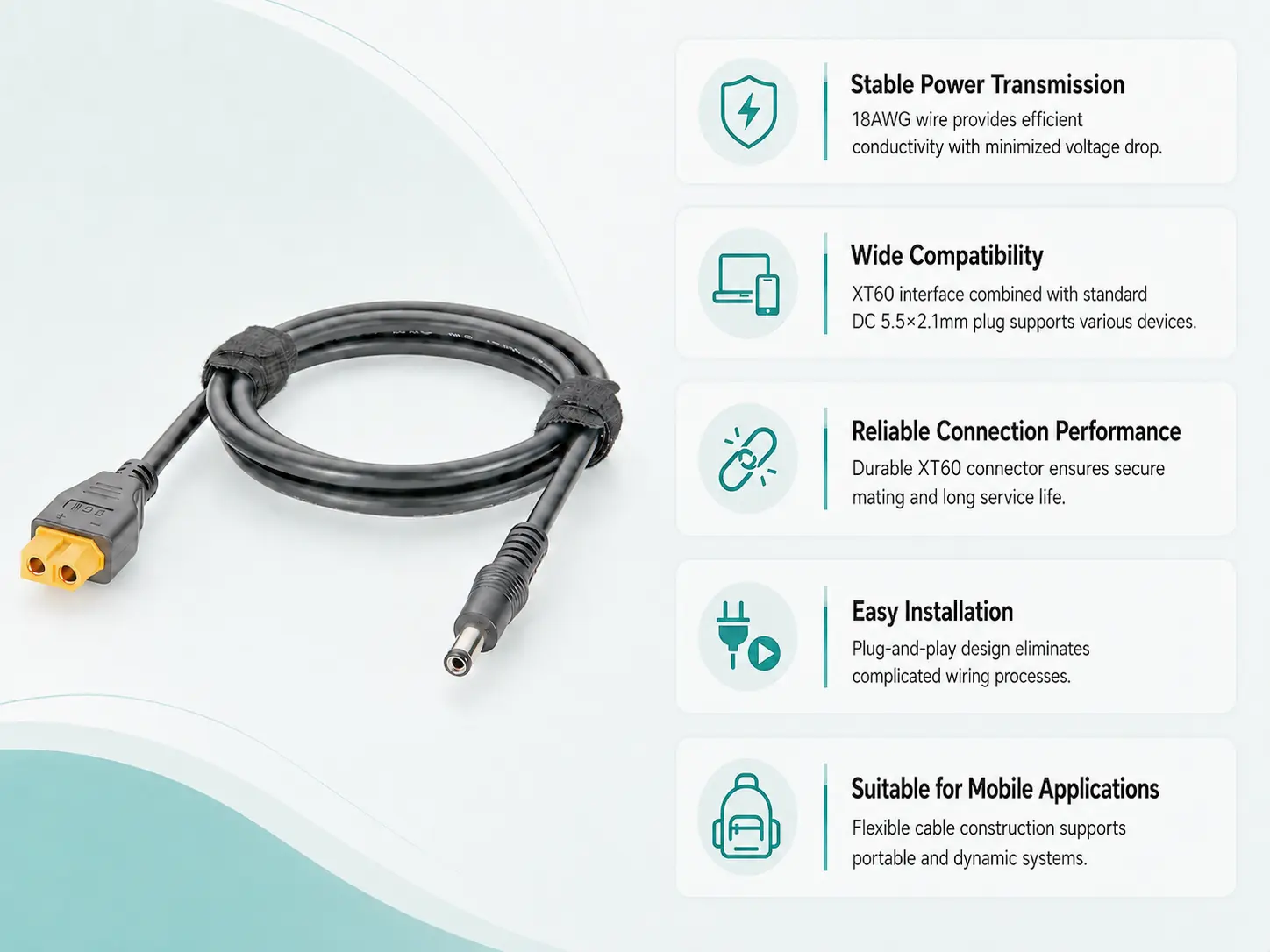

Products advantages





726a1030-4170-45df-b51c-51ca521fbca6 1





Products Display





0e166c82-e490-4395-9d15-27ccd68ac0af 1



Products Features





DSC0085 1


●    Secure XT60 Female Connector

Equipped with Amass XT60 female connector for reliable battery connection and stable power delivery.

●    Standard DC 5.5×2.1mm Plug

Compatible with widely used DC-powered devices for convenient power conversion.

●    18AWG High-Quality Wire

Provides efficient current transmission with reduced voltage loss.

●    Flexible Power Connection Solution

No additional converter required, ideal for mobile and embedded power applications.





Core Application Scenarios





  • 1d19ef8d-510d-4e08-a325-f58ec638b144 1
    Robot Control System
  • 2da11e08-8475-4db7-b16d-b830ba521e63 1
    Portable Energy Storage Device
  • 888ac990-7465-475b-8bdf-fbc8f453eac2 1
    DCelectronic equipment powersupply
  • 92905ec5-0309-4486-b58c-a2e30a06a65b 1
    Battery Conversion System





Products Drawing





PCM-HD-0281 XT60DC 55 21 10
