XT60 6 Port Solar Charging Connector
PCM Cable Co., Ltd. is one of the leading xt60 6 port solar charging connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

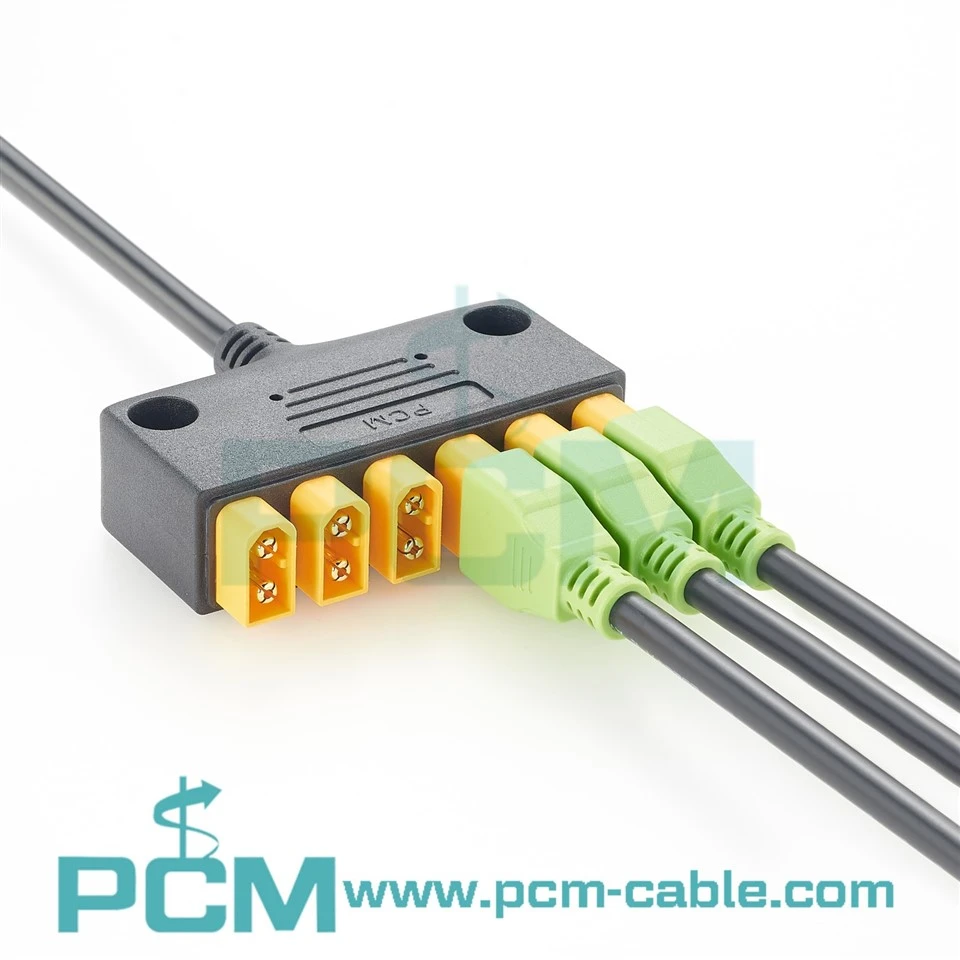

Premier Cable PCM-S-0979 is a 6 Port Solar Charging XT60 Connector designed for solar charging systems. It combines power from up to six solar panel inputs and routes the combined energy through a single standard XT60 output interface for efficient multi-panel power collection.
Compared with traditional single-panel charging setups, this 6 Port Solar Connector maximizes solar energy utilization while reducing complicated wiring and additional adapters.
The combined power output can be connected directly to portable power stations, battery storage systems, and outdoor energy solutions through the XT60 Interface, providing a convenient and efficient solar charging solution for camping, mobile equipment, and off-grid applications.
Service Life
Engineered to effortlessly outlast continuous outdoor UV baking, dramatic temperature shifts, and heavy seasonal downpours, this hardware incorporates extreme climate-defense design margins. The specialized weatherproof cladding cleared thousands of hours inside UV and ozone stress acceleration chambers, maintaining structural suppleness without cracking, while the inner gold-plated plugs survive over 1,000 mating wear cycles. 100% of lots endure continuous high-amp load testing and underwater pressure leak analysis before shipping, ensuring factory-certified maintenance-free operational life.
Stable Connection
The wild outdoors are highly erratic; sudden high winds, wildlife traffic, or accidental manual tugging can dislodge electrical plugs and halt power storage. Countering this vulnerability, each port inside this heavy-duty Multi-Panel Combiner Cable integrates high-tension interference-fit internal spring contacts that supply deep physical friction. Once home, the connectors lock into place with substantial mechanical holding force. The assembly layout remains resilient under strong winds or uneven surface dragging, preserving flawless micro-volt contact continuity to guarantee uninterrupted high-amp charging streams from early dawn to sunset.
Installation Requirements
Swift field assembly and hassle-free breakdown represent core requirements for exploration gear. This solar distribution wire strips away the necessity for bulky external junction boxes, terminal strips, or electrical insulating tapes. The collective harness features a lightweight, ergonomic silhouette that folds easily into standard backpack pouches. When arriving at base camps, users simply snap their various solar panels into the 6 available ports and insert the primary yellow XT60 lead into the mobile generator. The entire high-power setup deploys seamlessly within 10 seconds without tools.
Products Specification
| Product Name | XT60 Female Socket to 6-Port XT60 Male Plug Power Distribution Cable |
| Drawing Number | PCM-0979 |
| P1 Interface | XT60 Female Socket |
| P2-P7 Interface | 6-Channel XT60 Male Connector |
| Interface Structure | 1 XT60 female connector connects 6 XT60 male connectors |
| Cable Length | 500+20 mm |
| Dutput Interface Spacing Annotation | 4 mm |
| Cable Specification | UL2464,14AWGx2 core |
| Cable Outer Diameter | 6.5 mm |

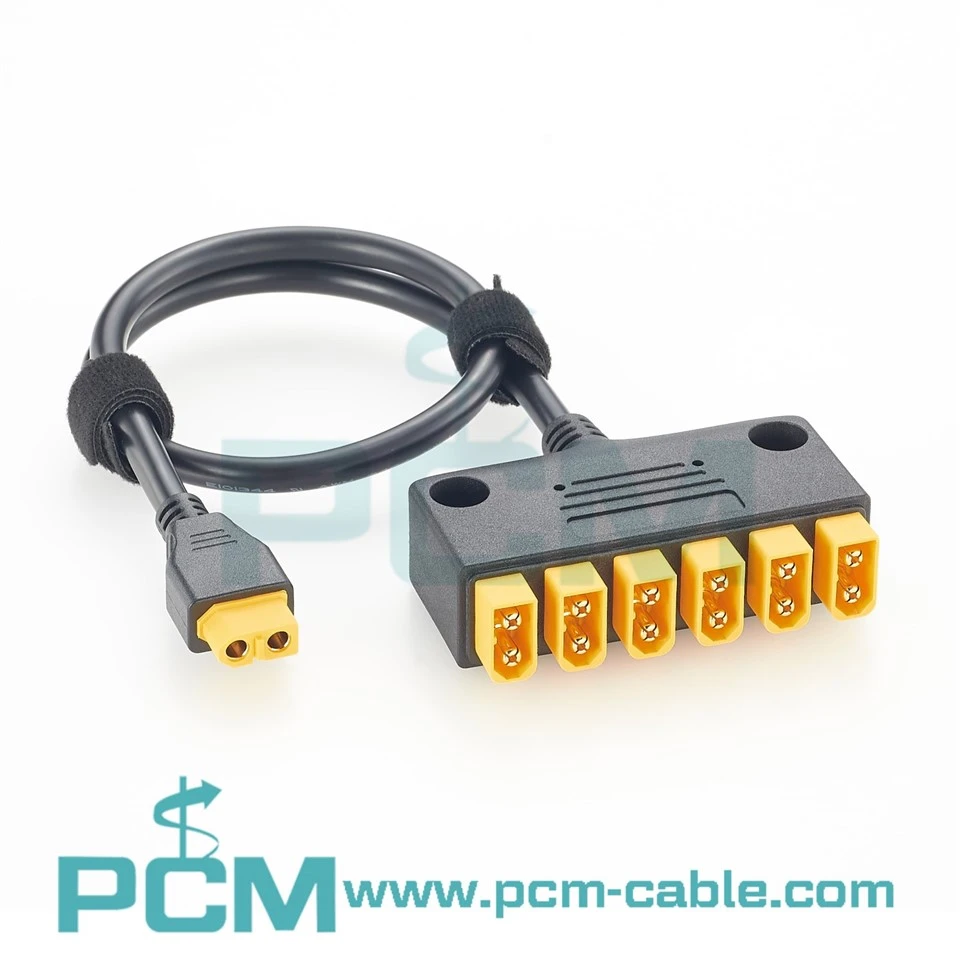

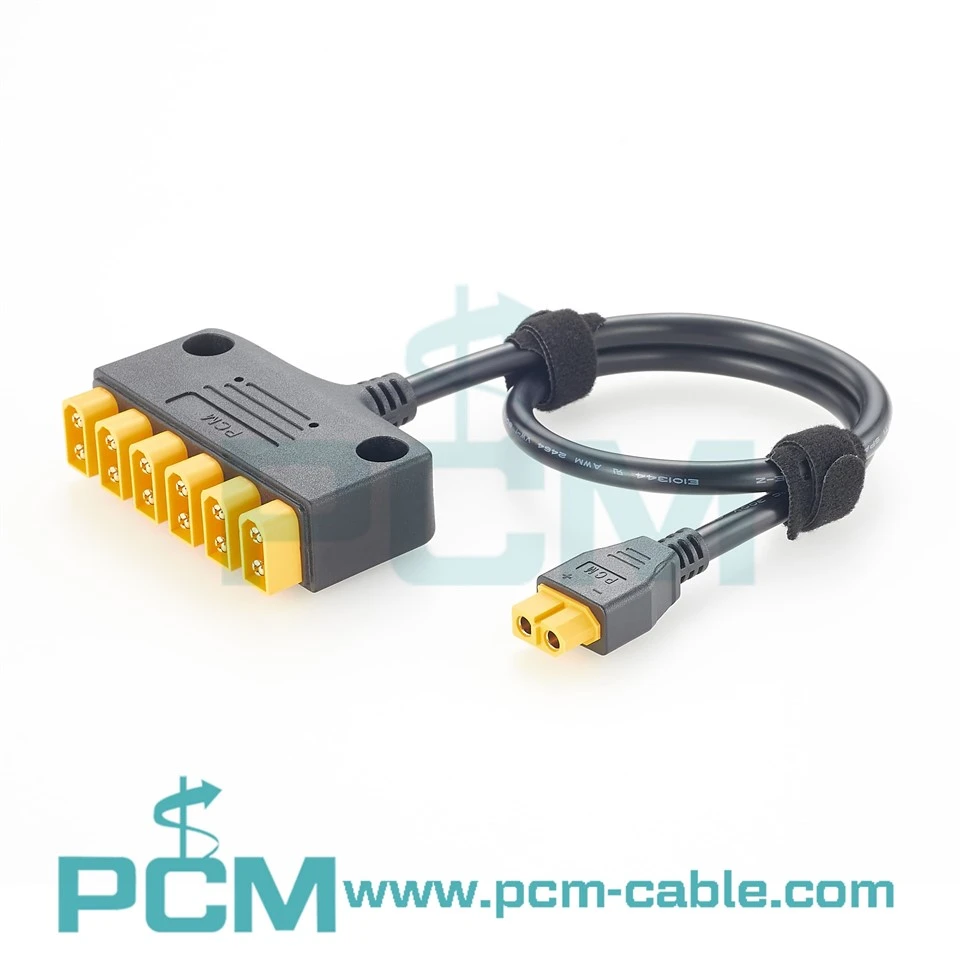

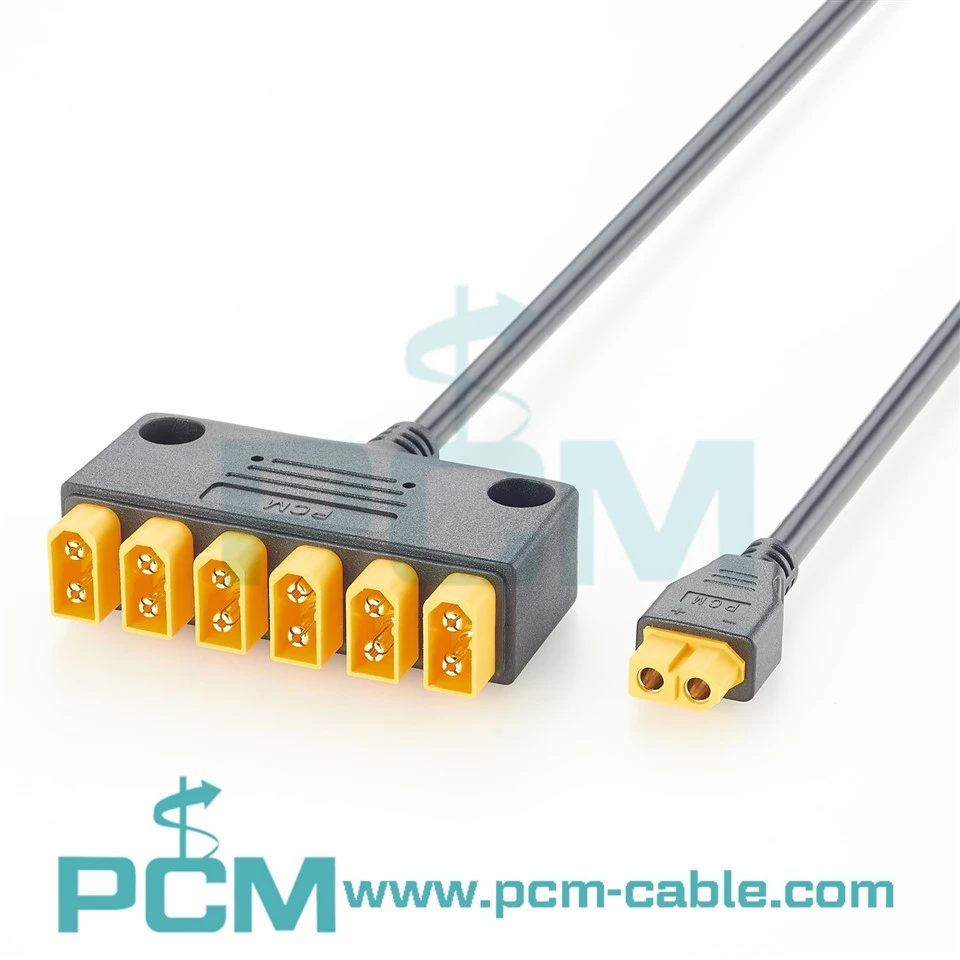

Products Display
Product Features
◆ 6-in-1 Photovoltaic Parallel Busway
Outfitted with 6 distinct solar input entries tied via a heavy-gauge internal parallel circuit, this platform allows field operators to matrix 6 individual modules instantly, aggregating scattered sunshine into one line.
◆ Premium Gold-Plated XT60 Output Terminal
The prime delivery outlet features a genuine brass-based, heavy gold-plated XT60 interface encased in resilient housing. Built for rigorous outdoor cycles, the contacts resist physical abrasion to stop terminal heating.
◆ Anti-UV Hermetic Overmolded Hull
The core combining block is encapsulated via high-pressure overmolding using polymers rich in anti-UV additives. Defying continuous scorching sunlight, the sealed structural margins block raw moisture or morning dew.
◆ Spacious Anti-Tangle Radiating Harness
The incoming lines feature a radial octopus orientation with calibrated lengths. When fanning out equipment across remote ground fields, the sub-cables lay parallel without overlaps, ending field deployment clutter.
Core Application Scenarios
RV Expeditions & Off-Grid Overlanding
Serving as an XT60 solar panel power strip, it connects multiple folding solar panels for RVs and off-grid camps, combining solar inputs to charge onboard batteries or portable power stations efficiently.
Emergency Rescue & High-Capacity Disaster Storage Arrays
Deployed as a Portable power station charging array for emergency camps and field hospitals, it combines solar power sources to support communication equipment, lighting systems, and critical devices.
Core Performance Advantages
Exponential Solar Inbound Accrual
By deploying an advanced Portable power station charging array approach, this hub expands your total immediate sun-catching surface, slashing the charging turnaround period for high-capacity power units.
Micro-Ohm Integrity for Zero Power Drop
The interior core utilizes ultra-pure oxygen-free copper barstocks that restrict loop resistance to micro-ohm levels. This counteracts voltage drops common in legacy daisy-chains, capturing raw energy even on overcast afternoons.g and testing equipment.
Intrinsic Anti-Backflow Safety Barrier
The parallel grid delivers high isolation parameters. If trees shadow certain solar panels, the framework stops high-voltage modules from discharging backward into low-voltage segments, defending cells from thermal spots.
All-Weather High-Flex Path Continuity
The lead skins utilize premium flexible weather-proof compounds rated for climates from -30°C to +80°C. Resisting external abrasions from heavy mud or jagged gravel paths, the harness maintains a continuous power stream.
Frequently Asked Questions
Q1: Can I use this hub if I only have 3 or 4 solar panels available? Do the unused ports require extra covering?
A1: Yes, absolutely. This hub features a highly robust parallel network topology where each port acts independently and equipotentially. It functions perfectly whether you link 1, 3, or all 6 solar modules to the system. For any vacant sub-ports, the recessed physical socket margins offer natural isolation, but we recommend clipping on our included soft protective dust caps to keep out blowing sand or rainwater during downpours.
Q2: Is it safe to mix solar panels of different wattages or open-circuit voltages on this combiner? Will it affect speeds?
A2: From an electrical perspective, because this 6 Port Solar Charging Connector utilizes a parallel routing layout, we strongly recommend combining panels that feature identical or closely matched nominal voltage profiles (their wattage capacities can vary freely). Mixing vastly different voltage panels clamps the total grid output to the lowest module's voltage level, dragging down overall charging efficiency. The channel isolation safeguards basic system protection under mixed setups.
Q3: What is the maximum wattage load this XT60 connector can sustain? Can I bridge 200W+ panels together?
A3: The main XT60 path and copper bus trunk lines are fully rated to handle a collective continuous current of 35A (with a transient spike threshold of 45A). For typical solar panel kits putting out between 18V and 24V, this combiner accommodates a massive aggregate input load from 600W up to 800W safely. It handles grouping multiple premium 100W or 200W rigid arrays seamlessly, safely maximizing the XT60 input limits of top-tier mobile power stations.
Products Drawing
