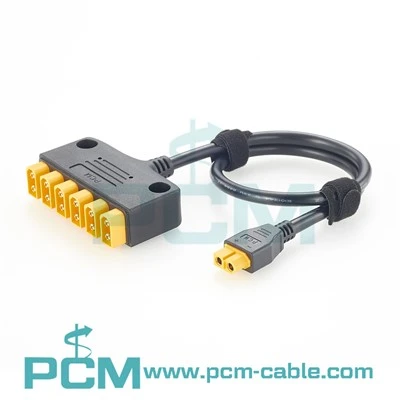

Premier Cable PCM-0988 integrates one XT30 male main connector and six XT30 male positions into an approximately 96 mm linear molded body, creating an organized six-position platform for batch testing and multi-device connection. Compared with loose Y-splitters, its fixed layout reduces cable movement, crossover, and connector clutter, helping operators identify DUTs and harnesses more efficiently during repeated connection, sample replacement, troubleshooting, FPV servicing, and burn-in testing.
PCM-0988 features dual mounting holes for secure installation in production fixtures, burn-in racks, laboratory panels, and service stations. UL1569 UL1007 16AWG internal jumpers form common positive and negative parallel paths, while one-piece molding secures the wiring and XT30 interfaces. Each assembly is tested for opens, shorts, and miswiring. Since all six ports share the same voltage and polarity, total load, source capacity, polarity, and external circuit protection should be verified before operation.
Products Specification
| Product Type | XT30 1-to-6 Power Distribution Block |
| Drawing Number | PCM-0988 |
| P1 Port | 1 x XT30 Main Port |
| P2-P7 Ports | 6 x XT30 Distribution Ports |
| Total Ports | 7 XT30 Ports Total |
| Distribution Structure | 1-to-6 Parallel Distribution |
| Main Body Length | 96 mm |
| Main Body Height | 18 mm |
Products Display
Product Features
-
6-Position XT30 Centralized Connection
One XT30 male main connector and six XT30 male positions create an organized six-position connection platform. Compared with loose Y-splitters, the linear layout reduces cable sorting and connector identification, simplifying DUT connection, switching, batch inspection, burn-in, and repetitive testing.
-
16AWG Parallel Power Architecture
UL1569 / UL1007 16AWG internal jumper wires establish common positive and negative parallel paths across all six XT30 positions. The defined wiring architecture supports load calculation, power-source matching, and protection planning for FPV, RC equipment, and electronic test fixtures.
-
96 mm Linear Molded Structure
The approximately 96 mm extended molded body arranges six XT30 interfaces at fixed positions, providing defined locations for test leads, equipment harnesses, and service adapters. The linear structure reduces cable crossover and improves organization compared with multiple loose branch connectors.
-
Dual-Hole Fixture Integration
Dual mounting holes secure the XT30 Power Distribution Box to production fixtures, burn-in racks, laboratory panels, and custom equipment, reducing module movement during repeated mating. Fixed dimensions and consistent port positions also support standardized OEM workstation design, assembly, maintenance, and deployment.
Core Application Scenarios
Automated Test Fixtures & Multi-Channel Aging Cabinets
Suitable for chip test platforms, micro-motor inspection fixtures, electronic control boards, and component burn-in testing before shipment. The XT30 6 Port Power Distribution Box provides a centralized connection point between a DC source and multiple DUT stations. Its fixed six-position layout reduces cable clutter and simplifies sample connection, replacement, powered verification, and troubleshooting in repetitive automated testing and continuous aging environments.
Indoor Micro Robots & AGV Warehousing Vehicles
Designed for indoor inspection robots, warehouse shuttles, compact AGVs, and experimental mobile platforms. The six-port XT30 module provides organized DC connection points for control boards, sensors, LiDAR, communication modules, and auxiliary electronics. Its fixed linear layout reduces branch-cable clutter inside compact electrical compartments while supporting clearer module identification, easier assembly, component replacement, and maintenance.
Frequently Asked Questions
Q1: Since this distribution box is enclosed, how is the thermal performance under heavy current?
A1: We engineered the box with thickened, one-piece solid copper bus-bars instead of thin wires inside, which minimizes internal impedance. Heat generation under load is very small. The thickness of the ABS shell is optimized to radiate warmth uniformly across the surface, safely sustaining a combined continuous total of 40A-50A in ventilated conditions.
Q2: If a short circuit occurs on one of the XT30 channels, will it ruin the entire box?
A2: This is a pure passive parallel routing bus without individual onboard fuses. A short on one channel will pull down the main bus voltage, but due to the high thermal and arc resistance of the inner copper tracks and ABS casing, the box itself will not be physically destroyed. We recommend fusing your main power feed upstream.
Q3:Why should I choose this enclosed distribution box over a bare PCB splitter board?
A3: Bare PCB splitters are highly vulnerable to short-circuit disasters caused by dropped screws, stray metallic filings, or moisture drops, and their pads can peel off under mating strain. This box provides a dust-proof engineering enclosure where mating stresses are absorbed by the shell rim, offering superior mechanical rigidity for industrial or lab use.
