XT30 4 Channel Power Distribution Board
PCM Cable Co., Ltd. is one of the leading xt30 4 channel power distribution board manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

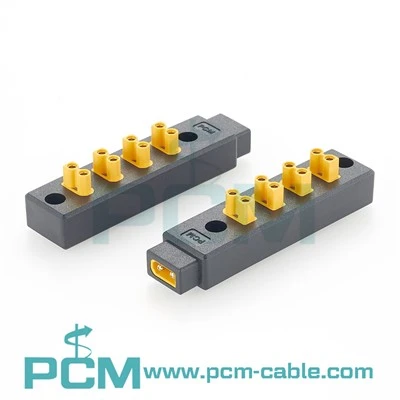

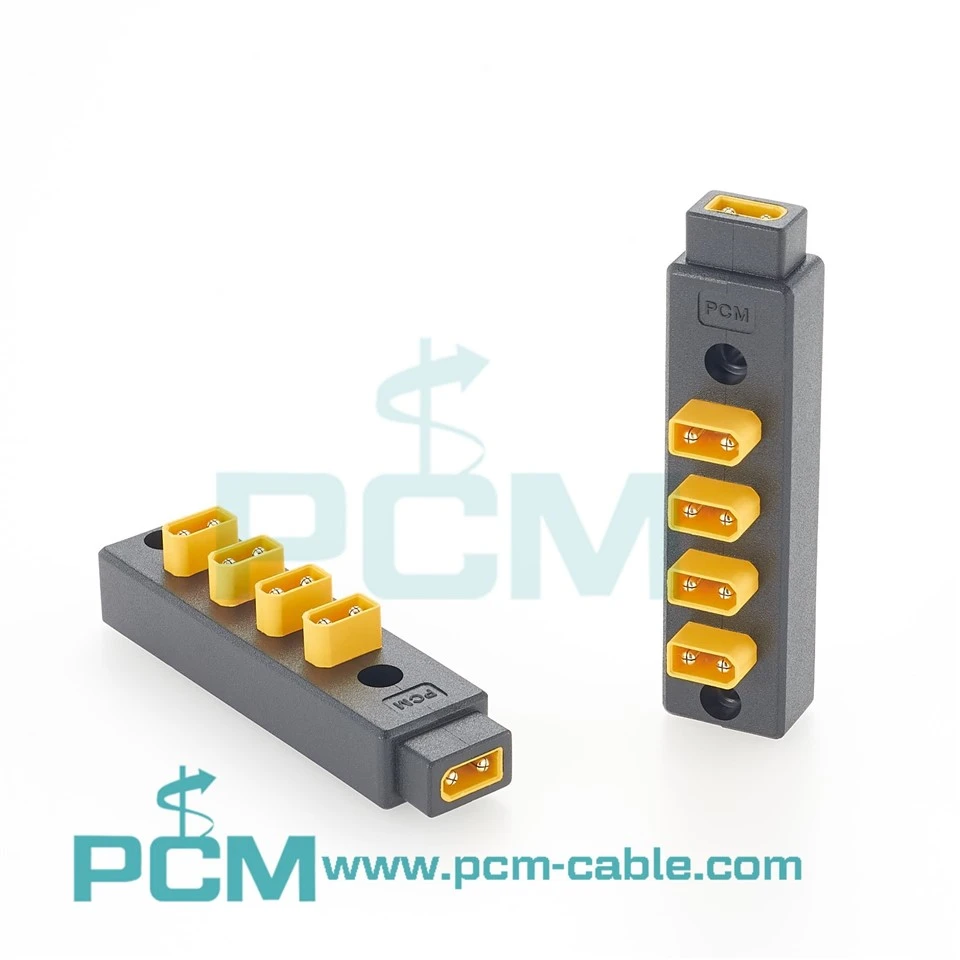

Premier Cable PCM-0987 features a compact four-channel XT30 architecture, integrating one XT30H-M main connector and four XT30H-M ports into an approximately 74 mm rigid molded module. Internal parallel wiring creates a unified DC connection path. Compared with conventional Y-splitters or loose adapter cables, the fixed-port structure reduces connector movement and keeps each mating position clearly organized, making it suitable for mini UAVs, compact robots, RC equipment, battery testing, and space-constrained electronic platforms.
PCM-0987 incorporates Φ3.5 mm fixing holes and Φ6.0 mm positioning holes for secure installation on robot chassis, battery test fixtures, laboratory panels, and custom electronic enclosures. This allows the XT30 Power Distribution Board to function as a fixed connection node rather than a loose adapter. Before installation, users should verify compatible XT30 female harnesses, polarity, operating voltage, total load, and wire capacity. As a passive parallel module, it does not include fuses, BMS, switches, or electronic current limiting; required circuit protection should be provided by the final system.
Products Specification
| Product Type | XT30 4-Port Power Distribution Module |
| Drawing Number | PCM-0987 |
| P1 Connector | XT30 Connector |
| P2/ P3 / P4 / P5 Connector | 4 x XT30 Connectors |
| Number of Ports | 1 Input + 4 Distribution Ports, 5 XT30 Ports Total |
| Main Body Length | 74 mm |
| Main Body Height | 18 mm |
Products Display
Product Features
4-Channel XT30 Distribution
One XT30H-M main connector and four parallel XT30H-M ports consolidate multiple power connection points into a single module. Compared with conventional Y-splitters, the centralized layout reduces loose branch wiring and simplifies connector identification, connection, and replacement in compact equipment.
16AWG Parallel Wiring Architecture
UL1569 / UL1007 16AWG internal jumper wires establish common positive and negative parallel paths across the four XT30 ports. The defined conductor specification and wiring architecture support load evaluation, BOM review, and system matching for battery testing, robotics, and electronic equipment.
Compact Rigid Molded Structure
The approximately 74 × 18 mm slim molded body secures the XT30 interfaces and internal wiring while reducing the space required by loose harnesses and providing mechanical protection for the internal conductors. It is ideal for mini UAVs, compact robots, RC equipment, and portable test platforms.
Fixed Mounting & OEM Integration
Integrated fixing and positioning holes allow direct installation in test fixtures, robot chassis, instrument panels, and custom enclosures without relying on cable ties or adhesive. The fixed-mount design helps OEM engineers plan power interface locations during development while simplifying assembly, harness replacement, and maintenance.
Core Application Scenarios
FPV Micro Drones & UAV Swarms
Designed for 1S–4S FPV micro drones, mapping UAVs, and indoor drone swarms, providing centralized XT30 power connections for flight controllers, video transmitters, sensors, and auxiliary electronics.
Smart RC Models & Scaled Dioramas
Suitable for premium RC cars, mini boats, model railways, and automated dioramas, distributing DC connections to drive units, lighting, controllers, and sensors for cleaner wiring and modular maintenance.
Frequently Asked Questions
Q1: What is the current rating per channel and in total for this PDB?
A1: Based on physical caps of standard XT30 nodes, each channel safely sustains 15A continuous and up to 30A burst. Thanks to heavy-copper wide routing, under normal ventilated conditions, the overall combined continuous board input is rated up to 40A-50A for optimum thermal health.
Q2: How are the channels linked? Can it be used for series battery connections?
A2: The board utilizes a fully parallel electrical topology, connecting all positive terminals and all negative terminals together. It excels at splitting 1 source into 4 lines, or gathering 4 identical voltage inputs into 1 output. Do NOT use it to connect batteries in series, as it will trigger a fatal short.
Q3:Will frequent mating cause the XT30 receptacles to desolder or loosen from the PCB?
A3: No. Instead of basic SMT pads, our engineering applies a "multi-point anchoring" technique with oversized structural side-wall solder anchors. Mating forces are distributed safely into the rigid FR-4 laminate, raising peel resistance by over 200% compared to typical generic models.
