XT60 Male To XT30 Female Adapter Cable
PCM Cable Co., Ltd. is one of the leading xt60 male to xt30 female adapter cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable PCM-0989 is designed to bridge different XT-series power connector sizes, featuring an XT60 male connector on one end and an XT30 female connector on the other. It establishes a direct electrical interface between XT60 and XT30 systems without cutting wires or replacing existing connectors. Compared with field soldering or connector replacement, this adapter cable preserves the original equipment harness and provides a practical transition for FPV debugging, RC upgrades, battery testing and R&D platforms.
Unlike a rigid one-piece adapter, the cable-based design provides a flexible transition between XT60 and XT30 interfaces. This allows routing around confined equipment spaces while reducing mechanical interference caused by directly stacking connectors of different sizes. The keyed XT connector geometry supports consistent mating orientation, making the cable suitable for recessed ports, restricted installation angles and applications requiring separation between connection points.
Manufacturing Process
PCM-0989 uses two power conductors to connect the positive and negative contacts between XT60 and XT30 interfaces, with insulation and strain management applied around the connector exits. This helps prevent cable bending forces from concentrating directly on the electrical termination area. For OEM projects, wire gauge, cable length, insulation, labeling and connector versions can be configured according to application drawings and installation requirements.
Stable Connection
Before installation, verify connector gender, polarity, operating voltage, load current and wire specification. The XT60-to-XT30 conversion changes the physical interface only; it does not increase the current capability of the XT30 side. Even when the XT60 end is connected to a higher-capacity source, the complete circuit must be designed according to the lowest-rated connector, conductor or component to prevent overload and excessive heating.
Service Life
The flexible cable structure accommodates movement, repositioning and periodic mating commonly encountered in RC equipment, UAV test platforms and electronics benches. Proper cable routing can also reduce continuous side loading on the connectors. Actual service life depends on mating frequency, operating current, bend radius, temperature and cable securing conditions; contacts, insulation and connector exits should be inspected periodically.
Products Specification
| Product Type | XT60 Male to XT30 Female Adapter Cable |
| Drawing Number | PCM-0989 |
| P1 Port | XT60 Male Plug / XT60H-M |
| P2 Port | XT30 Female Socket /XT30H-F |
| Cable Structure | 2-Conductor Power Cable |
| Cable Standard | UL2464 |
| Cable Outer Diameter | OD 6.0 mm |
| Product Length | 1500 + 30 mm |

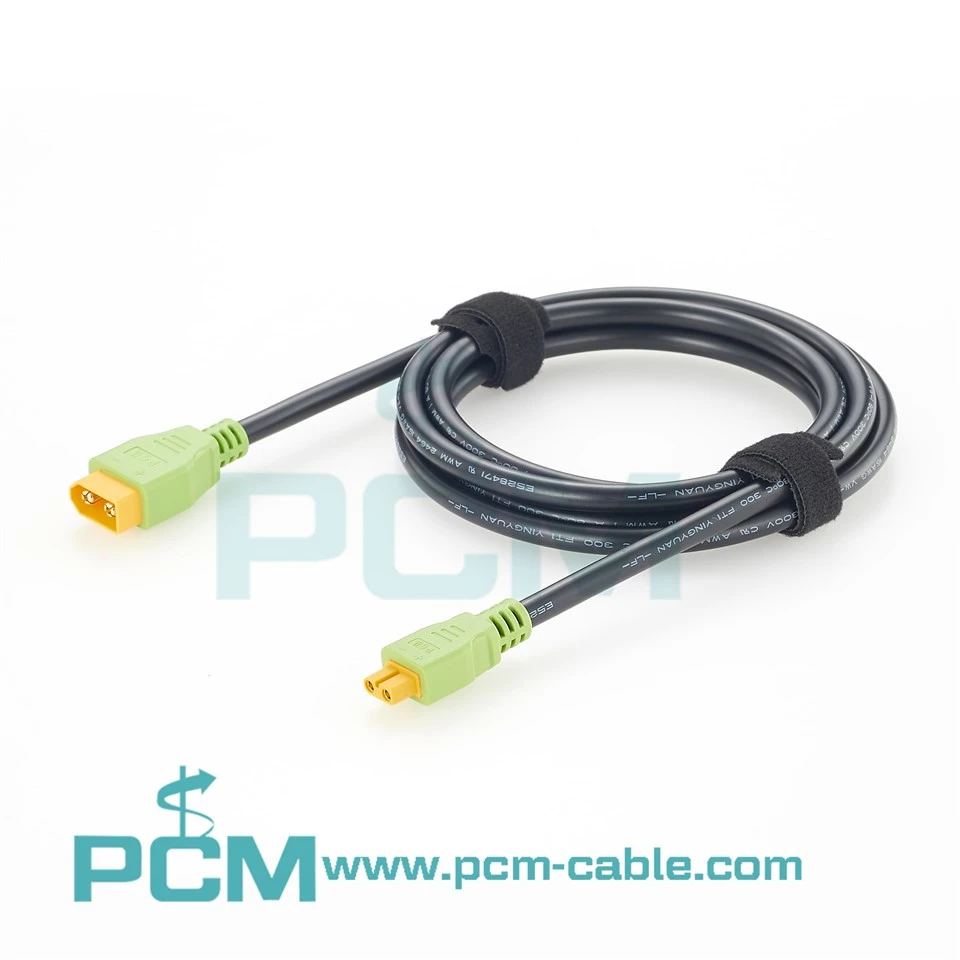

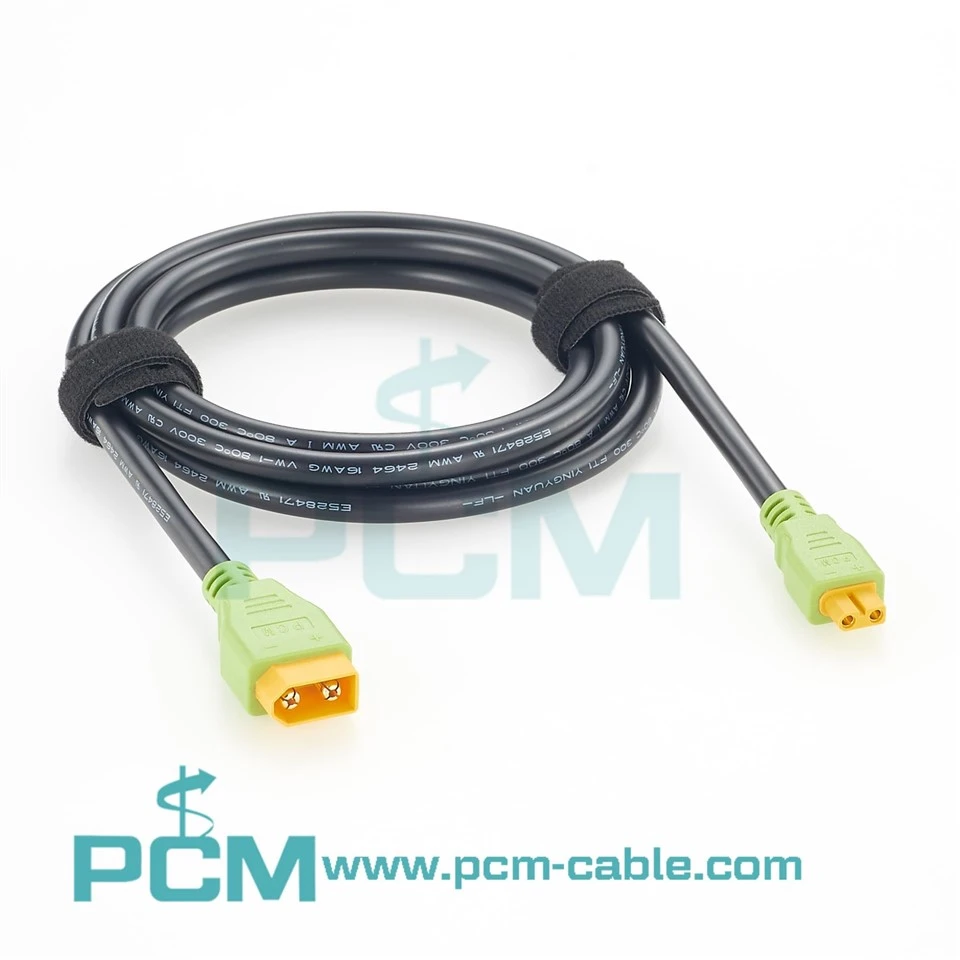

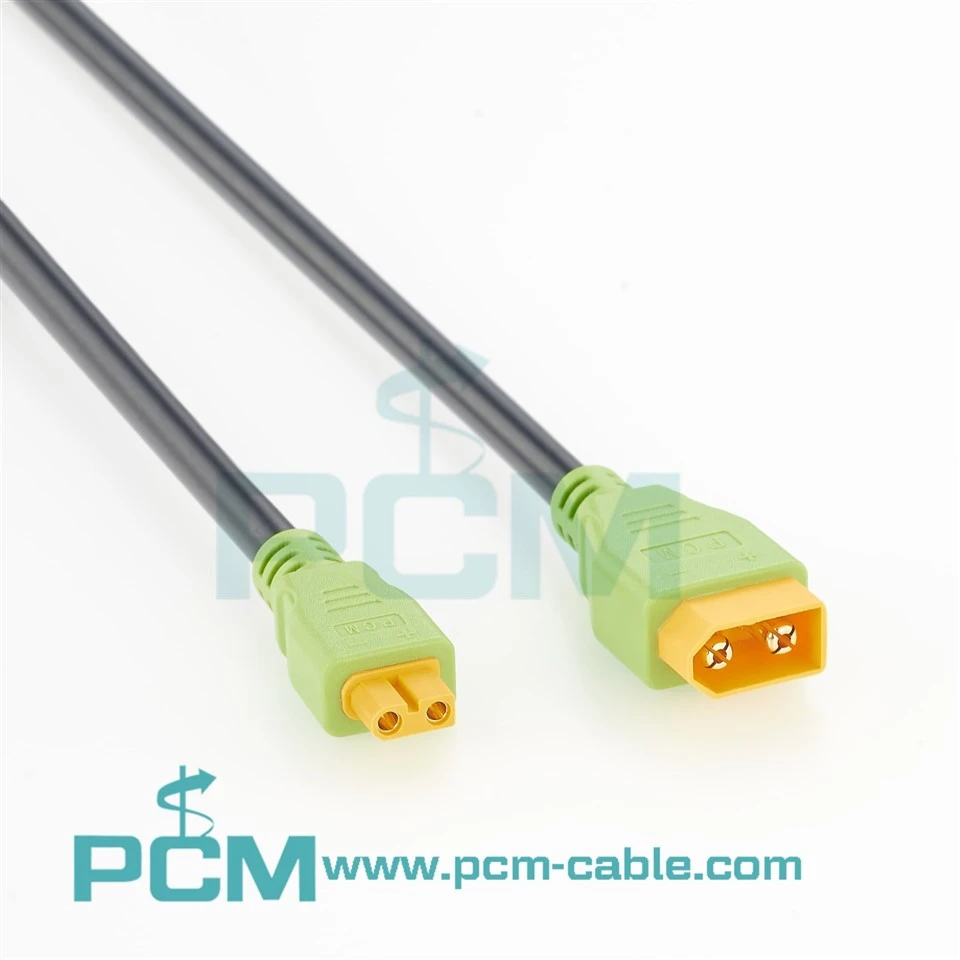

Products Display
Product Features
★ XT60 Male to XT30 Female
Defined XT60 male and XT30 female interfaces provide direct conversion between different XT-series systems without modifying the original equipment connectors.
★ Plug-and-Play Conversion
The preassembled cable can be inserted into existing battery, equipment or test setups without fabricating an adapter on site, supporting rapid prototyping and compatibility checks.
★ Flexible Cable Transition
A flexible cable section between XT60 and XT30 allows natural routing around confined spaces and offset ports where rigid adapters may be impractical.
★ OEM Harness Customization
Cable length, wire gauge, conductor type, labeling, packaging and connector versions can be evaluated for UAV, robotics, RC and test-equipment projects.
Core Application Scenarios
Battery & Charger Testing
Suitable for battery laboratories, charger validation and service benches where XT60 test equipment must interface with XT30 harnesses or devices. Similar XT60/XT30 adapter cables are commonly used for charger and drone connector conversion.
Robotics & Portable Electronics
Suitable for compact robots, experimental platforms, portable electronics and custom DC systems requiring an intermediate connection between power modules and lower-power devices using different XT interfaces.
Frequently Asked Questions
Q1: This adapter goes from large to small; should its current rating follow XT60 or XT30?
A1: The continuous safe current capacity follows the bottleneck rule, meaning it is governed by the smaller XT30 side and wire gauge 16AWG or 18AWG. While the XT60 side supports higher limits, we advise clamping the overall long-term continuous pass through this bridge within 15A-30A for system health.
Q2: Will frequent bending cause the cable junctions near the plugs to crack or snap?
A2: Absolutely not. Generic DIY cables only rely on soft heat-shrink tubing, which breaks easily under flex strain. This Premier Cable product integrates heavy-duty overmolded strain relief boots at the rear of both connectors, distributing bending forces evenly to sustain thousands of radical flexes without splitting.
Q3: How is the polarity mapped on this adapter? Is there a risk of reverse polarity?
A3: This transfer line strictly adheres to standard DC polarity during automated assembly: the positive of the XT60 male hooks to the positive of the XT30 female, and negatives align. Paired with native asymmetric keyed profiles on both housings, it physically seals out reverse polarity hazards.
Products Drawing
