XT60 Panel Mount Cable
PCM Cable Co., Ltd. is one of the leading XT60 Panel Mount Cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

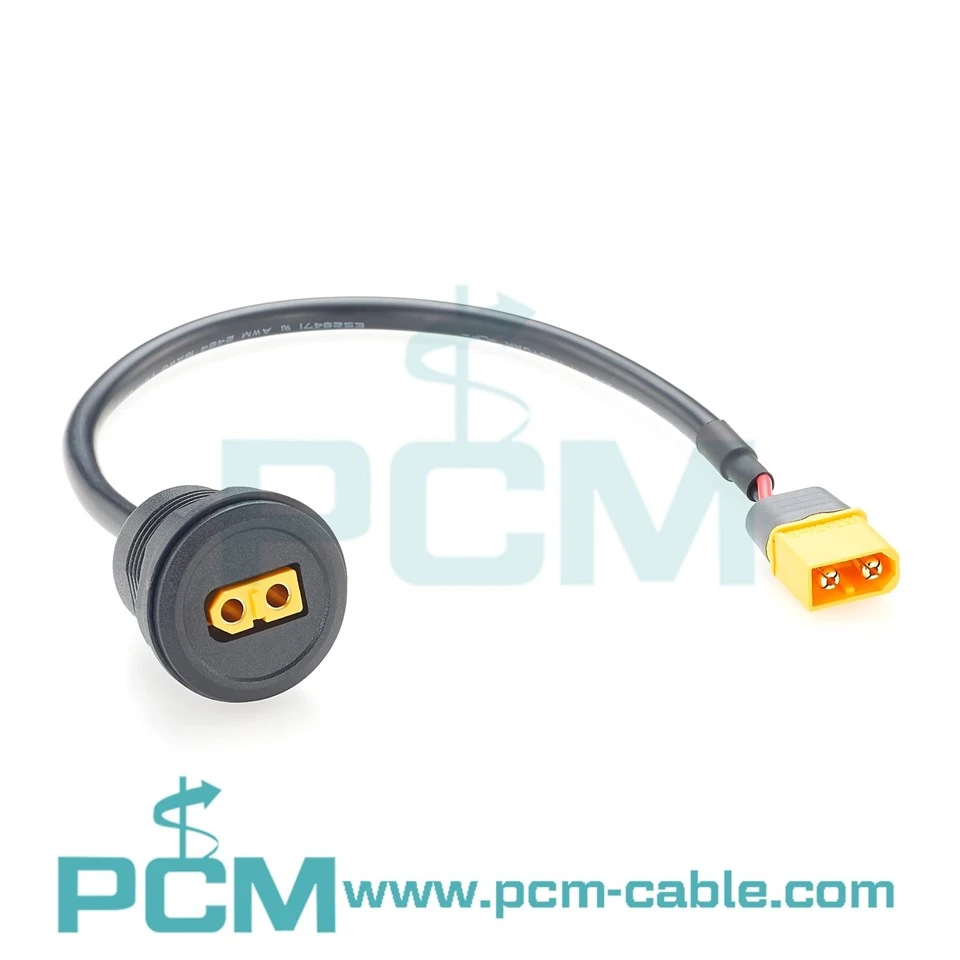

Premier Cable PCM-1012 is a newly developed Amass XT60 panel mount cable engineered for panel-level DC power connections in battery equipment, RC/FPV systems, portable power devices, solar equipment, e-bikes and customized electrical enclosures.

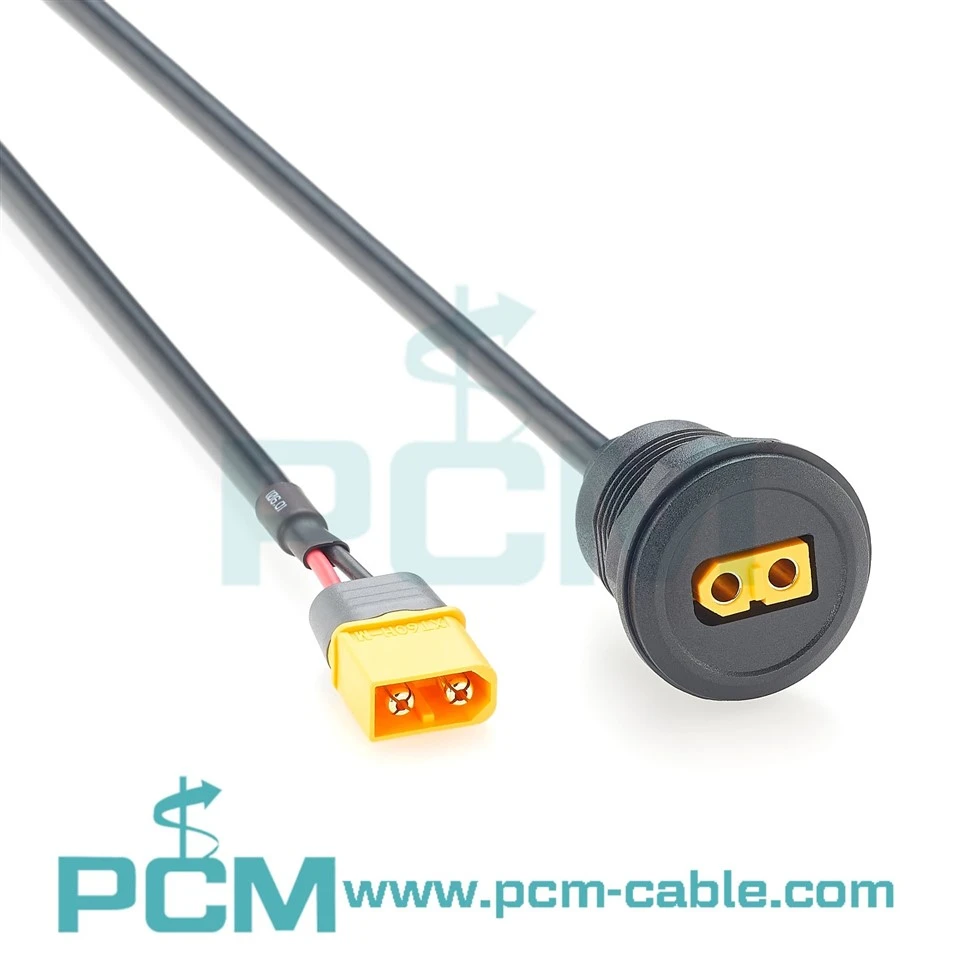

The assembly combines genuine Amass XT60 male and female connectors with 16AWG power wire in a standard 30cm configuration. The XT60 female connector is positioned at the equipment panel, while the XT60 male plug remains inside the enclosure for connection to a controller, power module, battery circuit or internal wiring harness.

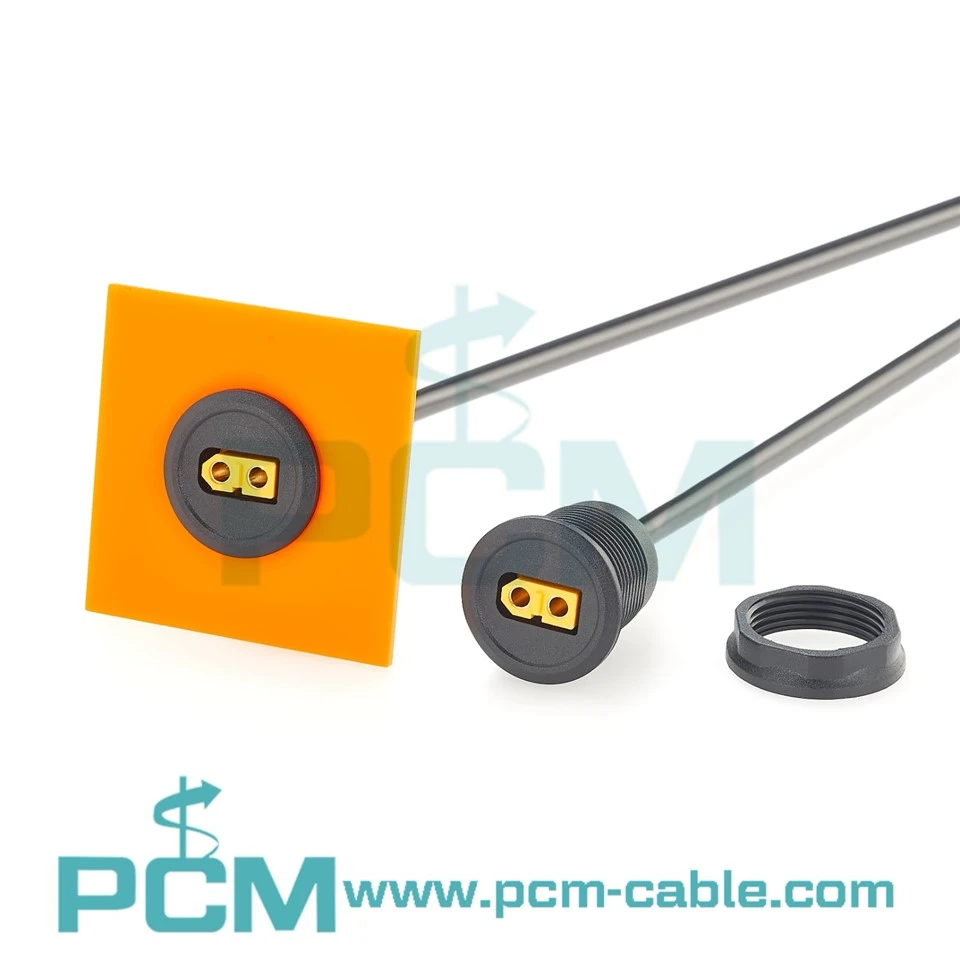

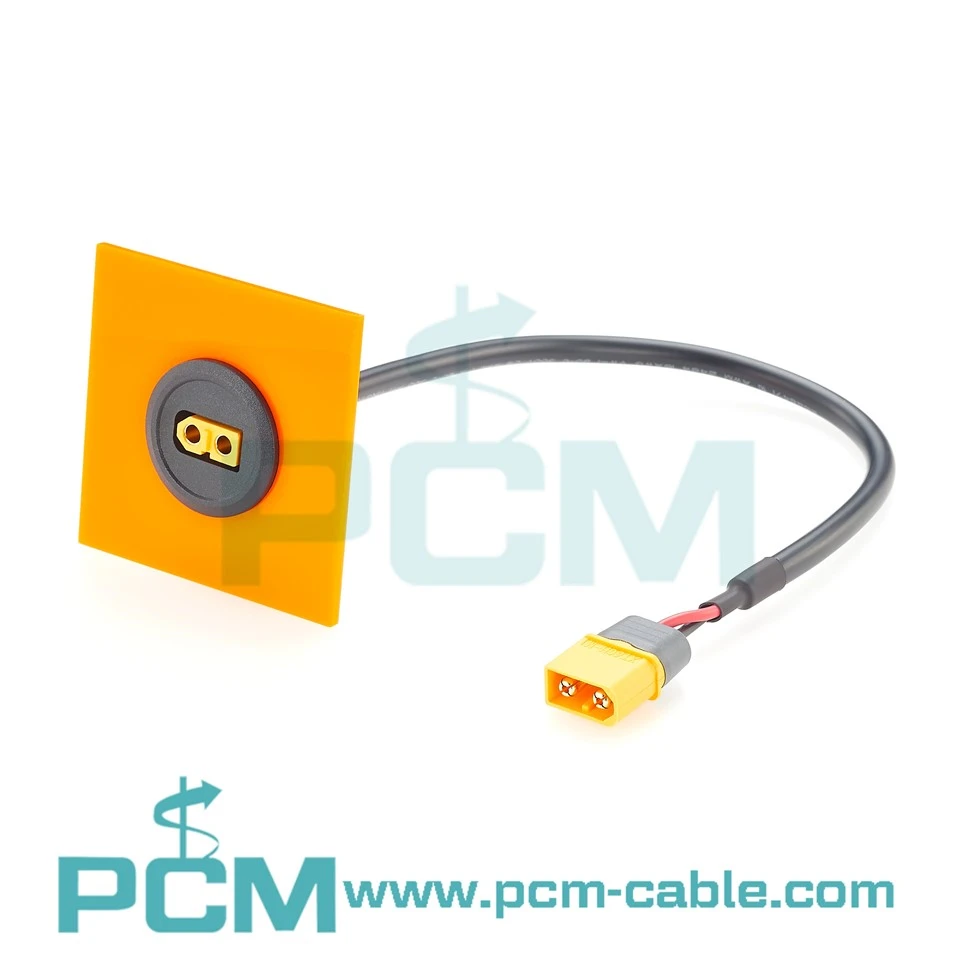

With an approximately 26mm panel cutout, the design converts a conventional loose XT60 wire-to-wire connection into a cleaner panel-mounted power interface. This architecture is particularly useful when an external battery or DC source must remain removable while the internal power wiring stays organized and protected inside the enclosure.
Why Choose an XT60 Panel Mount Cable?
A conventional XT60 extension cable is primarily intended for free wire-to-wire connection. PCM-1012 adds value by bringing the XT60 connection to a fixed equipment panel. This is particularly useful when batteries are frequently connected externally while internal wiring needs to remain organized for equipment integration, servicing and repeatable production.
Products Specification
| Product Name | XT60 Male to Female Panel Mount Power Extension Cable |
| P/N | PCM-1012 |
| P1 Interface | XT60 Female Connector, Panel-Mount Side |
| P2 Interface | XT60 Male Connector |
| Wire rod | UL2464, 16AWG x 2C |
| Wire Outer Diameter | OD 6.0 mm |
| Main Length | 300 + 15 mm |
| Panel Opening | 25.7 mm, 24.5 mm Width |
Products Display
Product Features
Genuine Amass XT60 Connectors
Both male and female ends use genuine Amass XT60 connectors, providing a consistent XT60 mating system and reducing compatibility risks caused by visually similar connectors with different dimensions, tolerances or materials.
External Female & Internal Male Layout
The XT60 female socket is positioned on the external panel side as the DC power interface, while the XT60 male plug remains inside the enclosure for connection to battery wiring, controllers or internal power modules.
16AWG × 30cm Cable Configuration
The 16AWG power wire and standard 30cm cable length balance current-carrying capability, internal routing space and installation flexibility, with custom lengths and wire gauges available.
Approx. 26mm Panel Cutout Design
The panel-mount end is designed for an approximately 26mm cutout, allowing the XT60 interface to be securely mounted on enclosures, control boxes or equipment housings for cleaner routing and improved installation stability.
Core Application Scenarios
FPV & Drone Equipment
Suitable for FPV monitors, ground stations, drone accessories and compatible display equipment requiring an external DC power interface.
RC Models
Suitable for RC cars, boats and aircraft requiring removable LiPo battery connections to internal power systems.
Solar & Portable Power
Designed for panel-level input or output connections in compact solar systems, portable power units, DIY battery boxes and DC distribution equipment.
Core Performance Advantages
◆ Improved Internal–External Power Boundary
The panel-mounted female socket establishes a defined power interface at the equipment boundary, allowing batteries or power sources to be connected and disconnected without opening the enclosure while keeping internal wiring protected inside.
◆ Reduced Stress on Internal Wiring
External mating occurs at a fixed panel location, reducing repeated pulling, twisting and movement of internal wiring compared with a loose XT60 extension cable and improving connection stability.
◆ Improved OEM Assembly Consistency
The preassembled XT60 male-to-female harness standardizes connector type, wire gauge, cable length and installation orientation, supporting consistent BOM management, repeatable assembly and efficient volume production.
◆ Reduced Rewiring During Maintenance
The removable internal XT60 male connection reduces the maintenance limitations of permanently integrated wiring, providing greater flexibility for module replacement, equipment servicing and future harness upgrades in compatible designs.
Frequently Asked Questions
Q1：Does PCM-1012 Use Genuine Amass XT60 Connectors ?
A1：Yes. PCM-1012 is specified with genuine Amass XT60 connectors on both the male and female ends, making it suitable for OEM projects with defined connector brand and sourcing requirements.
Q2：Which End Is Mounted on the Equipment Panel ?
A2：The XT60 female connector is mounted on the equipment panel as the external interface, while the XT60 male plug remains inside the enclosure for connection to internal power wiring.
Q3：What Panel Cutout Size Does PCM-1012 Require ?
A2：The current standard design uses an approximately 26mm panel cutout. Final cutout dimensions and tolerances should be verified against the approved sample and mechanical drawing before mass-production enclosure or panel machining.
Q4：Can PCM-1012 Be Customized in Other Lengths ?
A4：Yes. Premier Cable can customize cable length, wire gauge, connector configuration, labeling and panel-mount structure according to OEM requirements, including custom harness development for volume equipment assembly.
