XT30 2+2 CAN Bus Extension Cable For PwrCAN
PCM Cable Co., Ltd. is one of the leading xt30 2+2 can bus extension cable for pwrcan manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable PCM-0932 is an industrial-grade XT30 2+2 male-to-female CAN Bus extension cable with a 2-meter length, designed for CAN communication systems, power extension applications, and modular electronic equipment.
The cable uses the XT30 2+2 connector system, integrating DC power transmission and CAN H / CAN L communication signals into a single compact harness. This design enables simultaneous power delivery and high-speed CAN communication, reducing wiring complexity and improving system integration.
Internally, the cable combines 18AWG power wires and 24AWG CAN signal wires, providing excellent conductivity, low-loss power transmission, and strong anti-interference performance. It supports up to 9A current capacity and is suitable for DC 12V / 24V systems.
The XT30 2+2 connector features a compact design, secure connection, and excellent vibration resistance, making it ideal for demanding applications requiring reliable long-term operation.
PCM-0932 is widely used in:
● PwrCAN 13.2 modules
● Voron CAN modification systems
● BTT EBB36 / EBB42 / SB2209 / SB2240 toolhead systems
● UAV power extension systems
● Robotics control systems
● Industrial automation equipment
● ECU CAN communication systems
It is also compatible with CAN-enabled embedded platforms including ESP32, STM32, Raspberry Pi, and Arduino.
Specification
| Product Name | XT30 2+2 Male-to-Female Extension Cable |
| Connector P1 | XT30 2+2 Male |
| Connector P2 | XT30 2+2 Female |
| Cable Outer Diameter | 6.3 mm |
| Part No. | PCM-0932 |
| Wire Gauge |
2 × 18AWG conductors + 1 pair of 24AWG conductors + AE construction |
| Cable Type |
UL2725 |
Products advantages

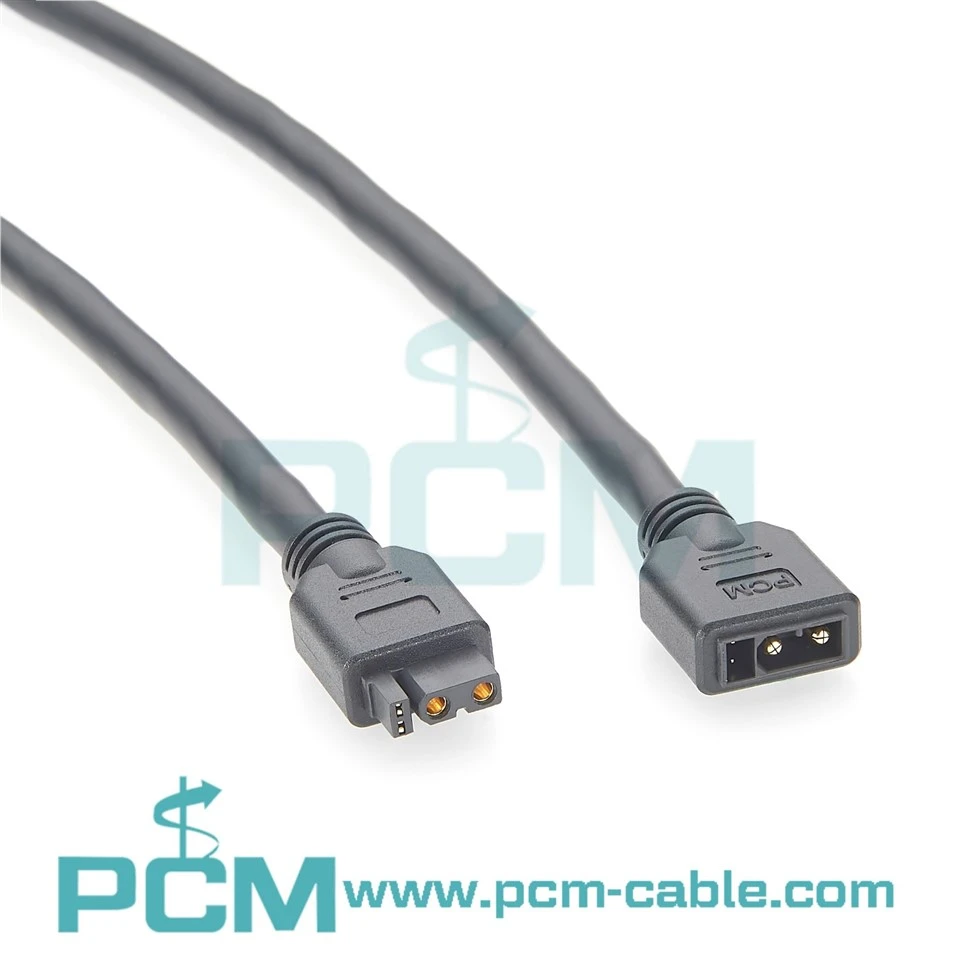

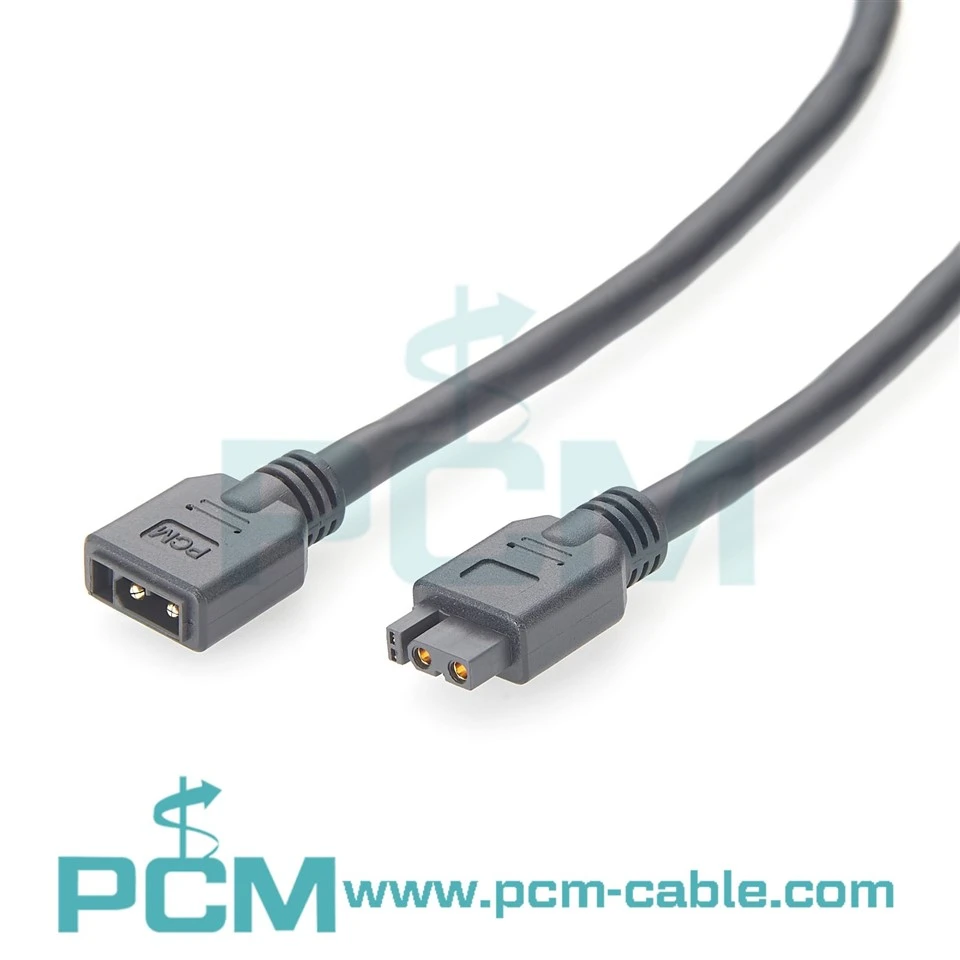

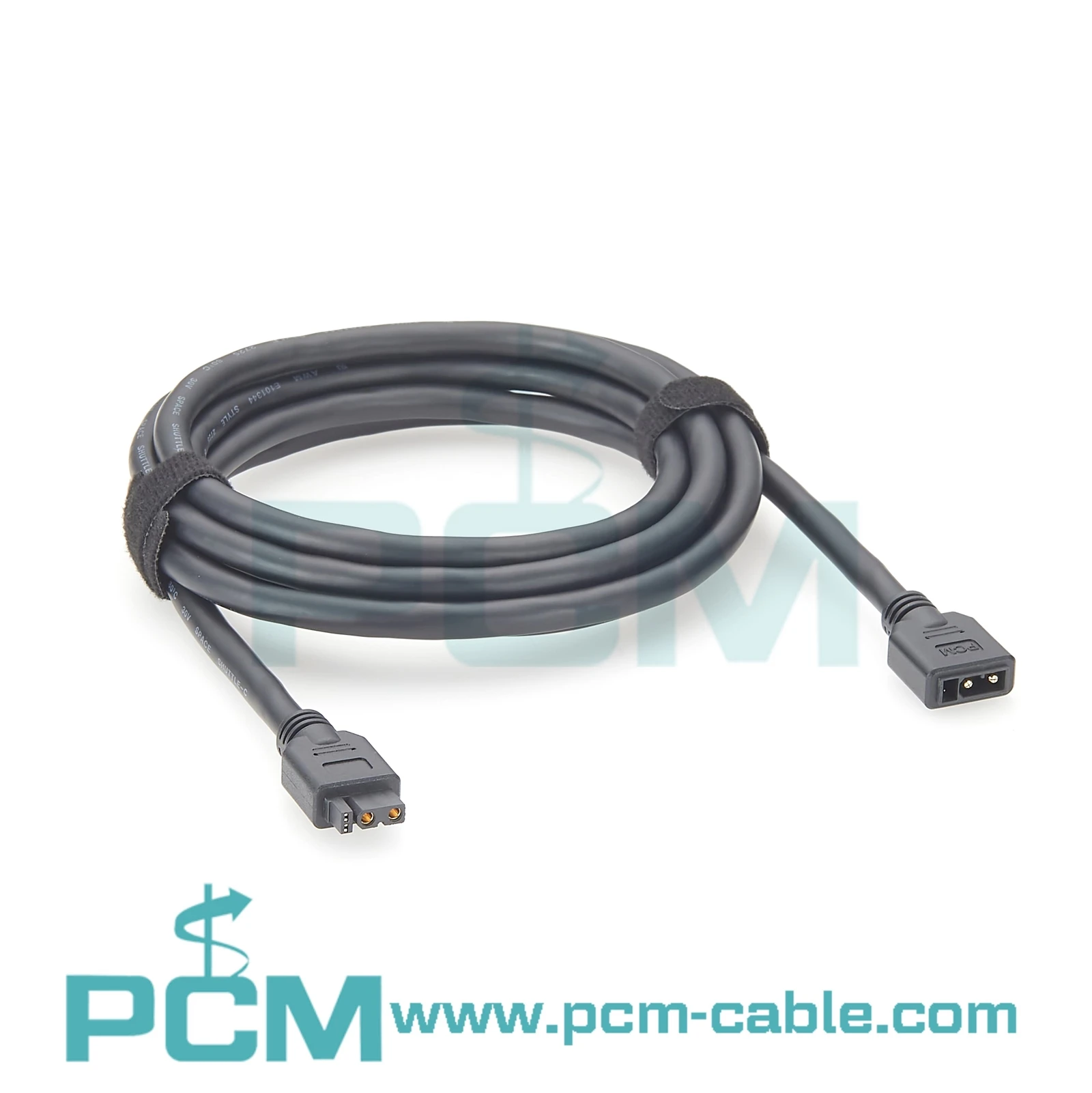

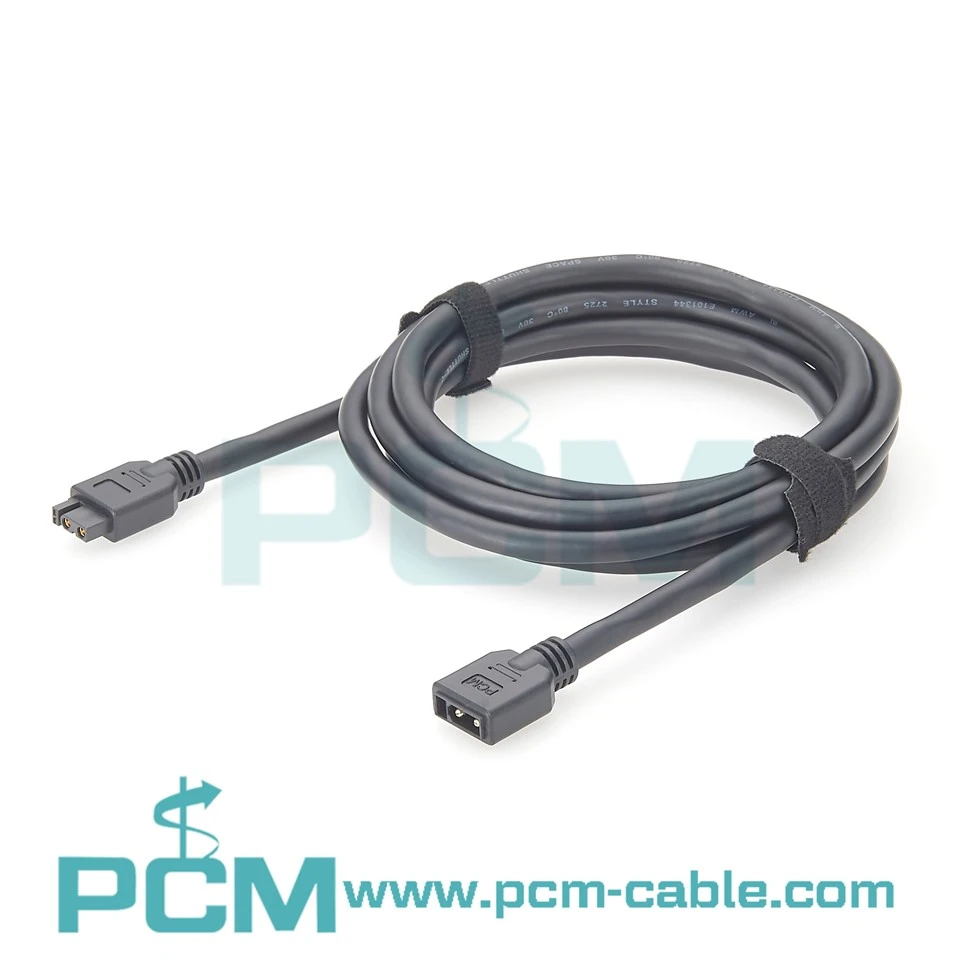

Products Display
Products Features
● Integrated Power and CAN Communication
The XT30 2+2 design combines power delivery and CAN data transmission inone cable, simplifying system wiring.
● Reliable Extension Solution
Features XT30 2+2 male-to-female straight connectors for convenientinstallation and interface extension.
● Industrial Cable Construction
Uses 18AWG power wires and 24AWG CAN signal wires for reliable powerdelivery and stable communication.
● Supports 12V /24V Systems
Supports up to 9A current, suitable for 3D printers, robotics, and industrialmodules.
● Strong Anti-Interference Capability
Dedicated CAN H/L signal wires ensure reliable communication in electricallynoisy environments.

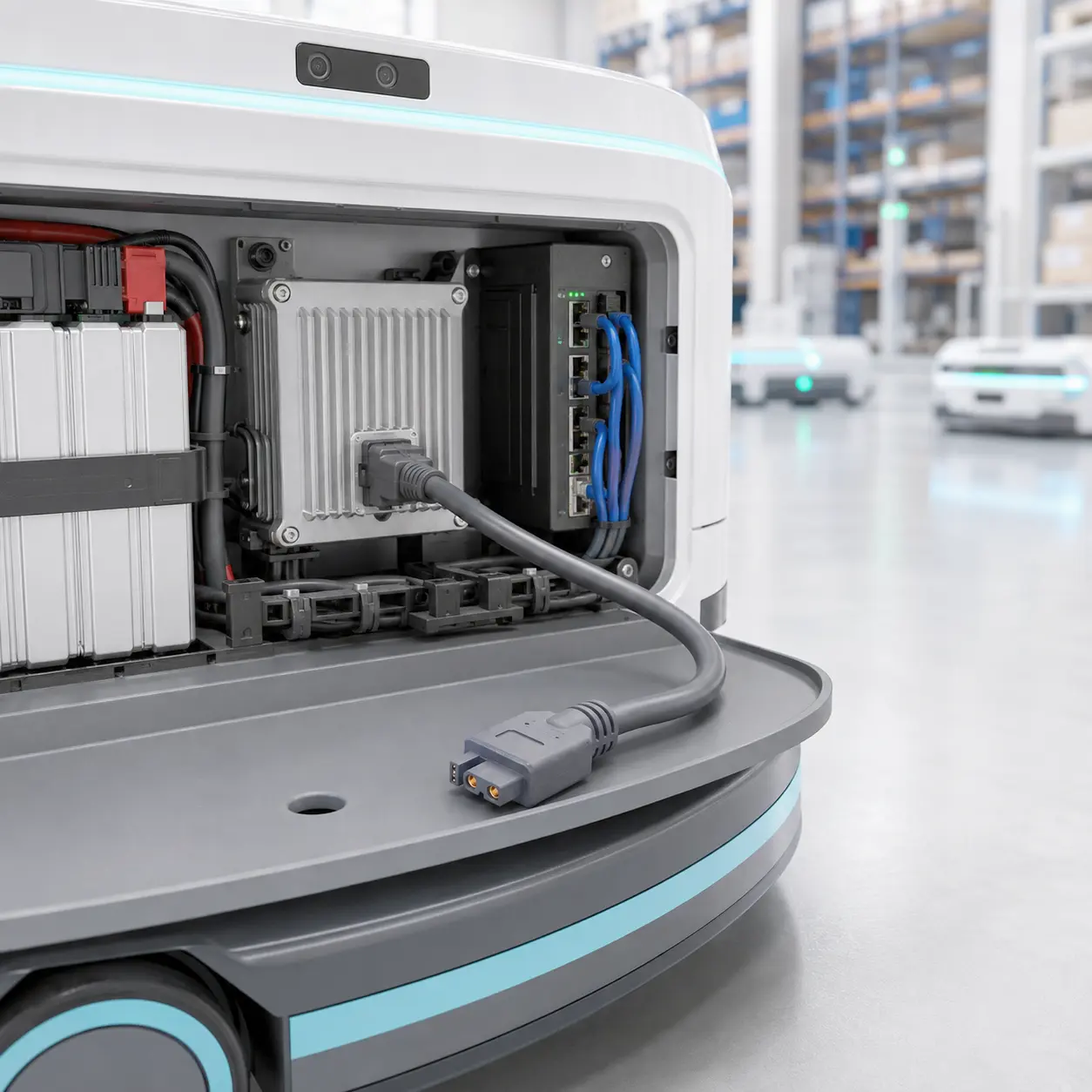

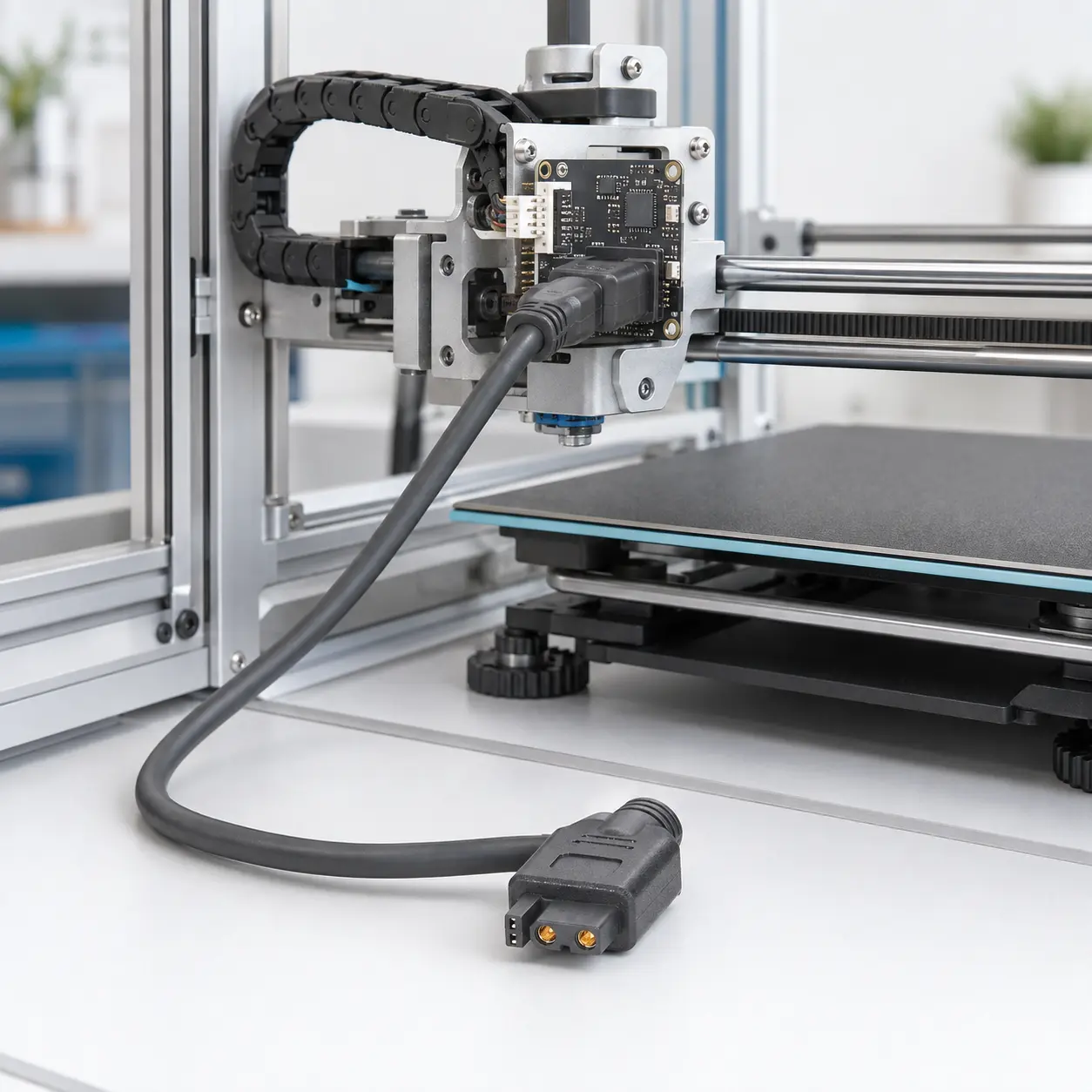

Core Application Scenarios

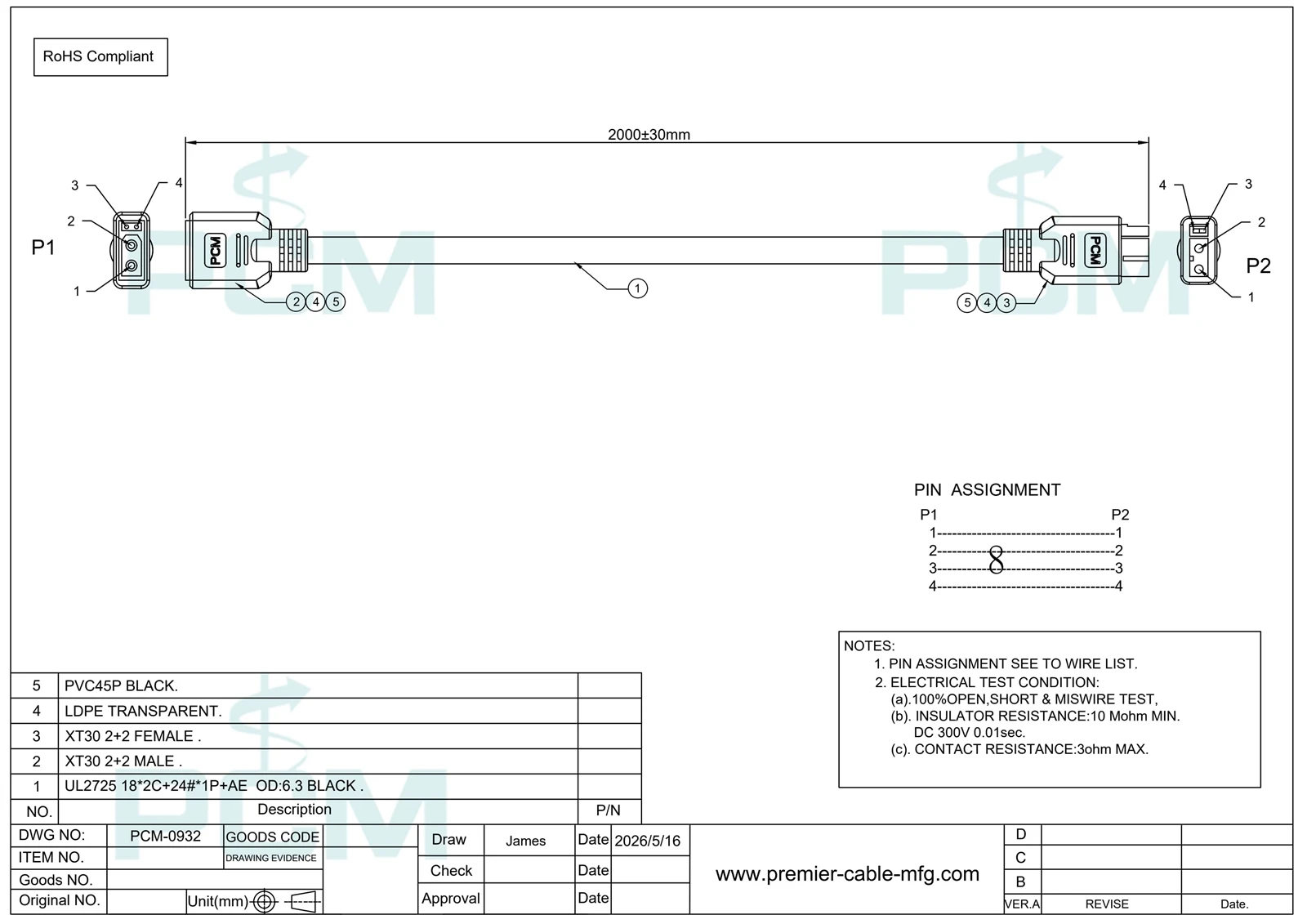

Products Drawing
