XT60 Female To XT30 Male Adapter Cable
PCM Cable Co., Ltd. is one of the leading xt60 female to xt30 male adapter cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

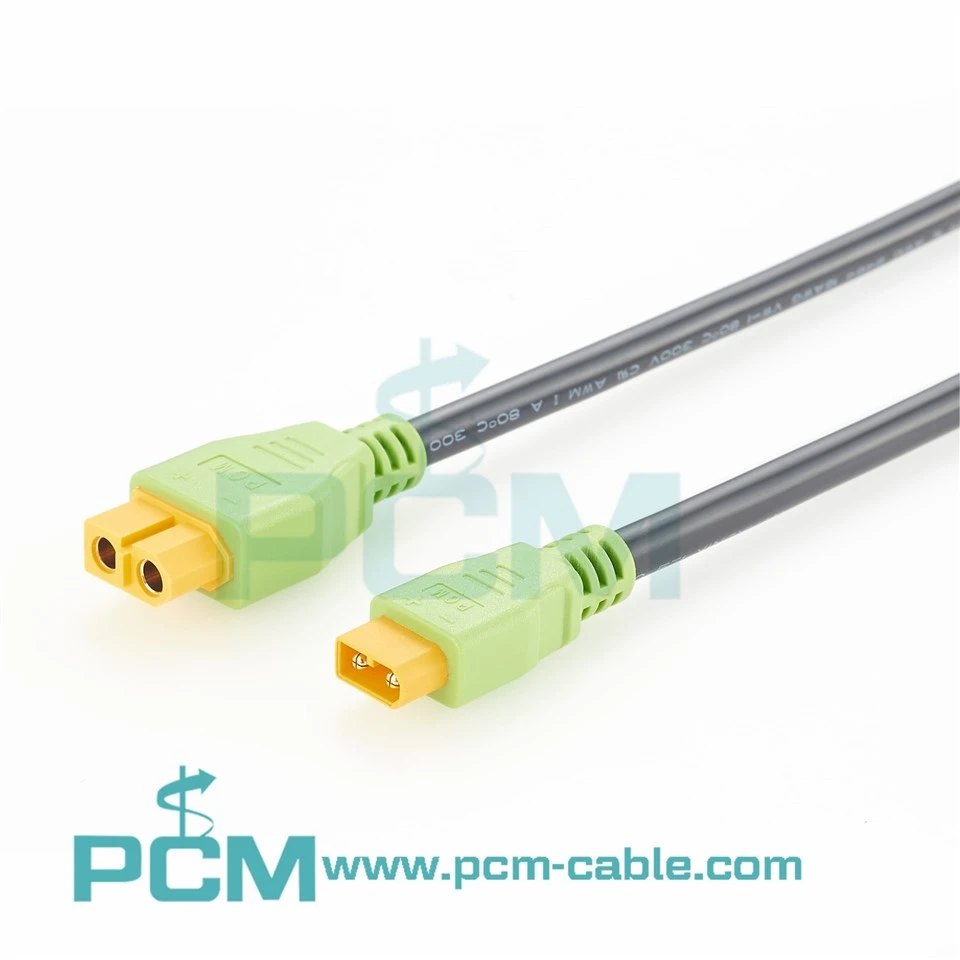

Premier Cable PCM-0990 is designed to bridge XT60 and XT30 interfaces with different connector sizes and gender configurations. An XT60 female connector on one end and an XT30 male connector on the other establish a flexible electrical link between the two XT-series formats. The adapter is particularly useful when XT60 charging cables or power equipment need to interface with XT30 batteries or compact electronic devices, providing compatibility without removing existing connectors.
The short cable section creates a flexible transition between XT60 and XT30 connectors instead of rigidly coupling them together. Cable routing can follow equipment orientation and available space, helping reduce side loading at connector exits. This makes the XT60 to XT30 Adapter Cable practical for FPV workbenches, RC systems, battery testers and compact electronic equipment where both interface conversion and routing flexibility are required.
Manufacturing Process
PCM-0990 uses two power conductors to connect the positive and negative contacts of the XT60 female and XT30 male interfaces. Insulation and strain management around the cable exits help prevent bending forces from concentrating at the termination points. For OEM projects, wire gauge, cable length, conductor type, connector version, labeling and packaging can be defined according to BOM or engineering drawings.
Service Life
PCM-0990 is suitable for charging benches, FPV service kits and RC equipment requiring periodic connection and removal. The flexible cable provides limited movement after mating and reduces the leverage that can occur with rigid adapters. Actual service life depends on mating frequency, electrical load, bend radius, temperature and storage conditions. Contacts, insulation and cable exits should be inspected periodically.
Installation Requirements
Before using PCM-0990, confirm that the application requires an XT60 female-to-XT30 male connection and verify polarity, system voltage, operating current and cable specifications. This is a passive power adapter cable that changes connector format only; it does not provide voltage conversion, current limiting or power management. Because the circuit includes an XT30 interface, system loading should be evaluated according to the lowest-rated connector, conductor or component.
Products Specification
| Product Name | XT60 Female to XT30 Male Adapter Cable |
| Drawing Number | PCM-0990 |
| P1 Interface | XT60 Female Socket ;XT60H-F |
| P2 Interface | XT30 Male Plug ;XT30H-M |
| Standard Length | 1500 + 30 mm |
| Main Cable | UL2464 16# x 2C |
| Cable Outer Diameter | OD 6.0 mm |
| Internal Jumper | UL1569/1007 14AWG |
Products Display
Product Features
XT60 Female to XT30 Male
The defined XT60 female and XT30 male configuration bridges mismatched XT-series interfaces for charging equipment, batteries and RC electronics.
Prewired Plug-in Harness
The prewired harness eliminates on-site cutting, soldering and connector replacement, supporting rapid installation, servicing and compatibility testing.
Flexible Pigtail Construction
A flexible cable section accommodates offset ports, confined spaces and different cable-exit directions, providing greater routing freedom than rigid adapters.
Configurable Cable Specifications
Wire gauge, length, insulation, connector versions and labeling can be configured for OEM UAV, RC, robotics and test-equipment projects.
Core Application Scenarios
RC Car & Boat Power Adaptation
Suitable for RC cars, racing models, crawlers, mini boats, and other model power systems where batteries, ESCs, motor controllers, chargers, or test accessories use different XT60 and XT30 interfaces. PCM-0990 provides a quick intermediate connection without cutting existing plugs or resoldering the original power harness. It is especially useful for battery swaps, ESC upgrades, and repeated power-system configuration changes while preserving the original wiring.
Battery & Charger Adaptation
Designed for charging stations, laboratory battery test benches, service workstations, and battery maintenance equipment. It connects XT60-equipped charging leads, test power supplies, or instruments to XT30 batteries and compact power modules. For technicians and engineers working with multiple XT connector formats, PCM-0990 reduces the need for dedicated charging leads and simplifies switching between test samples. Battery voltage, cell count, polarity, charging parameters, and circuit load must still be verified before use.
Compact Robotics & R&D Equipment
Suitable for educational robots, indoor mobile platforms, prototypes, sensor test rigs, and electronic R&D equipment where power sources, battery modules, test supplies, and subsystems use different XT60 and XT30 interfaces. PCM-0990 enables quick compatibility during module replacement, power-scheme changes, and hardware evaluation. Its flexible pigtail design reduces repeated connector modification, making it practical for prototype debugging, engineering validation, and small-batch testing.
Frequently Asked Questions
Q1: Since this adapter links a small XT30 to a large XT60, what is its current limit? Will it overheat?
A1: The continuous safe amp cap of this adapter is dictated by the smaller XT30 side, which is rated within 15A-30A continuous. Because we implement a thicker, premium 16AWG pure copper core inside, the line resistance is extremely low, making thermal buildup negligible and safe under rated loads.
Q2: Will repeatedly pulling this wire from a heavy XT60 device snap or tear the smaller XT30 end?
A2: Absolutely not. While generic hand-soldered wires tear easily under pull strain, this product features heavy-duty, integrated secondary overmolded strain relief boots on both connector tails. Mating forces are evenly dispersed, isolating internal delicate joints from pull impacts for a long tensile lifespan.
Q3: Is the interior of this adapter cable sealed with waterproof glue? Will it short circuit if the outer shell breaks?
A3: Yes, prior to outer housing overmolding, the inner terminal joints are fully potted and sealed with insulating resin. Even if the outer shell takes extreme accidental damage, the interior barrier keeps the positive and negative poles strictly isolated against shorts. Note that open mating faces are not hermetic, so avoid submersion.
Products Drawing
