HSAutoLink II 14 Pin Automotive Cable

PCM Cable Co., Ltd. is one of the leading hsautolink ii 14 pin automotive cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

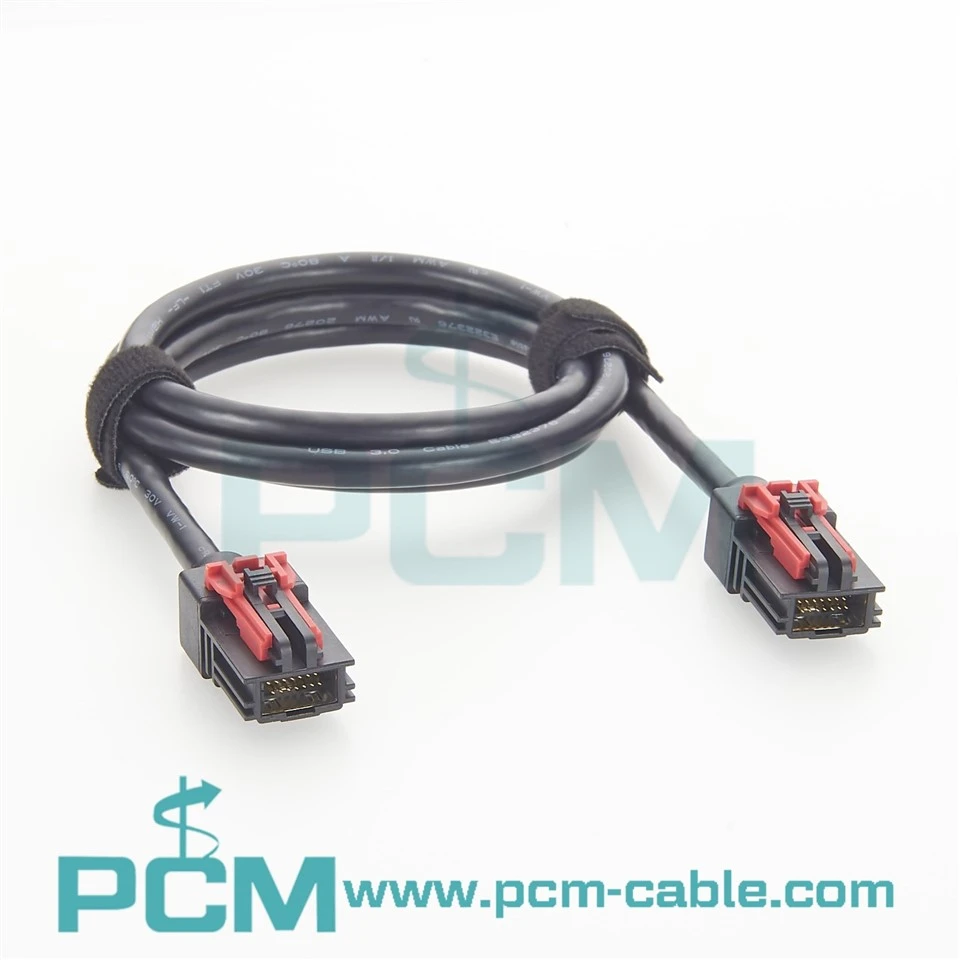

Premier Cable PCM-ZC-0154 is an HSAutoLink II 14 Pin Cable Assembly developed for high-speed in-vehicle data networks. Featuring a 14-circuit interface, Polarization A and a standard 1.0m length, it is designed for cameras, displays, infotainment modules, ADAS devices and vehicle controllers.

Unlike conventional single-purpose automotive signal cables, the HSAutoLink II platform supports configurable high-speed differential signaling and multiple communication protocols within a compact automotive interface.

◆    Core Advantages & Stable Connection

As a supreme HSAutoLink automotive high-speed harness matching strict Tier-1 industrial codes, the definitive asset of the PCM-ZC-0154 centers on its ultra-low crosstalk and resonance-proof stable connection performance. Within the tightly packed engine dashboards or bulkheads of modern electric vehicles, massive power cables and high-frequency RF loops run intertwined, generating heavy ambient noise. This cable deploys a dense dual-layer full-coverage braid and foil shielding mesh coupled with an internal seamless metallic capsule, containing inter-channel jitter and cross-talk to critical limits. Assisted by its heavy-duty mechanical latching lock on the Polarization A keyed housing, it prevents terminal contact backing even when the vehicle navigates off-road trails or sudden linear deceleration shocks, forcing a rock-solid electrical connection for data integrity.

◆    Extended Lifespan & Protective System

System operational lifespan spanning over a decade of continuous driving cycles represents a key metric for E-E-A-T component authority. The PCM-ZC-0154 covers its inner matrix using a scratchproof, UV-stabilized, highly flame-retardant specialized industrial jacket. It will not degrade, cross-link, or crack under extreme hot-box temperatures common inside windshield enclosures parked under baking summer suns. The internal pin contacts are finished with heavy anti-oxidation plating, offering a mating cycle longevity that far exceeds commodity aftermarket wires while keeping contact spring tension pristine over years. This heavy-duty HSAutoLink panel-fix cable assembly serves as a trustworthy hardware infrastructure anchor for advanced surround-view camera grids, remote Telematics Control Units (TCUs), and rugged field test rigs.

Smart Cockpits & Infotainment Systems

Suitable for high-speed links among center displays, digital clusters, HUD modules, rear-seat entertainment screens, and cockpit domain controllers. The compact HSAutoLink 14-pin interface can carry high-bandwidth video, touch data, and multimedia signals while reducing connector count and harness space in multi-display smart cockpit architectures.

ADAS & Autonomous Sensing Systems

Designed for data links among surround-view cameras, front-view vision modules, LiDAR, millimeter-wave radar, and autonomous-driving domain controllers. The 14-circuit architecture consolidates multiple signal paths into a compact high-speed interface, supporting sensor-fusion systems that require bandwidth efficiency, limited connector space, and reliable long-term in-vehicle connectivity.

Q1: This cable is marked as an OTS (Off-the-Shelf) spec. What advantages does it offer over custom-developed high-speed vehicle wires?

A1: The main asset is "plug-and-play with zero lead time." Conventional high-speed automotive lines require complex customer blue-printing followed by months of tooling and sampling phases. Conversely, Premier Cable's PCM-ZC-0154 is fully stocked and Ready to Ship, with its electrical traits and 1.0m length pre-matched to universal automotive multimedia and gateway topologies, radically compressing your R&D prototyping cycles.

Q2: My interface is also a 14-circuit HSAutoLink connector. How do I verify if it can mate with your Polarization A variant?

A2: Automotive HSAutoLink frameworks deploy distinct housing colors and mechanical rib alignments (keying slots) to manage polarization. Polarization A universally aligns with standardized black or specific dark gray mechanical keys. We suggest reviewing our technical dimensional blueprints on Amazon or Alibaba; as long as your socket's slot alignment complements our plug's A-keying tab, it will snap flush and lock perfectly.

Q3: Can this cable assembly be deployed for Automotive Ethernet or LVDS ultra-HD camera links? Has high-frequency impedance been validated?

A3: Yes, absolutely. The PCM-ZC-0154 is built with full consideration of the physical layer demands of automotive high-speed differential signaling. Every single run leaving our line passes rigorous high-frequency network analyzer validation in our labs. The internal differential pair impedance is strictly held within standard margins (e.g., 100 ohms), fully satisfying data integrity codes for Automotive Gigabit Ethernet, LVDS display links, and HD digital sensors.
