USB3.0 Vision Dual Right Angle Camera Cable
PCM Cable Co., Ltd. is one of the leading usb3.0 vision dual right angle camera cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

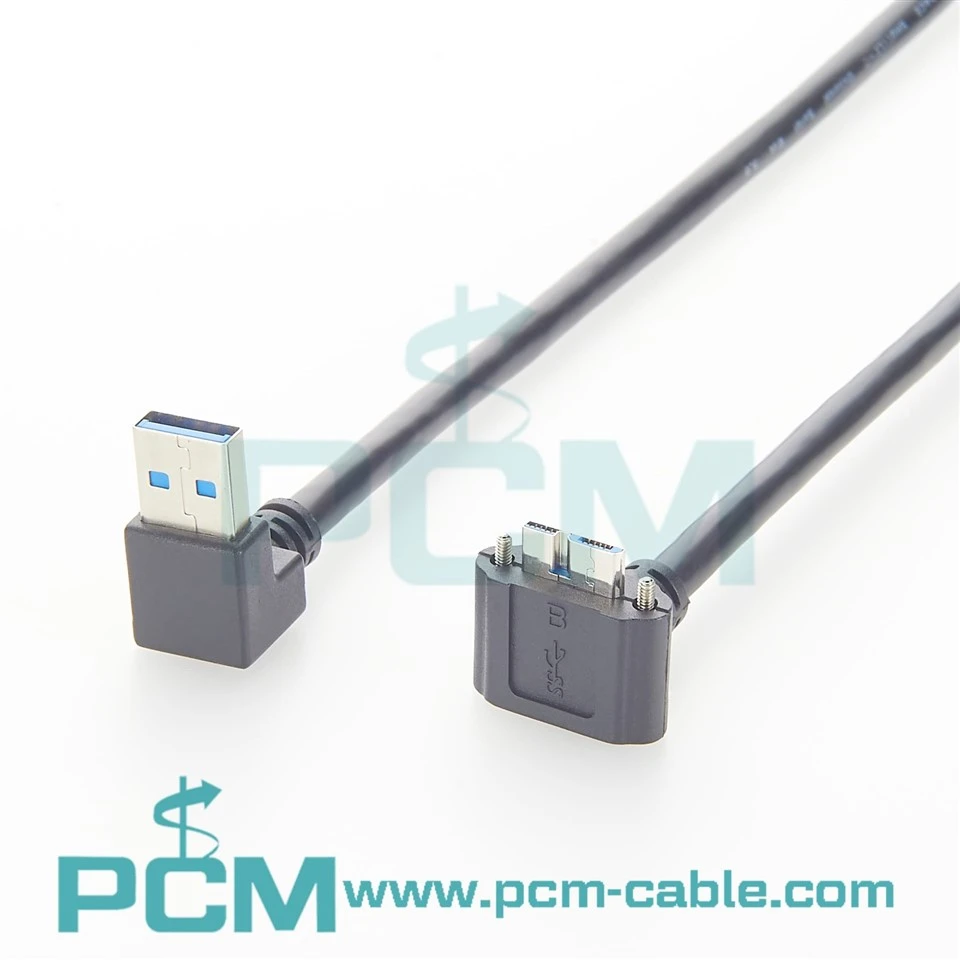

Premier Cable PCM-S-0751 is a high-speed USB camera cable developed for USB3 Vision cameras, automated inspection equipment, and compact industrial hosts. It features a 90-degree USB Type-A connector for industrial PCs or vision controllers and a 90-degree USB 3.0 Micro-B connector with screw locking for industrial cameras.
Compared with conventional straight USB cables, PCM-S-0751 focuses on controlled cable exit direction and secure device-side retention in space-constrained installations.
Core Advantages & Stable Connection
PCM-S-0751 is designed for reliable USB3 Vision camera connectivity in automated inspection and machine vision systems. The locking Micro-B connector uses retaining screws to secure the camera-side interface, helping prevent accidental disconnection caused by vibration or cable movement. Combined with high-speed USB 3.0 transmission, it provides a stable link for continuous image acquisition between industrial cameras and host PCs.
Manufacturing Workmanship & Installation Requirements

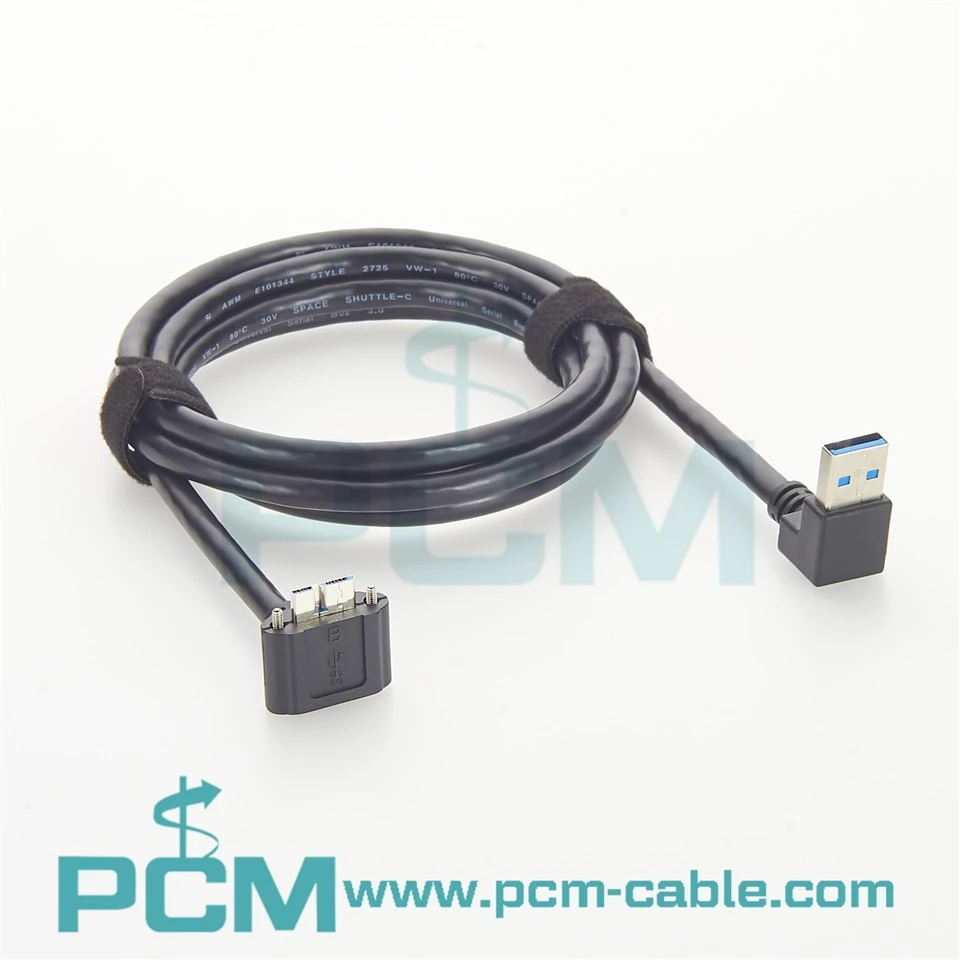

PCM-S-0751 features dual 90-degree molded connectors for efficient routing in compact vision systems. Upward and downward exit options help the cable follow camera housings, IPC panels, and equipment frames without excessive bending. Available in 0.3m, 0.5m, and 1.5m lengths, it reduces unnecessary cable loops and simplifies installation inside crowded control cabinets, inspection machines, and embedded vision platforms.
Extended Lifespan & Protective System
The cable combines molded strain relief, shielded construction, and secure connector retention for long-term industrial deployment. Its right-angle geometry reduces mechanical stress near USB ports, while the locking Micro-B interface minimizes connector movement during continuous machine operation. Proper routing and strain control help protect internal conductors and terminations, making it suitable for machine vision, automated inspection, and industrial imaging equipment.
Products Specification
| Product Name | USB 3.0 Type-A 90° Male to Micro-B Male Cable |
| Part No. | PCM-S-0751 |
| P1 Connector | USB 3.0 Type-A Male |
| P2 Connector | USB 3.0 Micro-B Male |
| P1 structure | 90 Degree Right-Angle Elbow |
| P2 structure | Dual Screw-Locking Design |
| Interface Standard | USB 3.0 |
| Wire Outer Diameter | OD 5.8 mm |
| Cable standard |
UL2725 |
Products Display
Product Features
Micro-B Dual Retaining Screw Lock
The Micro-B termination incorporates dual industrial-grade thumb locking screws to physically secure the connector into the camera housing.
Dual 90-Degree Elbow Form Factor
Both terminals deploy a right-angled 90-degree bend layout, minimizing plug protrusion depth to clear physical spatial limits.
Multi-Angle Up/Down Orientation Options
The USB-A plug offers Upward or Downward egress profiles calibrated against internal host port orientations to optimize layout routing.
Staggered Ultra-Short Length Footprint
Standardized in 0.3m, 0.5m, and 1.5m short-run variations to eliminate nested loops inside dense automation cabinets.
Core Application Scenarios
Machine Vision & Imaging Systems
Suitable for semiconductor wafer inspection, print-surface defect scanning, dimensional measurement, electronic AOI, and high-speed sorting systems. It connects FLIR Chameleon, Point Grey, and other compatible USB3 Vision cameras to IPCs, vision controllers, or image-processing hosts. The USB 3.0 link supports continuous high-resolution image transfer, while the locking Micro-B connector helps reduce vibration- or movement-related disconnection during long-term machine vision operation.
Robotics & Articulated Actuators
Designed for 3D cobots, automated sorting arms, pick-and-place systems, PCB placement machines, precision assembly platforms, and reciprocating automation equipment. Dual right-angle connectors route closely along mechanical structures and end effectors, reducing protrusion and interference in confined spaces. The locking Micro-B interface improves camera-side retention, helping reduce image-link interruptions caused by frequent starts, rapid positioning, vibration, or repeated machine movement.
Core Performance Advantages
● 5Gbps Jitter-Free Image Streaming:
Fully certified for USB3.0 Vision bandwidth, delivering zero-packet-loss uncompressed telemetry for high-resolution cameras.
● Anti-Resonance Interlocking Telemetry Shield:
The high-strength screw interlock negates communication blinking sparked by heavy mechanical vibration on linear actuators.
● Universal USB3 Vision Ecosystem Synergy:
Meticulously spec-matched for Point Grey, FLIR Chameleon, and international machine-vision frameworks without protocol barriers.
● High-Flex Anti-Fatigue Structural Longevity:
Built with an anti-tension multi-shield lattice, enduring repetitive flexing or corner pinches without conductor hardening.
Frequently Asked Questions
Q1: How do you define the "Upward" and "Downward" orientations for the 90-degree USB-A plug? How do I avoid choosing the wrong one?
A1: Our angles are calibrated against the orientation of the standard internal plastic tongue within the female USB-A receptacle. Looking directly at the host IPC port, if the inner plastic tab sits on the top side: an Upward-angled cable directs the wire body toward the ceiling upon mating, while a Downward variant routes it toward the floor. We provide clear 3D perspective schematics on Alibaba international store fronts and engineering drawings to ensure hassle-free procurement matching.
Q2: What is the pitch spacing between the two locking screws on the Micro-B plug? Will it fit my FLIR camera?
A2: The screw spacing conforms strictly to the standardized USB3 Vision industrial framework mandated by the AIA (Automated Imaging Association), which features a standard 15mm pitch. It provides drop-in plug-and-play mechanical compatibility with mainstream thumbscrew-equipped USB3 industrial cameras, including FLIR Chameleon, Point Grey, Basler, and Hikrobot.
Q3: With an ultra-short 0.3-meter length, does internal high-frequency impedance control guarantee stable 5Gbps data flows?
A3: Yes, absolutely. Very short high-speed data cables are highly vulnerable to signal reflections at the termination boundaries. Premier Cable operates a dedicated validation lab; for our ultra-short 0.3m and 0.5m configurations, we implement precision differential impedance balancing during wire termination. This nails the inner pair impedance tightly within the standard 90-ohm (±5Ω) envelope, completely halting electrical reflections or packet dropouts during massive, uncompressed vision data transfers.
Products Drawing
