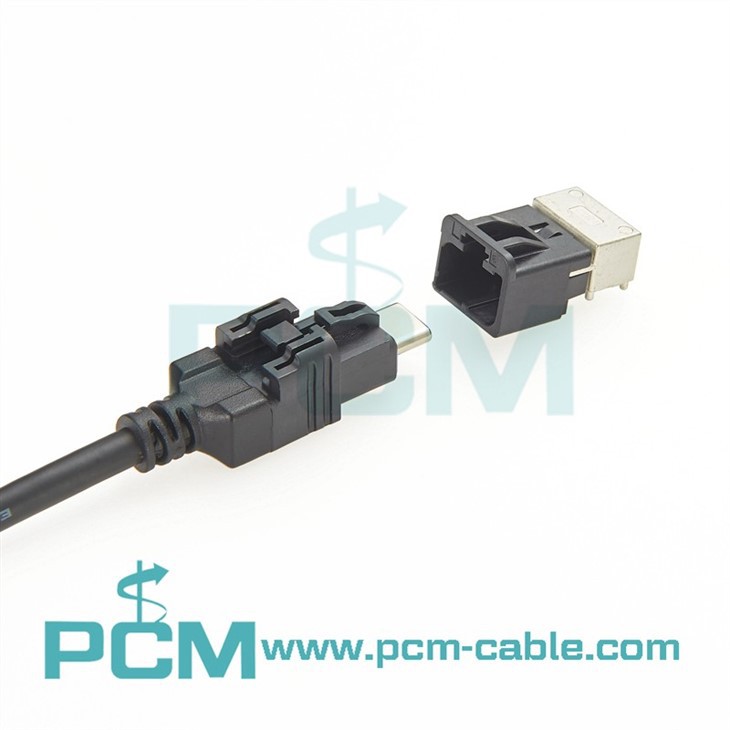

USB 3.1 Type-C Wire to Board Connector, Horizontal, 24 Position, Board Mount, A Code, Data Connectivity Headers
Compatible USB 3.1 Type-C 2398001-1 Data Connectivity Header
USB Type-C Cable Compatible with TE 2398001-1

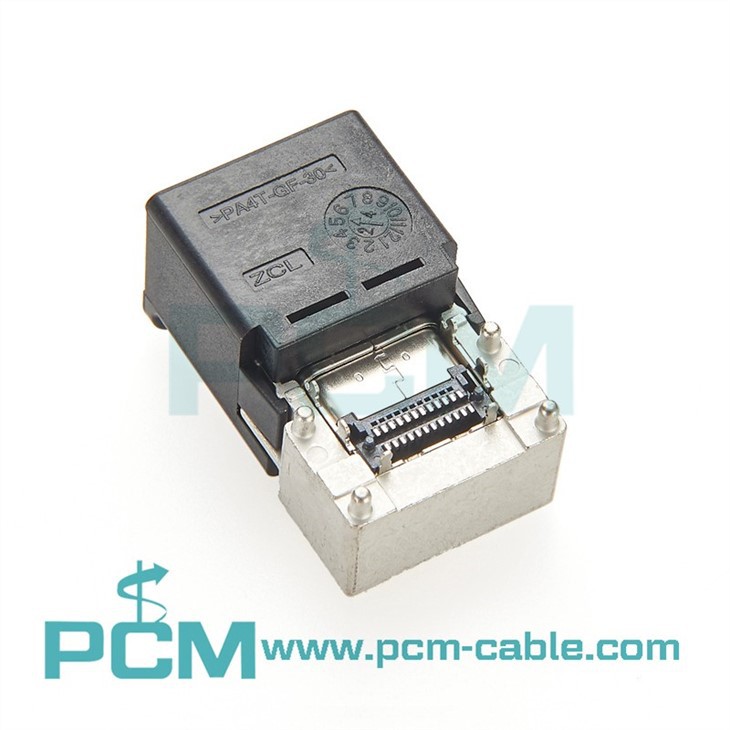

High-Quality USB Type-C Connector for TE 2398001-1 Applications
Replacement for TE 2398001-1 USB-C connector
Automotive Connector USB 3.1 Type-C Compatible With TE 2398001-1
PCM Cable Co., Ltd. is one of the leading automotive connector usb 3.1 type-c compatible with te 2398001-1 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
This USB Type-C Board-Mount Header (PCM-ZC-0064) matches the mechanical and electrical intent of TE 2398001-1 so it can be used where that header footprint is required. The part is intended for board-level USB Type-C I/O (signal) implementations and is built for compact PCB layouts with horizontal (board-mount) orientation and fine-pitch contacts.
Specifications
| Product name | TE 2398001-1 compatible USB type-C board header |
| DWG No. | PCM-ZC-0064 |
| Compatible part | TE 2398001-1 (form-fit-function) |
| Mounting type | Wire-to-Board, Horizontal, Board-Mount |
| Positions / Pitch | 24 positions / 0.50 mm (0.02 in) |
| Interface Code | A-Code (USB Type-C) |
| Intended signal | Signal / USB data |
| Operating Temperature | -40 °C to +85 °C |
| Category | Data Connectivity Header |
Features
- Form-fit-function alternative to TE 2398001-1
- Wire-to-Board, Horizontal orientation - designed for board mounting
- 24 positions, 0.50 mm (0.02 in) centerline pitch
- A-Code USB Type-C interface for standard USB signal mating
- Rated for Signal use; operating temperature -40 °C to +85 °C
- Suitable for automotive and industrial mainboards where space and signal integrity matter
Applications
- Automotive infotainment & telematics mainboards
- Diagnostic/data ports on ECUs and controllers
- Embedded systems and industrial HMI boards
- Any application requiring a TE 2398001-1 footprint for USB-C signal I/O
