TE MCON 3 Pin Car Harness PU Pigtail Wire
PCM Cable Co., Ltd. is one of the leading te mcon 3 pin car harness pu pigtail wire manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable PCM-S-0753 is an MCON 1.2 3 Pin Automotive Pigtail developed for modern automotive electronics, low-voltage distribution, and electromechanical control systems.
One end uses a TE Connectivity 1488991-1 three-position sealed female-terminal housing, while the opposite end remains open for flexible field termination. This architecture is well suited for ECU, sensor, actuator, relay, terminal-block, prototype, and OEM wiring applications.
● Core Advantages & Stable Connection
As a highly trustworthy TE MCON 1.2mm automotive connector cable assembly, the signature asset of the PCM-S-0753 centers on guaranteeing a "zero contact drop-out profile" under fierce physical shaking. When vehicles speed down bumpy, unpaved terrains, peripheral actuators and sensors endure unforgiving structural load impacts. This harness deploys a genuine TE Connectivity 1488991-1 specification 3-pin female sealed automotive connector structure, leveraging high-retention contact springs and primary/secondary wedge gates to completely suppress micro-displacement blinking. Its internal premium silicone gasket array creates a weatherized defense shield, isolating ambient salt fog, airborne vapor, and mud splatters away from the mating gold-finger interface, ensuring stable connections over 12V/24V/48V vehicular power distributions.
● Manufacturing Workmanship & Installation Requirements
Flawless industrial manufacturing engineering sets Premier Cable apart across critical embedded electronic installations. The cable transition root of the PCM-S-0753 incorporates heavy-duty mechanized crimp-sealing to prevent core pulling or displacement failure during routing stress. The opposite end is purposely terminated in a pre-cut open-end bare wire layout, discarding hardware barriers to cleanly satisfy the bespoke installation requirements of non-standard distribution cabinets, aftermarket custom radar arrays, ECU flashing benches, and miscellaneous vehicular digital equipment. The 20AWG core gauges establish a magnificent engineering balance between small footprint bend clearance and massive continuous current flow. Its standardized 1.5-meter long-run requires zero field splicing, enabling direct wire routing to significantly accelerate processing loops in assembly bays.
Products Specification
| Product Type | Automotive 3-Pin Female to Open-End Cable |
| Part No. | PCM-S-0753 |
| P1 Connector | Automotive 3-Pin Female |
| P2 End | Open End |
| P1 Connector Part Number | 1488991-1 |
| Cable Length | 1500 + 30 mm |
| Conductor size | 20AWG |
| Construction | 20AWG x 3C + AB |
| Cable OD | 5.0 mm |
| Jacket | Black PVC |

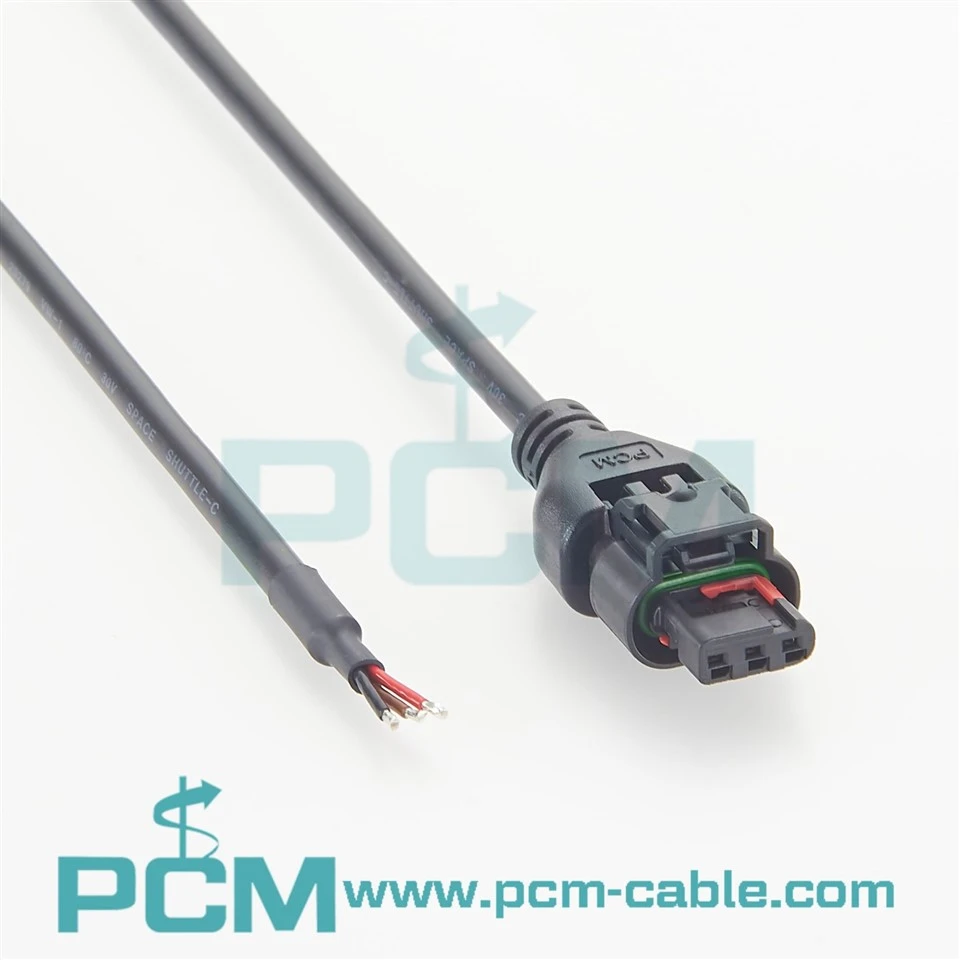

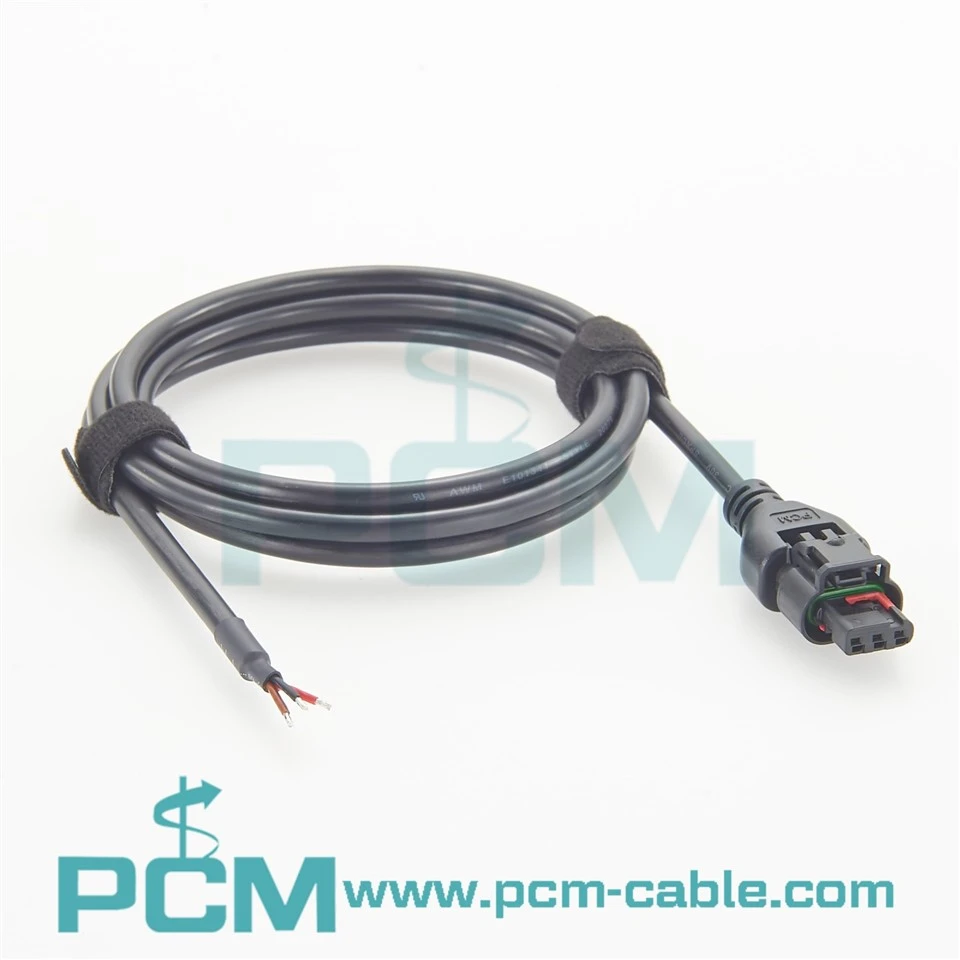

Products Display
Product Features
Genuine TE MCON Sealed Structure:
One end incorporates the TE Connectivity 1488991-1 specification MCON 1.2mm 3-pin female housing with an automotive-grade sealed interlocking design.
Open-End Stripped Pigtail Construction:
The opposite termination terminates in an open-end bare wire configuration, offering high integration flexibility for downstream tailoring.
Multi-Generation Low-Voltage Topology:
Spec-engineered to seamlessly sustain 12V, 24V, and the latest eco-friendly 48V low-voltage vehicular electrical distribution architectures.
20AWG 3-Core Segmented Conductor Bundle:
Structured with three 20AWG heavy-gauge conductor lines, optimizing individual current capacity within a space-efficient harness contour.
Core Application Scenarios
Automotive ECUs & Chassis Control Blocks
Suitable for ECUs, body control modules, zonal controllers, and powertrain interfaces, providing a compact three-wire path for power, ground, and control circuits. The 20AWG construction and open-end design support flexible integration into 12V, 24V, and 48V vehicle electrical systems.
Chassis Actuators & Exposed Field Sensors
Designed for electronic throttles, position and camshaft sensors, brake actuators, pumps, valves, and other chassis electronics. The sealed MCON interface and flexible PU cable support reliable power and control connections in vibration-prone, dusty, damp, and mechanically demanding vehicle environments.
Core Performance Advantages
Mechanical-Grade Shaking & Shock Resilience:
The MCON interface provides robust mating retention, avoiding telemetry blinking under aggressive engine-bay low-frequency resonant stress.
All-Weather PU Chemical Ingress Block:
The specialized polyurethane jacket yields high abrasion resistance, remaining pristine without hardening or swelling when continuously exposed to oils.
Frictionless Custom Integration Processing:
The high-conductivity pre-stripped strands allow swift tin-soldering or crimp terminal alignment, shortening processing loops for OEMs.
High-Response Flexible Cyclic Longevity:
Engineered with exceptional flex-fatigue life to combat conductor crystal-hardening, making it an anchor for continuous movement paths.
Frequently Asked Questions
Q1: What is the maximum allowable current and voltage rating for the TE MCON 1.2mm connector used on this harness?
A1: In accordance with the TE Connectivity MCON 1.2 automotive framework, this terminal is spec-engineered for miniature, high-reliability signaling and medium power distribution. Paired with our premium 20AWG core wires, it safely sustains continuous load currents up to 8A to 10A inside vehicular circuits, and its voltage rating fully meets and exceeds 12V/24V/48V (withstands up to 60VDC) low-voltage car architectures.
Q2: What specific physical advantages does the PU Polyurethane jacket yield over standard automotive PVC wires?
A2: PU (Polyurethane) represents an elite tier of specialized industrial and automotive protective shielding. Compared to commodity PVC insulation, its mechanical wear resistance steps up by over 3 times with supreme tear strength, delivering native immunity against engine oils, brake fluids, and diesel logging without dry-rotting. Furthermore, it holds outstanding elastic memory to resist flex-fatigue fracturing during repetitive dynamic articulation, making it perfect for moving pathways.
Q3: What is the pre-stripped wire length on the open end? Can your factory crimp other connector terminals for bulk wholesale orders?
A3: The stock PCM-S-0753 variant features a default open-pigtail stripped length of roughly 5mm with pre-tinned protection to halt strand fraying. Operating as an original equipment source with fully automated high-speed harness crimping lines, Premier Cable offers comprehensive OEM/ODM manufacturing capability. For bulk wholesale orders, we fully support custom tail stripping specs or direct crimping to alternative board/wire terminals from brands like JST, Molex, or Deutsch, backed by comprehensive factory inspection charts.
