Quad GEMnet Automotive Ethernet Breakout Cable TE1-2386629-4 to 2368003-1
PCM Cable Co., Ltd. is one of the leading Quad GEMnet Automotive Ethernet Breakout Cable TE1-2386629-4 to 2368003-1 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

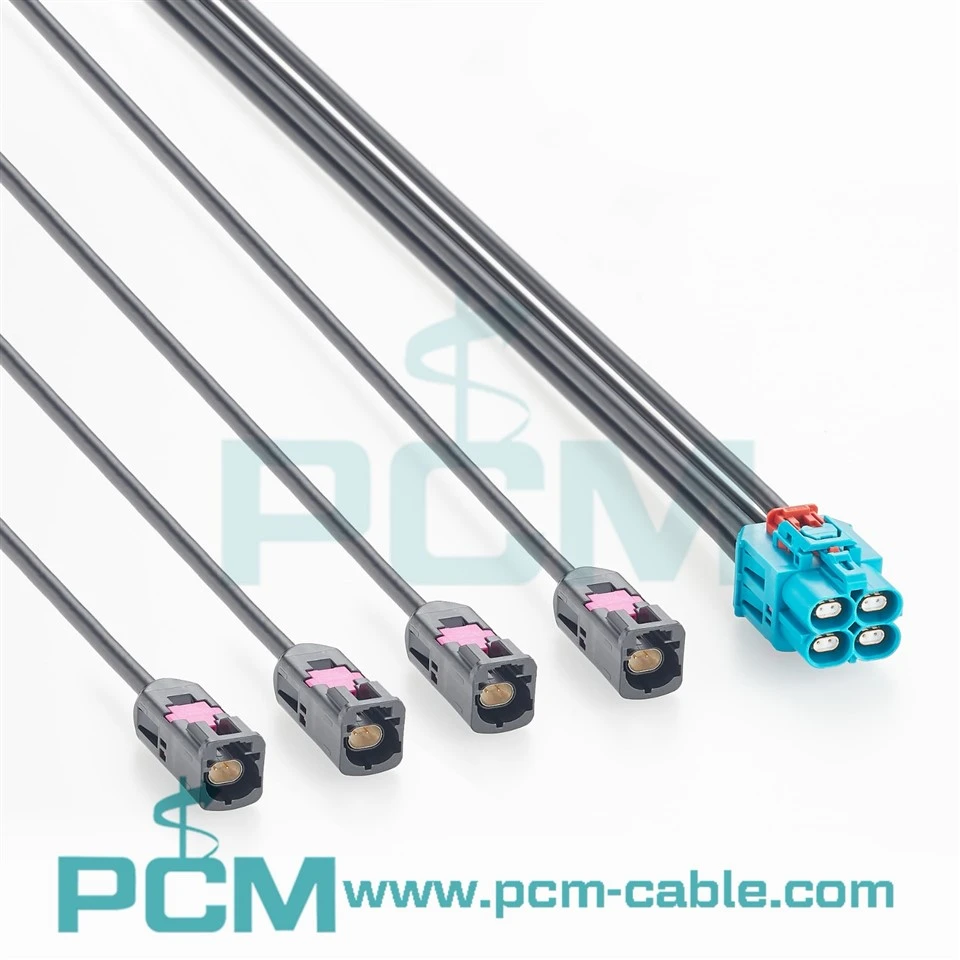

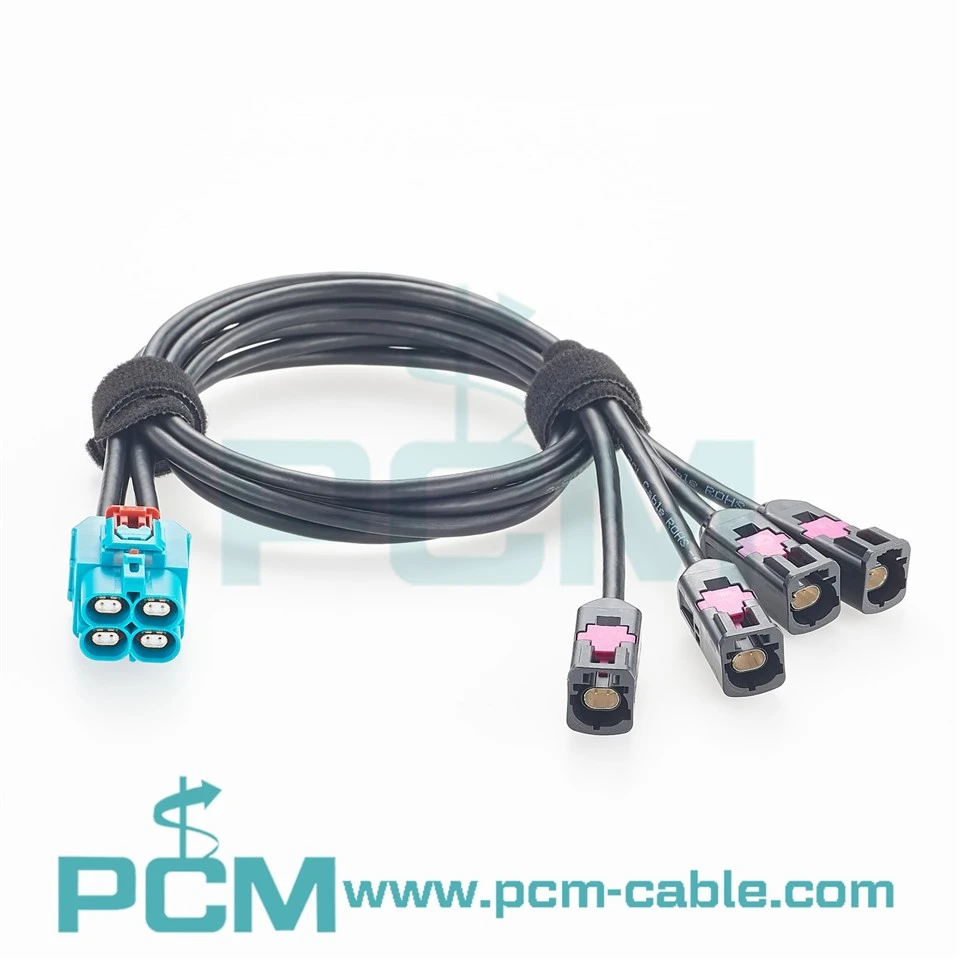

PCM-ZC-0186 is a GEMnet breakout cable designed for multi-channel automotive electronic connections. It uses one TE Connectivity quad-port Z-coded main interface to route four independent differential channels to four A-coded branches.
This configuration suits projects requiring a consolidated controller-side connection and distributed device-side routing. It can reduce repetitive connector arrangements at the main equipment and allows each branch to follow the location of its corresponding sensor or electronic module.
The four-branch configuration supports consolidated access and independent routing between controllers, communication modules and distributed electronic devices. Installation planning should verify connector coding, mating gender, clearance, cable bend radius and restraint locations, while avoiding excessive stress at the breakout transition.
Standard lengths of 0.5m, 1m and 2m provide options for different layouts, with branch dimensions and equipment spacing confirmed during project development to avoid unnecessary cable accumulation or tensile strain.
Products Specification
| Product Name | GEMnet Z-Coded to Quad A-Coded Automotive Ethernet Breakout Cable |
| Part Number | PCM-ZC-0186 |
| Cable Model | Dacar 686-3 |
|
Length |
500 mm;1000 mm ;2000 mm |
| Nominal Impedance | 100Ω nominal |
| Frequency Range | DC–10GHz |
| Temperature Range | -40°C to 105°C |
| P1 | TE GEMnet Jack Z Code, 1-2386629-4 |
| P2-P5 | TE GEMnet Plug A Code, 2368003-1 |
| Cable Model | LEONI Dacar 686-3 Ethernet Cable |
Products Display
Product Features
Four-Channel GEMnet Interface Configuration
One quad-channel Z-coded main connector connects to four independent A-coded branches using the specified TE connectors for equipment with corresponding multi-channel interfaces.
LEONI Dacar 686-3 Cable
LEONI Dacar 686-3 Ethernet cable provides 100Ω nominal impedance and a DC–10GHz frequency range, establishing defined cable parameters for high-speed differential connections.
Three Standard Lengths
Available in 0.5m, 1m and 2m versions, with tolerances of ±15mm, ±20mm and ±20mm respectively, supporting different equipment spacing requirements.
Clear Electrical and Mechanical Specifications
The drawing specifies a minimum 500VRMS dielectric withstand, 100% continuity testing, 110N minimum cable retention and a -40°C to 105°C temperature range.
Core Application Scenarios
Onboard Domain Controller and Centralized Electronic
Architecture
Suitable for domain controllers or centralized electronic modules equipped with four independent high-speed differential ports. The assembly consolidates the main connection while routing four branches to compatible devices at different locations. This supports harness organization and connector-space planning, provided the controller pinout and intended function of each channel are verified.
Automotive Electronics Development and Hil
Testing
Suitable for development prototypes, hardware-in-the-loop test benches and automotiveelectronic validation platforms with matching interfaces. The four-channel configuration supportsclear channel identification and individual continuity, shielding and signal-performance checks. The
cable does not replace test equipment or protocol conversion modules.
Core Performance Advantages
Centralized Wiring and Connection Path Simplification
The consolidated four-channel main connector reduces repetitive connector arrangementsat the controller. Four independent branches support equipment-specific routing and reduceunnecessary intermediate adapters between compatible devices, improving assembly, materialmanagement and maintenance efficiency.
Independent Channels and Signal Integrity Validation
Four independent differential channels and a defined pin assignment support individualcontinuity, shielding and high-speed performance testing. The 1000 nominal impedance provides abasis for complete-link evaluation of insertion loss, return loss and channel margin, helping reducesignal-integrity risks.
OEM Customization and Project Development Adaptation
Project-specific branch lengths, connector configurations, labels and cable restraintmethods can be evaluated through sample fitting and channel testing. This helps identify clearance,wiring and link-performance issues before volume production, reducing late-stage design changes.
Frequently Asked Questions
Q1：Can PCM-ZC-0186 convert one Ethernet port into four ?
A1： No. PCM-ZC-0186 is a passive four-channel breakout assembly. Four independentdifferential channels at P1 connect to four separate branches. It does not function as a switch, hubor protocol converter and cannot replicate one Ethernet port into four independent network ports.
Q2： Does this cable support 10Gbps ?
A2： The drawing specifies 100Q nominal impedance and a DC-10GHz frequency range, butdoes not independently certify the complete assembly for a 10Gbps protocol. Actual data ratedepends on the equipment PHY, protocol, cable length, termination quality and complete link
testing.
Q3：Is it compatible with all TE GEMnet connectors?
A3： No. Exact part numbers, coding, mating gender, locking features and pin assignment mustbe verified. The drawing-specified part numbers provide a selection reference but do not replace
the manufacturer's mating documentation.
Products Drawing
