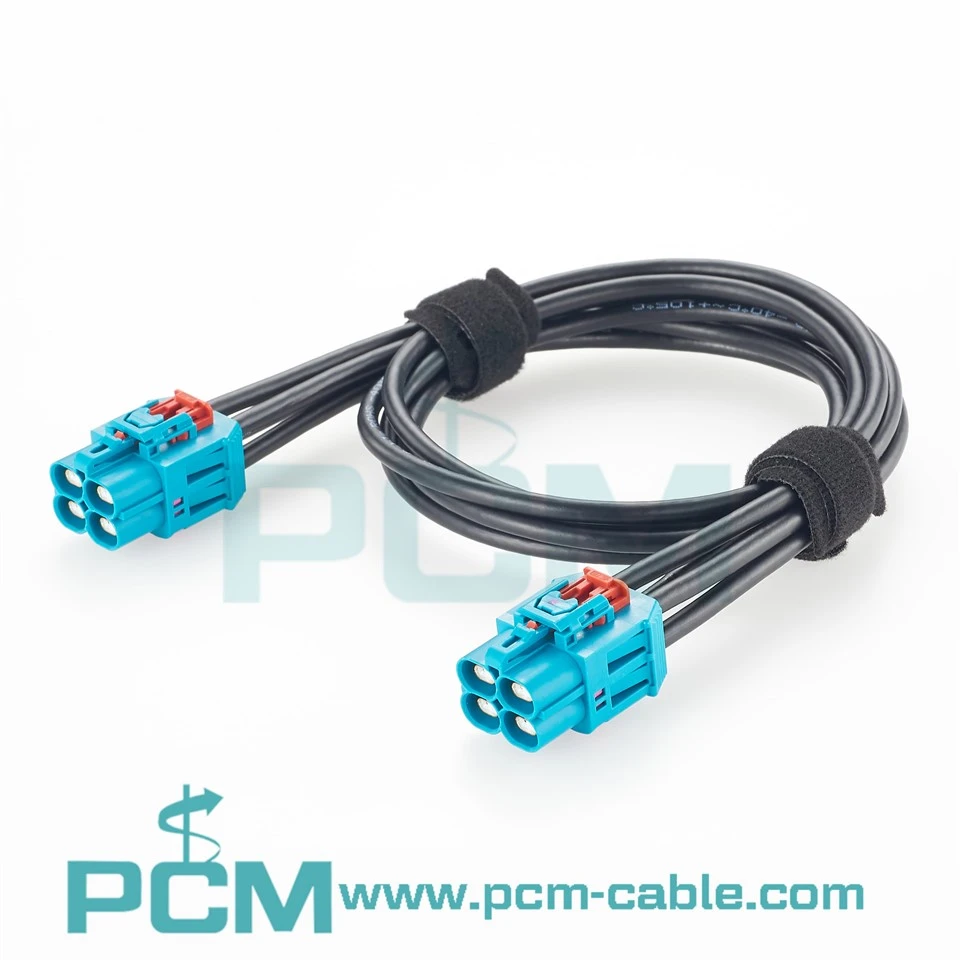

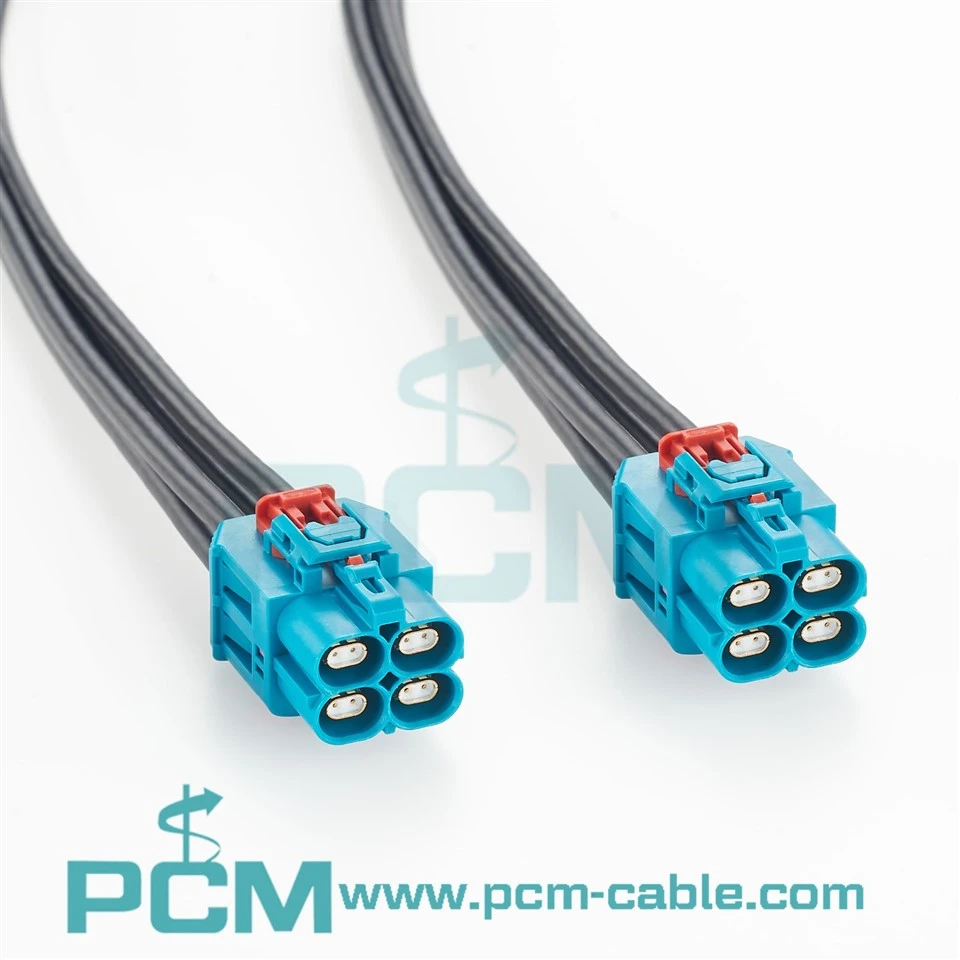

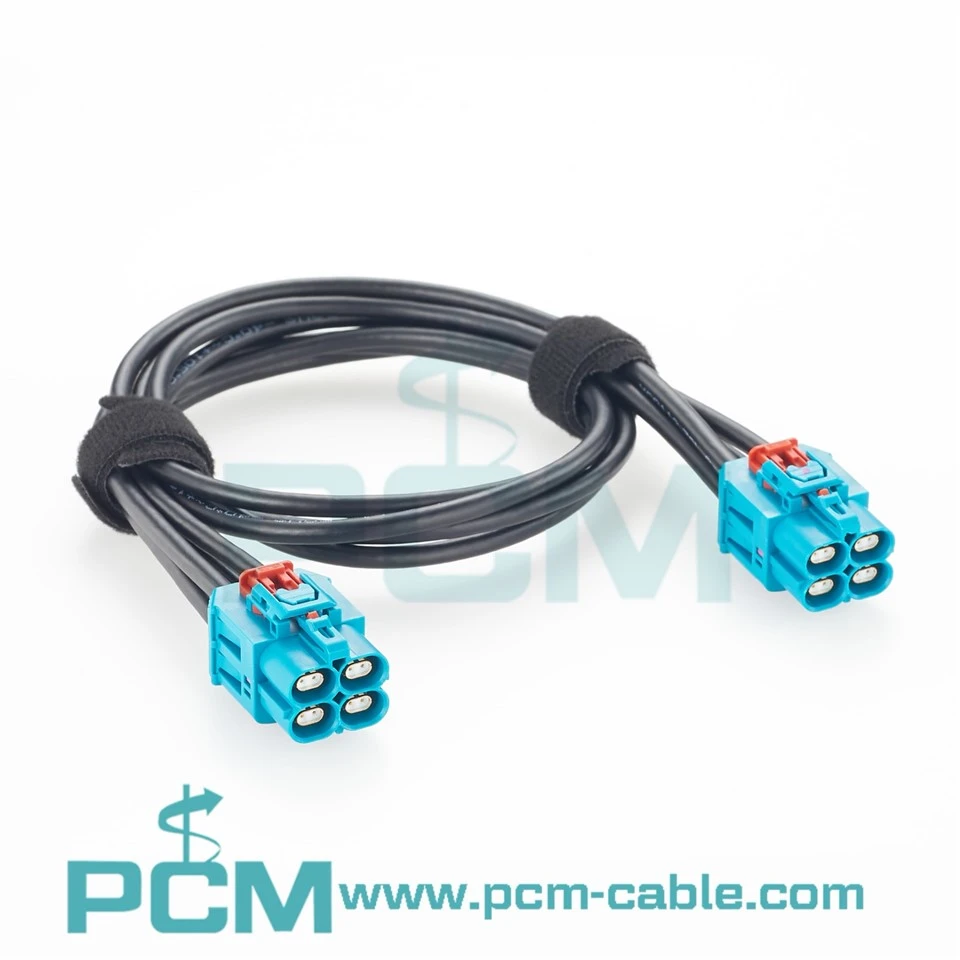

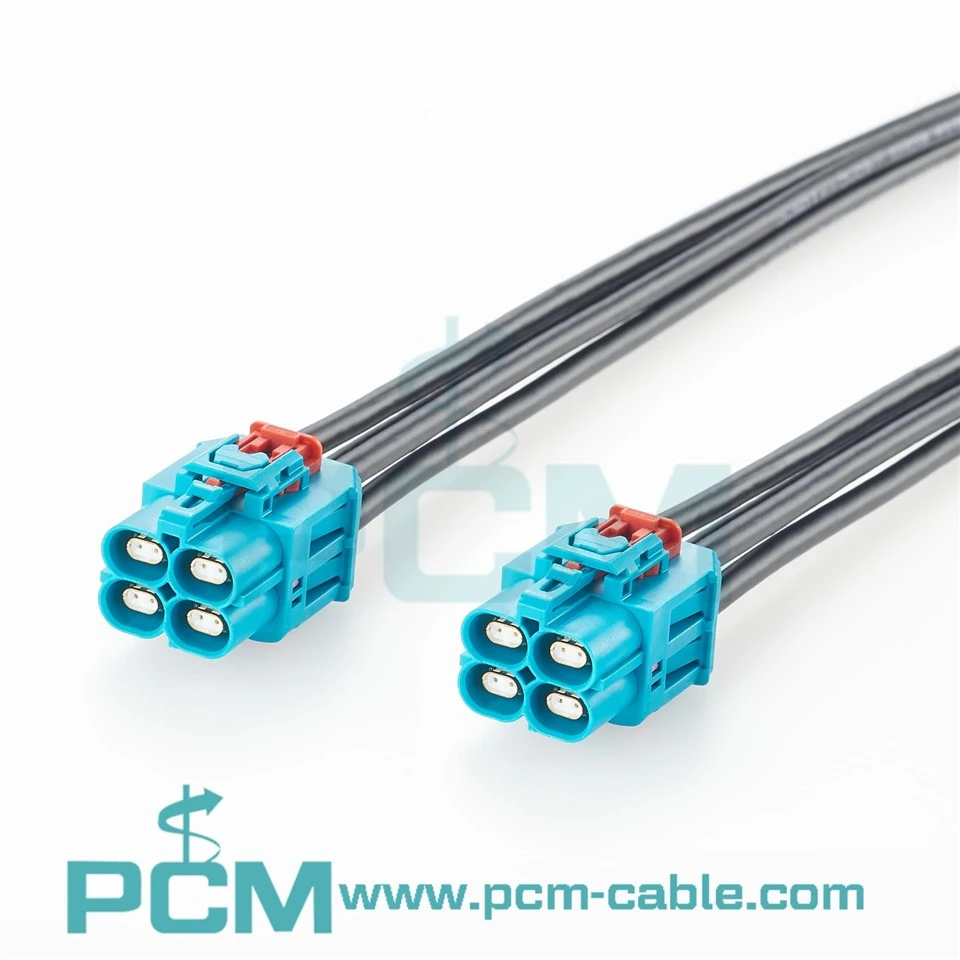

TE 4 Port GEMnet Automotive Ethernet Cable

PCM Cable Co., Ltd. is one of the leading TE 4 Port GEMnet Automotive Ethernet Cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

PCM-ZC-0187 is more than a conventional single-channel automotive Ethernet cable. Four independent high-speed data channels are consolidated into one 4-port GEMnet interface and carried together to a matching multi-port interface at the opposite end. Compared with routing four separate single-port cables, this 4-in-1 architecture reduces connector concentration and harness complexity around domain controllers, HPCs and central computing platforms while maintaining independent channel paths.



High-speed automotive links must withstand vibration, mechanical shock, thermal cycling and harness loading in addition to providing bandwidth. TE's 4-port GEMnet female housing incorporates CPA for positive mating assurance. Published GEMnet platform specifications include a connector disengagement force of ≥110N with the lock enabled, together with automotive vibration, mechanical shock and environmental validation.

Integrated 4 Channel GEMnet Architecture

Dual 4-port GEMnet interfaces consolidate four independent high-speed data channels into one harness while maintaining defined one-to-one channel mapping. Rather than duplicating a single Ethernet signal, the 4-in-1 architecture carries four separate links, reducing connector concentration, cable crossover and routing complexity around ECUs, HPCs and domain controllers.

Multi-Gigabit Multi-Protocol Platform

Built around the TE GEMnet high-speed platform for multi-gigabit Automotive Ethernet and SerDes connectivity, with platform capabilities up to 15GHz and 56Gbps. GEMnet supports technologies including 100/1000BASE-T1, 2.5/5/10/25GBASE-T1, GMSL2/3, FPD-Link IV, PCIe, MIPI, HDBaseT and ASA, providing scalability for next-generation vehicle data architectures.

High-Density Interface with CPA Locking

The multi-port GEMnet architecture increases high-speed connection density within limited controller interface space, making it suitable for HPCs, ADAS domain controllers and central computing platforms. The 2386629-series 4-port female housing features a 180° design with CPA mating assurance to improve mechanical retention against vehicle vibration, shock and harness movement.

OEM 4-Channel Customization & Integration

PCM-ZC-0187 can be configured with project-specific cable length, four-channel mapping, key code, cable construction, labeling and validation requirements. This allows each high-speed channel to correspond accurately with HPC, ECU, domain-controller or test-platform interfaces, providing greater flexibility for central computing, ADAS, smart cockpit and OEM vehicle-network integration.

HPC & Domain Controllers



Designed for multi-channel high-speed trunk links between automotive HPCs, ADAS domain controllers, central computers and zonal controllers. Four independent channels are consolidated through one GEMnet interface, reducing connector and cable concentration around high-performance ECUs.

Autonomous Driving & Sensor Data



Suitable for high-speed backbone connections between autonomous driving computers, radar, LiDAR and sensing control units, providing consolidated physical data paths for perception and sensor-fusion architectures.

Q1:With this high-density 4-in-1 layout running concurrent 100Mbps/1000Mbps data, will it introduce severe crosstalk across channels?

A1: Legacy parallel splitters suffer from massive induction crosstalk that collapses network data frames. We solve this by optimizing internal wire breakouts and PCB traces via micro-scale EM simulation layout, and nesting a "fully enclosed quad-chamber metal inner matrix" prior to overmolding. Armored under separate high-density aluminum foil wrap per pair, the Near-End Crosstalk (NEXT) suppression ratio is squeezed into deep lows, guaranteeing linear, independent full-duplex traffic across all channels.

Q2: In-vehicle routings span long spans; if this wire runs near ignition systems or high-power EV inverters, will data suffer from EMI noise?

A2: Absolutely not. Automotive high-speed Ethernet PHY layer EMC evaluation protocols are famously punishing. In addition to separate aluminum foil per pair (STP), this wire incorporates an overall comprehensive heavy-duty high-density copper braiding mesh shield, bonded 360-degree seamlessly to grounded metallic connector shells. This establishes a fortified electromagnetic defense net that traps and grounds out external high-frequency stray radiation, keeping the differential wave profile pristine.
