6-Port GEMnet Z-Code Ethernet Cable TE1-2428482-4
PCM Cable Co., Ltd. is one of the leading 6-port gemnet z-code ethernet cable te1-2428482-4 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
PCM-ZC-0192 is a six-port GEMnet Z-coded extension cable designed for high-speed automotive data systems. Identical TE connectors at both ends provide direct interconnection through six independent differential channels.
Compared with arranging six separate single-channel harnesses, the consolidated structure helps organize the controller connection area and provides a more orderly physical interconnect for central computing platforms, domain controllers and multi-sensor systems.
The assembly uses TE 1-2428482-4 six-position Z-coded connectors with the designated locking and keying structure for defined mechanical mating between compatible devices.
Installation Requirements: Length and Wiring Space
Standard lengths of 0.5m, 1m and 2m accommodate different distances between electronicmodules. Select the length according to equipment position, cable exit direction, restraint pointsand service clearance, while allowing suitable bend relief. The consolidated six-channel structurereduces scattered connector arrangements, but excessive bending, tension and contact with sharpedges should still be avoided.
Manufacturing Process: Differential Structure and Process Inspection
The harness is manufactured using LEONI Dacar 686-3 Ethernet cable and the specified TEconnectors. Production should control cable cutting, differential-pair preparation, contact crimping,shielding connections and cable restraint to maintain consistency and avoid high-frequencydegradation caused by excessive untwisting or improper termination.
Service Life: Environmental and Mechanical Stress Management
The drawing specifies an operating temperature range of -40°C to 105°C and a minimumcable retention force of 110N, providing baseline selection parameters for automotive electronicsenvironments. Actual service life depends on mating cycles, vibration, temperature cycling, cablerestraint, bending conditions and environmental exposure.
Products Specification
| Product Name | GEMnet Z-Coded Six-Channel High-Speed Data Extension Cable |
| P/N | PCM-ZC-0192 |
| Connector 1 | GEMnet Z-Coded 6-Position Connector;TE 1-2428482-4 |
| Connector 2 | GEMnet Z-Coded 6-Position Connector;TE 1-2428482-4 |
| Cable | LEONI Dacar 686-3 Ethernet Cable |
| Length | 500 ±15mm;1000 ±20mm;2000 ±20mm |
| Impedance | 100Ω Nominal |

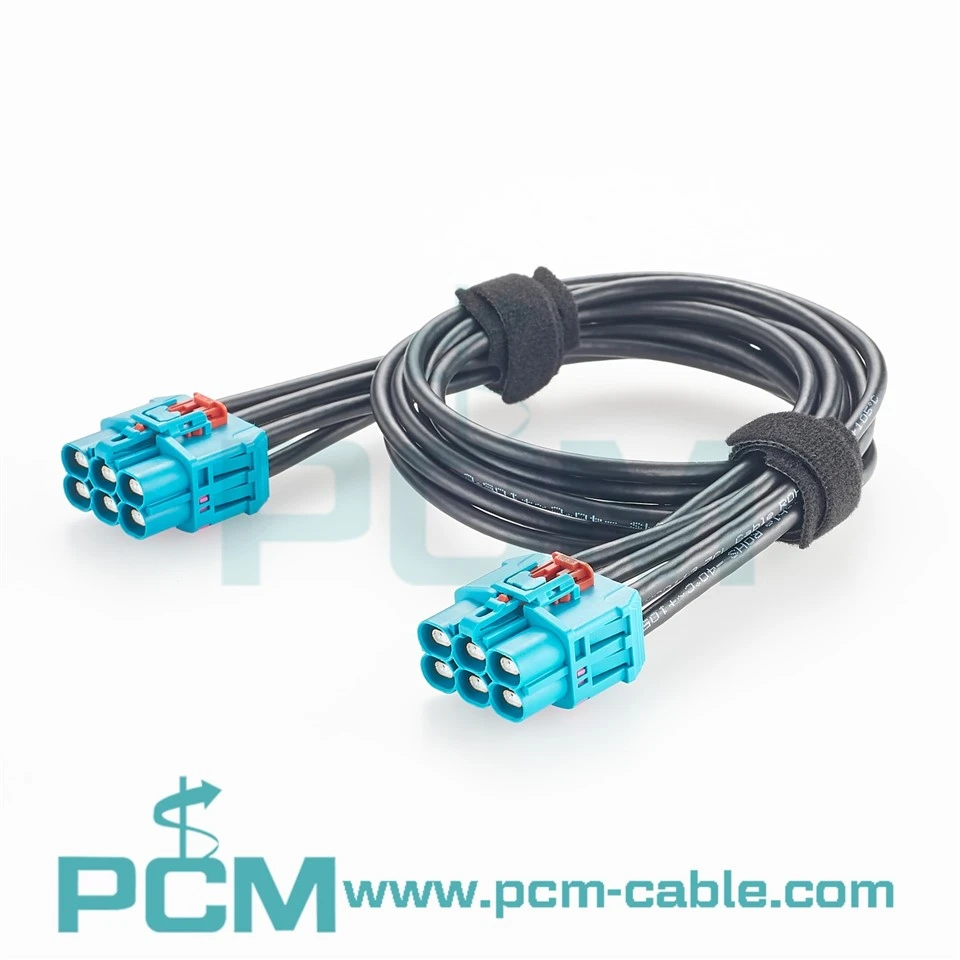

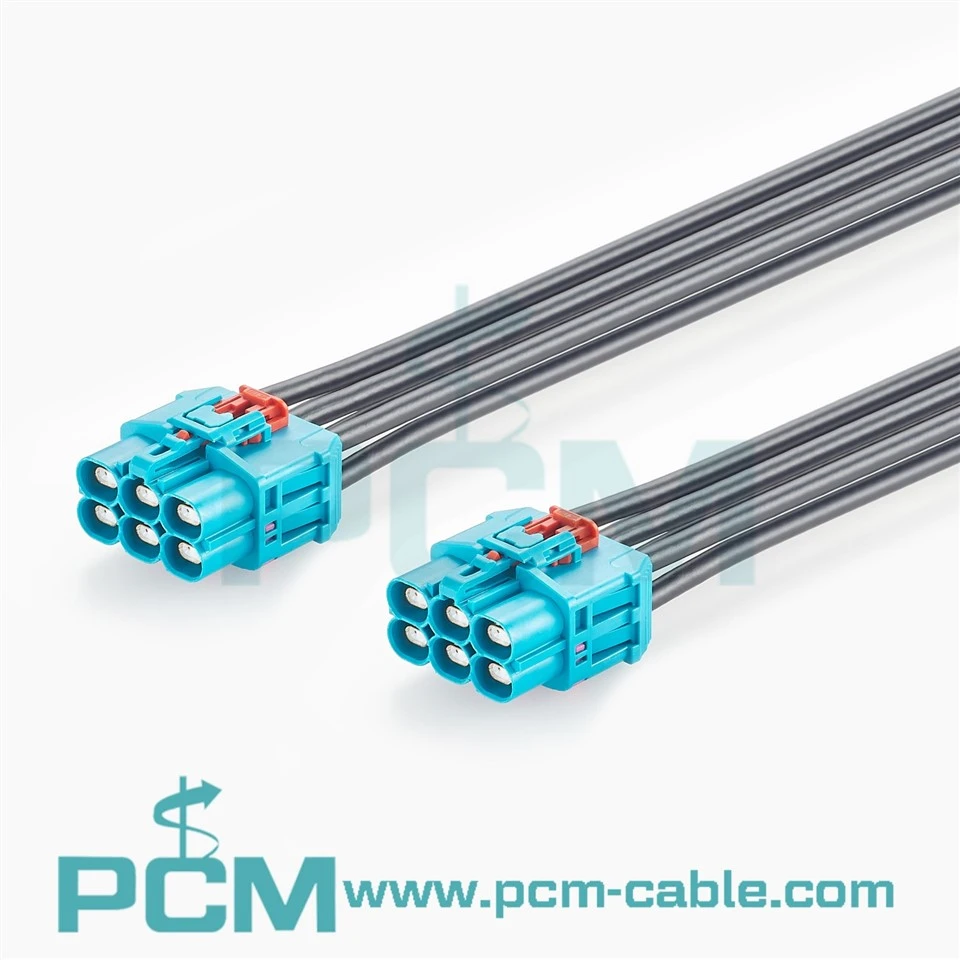

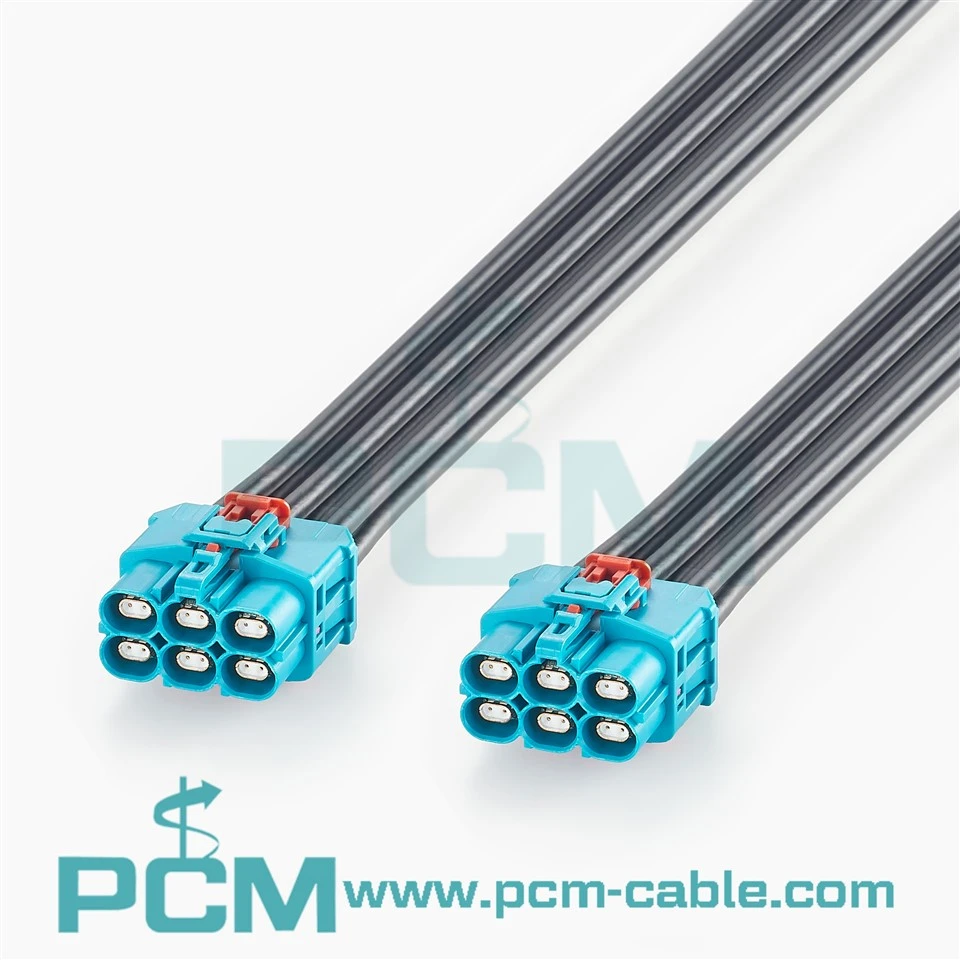

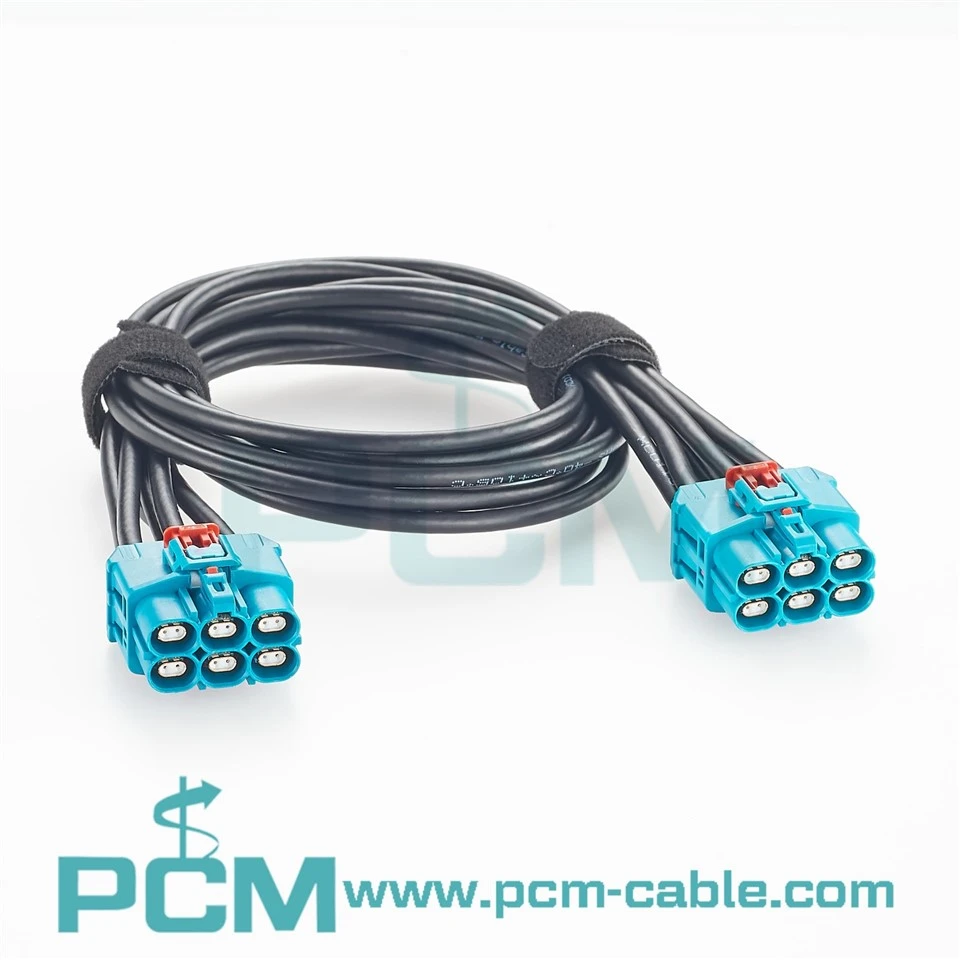

Products Display
Product Features
Six-Port Z-Coded Connectors
Both ends use TE 1-2428482-4, consolidating six ports into matching Z-coded connector interfaces for compatible multi-port equipment.
Six Independent Differential Channels
Twelve signal contacts form six differential pairs, with straight-through channel mapping and corresponding shielding connections, without active distribution or signal combining.
Specified Ethernet Cable
The specified LEONI Ethernet cable provides a 100Ω nominal impedance and DC–10GHz frequency range as defined parameters for high-speed differential interconnection.
Three Standard Lengths
Available in 0.5m, 1m and 2m versions with drawing-defined tolerances, supporting engineering samples and different equipment spacing requirements.
Core Application Scenarios
ADAS and Multi-Sensor Systems
Can be used to extend compatible camera, radar or other sensor data links to controllers, subject to verification of the equipment PHY, protocol and channel budget.
Automotive R&D and HiL Testing
Suitable for laboratory test benches, prototype controllers and hardware-in-the-loop systems, supporting individual channel testing, interface validation and evaluation of different cable lengths.
High-Speed Data Equipment Integration
Suitable as a passive physical interconnect for industrial or specialized high-speed data equipment using matching GEMnet interfaces, without changing the equipment's communication protocol.
Core Performance Advantages
Improve Multi-Channel System Integration Efficiency
The consolidated six-channel interface helps reduce scattered connector arrangements at the controller, creating more consistent cable exits, restraint points and channel identification. Incompact electronic systems, it can reduce harness crossings and assembly-management complexitywhile improving channel identification during maintenance.
Reduce unnecessary intermediate connectors
Direct Z-coded to Z-coded interconnection using the specified GEMnet interfaces canreduce additional adapters and intermediate connection points between compatible devices. Asimpler physical path helps reduce material-management and assembly steps, as well as the number of mechanical connections requiring inspection.
Support for Channel-by-Channel Signal Integrity Verification
Six defined differential channels and a clear pin assignment support individual continuity,
shielding and high-speed performance checks. Combined with the 100Q nominal impedance andcomplete-link requirements, they enable evaluation of insertion loss, return loss and channelmargin, helping engineers identify risks associat J ith cable length, termination and equipment interfaces.
Frequently Asked Questions
Q1：Does PCM-ZC-0192 support 10Gbps or higher speeds?
A1：The drawing specifies a DC-10GHz frequency range but does not provide a guaranteed
data rate for the complete assembly. Actual performance must be verified against the PHY, protocol,
cable length and complete channel; frequency cannot be directly converted into Gbps
Q2: Can six ports automatically allocate or merge data?
A2： No. This is a passive extension cable with six independent differential channels. It containsno switching IC, PHY or protocol-conversion circuitry. Communication functions are determined by the connected equipment.
Q3: Is it compatible with all GEMnet Z-coded devices?
A3：Z-coding alone does not guarantee compatibility. Verify the exact connector part number,mating gender, pin assignment, shielding requirements, PHY, protocol and equipment portconfiguration. The official TE specification for 1-2428482-4 provides a mechanical selection
referenCe. D
Products Drawing
