6 Port XT60 Power Distribution Block Hub
PCM Cable Co., Ltd. is one of the leading 6 port xt60 power distribution block hub manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

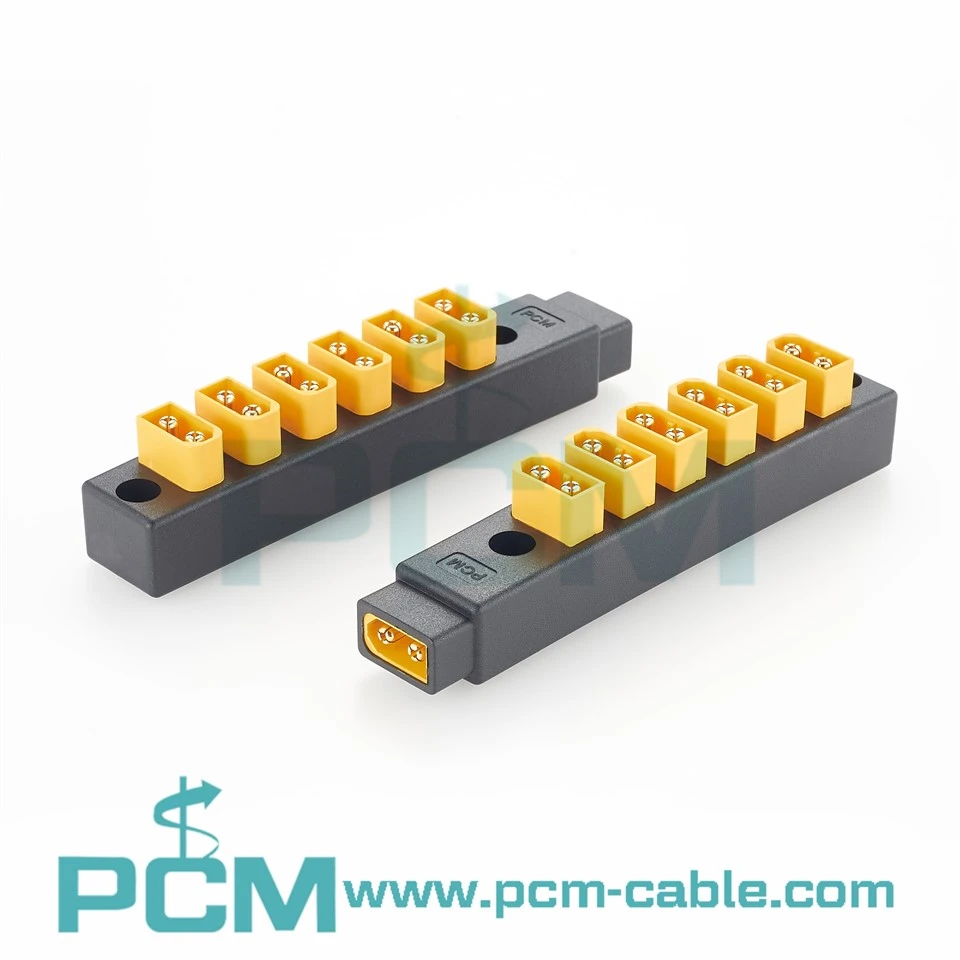

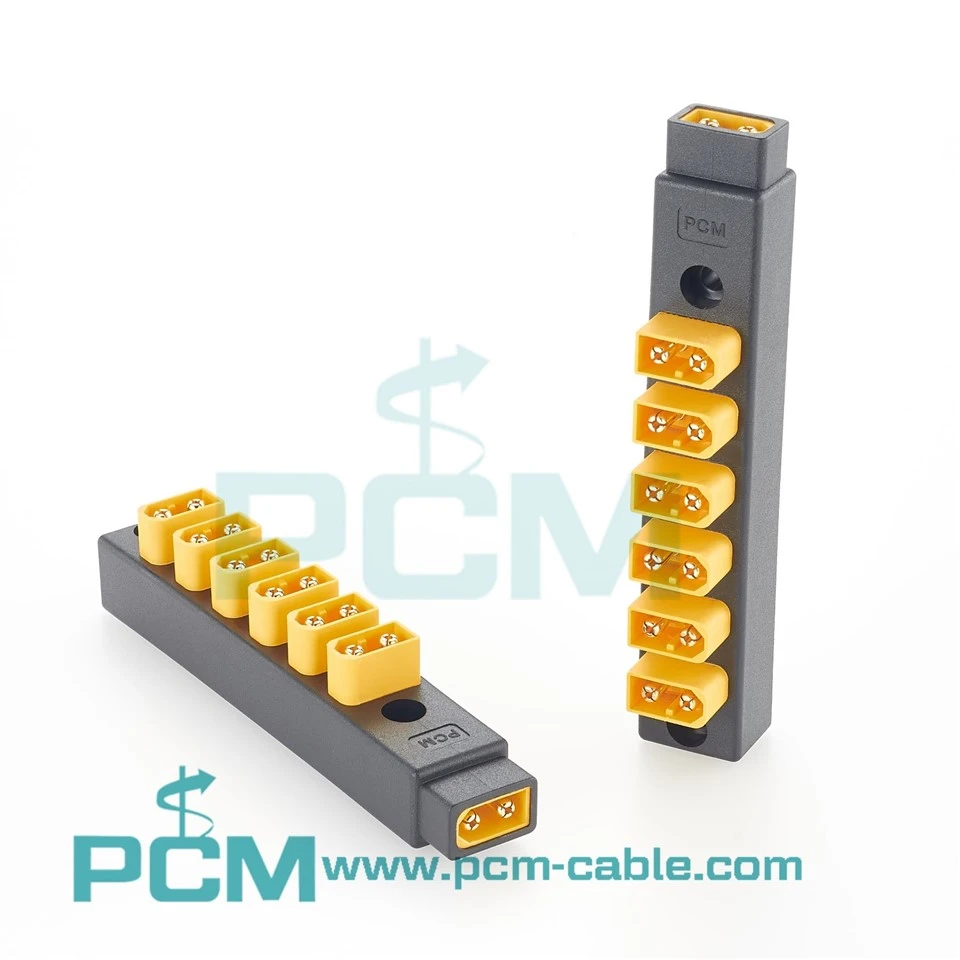

Premier Cable PCM-0986 is an XT60 Power Distribution Block 6 Port designed for high-power DC distribution applications. Featuring a single-input and six-output structure, it distributes power from one XT60 source into six independent XT60 connection points.
Unlike traditional XT60 splitter cables, this Power Distribution Block uses a rigid integrated structure to keep all ports fixed and organized, reducing cable clutter, loose connections, and installation complexity. The six-port configuration is ideal for systems requiring multiple power connections, battery interfaces, or test equipment access.
PCM-0986 is suitable for drone power platforms, RC battery maintenance, power testing fixtures, robotics, and custom DC power systems requiring clean and reliable power expansion.
Core Advantages
The heavy-duty 6 Port XT60 Power Distribution Board engineered by Premier Cable embodies elite design experience in large-current power management grids. In autonomous high-payload aircraft and automated hardware, simultaneous high-amp flow demands superior thermal balancing from power distribution blocks. This module completely replaces hazardous, high-resistance manual wire splicing, building a regulated heavy-load distribution network on one integrated deck. Its competitive advantage centers on sustaining micro-ohm impedance under long full-load operations, acting as a cool-running energy hub for multi-axis systems.
Stable Connection
Under hard maneuvers or ongoing mechanical shaking, minor electrical contact slips cause immediate, catastrophic system crashes. Countering this threat, this heavy Multichannel Parallel Busbar board integrates industry-standard XT60 receptors built with dense, high-tension copper sleeves that secure substantial structural grasp. Once plugged, the assembly locks in tightly to deliver unshakeable anti-vibration performance, ensuring continuous micro-volt electrical continuity through violent g-force drops and continuous dynamic travel.
Installation Requirements
Tailored for the congested battery chambers of UAVs and cramped electrical enclosures, this power board incorporates rigorous geometric space saving. The PCB layout features four standardized corner mounting holes paired with rugged nylon anti-vibration standoffs, supporting easy vertical stack aggregation. The recessed socket layout trims total module thickness, while the calibrated gaps between outlets offer comfortable finger access, ensuring smooth manual plugging or cable-tie dressing in dark chassis corners.
Products Specification
| Product Name | XT60 1-to-6 Male Power Distribution Hub |
| Drawing No | PCM-0986 |
| Configuration | 1 × XT60 Male Input to 6 × XT60 Male Distribution Ports |
| P1 Input | XT60 Male Plug |
| P2–P7 Distribution Ports | XT60 Male Plug |
| Main Body Length | 118 mm |
| Main Body Height | 20.5 mm |

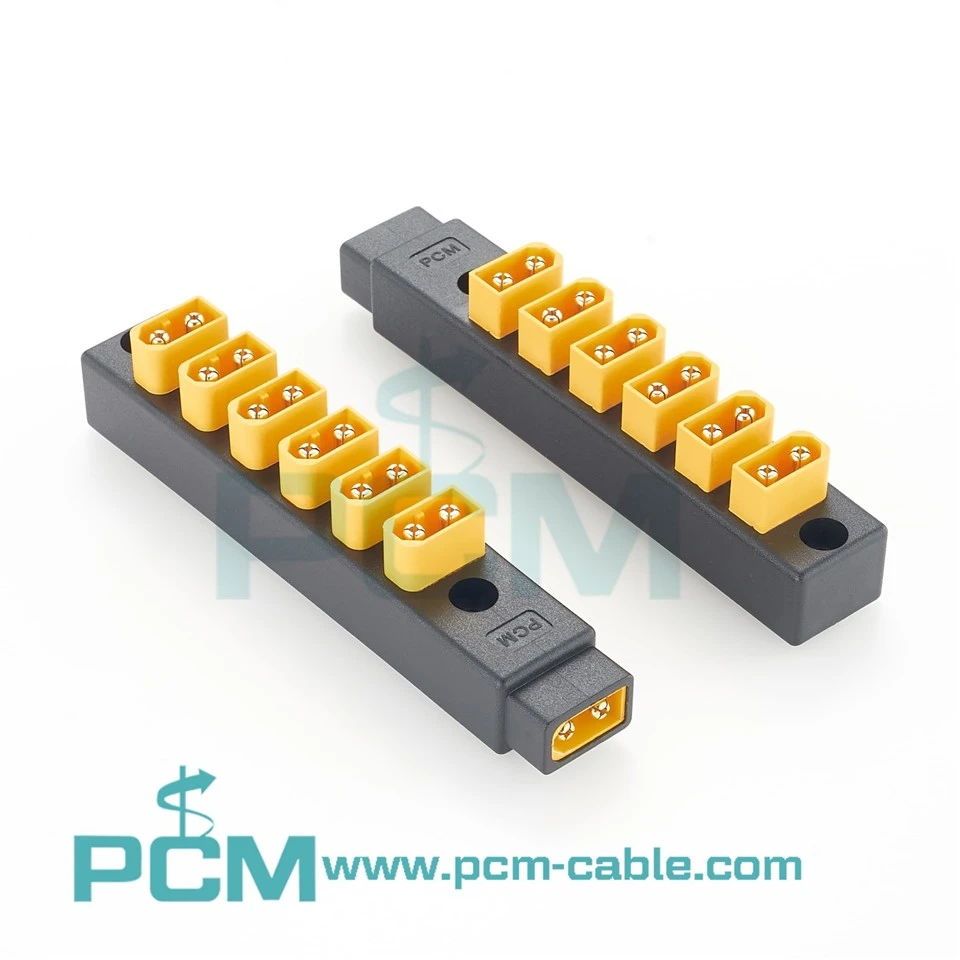

Products Display
Product Features
Overmolding Solid Architecture
The internal layout and outer housing are fully integrated via LDPE and high-strength PVC overmolding. This eliminates loose, fragile external fly-wires found in traditional splitters, creating an exceptionally shock-resistant, solid-state board module.
Heavy-Duty 14AWG Internal Conductors
Internal jumper wiring strictly utilizes certified UL1569/UL1007 14AWG pure copper conductors. This heavy-gauge standard drastically minimizes internal resistance and thermal buildup, ensuring an optimized voltage drop during high-current operations.
Integrated Panel-Mount Mechanism
The housing features standardized mechanical routing holes and precision positioning guides for direct bolt-on installation. It allows engineers to securely integrate the distribution block onto test benches, equipment chassis, or industrial control panels.
Parallel Power Splitter Topology
Engineered with a fully parallel internal electrical grid, ensuring all positive and negative terminals distribute identical equipotential voltage. It delivers highly consistent multi-channel splitting while preventing mutual interference across loads.
Core Application Scenarios
Electrical Test Bench Systems
Designed for electronics R&D benches, prototype validation stations, burn-in racks, and DC power test systems. The XT60 Power Distribution Block provides centralized connection points for battery modules, control boards, drive modules, and DUTs. Its organized multi-port layout simplifies frequent DUT replacement, load changes, and test-station maintenance while reducing the cable clutter commonly associated with multiple independent power adapters.
UAV & Robotics Power Layout

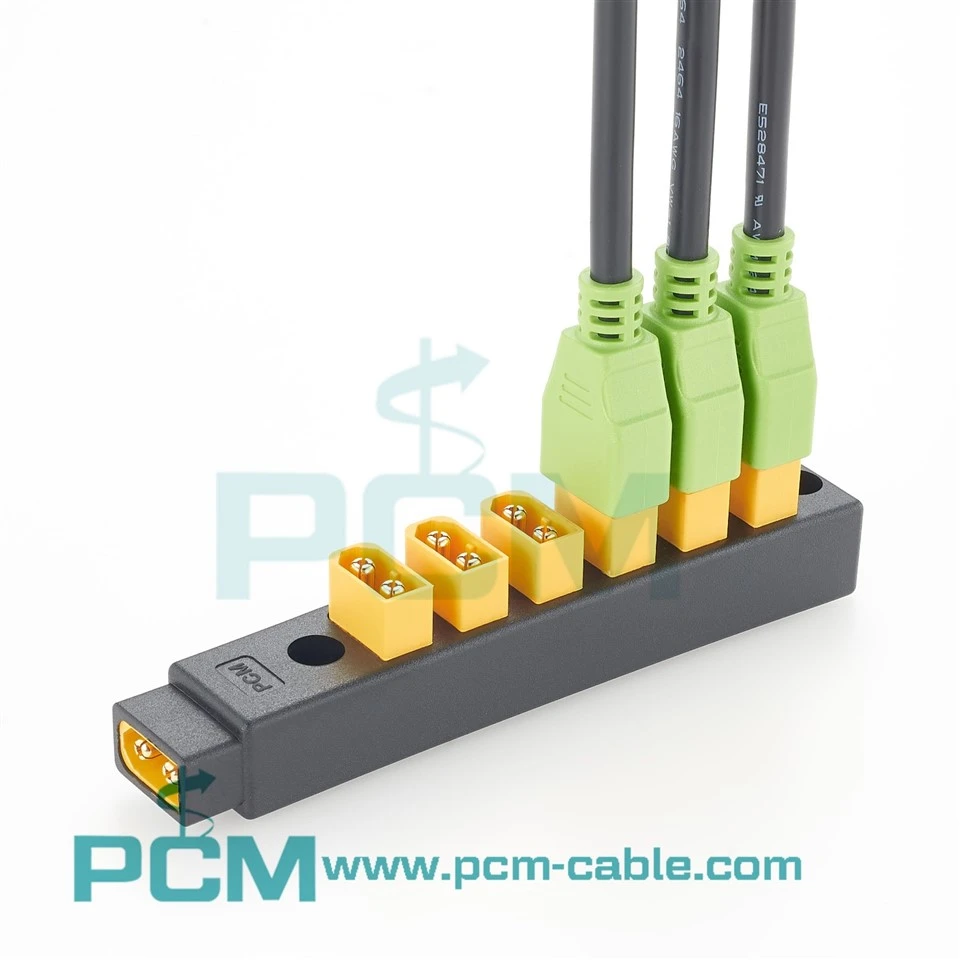

Suitable for heavy-duty industrial UAVs, multi-rotor platforms, inspection robots, legged robots, and AGVs. The 6 Port XT60 Power Distribution Block serves as a centralized connection point between battery modules and equipment harnesses for motor drives, actuators, controllers, sensors, and other DC loads. Its fixed-port structure supports cleaner power routing, modular assembly, and easier servicing in compact mobile platforms with multiple electrical loads.
Core Performance Advantages
◆ Streamlined Harness & Space Optimization
It condenses a complex "1-to-6" multi-branch wiring mess into a single, compact, rigid enclosure. This immediately eliminates the risks of tangled wires inside the chassis, freeing up significant spatial overhead and improving overall airflow.
◆ Error-Proof Anti-Reverse Geometry
All channels natively feature the asymmetrical keyed geometry of standard XT60 connectors. This permanently eradicates reverse-polarity short circuits caused by human error during low-light, blind, or emergency operations, protecting costly core electronics.
◆ Zero-Soldering Rapid Deployment
As a pre-assembled, maintenance-free, plug-and-play component, users are spared from high-difficulty manual soldering on PCBs. This reduces system integration labor hours while entirely avoiding structural failures like cold joints or solder cracking.
◆ Lossless High-Conductivity Power Delivery
Leveraging premium copper contacts and thickened internal metal bus-bars, this module supports non-stop, reliable DC power distribution. It sustains high-amp loads flawlessly, ensuring downstream multi-devices run at full capacity for extended cycles.
Frequently Asked Questions
Q1: What is the maximum rated current and voltage for this distribution block?
A1:Based on standard XT60 specs, a single channel can continuously handle 30A-60A. The total overall input current capacity depends on your main power source wiring, while the thick internal gauge safely supports common low-voltage DC grids ,typically recommended within 14V-22V for long-term safety.
Q2: Can this be used as a parallel combiner box for multiple solar panels?
A2:Yes, absolutely. Thanks to the fully parallel internal design, it can operate as a 1-to-6 splitter or in reverse as a 6-to-1 solar DC combiner feeding a charge controller. Please ensure all parallel inputs share identical voltage profiles.
Q3: Is this module waterproof? Is it suitable for outdoor applications?
A3:The housing uses an integrated PVC overmold sealing, rendering internal wires and wire-to-connector transitions isolated from air for excellent moisture and dust resistance. However, since the open XT60 mating faces are not fully hermetic, avoid submersion.
Products Drawing
