RJ12 6P6C To RS485 Terminal Block Adapter

PCM Cable Co., Ltd. is one of the leading rj12 6p6c to rs485 terminal block adapter manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

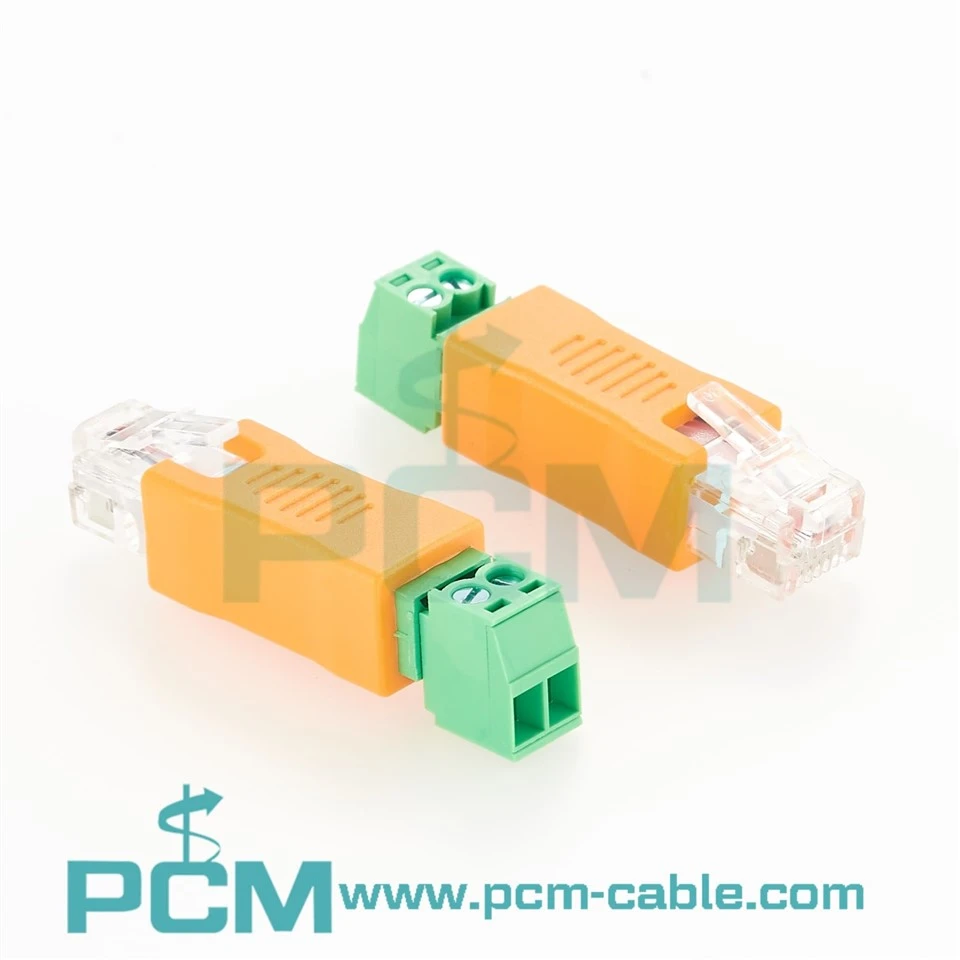

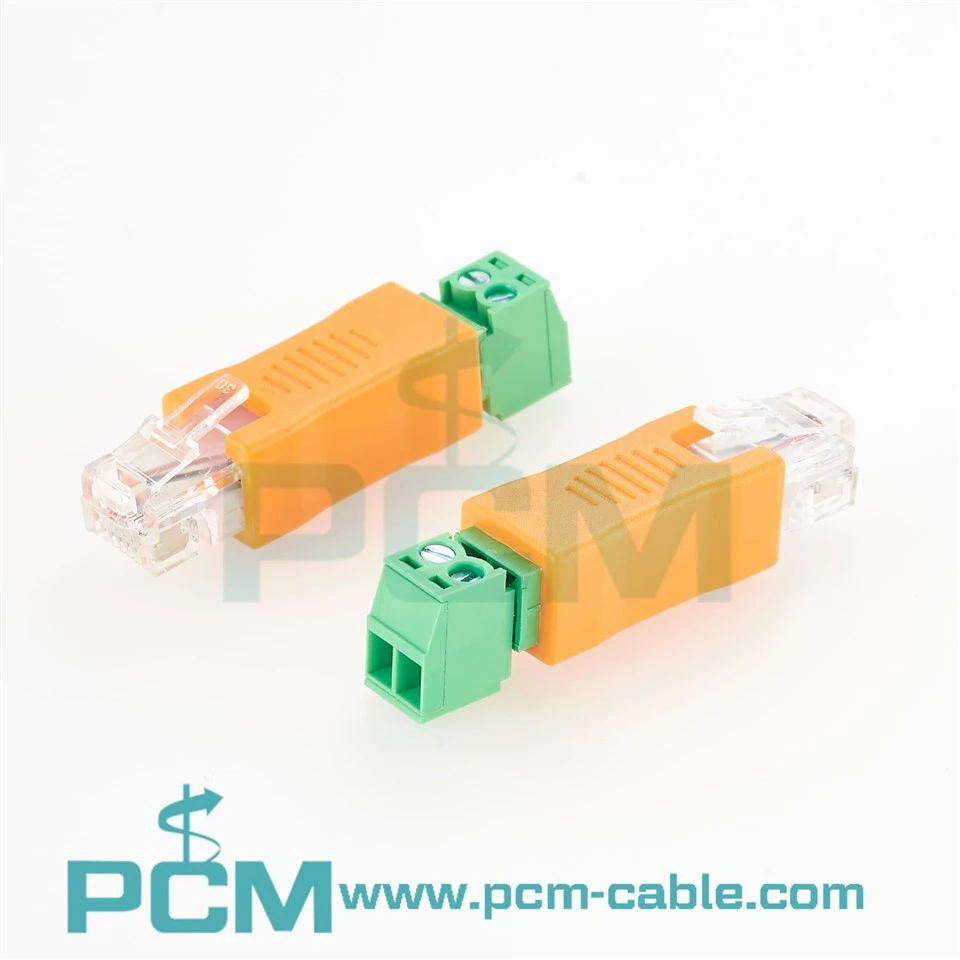

Premier Cable PCM-0999 combines an RJ12 6P6C interface with individual screw-terminal positions, breaking out the six modular contacts into accessible field-wiring points. Compared with cutting RJ12 cables for soldering, splicing or temporary connections, the RJ12 6P6C Terminal Block Adapter provides engineers with a more accessible wiring interface for RS485 equipment, Modbus RTU systems, PLC commissioning, sensor integration and legacy equipment retrofits.

◆    Stable Connection

Screw terminals provide individual mechanical clamping for stripped field wires, allowing communication, power or reference conductors to be terminated according to the target device pinout. Compared with temporary clips, solder joints or twisted bare-wire connections, the terminal structure makes each connection easier to identify and inspect. Wiring changes during cabinet commissioning, laboratory testing or maintenance can be completed by reopening the terminals rather than rebuilding the entire RJ12 cable.



◆    Installation Requirements

Before installing PCM-0999, verify the target equipment's RJ12 6P6C pinout and identify the corresponding RS485 A/B, D+/D−, GND, power or other signals before terminating the wires. RJ12 defines the connector format but does not guarantee identical RS485 pin assignments across different devices. PCM-0999 is a passive breakout adapter and does not perform RS232-to-RS485 conversion, Modbus protocol conversion, galvanic isolation or signal-level conversion.

Full 6P6C Breakout

All six RJ12 6P6C contacts are routed through the PCB to corresponding terminal positions for communication, control, power or auxiliary signal wiring according to the device pinout.



Solderless Screw Termination

Bare field wires can be secured directly through screw terminals without soldering an RJ12 plug, simplifying cabinet wiring, laboratory commissioning and maintenance.

PCB Direct Breakout Design

Fixed PCB copper traces connect the RJ12 contacts to terminal positions, eliminating loose internal flying wires and supporting consistent pin mapping across production batches.



Compact Modular Construction

The RJ12 socket and terminal block are integrated onto a compact PCB module for use in PLC cabinets, test platforms, sensor equipment and OEM control assemblies.

RS485 & Modbus RTU Wiring



Suitable for RS485 or Modbus RTU equipment using an RJ12 6P6C physical interface. Engineers can break out device-defined A/B, D+/D−, GND and other signals to screw terminals for controllers, instruments, sensors and industrial communication nodes.

PLC & Control Cabinet Commissioning



Ideal for PLC cabinets, remote I/O modules, industrial instruments and automation equipment requiring a removable interface between RJ12 ports and field twisted-pair wiring.

Q1:This adapter has an RJ12 slot; can I plug an RJ11 6P4C/6P2C connector into it?

A1: Physically yes, they share identical outer frame dimensions (both utilize the 6P standard shell). However, the loop depends on your device pinout mapping. This hardware breaks out all 6 pins (6P6C) independently; if your RJ11 lead only deploys 2 or 4 active central lines, secure them to the corresponding numbered terminal blocks.

Q2: Does this adapter include a built-in 120-ohm RS485 terminal matching resistor?

A2: To maintain system-wide bridging layout flexibility, this passive module does not integrate a fixed 120-ohm matching resistor. This allows it to act either as a mid-span tap or an end node. If deployed at the absolute edge of your grid, simply loop a standard discrete 120-ohm resistor directly across the A+ and B- screw chambers.
