The cable size required for a 50kW motor depends on several factors, including voltage level, line length, load type, and the allowable current of the cable. Generally, the selection of cables follows the following steps:
1. Calculate the current: First, calculate the current based on the power and voltage of the motor. Taking a 380V three-phase motor as an example, the current calculation formula is as follows:
Where:
- P is power (50kW),
- U is voltage (380V),
- cosφ is power factor (assumed to be 0.8).
The calculation result is approximately:
Therefore, the operating current of the motor is about 95.5A.
2. Choose the cable size: Choose the appropriate cable according to the current. Generally speaking, the cable specification corresponding to the current of 95.5A is usually 70mm² or 95mm² copper conductor cable (the specific selection depends on factors such as line length, temperature, installation method, etc.). For aluminum conductor cables, larger specifications such as 120mm² or 150mm² are usually selected.
3. Consider line loss and voltage drop: In the case of long distances, the voltage drop of the cable may affect the operation of the equipment, and the voltage drop is usually required to be no more than 3%. Therefore, when transmitting over long distances, it may be necessary to select a larger cable.
In short, for a 50kW motor, the common cable size is 70mm² to 95mm² copper cable, and the specific specifications are adjusted according to the conditions and requirements of use. If you need to further confirm the cable selection, it is recommended to refer to the cable supplier's specification table or perform professional electrical design calculations.
You may also like

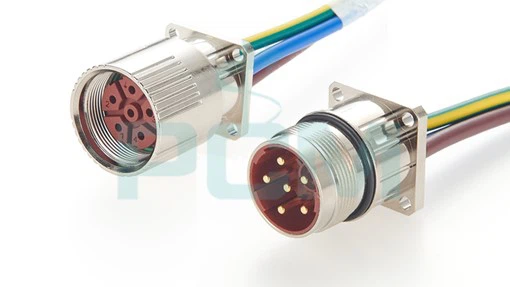

M23 Receptacle, Flange Mount
