What is a DMX Terminator

A DMX terminator is a small plug inserted into the last DMX output in your lighting chain. Inside the plug is a 120-ohm resistor connected across the DMX signal lines - pins 2 and 3.

Its purpose? Absorb signal reflections and prevent them from bouncing back through the DMX line, which can cause glitches, flickers, or erratic lighting behavior.

Think of it like a sponge at the end of a hose - it soaks up leftover water (or in this case, electrical signals) to keep everything smooth and under control.

Without a DMX terminator, the signal travels through your lighting fixtures and keeps bouncing at the end of the line. This "echo" can interfere with the regular signal flow, especially when:

• You're using long DMX cables
• There are multiple fixtures daisy-chained together
• The cabling environment has interference (stage, outdoors, heavy equipment nearby)

These issues can lead to:

• Random flashing
• Delayed response
• Completely non-functional DMX communication

Always use a DMX terminator:

• At the last fixture or device in a DMX daisy chain
• When your cable length exceeds 100 feet (30m)
• In stage lighting, concerts, live events, or outdoor installations
• When troubleshooting signal issues in your DMX chain

Pro Tip: Even if your system "seems fine" without it, you should still use a terminator. The problem may only show up during a live show when you least expect it.

Yes - technically, you can. You only need:

• A spare 3-pin or 5-pin male XLR connector
• A 120-ohm ¼-watt resistor
• Soldering tools

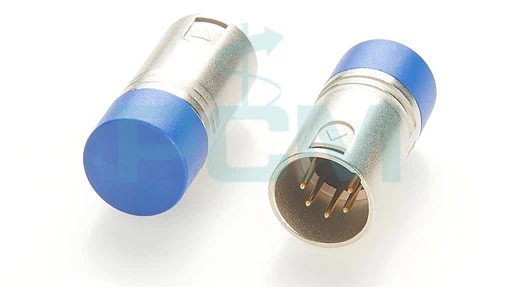

At Premier Cable, we offer both 3-pin and 5-pin DMX terminators. Each terminator is tested for impedance accuracy and durability - ideal for stage, event, or architectural lighting projects.

Contact us for a full range of catalogs or quotations.

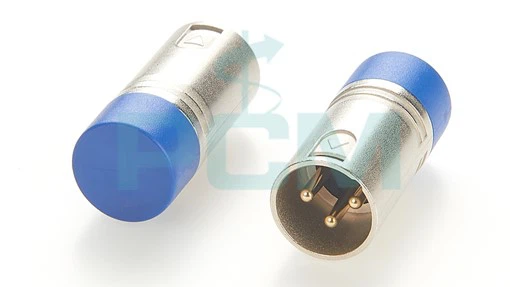

3 Pin DMX Termination Resistor

DMX Termination Resistor - 120 Ohm

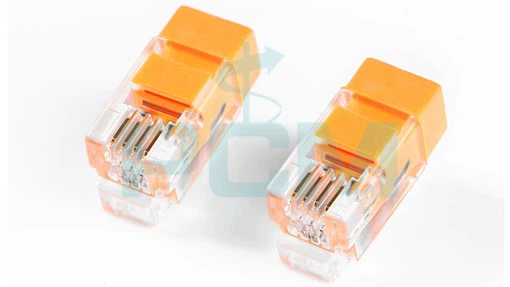

4P4C RJ9 Terminator

XLR DMX To Screw Terminal Adapter

DMX To Terminal Adapter For DMX System

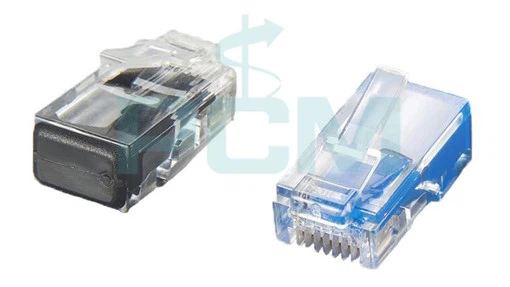

Modular RJ45 Resistor Termination Plug
