90 Degree Down IX to RJ45 Male Cat6A Cable
PCM Cable Co., Ltd. is one of the leading 90 Degree Down IX to RJ45 Male Cat6A Cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

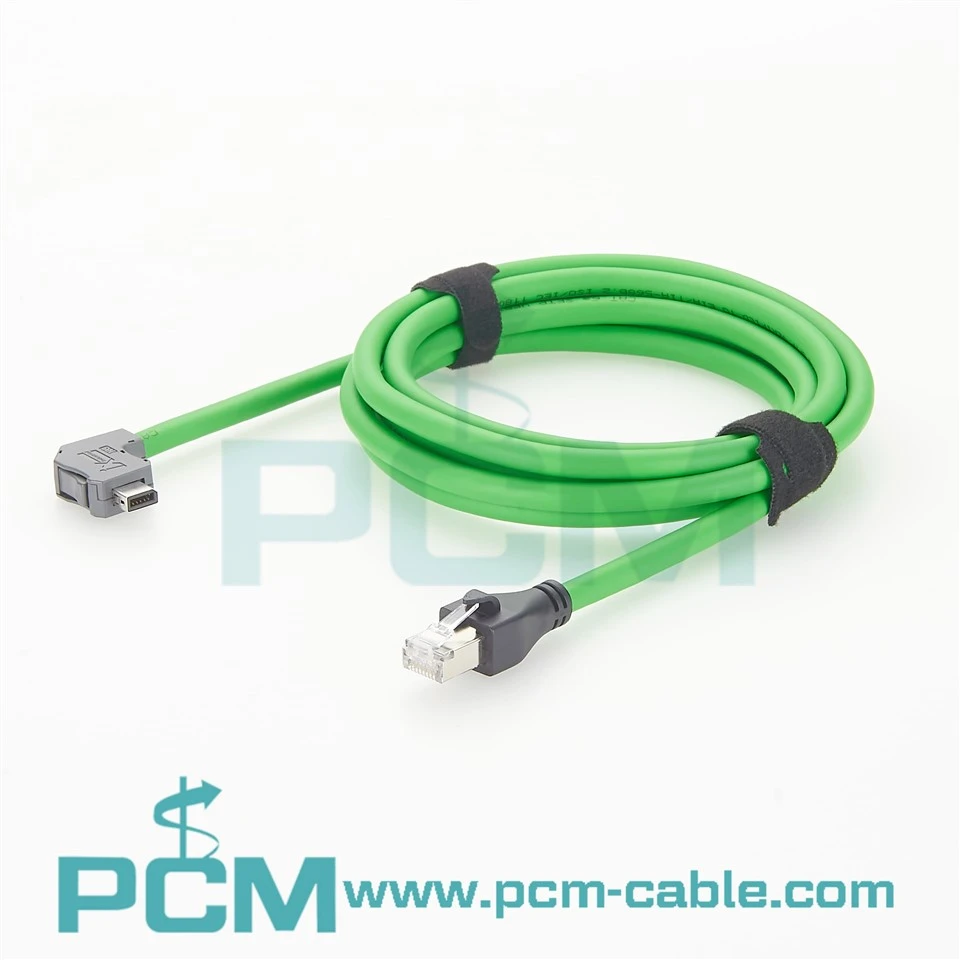

Premier Cable PCM-HD-0294 is an IX Industrial CAT6A high-speed Ethernet cable developed for factory automation, machine vision, robotics, industrial switches, edge computing and high-density Ethernet equipment. It combines a compact IX Industrial A-Key CVL1 90-degree plug with a standard RJ45 Cat6A male plug, creating a direct high-speed network connection between next-generation IX Industrial devices and conventional RJ45 Ethernet equipment.

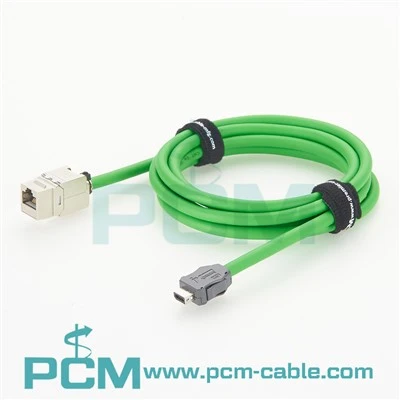

Unlike the RJ45 Keystone panel-mount architecture of PCM-HD-0293, PCM-HD-0294 requires no additional Keystone module or intermediate panel. The RJ45 male plug connects directly to industrial switches, industrial PCs, PLCs, network controllers and other standard RJ45 equipment, making it ideal as a point-to-point industrial Ethernet patch cable.
Its CAT6A architecture supports Ethernet transmission up to 10Gbps, while 26AWG stranded conductors, S/FTP shielding and an industrial TPU jacket provide a balanced solution for signal integrity, flexible routing and demanding industrial environments.
Core Advantages
As a signature direct-patch milestone engineered by Premier Cable for high-dynamic, hyper-dense footprints, the core edge of the PCM-HD-0294 lies in marrying a dual-male streamlined setup with downward right-angle mechanics. Eliminating intermediate bulkheads, it shars profile spaces by 70% while discarding failure-prone bridge nodes, yielding an efficient, ultra-reliable link for Industry 4.0 hardware.
Stable Connectivity
Across plant floors laden with severe EMI and harsh physical vibration, any communication glitch risks production downtime. During its 90° downward physical turn, this cord deploys Premier Cable's proprietary impedance-matched overmolding process, retaining tight geometric symmetry for internal 26AWG differential pairs and the SFTP shield. It secures microsecond-level low latency and zero packet loss over a full 500MHz bandwidth.
Installation Requirements
★ Critical Selection & Engineering Notice:
This product deploys a specialized IX A-Key CVL1 right-angle down variant, where Pin 1 sits on top and faces downward near the cable exit. Engineers must cross-verify the Pin 1 orientation of their chassis receptacles prior to assembly. An ordering error results in direct mechanical interference with upper DIN-rail units or enclosures. The standard RJ45 male end ensures plug-and-play field integration.
Products Specification
| Product Name | IX Industrial A-Key 90° Downward to RJ45 Cat6A Ethernet Cable |
| Part No. | PCM-HD-0294 |
| Product Structure | IX Industrial 10-Pin A-Key Male to RJ45 8P8C Male |
| IX Connector Orientation | 90° Right-Angle Downward |
| Total Length | 2000 + 30 mm |
| Network Class | Cat6A |
| Transport performance | 10G/10Gbps Class |
| Connector P1 | IX Industrial A-Key 90° Downward Male |
| Connector P2 | RJ45 8P8C Male |
| Cable Outer Diameter | Ø6.5 ± 0.2 mm |

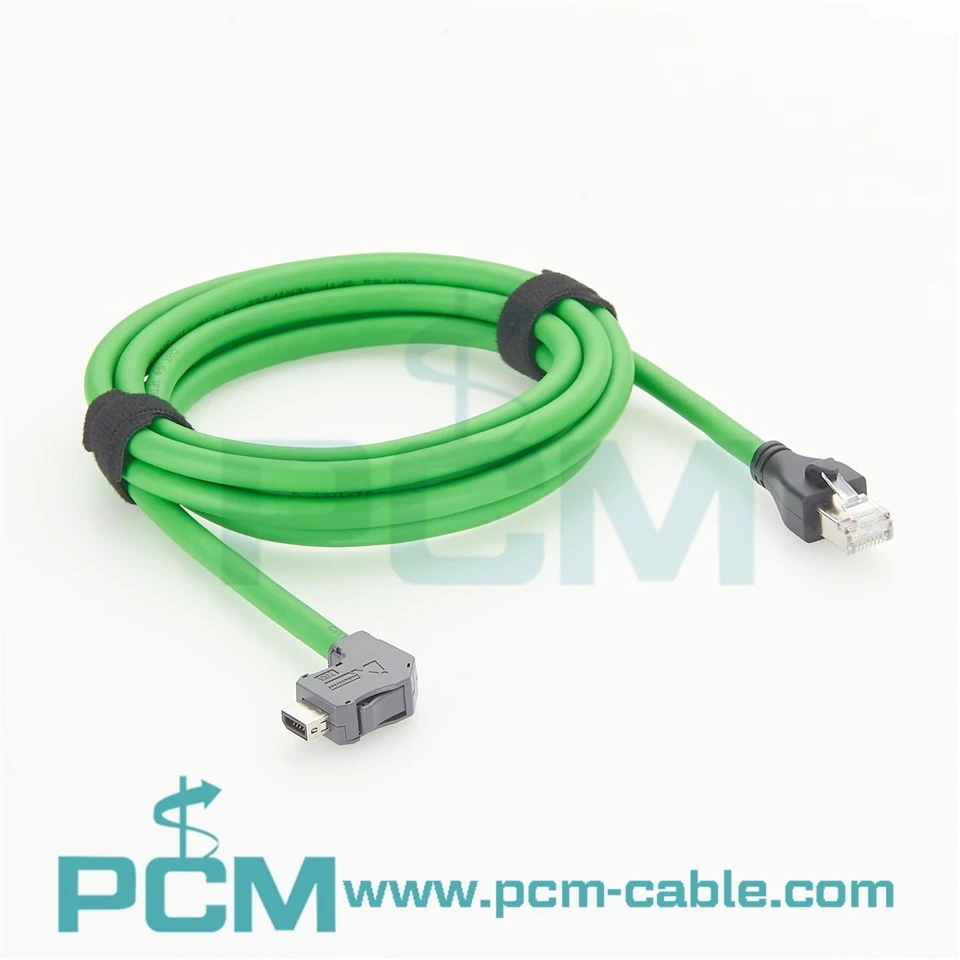

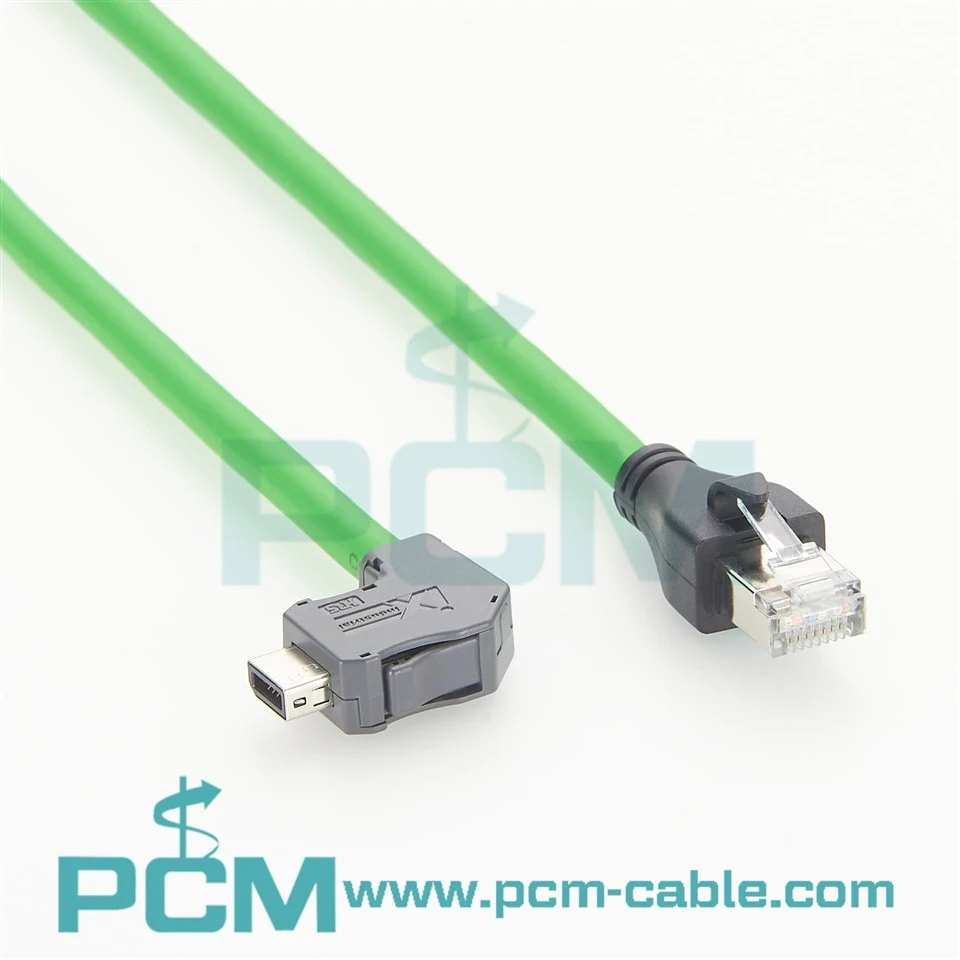

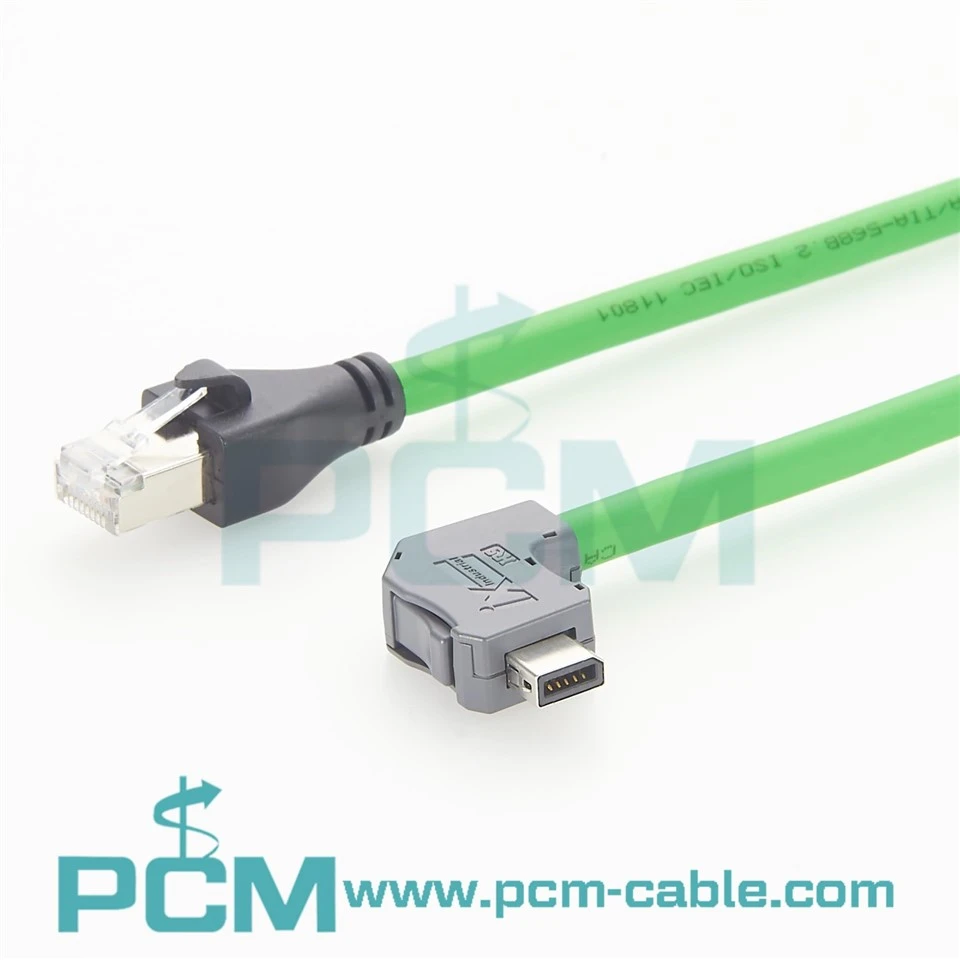

Products Display
Product Features
Dual-Male Point-to-Point Topology
Employs a 90° right-angle IX A-Key plug to standard RJ45 physical male architecture, establishing the shortest physical link directly between active hardware without interim patch modules.
Gravity-Aligned Downward Exit Profile
The plug utilizes a CVL1 configuration (Pin 1 faces downward near the exit), directing the cable straight down to entirely free up horizontal wiring depth in shallow enclosures.
Foolproof A-Key Mechanical Coding
The IX terminal incorporates a standard A-Key mechanical coding interface, ensuring precise mating with compliant industrial hardware and eliminating field-operator misinsertion during blind patching.
Core Application Scenarios
High-Density DIN-Rail Industrial Switch Patch Cable
The IX Industrial A-Key CVL1 right-angle cable exit allows the cable to change direction immediately at the equipment port, reducing the large bend clearance typically required by straight-exit Ethernet cables. This enables cleaner vertical routing from an upper industrial switch directly toward lower PLC modules, controllers or cable ducts.
The standard RJ45 Cat6A male plug connects directly to conventional Ethernet equipment without an additional Keystone adapter. Combined with CAT6A 10Gbps performance and S/FTP shielding, the cable supports high-speed cabinet networking while helping reduce EMI from drives, servo systems and industrial power equipment.
Multi-Axis Industrial Robotics & Motion Control
Conventional straight-exit Ethernet connectors may require excessive bend clearance and can force sharp cable bends near the connector. The CVL1 90-degree IX Industrial interface allows PCM-HD-0294 to follow the mechanical structure more closely, supporting compact routing through robotic joints, linear stages and AGV chassis.
Its 26AWG stranded conductors and flexible TPU jacket are suitable for dynamic industrial routing, while S/FTP shielding helps reduce EMI/RFI generated by servo motors, drives, battery systems and high-power control electronics. This supports stable high-speed communication between cameras, LiDAR, controllers, switches and industrial gateways.
Core Performance Advantages
-
Mechanical Shear Stress Self-Unloading
The right-angle downward exit forces the patch cord to hang naturally via gravity, completely canceling continuous axial pulling and mechanical leverage shear stress imposed on hardware sockets.
-
Closed Faraday Shield Electromagnetic Deadlock
The individual foil pairs plus high-density metallic braid (SFTP) join a 360° overwrapped metal plug shell to erect a closed Faraday cage, delivering zero-packet-loss transport near intense VFD fields.
-
Micron-Level Micro-Vibration Contact Drift Shield
Offering both IDC displacement (IX30G) and precision soldering (IX40G) termination pathways, paired with an integrated self-locking clip, ensuring contact resistance never drifts under high-acceleration shocks.
-
Shop-Floor Chemical Armor Against Slag & Mists
The outer jacket features industrial-grade flexible TPU, yielding supreme resistance to abrasion, oils, welding spatter, and UV, preventing degradation or cracking when soaked in coolants.
Frequently Asked Questions
Q1：Is there a difference in performance or durability between the soldered (IX40G) and IDC crimped (IX30G) versions? How should I choose?
A1：There is zero difference between the two regarding electrical performance, 10Gbps traffic handling, or mechanical flex life. They merely represent different internal factory assembly processes by Premier Cable. Both undergo strict overmolding encapsulation and pull testing, imparting zero impact on your field operations or signal integrity.
Q2：This cable has male plugs on both ends. How does its application value differ from models with a Keystone female jack (like PCM-HD-0293)?
A2：Models with a Keystone jack (0293) are intended for "chassis bridging or panel mounting," delivering a fixed bulkhead port. In contrast, the PCM-HD-0294 male-to-male cord is optimized for "point-to-point direct linkage"-for instance, patching an industrial camera straight into a switch or switch to lower PLC modules, cutting clutter, nodes, and insertion loss.
Q3：How does this 90° downward exit (CVL1) achieve "gravity-aligned routing to eliminate stress"? Will it bend the internal conductors?
A3：Not at all. The 90° redirection is executed inside our factory via high-precision overmolding, ensuring the internal differential pairs follow a scientifically engineered radius rather than a sharp kink. When inserted into a horizontal faceplate, the cord hangs naturally via gravity into the lower wire trays, preventing the internal pairs from splitting and the jacket from cracking as straight cables would when forced downward.
Products Drawing
