A Cisco console cable is a specific type of cable used for connecting a computer to a Cisco networking device, such as a router, switch, or firewall, through its console port. The console port is a serial port on the networking device that provides out-of-band management access to the device's command-line interface (CLI) or configuration settings.

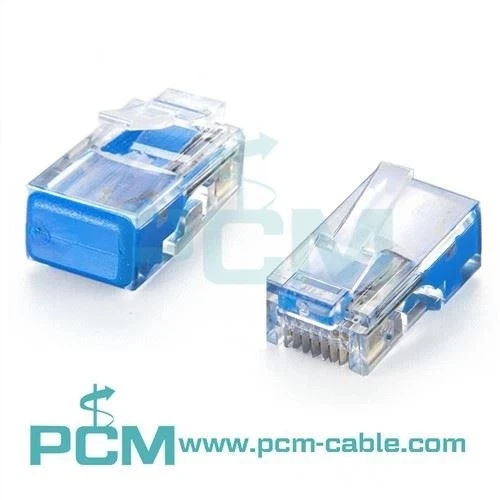

The console cable typically has a standard RS-232 serial connector on one end and a specialized Cisco-specific connector on the other end. The Cisco-specific connector is usually an RJ-45 connector, although some older models may use a different type of connector. The RJ-45 connector is similar to the Ethernet connectors commonly used for network connections, but it is wired differently and serves a different purpose.
The console cable is an essential tool for network administrators and engineers as it allows them to establish a direct connection to the networking device's console port. This direct connection is crucial, especially in situations where the network device may be inaccessible through the network due to misconfiguration or network connectivity issues.
To establish a connection using a Cisco console cable, the serial end of the cable is plugged into the computer's serial port or a USB-to-serial adapter. The Cisco-specific end of the cable is then connected to the console port on the networking device. Once the physical connection is made, a terminal emulator program, such as PuTTY or HyperTerminal, is used to establish a serial connection between the computer and the device.
The console cable enables administrators to perform various tasks, including initial device configuration, troubleshooting, firmware upgrades, and password recovery. By accessing the device's console port, administrators can directly interact with the device's operating system and issue commands to configure and manage the device.
During the initial device setup, the console cable is often used to configure basic network settings, such as IP addresses, subnet masks, and default gateways. It allows administrators to access the device's command-line interface and use specific commands to configure and customize the device according to the network requirements.
In troubleshooting scenarios, the console cable is invaluable as it provides a direct method to view real-time system messages, error logs, and debug output. This helps administrators identify and resolve issues that may affect the normal operation of the network device.
Furthermore, the console cable is used for password recovery when access to the device has been lost or forgotten. By connecting to the console port, administrators can initiate the password recovery process and regain control over the device.
In summary, a Cisco console cable is a specialized cable used to establish a direct connection between a computer and a Cisco networking device's console port. It allows administrators to configure, manage, troubleshoot, and recover Cisco devices through their command-line interface. The console cable is an essential tool for network administrators and engineers working with Cisco networking equipment.
