TYCO AMP SUPERSEAL 2-POLE Splitter
PCM Cable Co., Ltd. is one of the leading tyco amp superseal 2-pole splitter manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

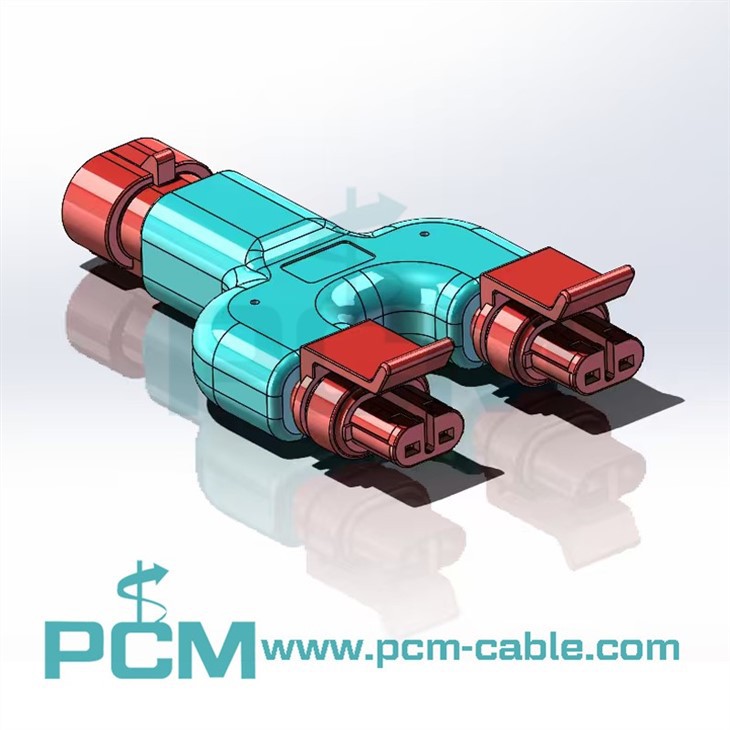

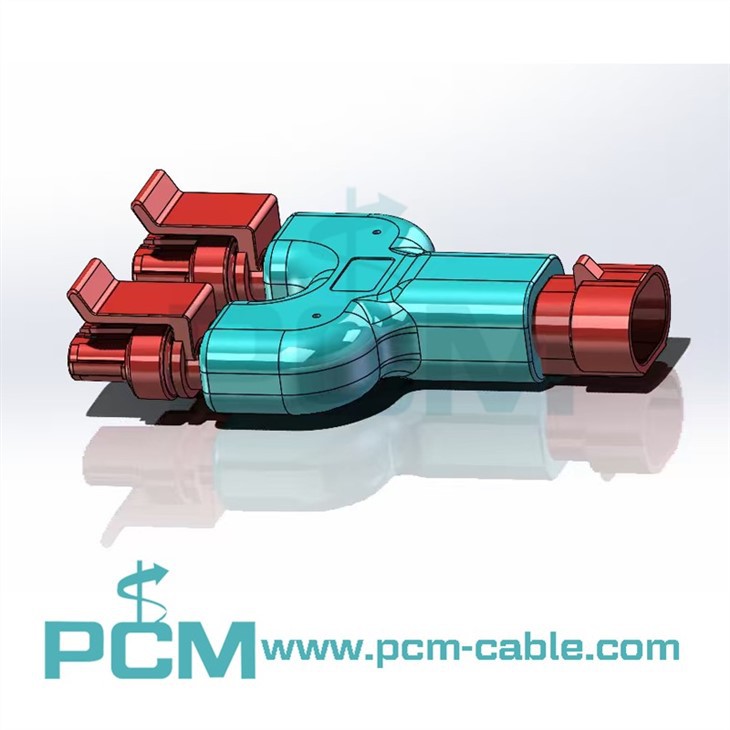

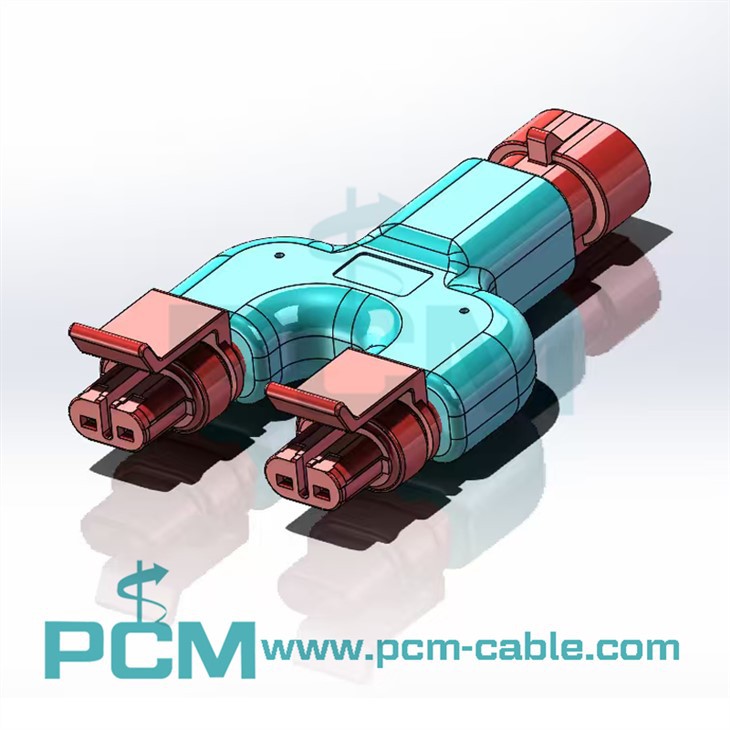

The SUPERSEAL 2-Pole Y Splitter Connector is designed to distribute a single electrical connection into two outputs.
This connector features:
- 1 × 2-pin male connector (Tyco #282104-1)
- 2 × 2-pin female connectors (Tyco #282080-1)
All connectors belong to the AMP SUPERSEAL 1.5 Series system developed by TE Connectivity, a widely used sealed connector platform in automotive and industrial equipment.
The Y-type design allows fast and simple signal or power distribution, enabling one connection to supply two separate devices.
Specifications
| Product Name | AMP Superseal Y-Splitter 932181 Connector 2-Pin Male 1.5 mm Series |
| DWG No. | PCM-S-0713 |
| Connector Series | SUPERSEAL 1.5 |
| Number of Positions | 2 Pole |
| Configuration | 1 Male (282104-1) → 2 Female (282080-1) |
| Pitch | 6.0mm |
| Rated Voltage | 0–24 VDC |
| Working Current | 13 A |
| Protection Level | IP67 |
| Housing Material | PA |
| Locking System | Snap-lock |
| Operating Temperature | -20°C to +80°C |
Key Features
- Original Tyco connector 282080-1 and 282104-1
- Y-type electrical splitter connector
- 1 male to 2 female connector configuration
- SUPERSEAL 1.5 sealed connector system
- reliable snap-lock locking mechanism
- waterproof and dustproof design
- plug-and-play installation
Typical Applications
SUPERSEAL Y splitter connectors are widely used in equipment that requires signal or power distribution.
Common applications include:
- automotive sensors
- vehicle electrical systems
- agricultural machinery electronics
- industrial control equipment
- equipment wiring modifications
Chemical Resistance
The SUPERSEAL connector housing and sealing system offer excellent resistance to common automotive chemicals, including:
- ozone
- salt
- gasoline
- diesel
- brake fluid
- engine oil
This makes the connector suitable for engine compartments and outdoor equipment.
FAQ
Q1: What is a SUPERSEAL 2 Way Y Connector used for?
A1: A SUPERSEAL Y splitter connector allows one electrical connection to be divided into two outputs, making it useful for powering or connecting multiple devices from a single interface.
Q2: Is the SUPERSEAL Sensor Y Adapter Connector waterproof?
A2: Yes. The connector system provides high-level environmental sealing, protecting the connection from water, dust and dirt.
Q3: Is this SUPERSEAL 1.5 Series 2 Pin Splitter suitable for automotive environments?
A3: Yes. SUPERSEAL connectors are widely used in automotive electrical systems because they are designed to withstand vibration, moisture and temperature changes.
Q4: Can other pin configurations be provided?
A4: Yes. Different pole counts or connector configurations can be customized depending on the application requirements.
