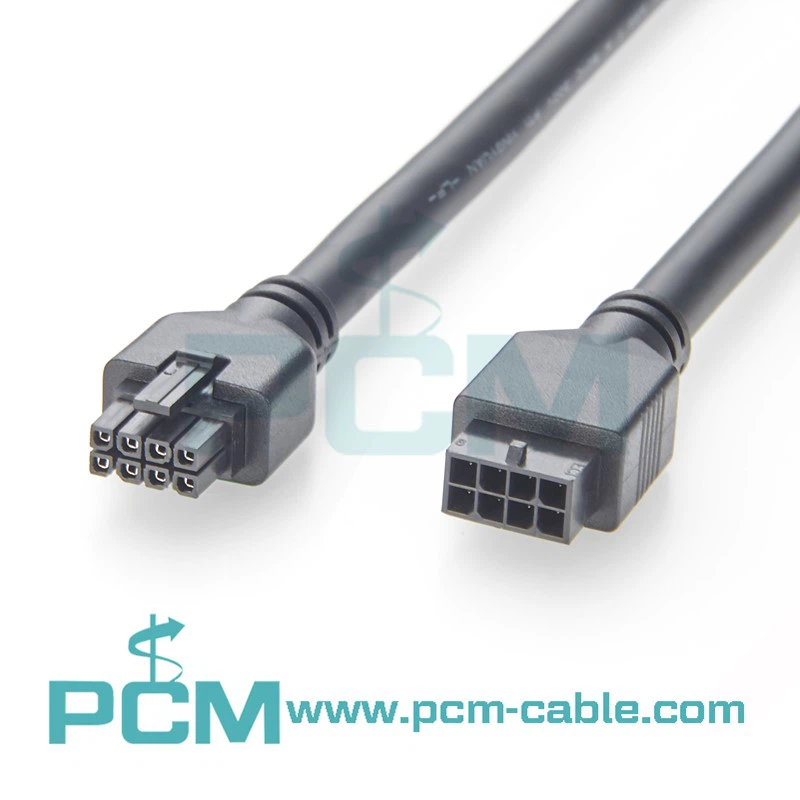

Molex Micro-fit Microfit 3.0 43020-0801 Connector to 43025-0800 Overmolded Cable Wire Harness
Molex Micro-fit 3.0 Connector Cable and Wire Harness Dual Row, 2.0m Length, 8 Circuits
8PIN 20AWG Extension Cable Micro-Fit 3.0 43025 Molex 3.0 2x4pin 430200800 8 pin Molex 3.0 24pin 8p wire harness

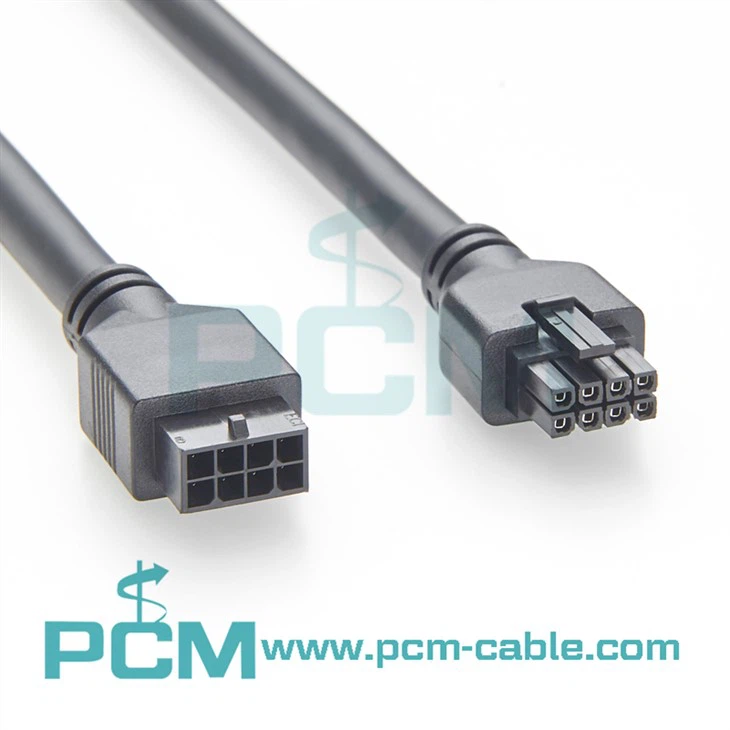

Molex Micro-fit 3.0 overmolded cable assemblies 8 pin plug to socket extension cable
Molex Micro-fit Microfit 3.0 43020-0801 Connector to 43025-0800 Connector 8 Pin Overmolded Cable Wire Harness
PCM Cable Co., Ltd. is one of the leading molex micro-fit microfit 3.0 43020-0801 connector to 43025-0800 connector 8 pin overmolded cable wire harness manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
This Micro-Fit 3.0 cable assembly features an 8-pin Molex 43020-0801 male plug to 43025-0800 female socket. With UL2464 20AWG wire, 3.00mm pitch, and overmolded connectors, it delivers reliable power and signal transmission for industrial automation, embedded systems, and OEM wiring applications.
Specifications
| Product Name | Micro-Fit 3.0 OTS Cable Assembly Dual Row 8 Circuits |
| DWG No. | PCM-0879 |
| Equivalent to Molex Series | 245132 |
| Connector End A | Plug |
| Connector End A Pin Count | 8 |
| Connector End B | Receptacle |
| Connector End B Pin Count | 8 |
| Number of Rows | 2 |
| Current - Maximum per Contact | 3.5A |
| Voltage - Maximum | 300V AC |
| Overmolded | Yes |
| Pitch - Mating Interface | 3.00mm |
| Wire Gauge | 20AWG |
| Cable Diameter | 6.5mm |
| Features | Latch Lock |
| Operating Use | Power + signal distribution |
| Application | Power, Wire-to-Board, Wire-to-Wire |
| Package | PE bags |
| Sample | Allowed |
| OEM | Support |
Features
Available in 3mm pitch connectors
Dual-row configuration
Variety of cable lengths
3.5A maximum current rating
300VAC voltage rating
Applications
Consumer
Office equipment
Fan tray assemblies
Gaming and vending
Data/computing
Personal computers
Computers, workstations, and servers
Why Choose Premier Cable
- Over 20+ years of manufacturing experience in Micro-Fit, Mini-Fit, Nano-Fit, and Mega-Fit cable assemblies
- Full OEM & ODM capability: customized pinout, wire gauge, molding, and labeling
- 100% electrical testing, continuity testing, and visual inspection
- Competitive pricing with quick lead times directly from our factory
- Engineering support for prototyping and system integration
