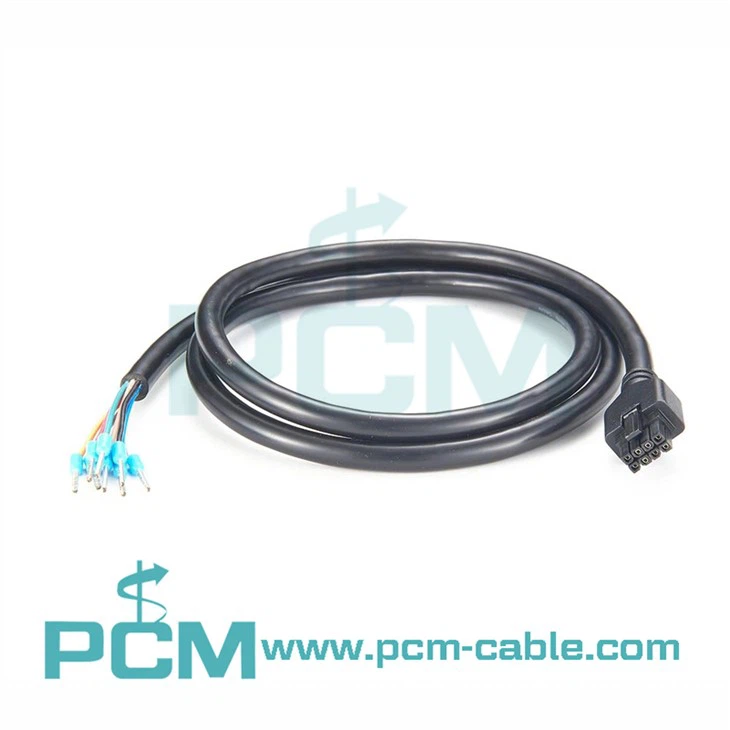

Microfit 3.0 Connectors with Insulated Crimp Ferrule
Microfit 3.0 Connectors with Insulated Crimp Ferrule
Microfit 3.0 Connectors with Insulated Crimp Ferrule
Molex Micro-Fit 3.0 8-Circuit Socket to Open-End Cable Assembly (43025-0800 Socket, 3.00mm Pitch, 20AWG, 2.0m)

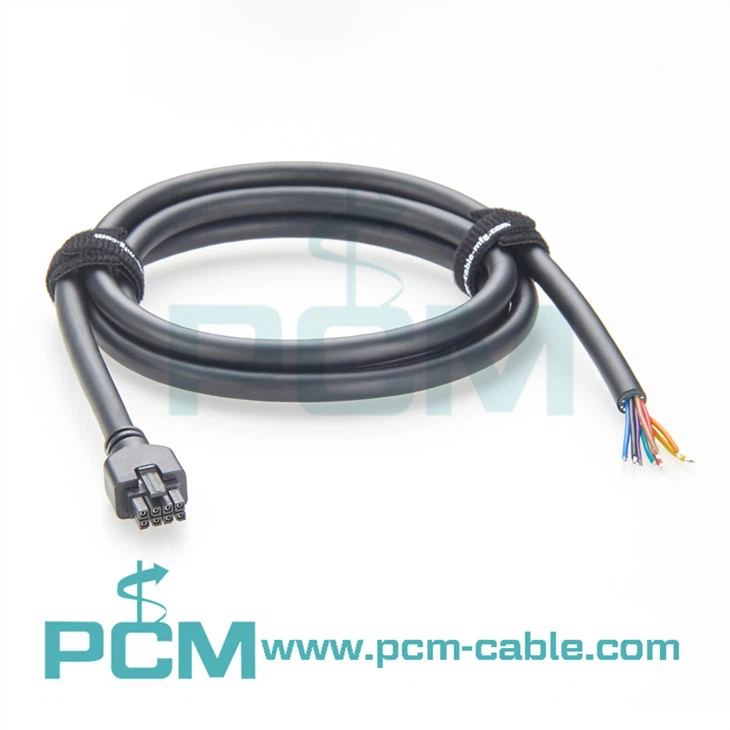

Molex 43025-0800 Micro-Fit 3.0 connector to 8-circuit open-end power and signal cable

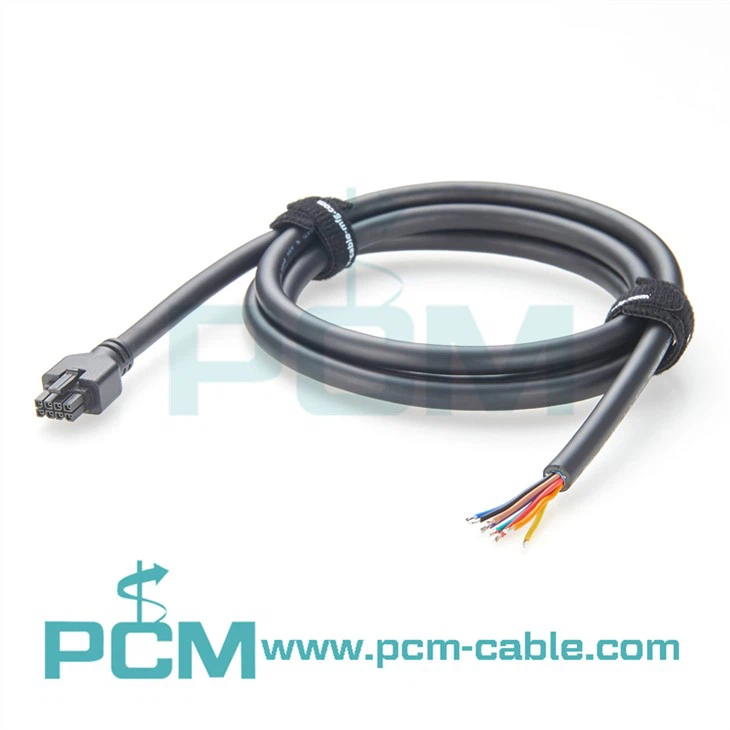

Micro-Fit 3.0 8-circuit cable overmolded cable assemblies

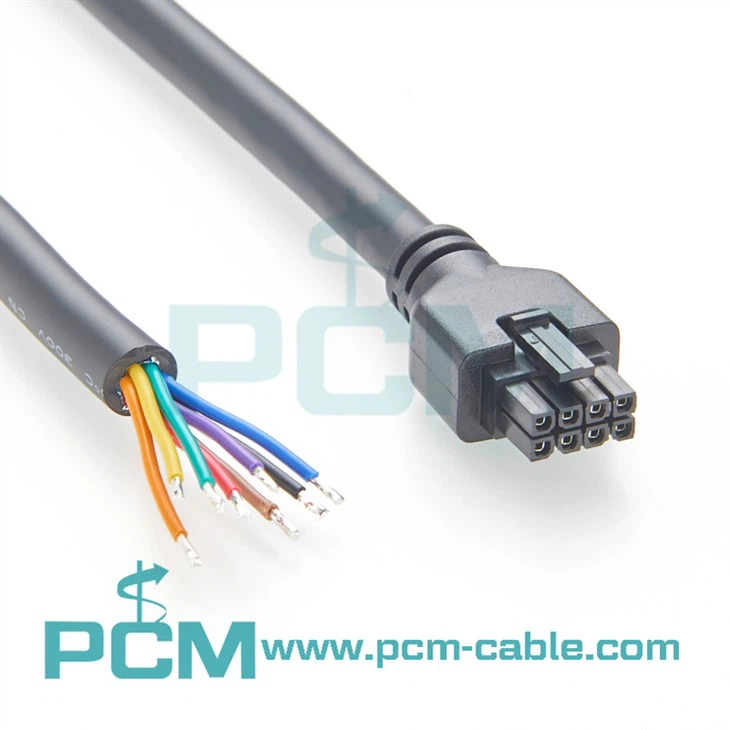

Molex Micro-fit 43025-0800 Power and Signal Cable

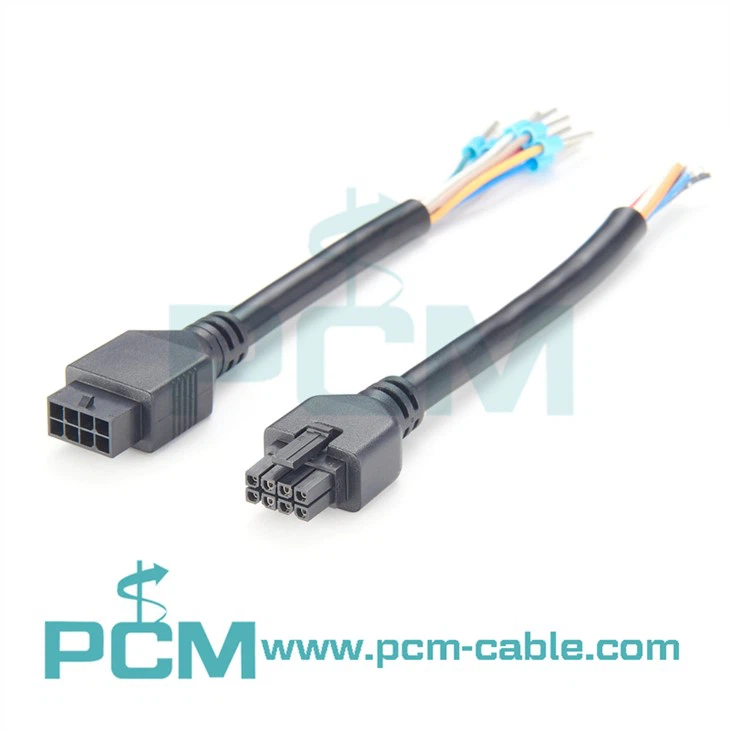

Insulated Crimp Ferrules for Microfit 3.0 Connectors
PCM Cable Co., Ltd. is one of the leading insulated crimp ferrules for microfit 3.0 connectors manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
The insulation crimping sleeve of Microft 3.0 connectors can enhance the durability and reliability of electrical connections. The shell has a positive latch mechanism to ensure safe and stable connection. Polarized casing can prevent incorrect insertion and minimize the risk of damaging connectors and equipment. These ferrules can handle currents up to 3.5A and are suitable for various applications that require medium power transmission. Its fully formed stress relief provides additional protection, prevents cable damage, and ensures long-term performance. They have a sturdy structure and can withstand harsh environmental conditions, making them an ideal choice for demanding industrial and automotive applications.
Product Specification
| Item | Molex Micro-Fit 3.0 8-Circuit Socket to Open-End Cable Assembly |
| DWG No. | PCM-0877 |
| Equivalent to Molex Series | 245132 |
| Connector A | Molex Micro-Fit 3.0 43025-0800 (Female, 8 Circuits) |
| Connector B | Open-end bare wires |
| Pitch | 3mm |
| Wire Gauge |
|
| Flammability | 94V-0 |
| Rated Current | 3.5A per circuit |
| Rated Voltage |
|
| Cable Length | 2m (customizable) |
| Overmolding | Molded strain relief at the socket end |
| Applications | PCB wiring, terminal block connection, power modules, DIY projects |
| Package | PE bags |
| Sample | Allowed |
| OEM | Support |
Features
- Micro-Fit 3.0 8-circuit socket (43025-0800)
- Open-end cable allows flexible termination and custom wiring
- UL2464 20AWG wire rated for 3.5A / 300V
- Overmolded connector for strain relief and mechanical durability
- Ideal for PCB soldering, terminal blocks, power modules, or custom harnesses
- Compact 3.00mm pitch for high-density connections
- Factory customization available for length, pinout, and wire color
Applications
- Industrial Automation & Control Systems – Connect Micro-Fit 3.0 connectors to motor controllers, PLC modules, sensors, and actuators for reliable power and signal connections.
- Embedded & Computing Devices – Micro-fit 43025-0800 power and signal cable can be used in SBCs, power supply units, communication boards, and custom electronic modules.
- Consumer Electronics – Power and signal wiring for home appliances, LED drivers, and small electronic devices.
- Automotive & EV Applications – Low- to medium-power wiring harnesses in vehicles, charging modules, and dashboard electronics.
- Robotics & Motion Control – Micro-Fit 3.0 series provides secure and compact power and signal connections in robotic arms, CNC machinery, and automation systems.
- Prototyping & Custom OEM Harnesses – Micro-fit 3.0 OTS overmolded cable assembly is ideal for engineers and designers creating custom harnesses, development boards, and proof-of-concept projects.
- Power Distribution & Control Panels – Distribute power efficiently across industrial panels, instrumentation, or embedded control units.
