M16 14 Pin Male To Male 3D Profiler Sensor Cable
PCM Cable Co., Ltd. is one of the leading m16 14 pin male to male 3d profiler sensor cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

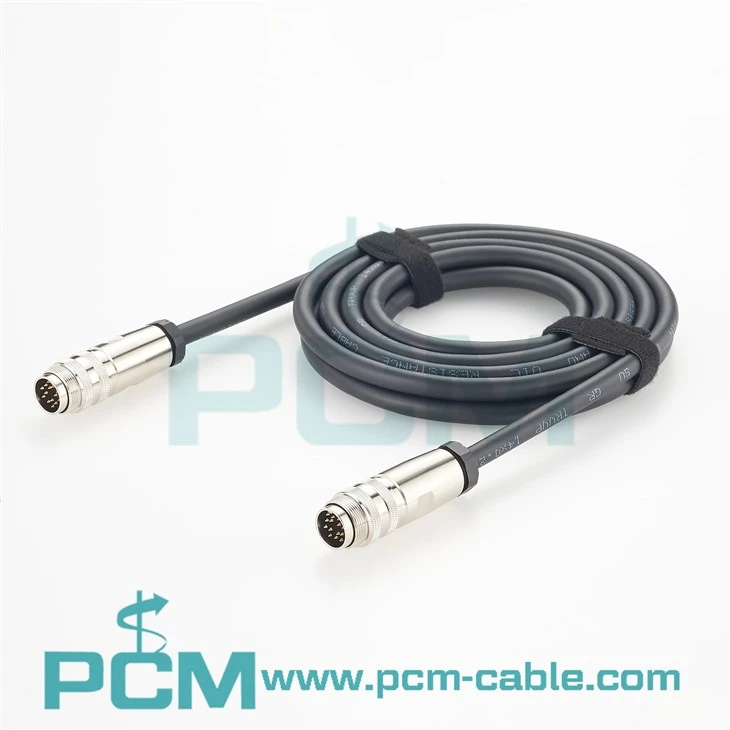

Premier Cable PCM-1010 is an M16 14-pin male-to-male I/O cable assembly developed for industrial printing, packaging machinery, and automation control equipment. The 14-pin M16 male connectors at both ends consolidate multiple I/O and control circuits into one complete cable assembly.
Compared with multiple individual signal wires, the integrated multi-core construction reduces wiring around equipment interfaces and provides cleaner connections between printers, I/O boxes, PLCs, and peripheral control devices.
Industrial printing and automation equipment often require multiple control signals to operate between controllers, sensors, and peripheral devices. The M16 14 Pin Male to Male architecture establishes these circuits through a defined multi-pin interface, reducing variations caused by repeated field wiring.
The complete connector-and-cable assembly also helps minimize loose, crossed, or incorrectly routed individual wires inside industrial equipment.
Installation Requirements
Before installation, verify that both devices use the appropriate M16 14-pin interfaces and confirm the required pin assignment, electrical definition, and cable length. Connectors with a similar 14-pin appearance do not necessarily share the same wiring configuration.
For new installations or replacement projects, customers should provide the original cable number, connector information, wiring diagram, or pinout whenever available.
Cable Assembly Construction
PCM-1010 integrates M16 multi-pin connectors, multi-core conductors, cable jacket, and connector termination structures into a complete industrial cable assembly.
For OEM projects, cable length, conductor configuration, jacket material, internal wiring, and connector configuration can be adapted to the equipment design, allowing the cable assembly to be integrated directly into the machine architecture.
Service Life & Maintenance
Automated printing equipment is often installed on continuously operating packaging or production lines, where cable replacement needs to be straightforward. PCM-1010 uses a complete end-to-end cable assembly, reducing the need to re-terminate or organize multiple individual wires during maintenance.
OEMs can also standardize pin assignments and cable lengths to create consistent replacement cable configurations for equipment servicing.
Products Specification
| Product Type | M16 14-Pin Circular Connector Cable |
| Drawing Model | PCM-1010 |
| Connection Structure | M16 14-Pin Male-to-Male Straight-ThroughCable |

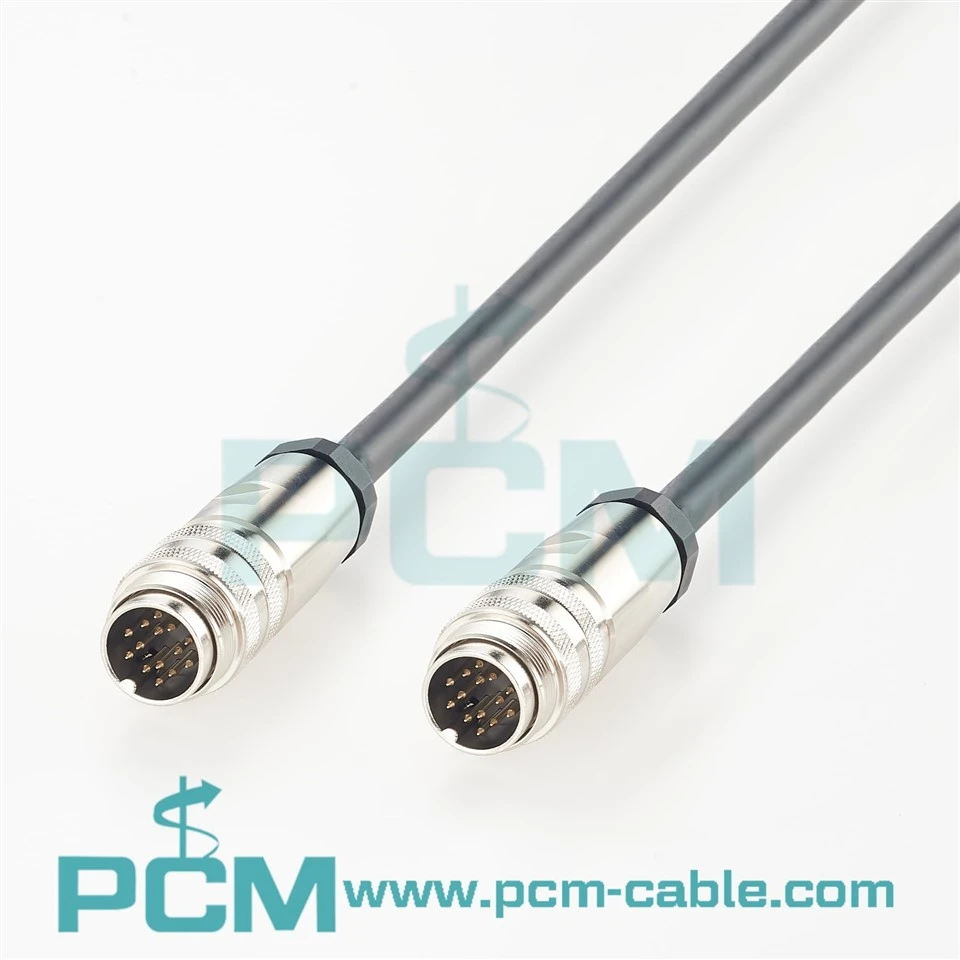

| P1 Connector | M16 14-Pin Circular Connector |

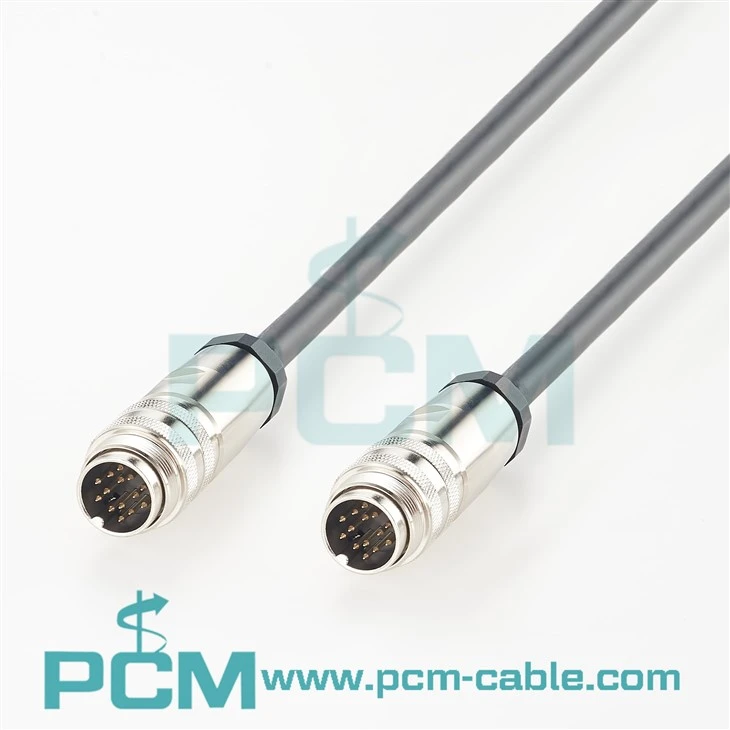

| P2 Connector | M16 14-Pin Circular Connector |
| Wire rod | UL2464 24AWG x 14C + AB |
| Standard Length | 3000 + 50mm |
| Cable Outer Diameter | 7.0mm |

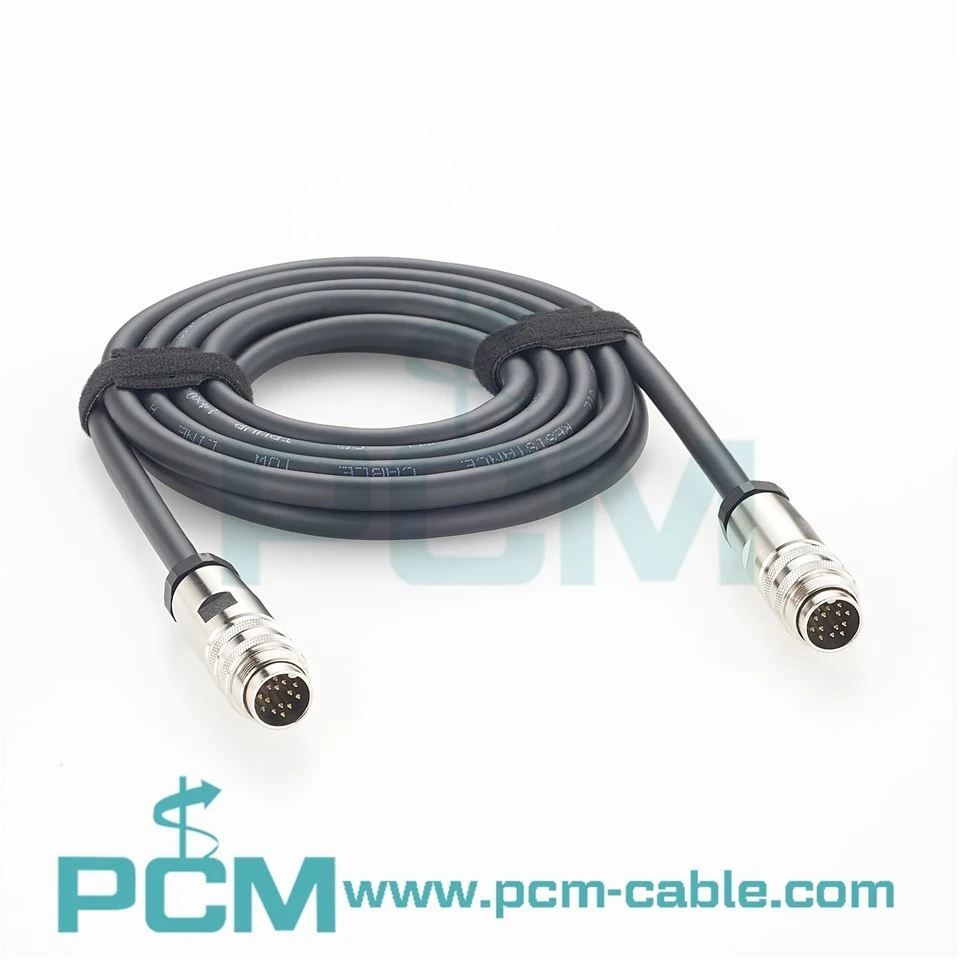

Products Display
Product Features
DIN Standard M16 14-Pin Male Configuration
Adheres strictly to international electrical conventions, embedding a standardized 14-position (14-b) matrix to secure broad front-market parity.
High-Purity Industrial PUR Wear-Resistant Jacket
Deploys a weather-proof polyurethane outer coating, yielding fierce resistance against abrasion, mechanical tearing, and acid/alkali exposure.
Low-Loss Data & Power Hybrid Grid Layout
Integrates eight 0.25mm² high-speed signal tracks and two 0.50mm² power leads into a single trunk to optimize footprint requirements.
IP67-Rated Mechanical Sealing Defense
Reaches IP67 defensive sealing compliance upon secure mating, backed by 100% factory 300V DC flash screening to isolate internal logic lanes.
Core Application Scenarios
Factory Fieldbuses & Distributed I/O Networks
Used for signal extension between PLC control cabinets, remote I/O modules, data routing blocks, and industrial hubs, enabling reliable communication and centralized connectivity across automated production equipment.
CNC Machine Centers & Multi-Axis Robotic Arms
Connects servo drives, encoders, machine spindles, and robotic joint control units, supporting reliable signal transmission in environments with continuous vibration, mechanical movement, and complex industrial wiring.
Automated Packaging, Labeling & Conveyor Systems
Ideal for beverage filling lines, high-speed packaging machines, and sorting conveyors, connecting position sensors, synchronization controllers, detection units, and PLCs for coordinated production operations.
Machine Vision & Precision Inspection Systems
Connects industrial cameras, lighting controllers, inspection sensors, and automated test platforms, supporting I/O signaling, high-speed inspection, trigger synchronization, and reliable wiring for precision equipment.
Core Performance Advantages
Ultra-Low Wattage Drop & Waveform Fidelity
Confining contact resistance under 3Ω tames high-frequency pulse wave reflections, ensuring zero packet drops across multi-channel digital loops.
Gradient Overmold Neutralizes Micro-Bending Strain
The harmony of a 45P rigid and 27P pliable PVC relief boot effectively dampens micro-bending fatigue during dynamic machinery strokes.
Severe Thermal Shock Resiliency Across Molecular Layers
Surviving severe thermal shock tests from -25°C up to +85°C, the polymer matrix retains elasticity without shrinking or heat-softening.
Drop-In OEM Substitute Maximizes Supply Chain Agility
Delivers tier-1 operational parity to legacy global brands while optimizing lead times and overall procurement costs to clear order bottlenecks.
Frequently Asked Questions
Q1.What type of industrial cable is PCM-1010?
A1：PCM-1010 is an M16 14-pin male-to-male industrial 1/O cable assembly designed for industrialprinting, I/O control, PLC, and sensor connectivity. Internal wiring can be configured according to the required equipment pinout.
Q2. Can M16 14-pin cable be customized for length?
A2：Yes. Cable length can be customized according to the installation distance between printers, I/O Boxes, PLCs andcontrol cabinets; additional cable construction options are also available for OEM projects.
Q3: How does PCM-1010 M16 14-pin male-to-male circular harness ensure no loosening undercontinuous vibration from heavy machinery?
A3 ：That is precisely the design focus of this high-tensile M16 male to male circular harness. While commercial cords frequently shift under heavy plant vibration,the PCM-1010 embeds precision machined threads built in strict alignment withstandard DIN EN 61076-2-106 metrics. Once thread-mated to its female receptacle, therigid metallic housing shoulders all dynamic mechanical displacement and shear loads, preventing pin separation.
