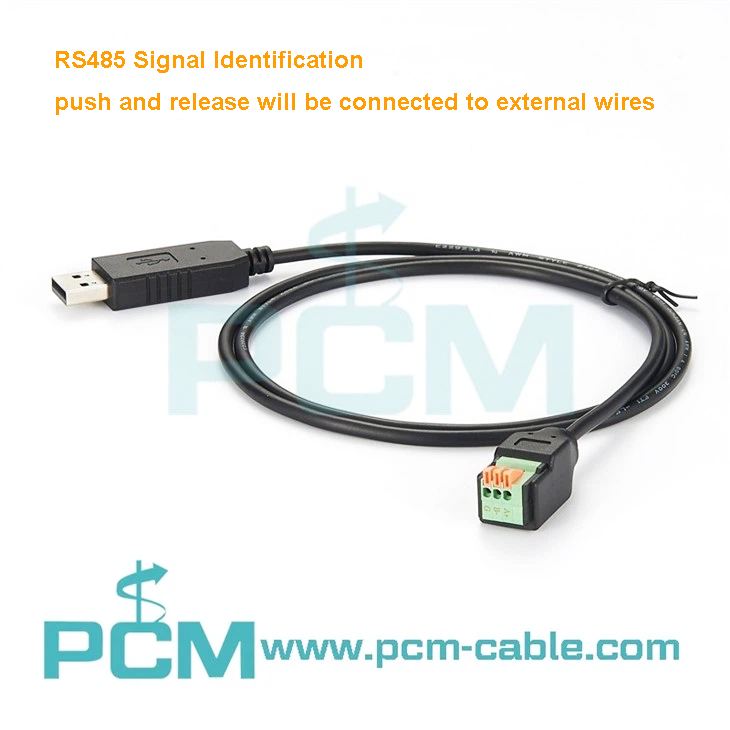

USB To RS485 Converter Cable With Terminal Block

The USB to RS485 converter cable is a device that enables communication between a computer with a USB port and a device that uses an RS485 communication protocol. This device serves as a bridge between these two communication protocols allowing data to be transferred between them seamlessly without the need for additional hardware.



Specification



Product name	USB to RS485 Conversion cable
Drawing No.	PCM-KW-295
Connector 1	USB Male, built-in IC chip
Connector 2	3-Pin spring-type terminal block, PH=2.54mm
Wire	UL2464 AL+FOIL+D 24AWG*2C
Cable diameter	4mm
Cable jacket	PVC
Features	Spring-type terminal block, just press and release to connect wires, no need for an extra screwdriver
IC chip	FT232RL + MAX485
Cable length	1m or Customized



Application



The USB to RS485 Converter Cable is commonly used in industrial automation systems, HVAC control systems, and other applications where RS485 communication is required. It is also used in applications like traffic monitoring systems, security systems, and more.
