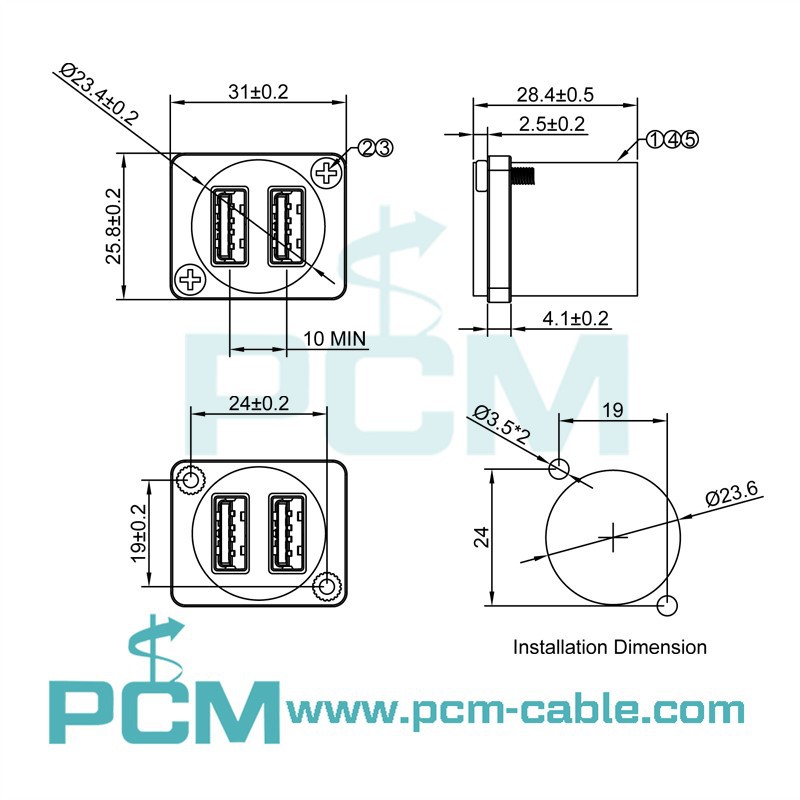

dimentions size of dual USB 3.0 panel mount adapter

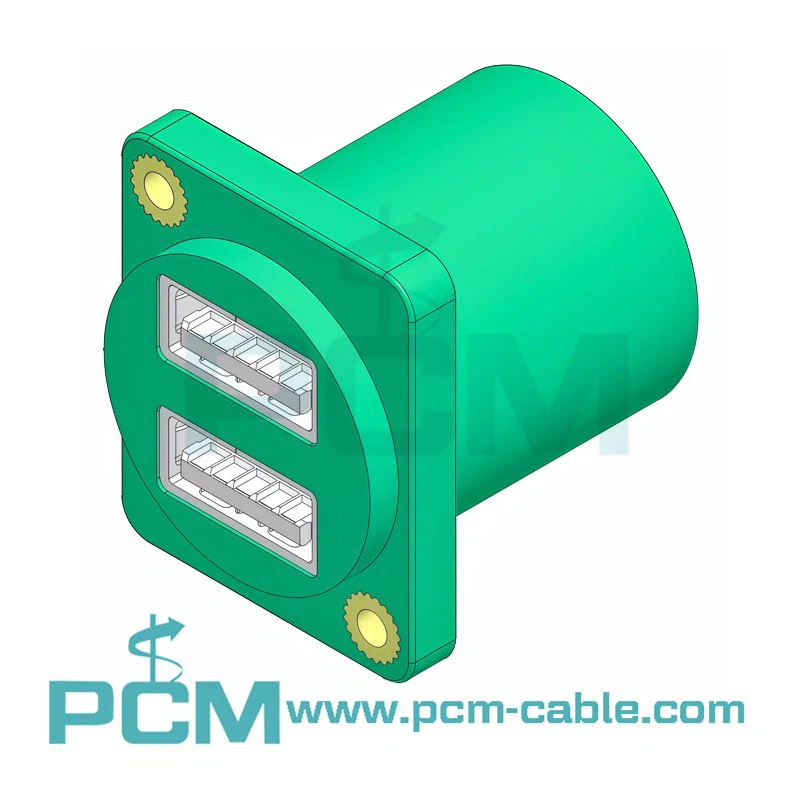

Dual USB 3.0 Panel Mount Connector Adapter, D-Type USB Female to Female Through Socket with Install Screw, High Speed 5Gbps Data Transfer, 5V2A Power

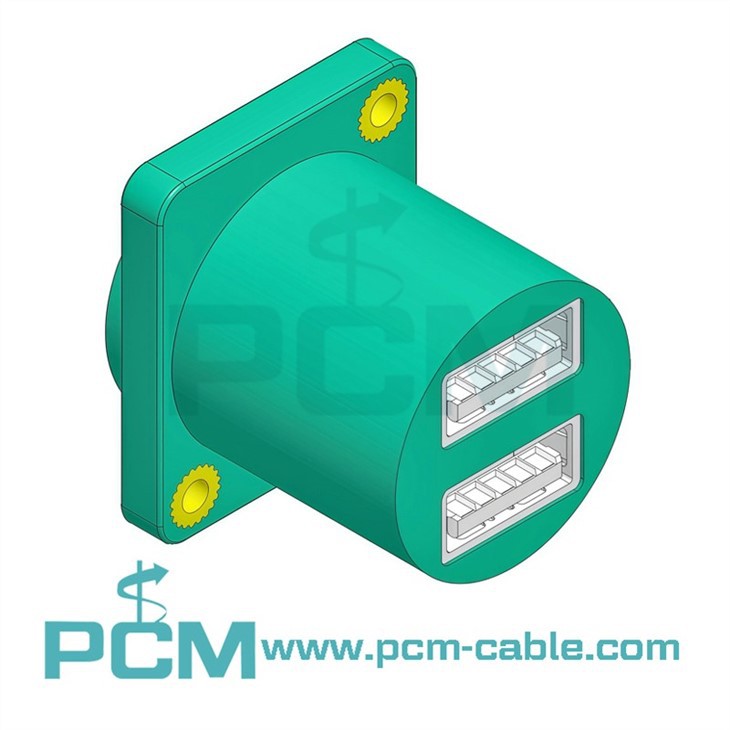

Dual USB 3.0 Sockets in XLR Shell
Industrial Dual USB 3.0 XLR Panel Mount Connector Factory Supplier

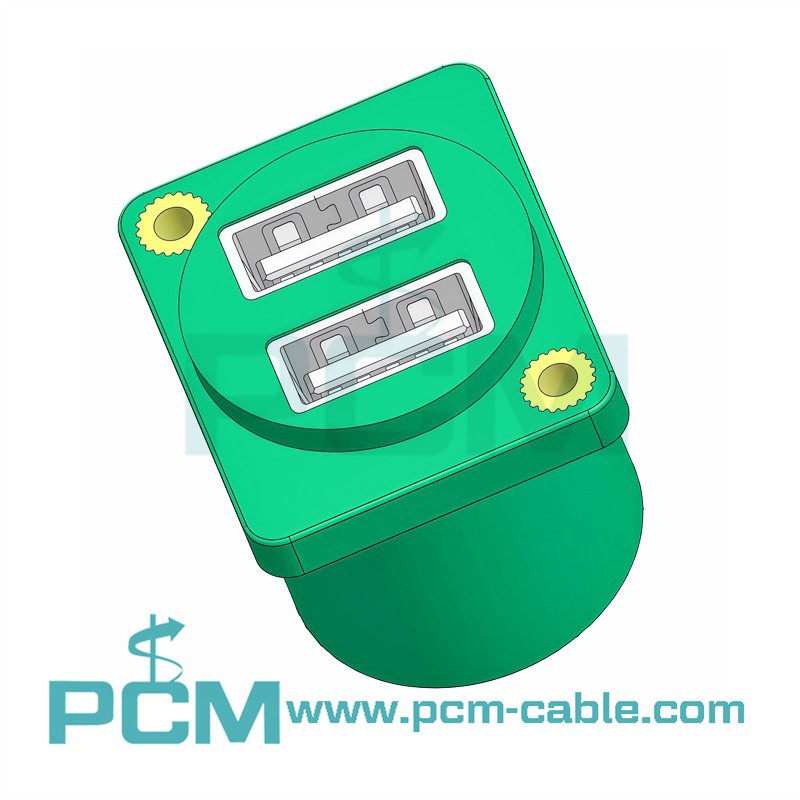

D-Shape USB 3.0 Feedthrough Connector for Rack and Panel Systems
Dual USB 3.0 Female Feedthrough Adapter for AV and Industrial Equipment
Dual USB 3.0 Panel Mount Connector
PCM Cable Co., Ltd. is one of the leading dual usb 3.0 panel mount connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
PCM-HD-0252 is a dual USB 3.0 panel mount feedthrough adapter designed for standard D-size / XLR panel cutouts. It provides a simple and reliable way to integrate USB connectivity into industrial equipment, rack panels, wall plates, stage boxes, and custom interface panels.
This adapter features dual USB 3.0 Type-A female ports with straight-through pin assignment for high-speed data transmission up to 5Gbps. It is mechanically compatible with many panels designed for Cliff Electronics, Neutrik, and Switchcraft connectors.
As a professional cable and connector manufacturer, Premier Cable offers factory-direct production, OEM customization, and private label services for industrial USB panel mount solutions.
Specifications

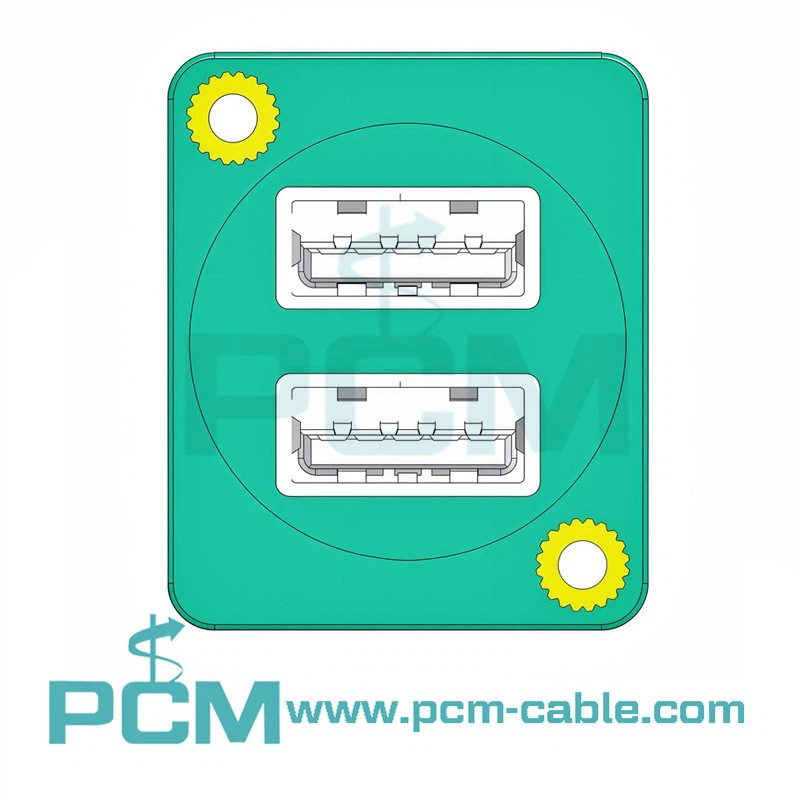

| Product Name | Dual USB 3.0 D-Size Feedthrough Adapter |
| DWG No. | PCM-HD-0252 |
| Compatible with |
Cliff CP30100, Cliff CP30100X, Cliff CP30105, Cliff CP30105X; Switchcraft D3F; etc. |
| Connector Type | Dual USB 3.0 Type-A Female |
| Interface | USB 3.0 |
| Transmission Speed | 5Gbps |
| Mounting Style | D-Size / XLR Panel Mount |
| Structure | Female to Female Feedthrough |
| Housing Material | PVC |
| Contact Plating | Gold Plated |
| Mounting Hardware | M3 Screws and Nuts |
| Color | Black |
| RoHS Compliance | Yes |
Designed for Standard D-Size Panels
This D-size USB 3.0 feedthrough connector uses the widely adopted D-size mounting format commonly found in professional audio, broadcast, industrial automation, and rackmount equipment.
It can be installed in panels designed around:
- Neutrik D-series cutouts
- Cliff Electronics D-shape adapters
- Switchcraft D-size panel systems
This makes integration easier for equipment manufacturers and panel builders without requiring custom mechanical redesign.
Applications
The USB 3.0 female to female adapter is widely used in:
- Industrial control cabinets
- USB interface panels
- Rackmount systems
- Broadcast equipment
- Stage boxes
- Wall plates
- Test and measurement equipment
- Factory automation systems
- Machine vision systems
- Custom I/O panels
Factory Direct USB Panel Mount Solutions
Premier Cable is an experienced manufacturer of industrial cable assemblies and panel interface connectors. We supply OEM and custom solutions for industrial communication, automation, broadcast, and embedded systems.
Our factory supports:
- Custom cable lengths
- Logo printing
- Custom panel interfaces
- USB, RJ45, HDMI, XLR, BNC, RCA, 6.35mm, 3.5mm, DisplayPort, Mini DP, XT30, XT60, and hybrid feedthrough designs
- Small batch and mass production
If you are looking for compatible D-size/XLR shell USB panel adapters, Premier Cable can provide flexible manufacturing support and fast delivery.
