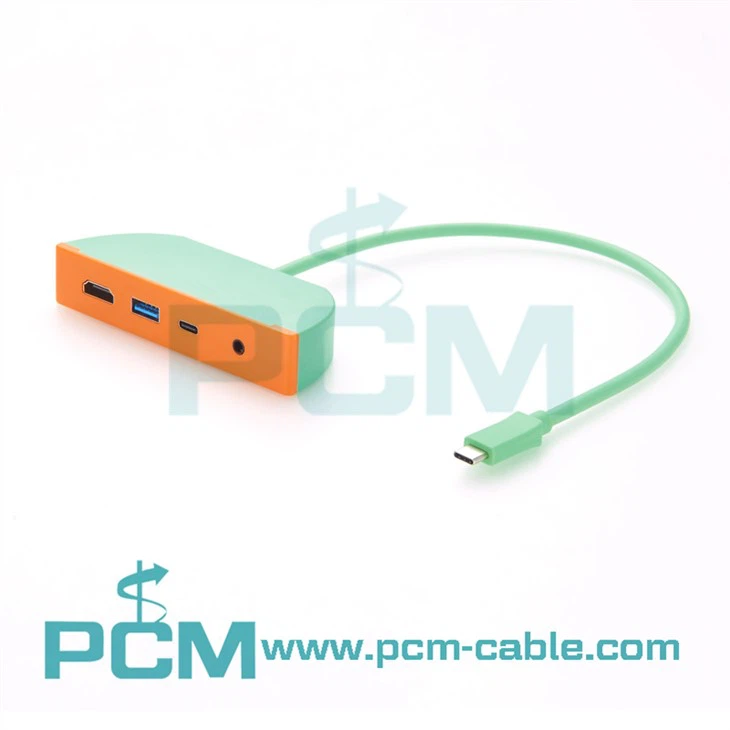

This model is designed as an all-in-one USB-C front-panel multimedia expansion module, bringing high-speed USB connectivity, 4K video output, and full analog audio I/O to the front of any enclosure.
With a single USB-C upstream cable, it delivers USB 10Gbps, High-Definition Multimedia Interface 4K60, and a 3.5mm earphone + microphone combo jack, making it ideal for computers, kiosks, workstations, audio equipment, testing devices, and industrial control systems.
Specifications
| Product Name | Panel Mount USB-C Multiport Dock with 3.5mm Audio, High-Definition Multimedia Interface, USB-A & USB-C |
| Drawing No. | PCM-KW-564 (black color); PCM-KW-570 (orange color) |
| Input Interface | USB-C output cable (to motherboard) |
| USB-A Port | USB 3.0, 10Gbps, 5V/0.9A |
| USB-C Port | USB 3.1 Gen2, 10Gbps, 5V/3A |
| High-Definition Multimedia Interface Port | Supports 4K @ 60Hz |
| 3.5mm Audio Jack | Combined earphone + microphone port |
| Mounting Method | Dual screw holes, panel mount |
| Cable Length | 0.3 m / 1.5 m, customizable |
| Compatibility | Windows / macOS / Linux / Android / Embedded OS |
Multi-Port Usage Scenarios
This model is engineered to allow simultaneous multi-port operation without interference, thanks to the dedicated high-speed chip architecture (ATE700Q + GL3590 + CS5366BN-2). Typical combined-use scenarios include:
1. Video + Audio + USB Data at the Same Time
Connect a 4K monitor via High-Definition Multimedia Interface, plug in a USB drive, and use a headset for calls-all without signal drop or audio noise.
2. External SSD + Headset + High-Definition Multimedia Interface Display
10Gbps USB performance remains stable even when High-Definition Multimedia Interface and audio are active, making it suitable for content creators and testers.
3. USB-C Charging & USB-A Device Operation
The USB-C 5V/3A output can power small devices while USB-A handles data transfer.
4. Embedded & Industrial Systems
Front-panel access to audio, USB, and display output makes it perfect for kiosks, POS systems, medical devices, or diagnostic equipment.
5. PC Case Front-Panel Upgrade
Ideal for DIY PC builders who want modern USB-C, 4K video, and audio I/O all routed to the front of the chassis.
Performance Highlights
- True 10Gbps SuperSpeed+ USB throughput powered by GL3590, ensuring stable high-bandwidth data for SSDs, cameras, and industrial devices.
- 4K60Hz ultra-clear High-Definition Multimedia Interface output with reliable signal integrity and automatic EDID negotiation.
- High-fidelity audio I/O enabled by CS5366BN-2, offering clean microphone input and clear headphone output without system noise.
- Low-latency chipset integration (ATE700Q) delivers smooth simultaneous operation across all interfaces.
- Independent data channels ensure the USB ports, High-Definition Multimedia Interface output, and audio jack operate concurrently without performance drops.
- Optimized internal PCB routing reduces crosstalk between video, audio, and high-speed USB lines.
- Designed for system integrators needing reliable front-panel expansion in embedded or custom-built systems.
