USB-C Panel Mount 4-in-1 Dock With USB-A 10Gbps, USB-C 10Gbps, HDMI 4K60Hz & RS232 DB9
USB-C Panel Expansion Module – USB, HDMI and RS232 for Industrial & Embedded Systems
USB-C to USB-A USB-C HDMI RS232 (DB9) Panel Mount Multiport Dock

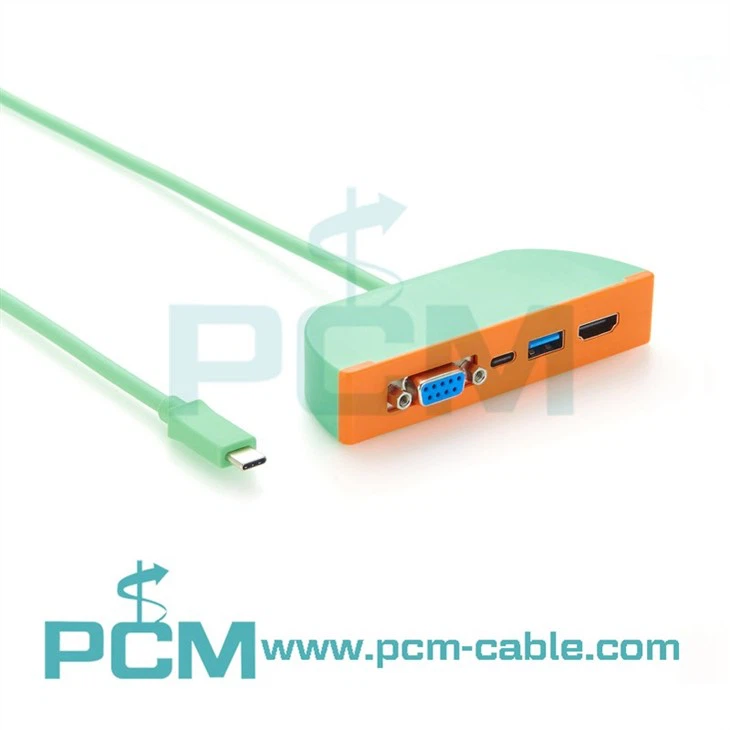

USB-C Panel Mount Docking Station Featuring RS232 DB9, USB 10Gbps and 4K HDMI
USB-C Panel Mount Dock with USB-A 10Gbps, USB-C 10Gbps, HDMI 4K60Hz & RS232 DB9
USB-C 4-in-1 Panel Mount Dock with RS232
USB-C Panel Mount 4-in-1 Dock With USB-A 10Gbps, USB-C 10Gbps, 4K60Hz & RS232 DB9
PCM Cable Co., Ltd. is one of the leading usb-c panel mount 4-in-1 dock with usb-a 10gbps, usb-c 10gbps, 4k60hz & rs232 db9 manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
This USB-C Panel Mount 4-in-1 Dock is designed specifically for equipment that requires both modern high-speed interfaces and legacy serial connectivity. By integrating USB 10Gbps ports, 4K High-Definition Multimedia Interface output, and an RS232 DB9 connector into a single panel-mount solution, it enables seamless front-panel access for industrial PCs, kiosks, automation terminals, and embedded controllers.
Specifications
| Product Name | USB-C Panel Expansion Module – USB, High-Definition Multimedia Interface and RS232 for Industrial & Embedded Systems |
| Drawing No. | PCM-KW-563 (black color); PCM-KW-569 (orange color) |
| Input Interface | USB-C output cable (to motherboard) |
| USB-A Port | USB 3.0, 10Gbps, 5V/0.9A |
| USB-C Port | USB 3.1 Gen2, 10Gbps, 5V/3A |
| High-Definition Multimedia Interface Port | Supports 4K @ 60Hz |
| Serial Port | RS232 DB9 (standard serial communication) |
| Mounting Method | Dual screw holes, panel mount |
| Cable Length | 0.3 m / 1.5 m, customizable |
| Compatibility | Windows / macOS / Linux / Android / Embedded OS |
FAQ
Q1: Does the RS232 DB9 port support hardware flow control?
A1: Yes. The DB9 connector supports standard RS232 signaling, including TX/RX and optional hardware flow control (RTS/CTS) depending on the host system's capabilities.
Q2: Can this USB-C dock be used with single-board computers such as Raspberry Pi, Jetson, or Rock Pi?
A2: Yes, as long as the board supports USB-C data transmission (not just power delivery). RS232 functionality may require installing serial drivers depending on the SBC platform.
Q3: How is the RS232 signal generated-through a native UART or a USB-to-serial chipset?
A3: The RS232 interface is driven through a USB-to-serial conversion chipset integrated in the dock. This ensures compatibility across Windows, Linux, and embedded platforms without requiring native COM ports.
