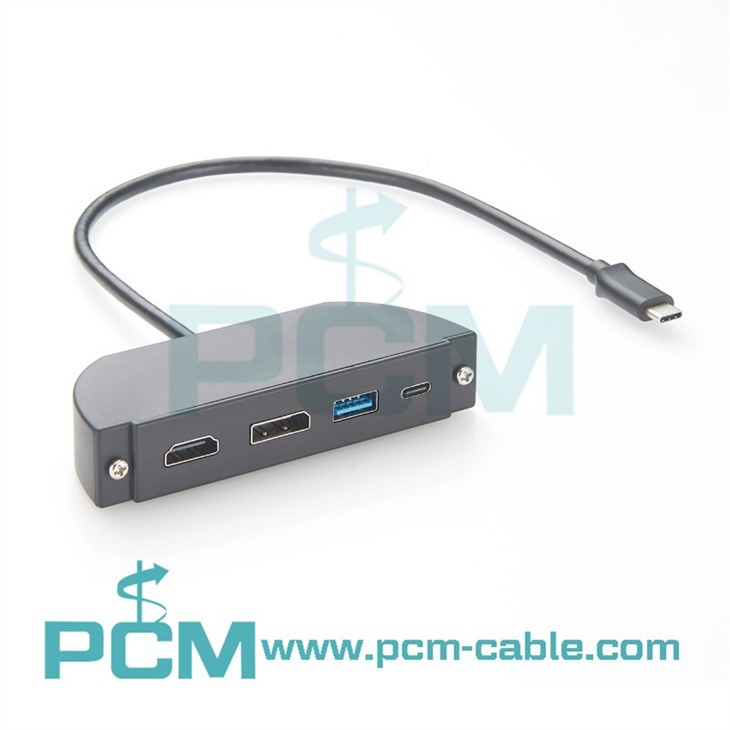

usb type c docking station with HDMI 4K60Hz, DisplayPort, and Dual USB 10Gbps

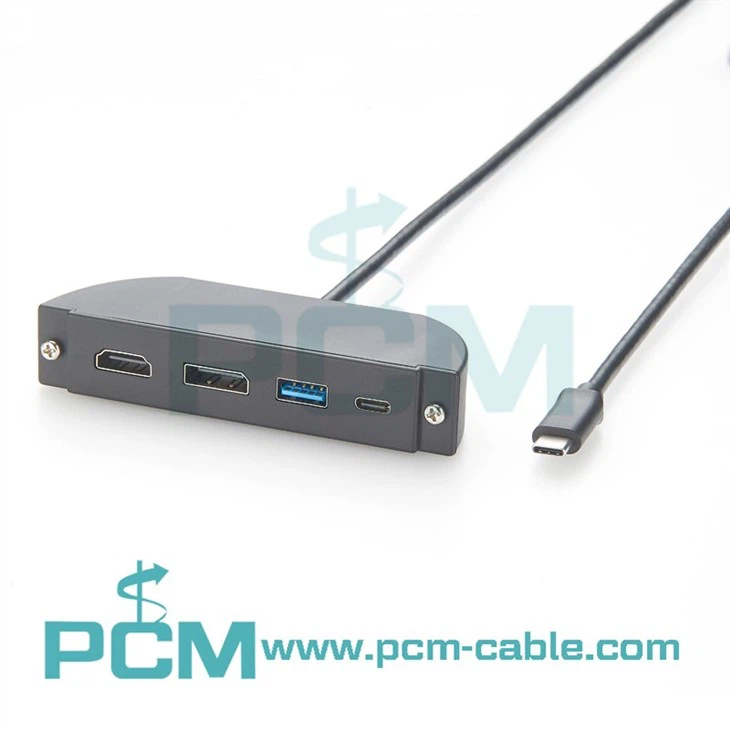

USB-C Panel Hub for Dual Video Output and High-Speed USB Connectivity

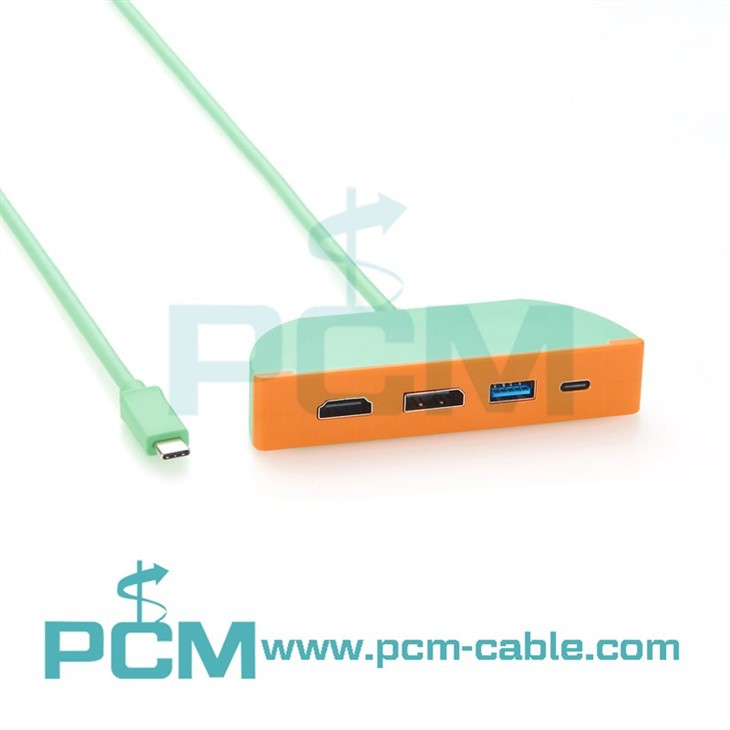

usb docking station Front-Panel USB-C Dock Featuring 4K60 HDMI, DisplayPort, and USB Expansion

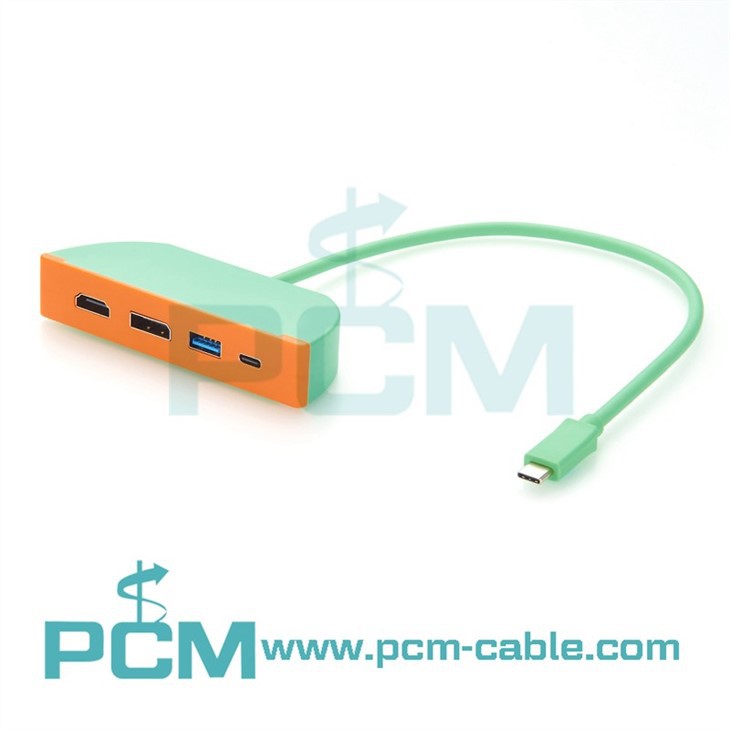

USB-C Dock USB-C to HDMIDP Multiport Panel Mount Adapter with 10Gbps USB-AC
USB-C 4-in-1 Multiport Panel Mount Dock for PC Case & Industrial Systems
USB C Multiport Adapter 10Gbps USB Type-C Mini Dock With 4K 60Hz DisplayPort USB Hub
PCM Cable Co., Ltd. is one of the leading usb c multiport adapter 10gbps usb type-c mini dock with 4k 60hz displayport usb hub manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

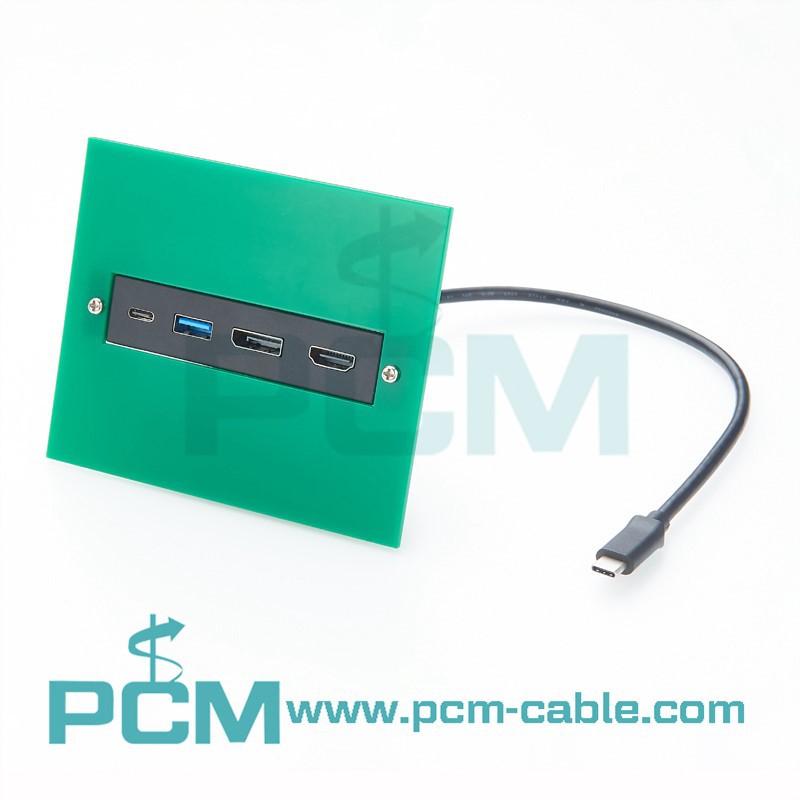

This USB-C to Multi-Display Panel Mount Dock is engineered for applications that require dual high-resolution video output together with high-speed USB connectivity.
Through a single USB-C upstream cable, the module delivers High-Definition Multimedia Interface 4K60Hz, DisplayPort 4K60Hz, USB-A 10Gbps, and USB-C 10Gbps, enabling versatile front-panel expansion for workstations, embedded PCs, control terminals, and custom enclosures.
Powered by the GL3590 high-speed USB controller, the LDR6020 DisplayPort engine, and the RTD2143 High-Definition Multimedia Interface processor, this module ensures stable, clean, and synchronized video output while maintaining full-bandwidth USB performance.
Specifications
| Product Name | USB-C Multi-Port Panel Extension Dock |
| Drawing No. | PCM-KW-566 (black color); PCM-KW-572 (orange color) |
| Upstream Interface | USB-C Male (Host connection) |
| Downstream Interfaces | USB 3.0 A:
|
USB-C 3.1:
|
|
|
High-Definition Multimedia Interface:
|
|
|
DisplayPort:
|
|
| Mounting Method | Dual screw holes, panel mount |
| Cable Length | 0.3 m / 1.5 m, customizable |
| Compatibility | Windows / macOS / Linux / Android / Embedded OS |
FAQ
Q1: Can High-Definition Multimedia Interface and DisplayPort be used at the same time?
A1: Yes. High-Definition Multimedia Interface and DisplayPort can operate simultaneously, and the bandwidth is managed independently through LDR6020 and RTD2143 without affecting USB performance.
Q2: Does using dual video outputs reduce USB 10Gbps speed?
A2: No. USB bandwidth is controlled by the GL3590, which maintains full 10Gbps capacity even when both video outputs are active.
Q3: . Is this USB-C 4-in-1 Multiport Dock suitable for industrial or 24/7 applications?
A3: Yes. This USB-C Panel Mount Expansion Module is designed for continuous operation, and has passed extended thermal, bending, and signal-integrity reliability tests.
Q4: Can the USB-C downstream port provide power to devices?
A4: Yes. The USB-C port supports 5V/3A, suitable for powering small devices, data tools, and certain portable accessories.
Q5: Does DisplayPort support audio output?
A5: Yes. Audio passthrough is supported if the host USB-C Alt Mode provides audio channels.
Q6: Can this Panel-Mountable USB-C Multi-Port Hub be used for system integration or OEM builds?
Q6: Absolutely. It is designed specifically for custom enclosures, panel-mount installations, and OEM/ODM projects requiring front-access modern I/O.
Q7: Are 0.3m and 1.5m cables performance-consistent?
A7: Yes. Both cable lengths maintain signal integrity for USB 10Gbps and 4K video due to optimised shielding and internal PCB design.
