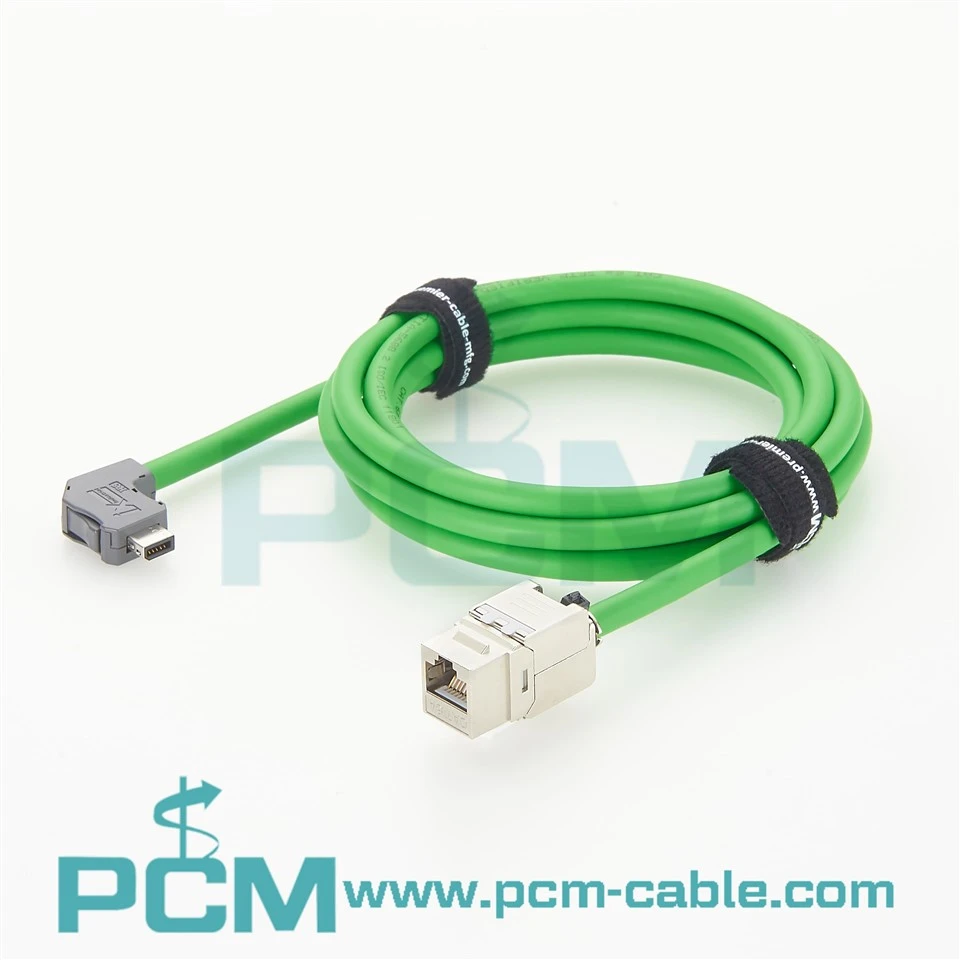

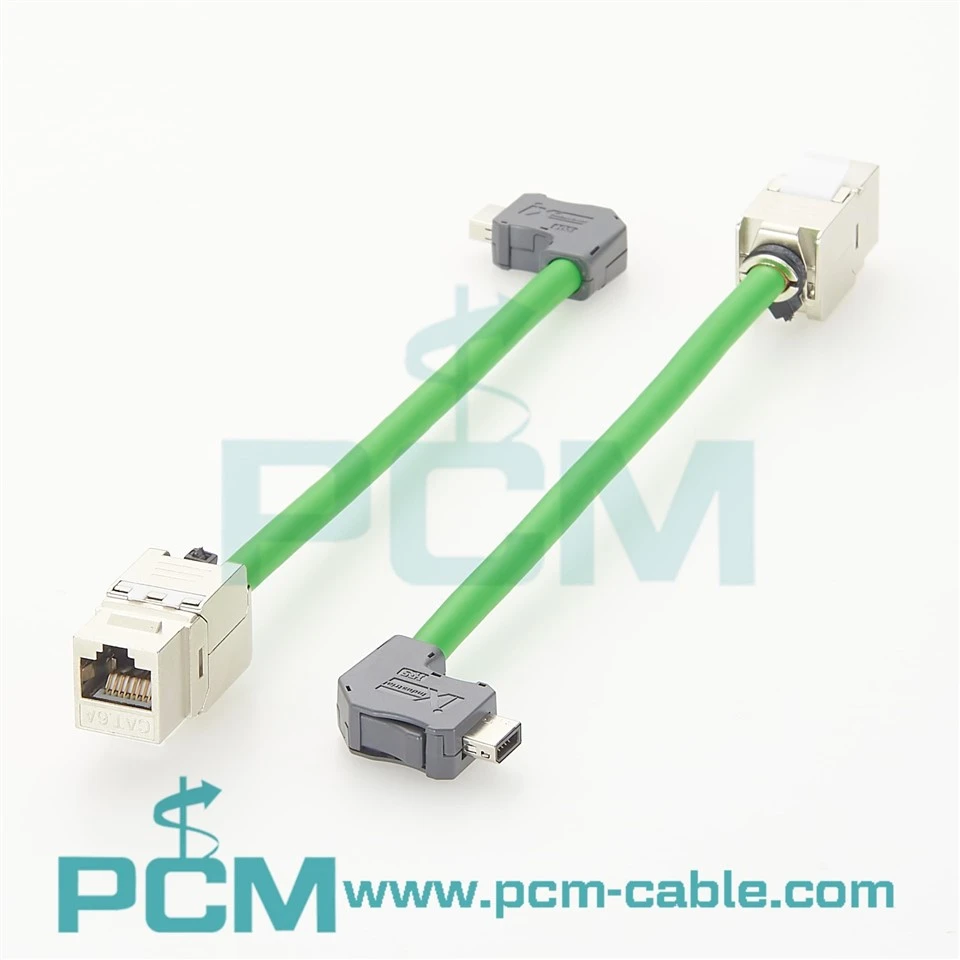

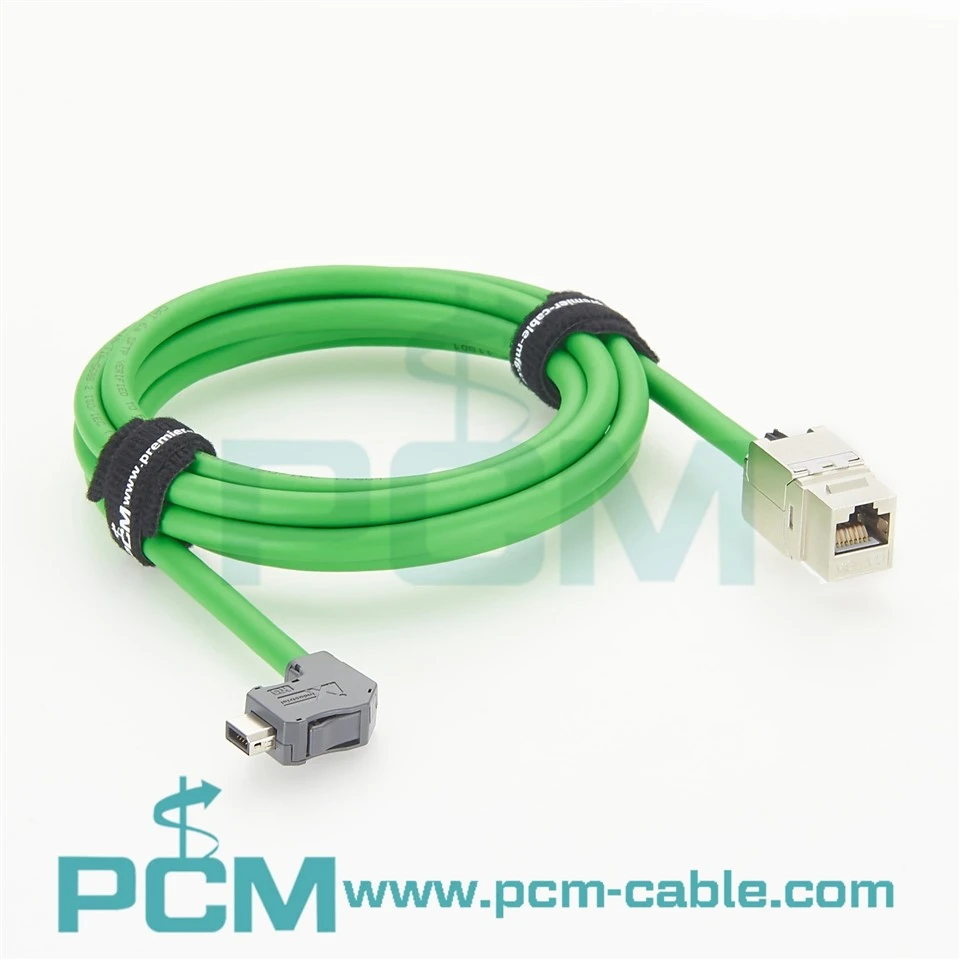

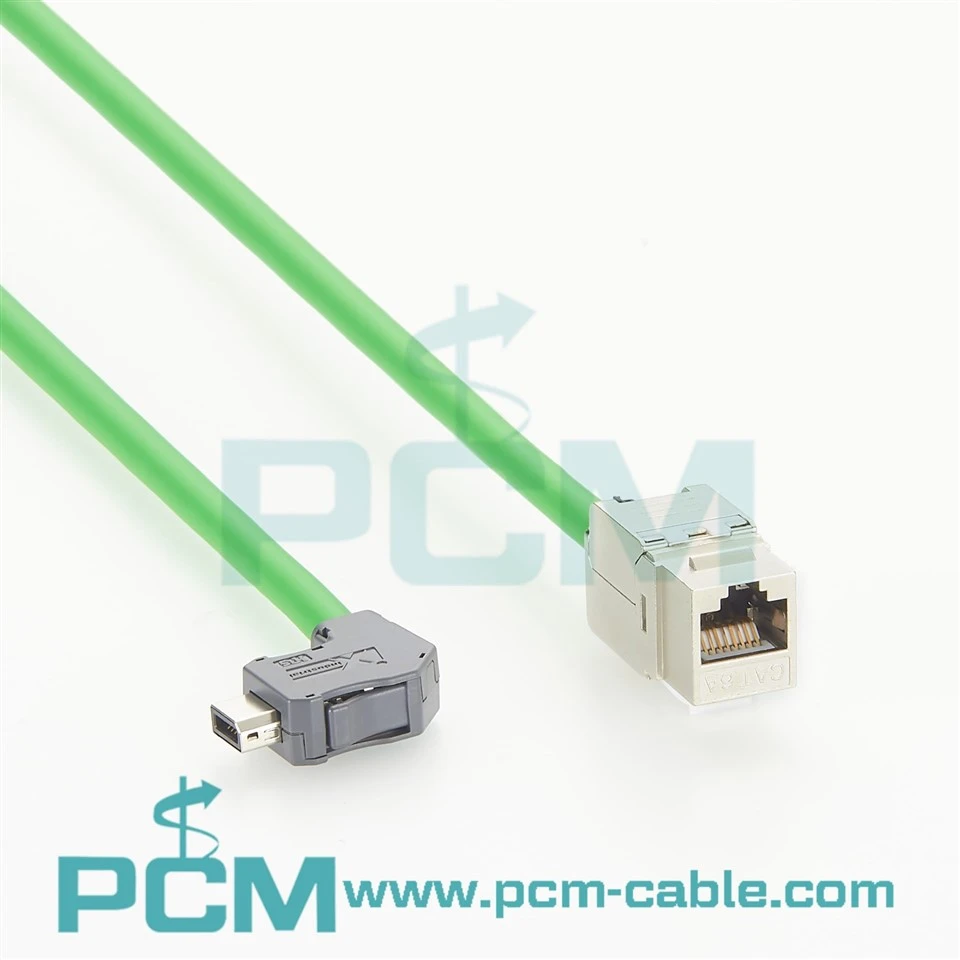

Premier Cable PCM-HD-0291 is an IX Industrial CAT6A Ethernet cable assembly designed for industrial automation, machine vision, robotics and high-density Ethernet equipment. It features an IX A-Key right-angle upward cable plug on one end and an RJ45 CAT6A Keystone female jack on the other, creating a reliable high-speed bridge between compact ix Industrial devices and conventional RJ45 Ethernet infrastructure.



Compared with straight-exit cable assemblies, the right-angle upward design redirects the cable along the equipment structure and reduces the amount of straight clearance required behind the connector. This makes it particularly useful for industrial cameras, PLCs, edge controllers, robotic controllers and compact industrial switches.

●    Core Advantages

Meticulously engineered by Premier Cable, the PCM-HD-0291 exemplifies miniaturized interconnect intelligence tailored for the Industry 4.0 era. Its core advantage lies in breaking the trade-off between envelope size and performance, maintaining full Cat6A electrical integrity while slashing interface footprint by 75%, setting a benchmark for 10GbE integration.

●    Stable Connectivity

Across plant floors where variable-frequency motors and high-voltage power lines intertwine, this product relies on a physically fully enclosed SFTP double shield, erecting a dead-zone-free barrier for each high-speed differential pair. Ultra-low propagation delay and near-end crosstalk suppression secure zero-packet-loss for deterministic industrial Ethernet protocols.

★    Installation Requirements

Critical Installation Notice: Because this cable is a unique IX A-Key CVL2 right-angle up variant, its routing direction is strictly opposite to the plug's Pin 1 position. Engineers must cross-verify the receptacle orientation during cabinet layout to prevent geometric interference. The RJ45 Keystone terminal simplifies field integration, snapping into panels tool-free.

Slim Industrial Network Switches



The 90° right-angle up design of the PCM-HD-0291 provides the definitive cure for this bottleneck. The cable redirects exactly 90 degrees instantly upon mating with the IX port, entirely bypassing the vertical bend radius envelope required by ordinary network cords, ensuring the cabinet front panels close effortlessly even under fully populated, high-density wiring layout.

Confined Machine Vision Enclosures



On automated production lines, the clearance envelope reserved behind a camera housing is frequently constrained to just a few centimeters. Forcing a straight network cord to bend within this gap splits the internal twist pairs, inducing "down-negotiated speeds" or intermittent dropouts. This IX A-Key 90° right-angle up plug squashes rear-depth consumption to the absolute minimum, allowing cameras to sit flush against walls or structural frames, maximizing mechanical layout freedom for imaging system designers.

◆    Drastic Reduction of Bending Stress

The right-angle design forces the cable to redirect immediately at the boot, eliminating internal wire breakage and intermittent contacts caused by forced bending, multiplying wiring longevity.



◆    10Gbps Bandwidth with Backward Compatibility

Native support for 10GBASE-T high-speed 10Gbps data throughput while offering backward compatibility with Cat6 and Cat5e setups, ensuring smooth upgrades of legacy assets.



◆    All-Weather Harsh Environment Defense

The outer jacket uses premium industrial TPU, boasting top-tier resistance against UV, moisture, cutting oils, and welding spatter, preventing jacket degradation on the shop floor.



◆    Full-Metal Closed Noise Isolation

Features a dual-layer shield with individual foil pairs plus an overall copper braid (SFTP), delivering Faraday-cage level isolation to block crosstalk and high-frequency EMI from VFDs.

Q1：How do I confirm if my equipment needs an "Up Angle" or "Down Angle" cable before purchasing?

A1：The key lies in verifying the relative position of Pin 1 on your equipment's receptacle. In the CVL2 standard adopted by the PCM-HD-0291, the cable exits opposite to Pin 1 (90° upward). We recommend cross-checking your hardware drawings or consulting our support team to avoid mounting interference.

Q2：Is there any difference in electrical performance between the IDC crimp (IX30G) and soldered (IX40G) versions?

A2：None at all. Both variants are completely identical in terms of bandwidth, 10Gbps data throughput, and EMI immunity. They differ solely in the internal factory termination process between conductors and pins, exerting zero impact on field usage or signal integrity.

Q3：Does this network cable with an oil-resistant TPU jacket support high-power Power over Ethernet (PoE) applications?

A3：Yes. Alongside excellent physical oil and chemical resistance, its electrical infrastructure fully supports PoE (IEEE 802.3af), PoE+ (802.3at), and PoE++ (802.3bt) applications. It reliably delivers power to remote 10GigE cameras, LiDARs, or wireless APs without inducing localized thermal overhead.
