IX Industrial A-Key to RJ45 CAT6A Cable
PCM Cable Co., Ltd. is one of the leading IX Industrial A-Key to RJ45 CAT6A Cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.
Premier Cable PCM-HD-0290 is a high-performance IX Industrial CAT6A Ethernet cable developed for industrial automation, machine vision, robotics and professional networking equipment. It features an IX40G-A-10S-CV A-Key plug on one end and an RJ45 CAT6A Keystone female jack on the other, providing an efficient bridge between compact IX Industrial interfaces and conventional RJ45 Ethernet infrastructure.
The compact IX Industrial interface is well suited for PLCs, industrial PCs, machine vision controllers, industrial switches and space-constrained edge devices. Compared with conventional RJ45 interfaces, its reduced connector footprint helps improve port density and supports increasingly compact industrial equipment designs.
Combined with CAT6A S/FTP shielded cabling, the assembly supports Ethernet transmission rates up to 10Gbps and can be integrated into PoE network architectures for industrial cameras, controllers, sensors and network terminals.
Core Edge
As a flagship product designed by Premier Cable for next-generation Industrial IoT, the PCM-HD-0290 perfectly resolves the vulnerabilities of traditional RJ45 connectors, such as bulkiness and loose connections in confined spaces. This assembly represents the future of high-density connectivity, offering a practical solution for control cabinet miniaturization.
Stable Connectivity
In factory environments filled with electromagnetic noise, data integrity is paramount. By combining S/FTP double shielding with the fully shielded housing of the IX40G-A-10S-CV, this cable establishes a robust Faraday cage, blocking intense EMI from servo motors and VFDs to guarantee zero-packet-loss 10GbE network.
Installation Requirements
Featuring a modular RJ45 Keystone structure on one end, this product snaps seamlessly into any standard industrial panel cutout or patch panel. This allows equipment manufacturers to provide a universal RJ45 interface externally while utilizing the compact IX interface to connect internal precision boards, simplifying field wiring and maintenance.
Products Specification
| Product Name | IX40G-A to CAT6A Keystone Jack Cable |
| Drawing Number | PCM-HD-0290 |
| Connector P1 | IX40G-A-10S-CV, A Key |
| Connector P2 | CAT6A Keystone Jack, Shielded Type |
| Network Category | CAT6A |
| Supported Speed | 10G/ 10 Gigabit Ethernet |
| Cable | CAT6A SFTP Shielded Cable |
| Wire Gauge | 26AWG x 4 Pair |
| Cable Outer Diameter | OD6.5 +0.2 mm |

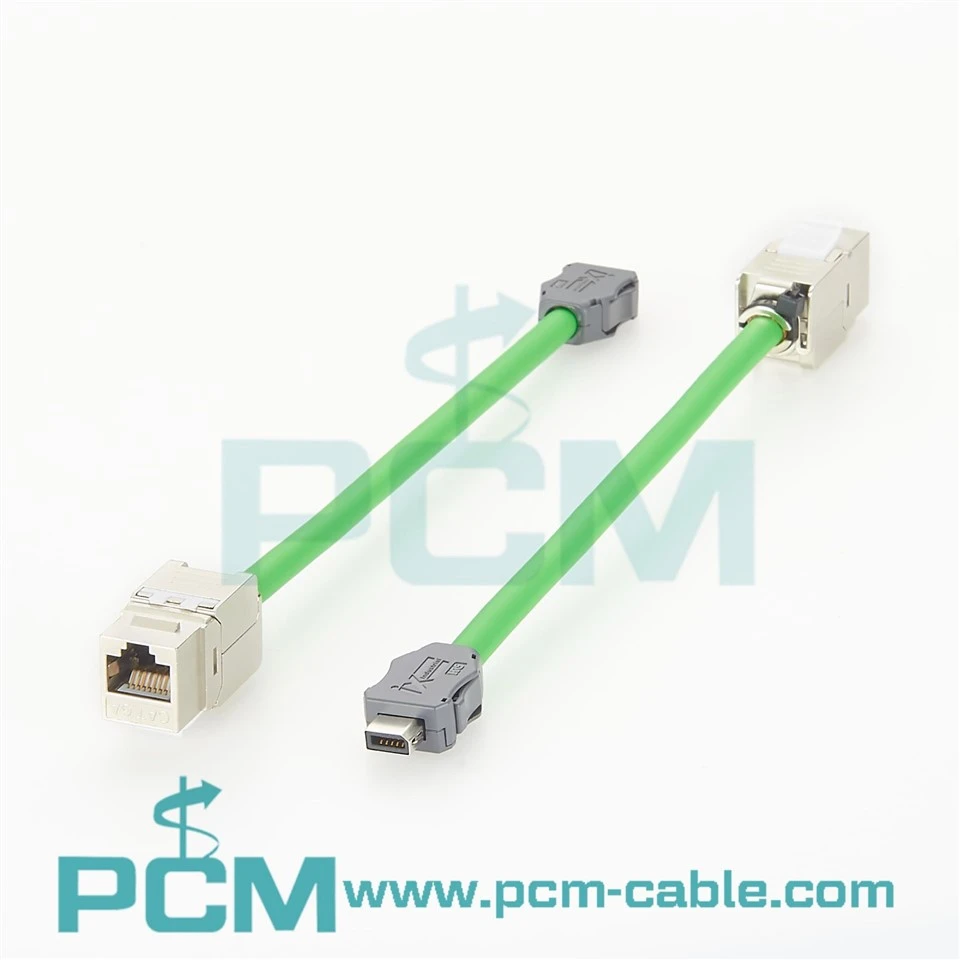

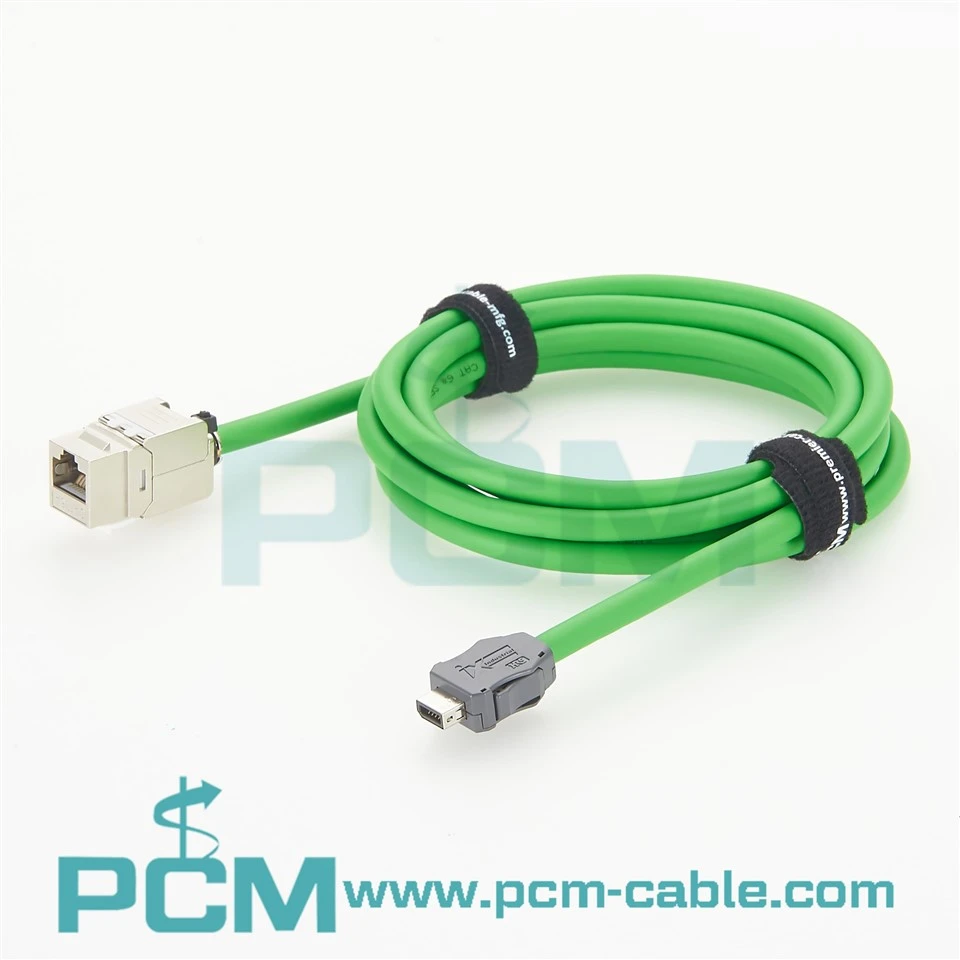

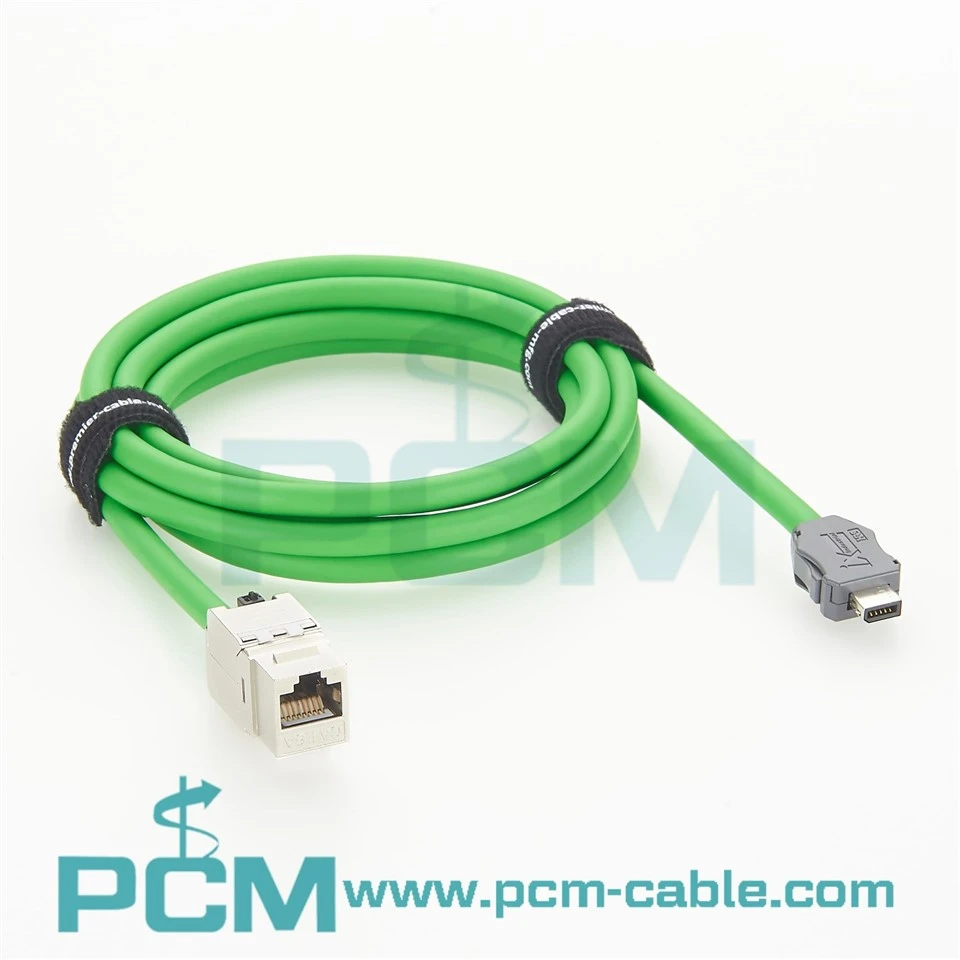

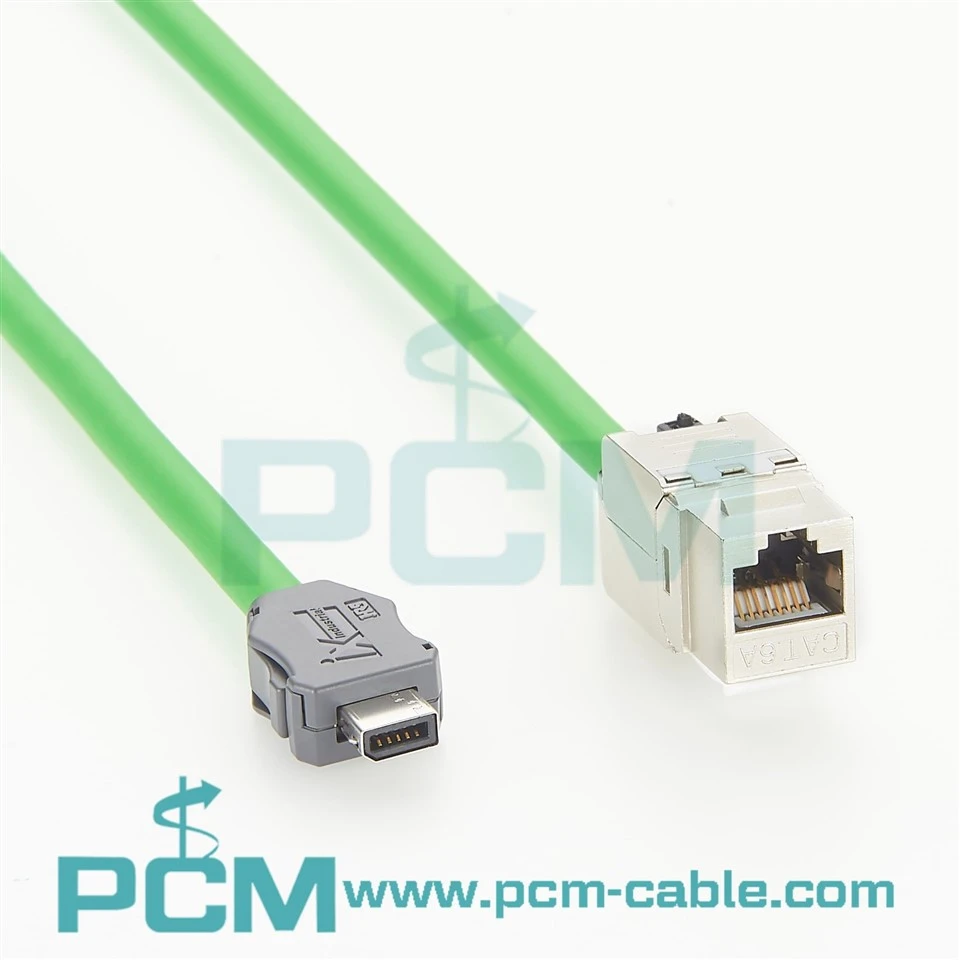

Products Display
Product Features
◆ Space-Saving Interface Design
Features an IX A-Key plug compliance with IEC 61076-3-124, reducingfootprint by 70% compared to standard RJ45 for high-density panel layout.
◆ 10Gbps High-Speed Bandwidth
Compliant with true CAT6A standards, supporting up to 10Gbps datathroughput and fully compatible with high-power PoE applications.
◆ S/FTP Double Shielding Structure
Utilizes S/FTP (braided overall shield + foil shield per pair) structure, offeringexcellent suppression against high-frequency industrial EMI and crosstalk
◆ Modular Keystone Integration
Equipped with a standard RJ45 Keystone female jack on the other endfacilitating direct integration into industrial cabinets, wall plates, and patch panels.
Core Application Scenarios
Industrial Network Integration
As automation hardware undergoes miniaturization upgrades, traditional RJ45 switches and interfaces consume excessive footprint inside control enclosures. The IX interface deployed in the PCM-HD-0290 slashes footprints by over 70% compared to standard RJ45, allowing equipment builders to line up a far greater number of network ports on a limited panel, multiplying port density and facilitating slim cabinet designs.
Factory Automation & Robotics Systems
Multi-axis industrial robots, 6-axis robotic arms, and reciprocating gantries on automated assembly lines represent extreme mechanical environments characterized by high dynamics and severe wear. The PCM-HD-0290, with its superior structural engineering, perfectly matches the rigorous demands of dynamic drag chain systems.
Machine Vision Systems
In modern automated inspection, machine vision systems demand near-stringent real-time data transmission. The PCM-HD-0290 is tailor-made for interconnections between 10GigE Vision cameras and high-speed frame grabbers.
Core Performance Advantages
Extreme Dynamic Endurance
Employs a high-flex PUR/TPU jacket with excellent torsion and bendingfatigue resistance, ensuring continuous operation in dynamic drag chain systemswithout signal loss
Harsh Environmental Chemical Shield
The outer jacket offers top-tier resistance to oil, abrasion, and coolants,effectively resisting chemical erosion from cutting fluids and lubricants on factoryfloors.
Anti-Vibration Secure Latching Mechanism
The IX interface features a robust dual-metal latching system that withstandssevere mechanical vibration and shock, preventing accidental disconnections.
Authorized Industry Standard Compliance
Fully compliant with standards promoted by Hirose and industrial Ethernetspecifications, ensuring interoperability and compliance with global mainstreamindustrial switches and PLCs
Frequently Asked Questions
Q1: Can this IX Industrial interface plug directly into a regular RJ45 switch?
A1：No. The IX interface is physically entirely different from RJ45. This product (PCM-HD-0290) is anadapter assembly designed precisely for this purpose, allowing you to easily bridge IXinterface devices into existing standard RJ45 networks via the RJ45 Keystone jack.
Q2: What is the essential difference between TPU cable and traditional PVC cable?
A2： TPU (Polyurethane) has mechanical strength far superior to PVC. It performs excellently in tearresistance, abrasion resistance,and oil resistance (such as cutting oils or lubricating oils), and maintains highflexibility at low temperatures, making it the preferred material for dynamic drag chains and harsh industrialworkshops.
Q3：|Does this networkcable support power delivery via PoE? What is the maximum wattage supported?
A3：Yes, this cable is fully compatible with PoE, PoE+, and PoE++ applications.Its pure copper conductors and excellent thermal dissipation capabilities ensurestable transmission of high-power electricity, meeting the power demands ofindustrial cameras and remote automation terminals
Products Drawing
