NMEA 2000 In-line Terminator
In-line 120 Ohm NMEA 2000 Terminator
PCM Cable Co., Ltd. is one of the leading in-line 120 ohm nmea 2000 terminator manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

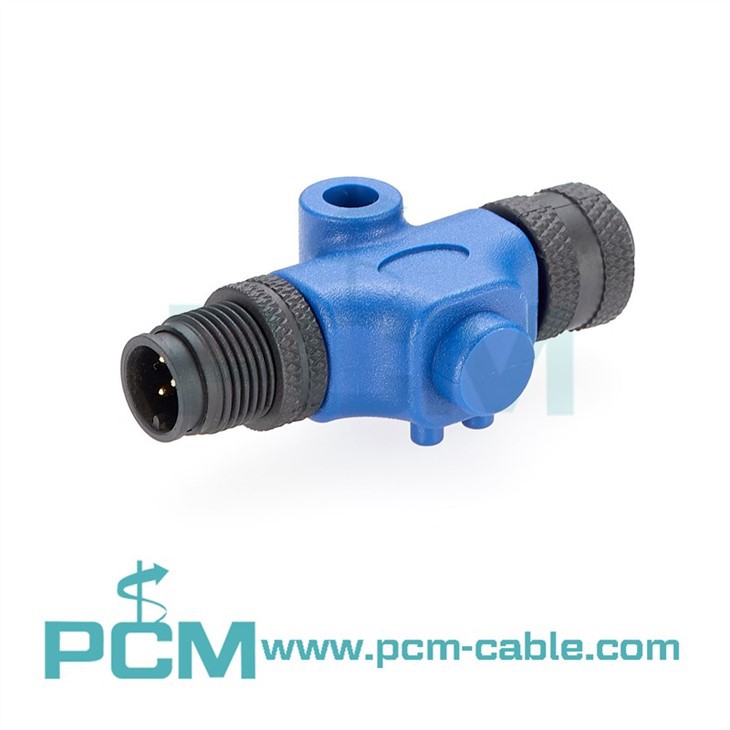

This in-line 120 Ohm NMEA 2000 Terminator is a plug-in termination resistor designed specifically for marine networks. It plugs directly between the device and the backbone cable, eliminating the need for additional T-connectors and terminations, simplifying wiring and making it an ideal choice for reliable communication on NMEA 2000 networks.
This inline terminator is fully compatible with the Garmin 010-11096-00 and Maretron IT-CM-CF, serving as a replacement for the termination requirements of NMEA 2000 networks.
Specifications
| Product name | NMEA 2000 in-line terminator |
| Compatible with |
GARMIN 010-11096-00; Maretron IT-CM-CF |
| DWG No. | PCM-0853 |
| Resistance | 120 Ohm, 1/8W |
| Connector Type | M12 Micro-C connector (Male to Female) |
| Operating Voltage | 9V - 30V DC |
| Protection Rating | IP67 (when mated) |
| Materials | Thermoplastic housing, gold-plated contacts |
| Installation | In-line between backbone and device |
Application Scenarios
- When the last device on a NMEA 2000 network is connected via a long backbone extension cable
- When reducing wiring complexity, saving space, or improving system integration is required
- Used to properly terminate the backbone to prevent signal reflections and communication errors
Features
- Integrated Design: The termination resistor and connector are integrated into one, simplifying installation and eliminating T-connectors and separate terminators.
- Plug-and-Play: A standard Micro connector allows for easy integration into any NMEA 2000 backbone network.
- Network Protection: A built-in 120 Ohm termination resistor ensures bus impedance matching and improves data transmission stability.
- Waterproof and Durable: Up to IP67 rating (depending on model), suitable for use in harsh marine environments
Installation Recommendations
Termination resistors must be installed at both ends of the NMEA 2000 network backbone. This product is suitable for:
- Connecting a backbone extension cable to a device at one end
- Where a traditional T-connector is not possible or where space is limited
