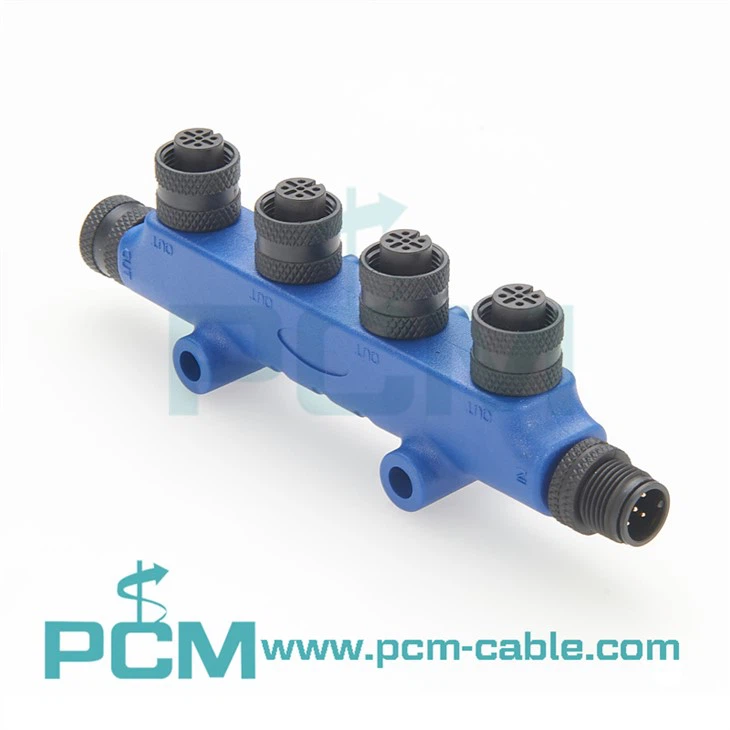

NMEA 2000 Four Way Tee Connector

PCM Cable Co., Ltd. is one of the leading nmea 2000 four way tee connector manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.





Description



The NMEA 2000 Four Way Tee Connector will split (transfer) the signal and power to four or more independent connectors, thereby further realizing the addition of four or more executive devices to the original communication network. The circuit of the connector is designed in parallel, so it can control the operation and start and stop of each equipment in the network synchronously.



NMEA2000 Hub

NMEA2000 4-Way Hub

NMEA 2000 Backbone

multi-port T-connector

NMEA 2000 4 Port T-Connector



4-Way Block for NMEA 2000 Networks

NMEA 2000 Network 4 Way Tee Connector

NMEA 2000 Micro-C Low Loss 4 Way Joiner



Specifications



Connector: M12 molded connector;

Fool-proof code: Type A (A-Code);

Current: 4A;

Voltage: 60V;

Insulation resistance: ≥ 100mΩ;

Contact resistance: ≤5mΩ;

Rubber core material: TPU+GF;

Outer mold material: TPU;

Sealing ring: silicone;

Terminal Plating: Gold Plating

Screw torque: 0.2Nm is recommended;

Protection class: IP67, IP68;

Reference standard: IEC 61076-2-104;

Screw Material: Brass Nickel Plated Machining;

Temperature range: -25ºC to +80ºC;

Locking method: M12*1.0screw/M8



Applications



●Open field bus network, such as: DeviceNet, NMEA 2000

●Factory automation control equipment

●Packaging, labeling and logistics equipment

●Industrial automation instrument

●LED display panel and outdoor LED lighting
