NMEA2000 To DB9 Cable

PCM Cable Co., Ltd. is one of the leading nmea2000 to db9 cable manufacturers and suppliers in China. Welcome to wholesale high quality customized products at discount price from our factory. Contact us for quotation and free sample.

DB9 to M12 5 Pin Adapter

NMEA2000 cable

M12-to-DB9 5-Pin Adapter Cable NMEA 2000, CANopen

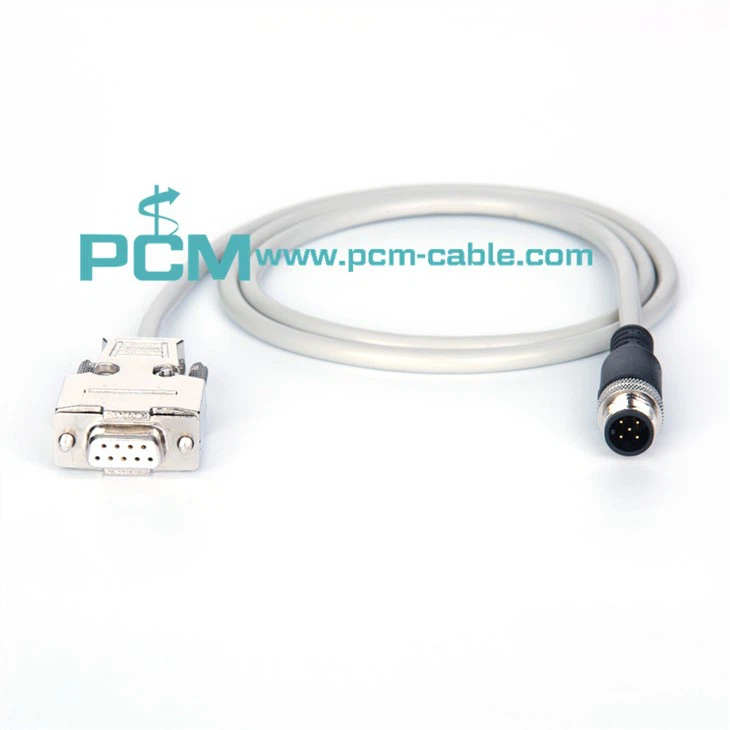

This DB9-M12 adapter cable features an M12 Male (NMEA2000) on one end and a DSUB 9 Pin female on the other end.

It is used for logging NMEA 2000 data from maritime vessels or CANopen data from industrial machinery.

This cable allows you to connect the CANedge/CLX000 CAN recorder directly to the CAN bus - providing access to the CAN bus, as well as input power/ground for the CAN recorder.

Fieldbuses such as CANOopen, IO-link, interus, and profibus are industrial data buses that have developed rapidly in recent years, and 5-pin M12 to DB9 cables are widely used.

Specifications

Name: M12 Male to D9 Female Converter Cable

Connector 1: M12 5-pin male

Connector 2: 9-pin D-sub (DB9) female

Cable: 22AWG (0.50mm㎡)

Length: 1.5m, 3m, 5m, or customized

Compatible: High-speed CAN bus (ISO 11898-2) incl. e.g. NMEA 2000 and CANopen
